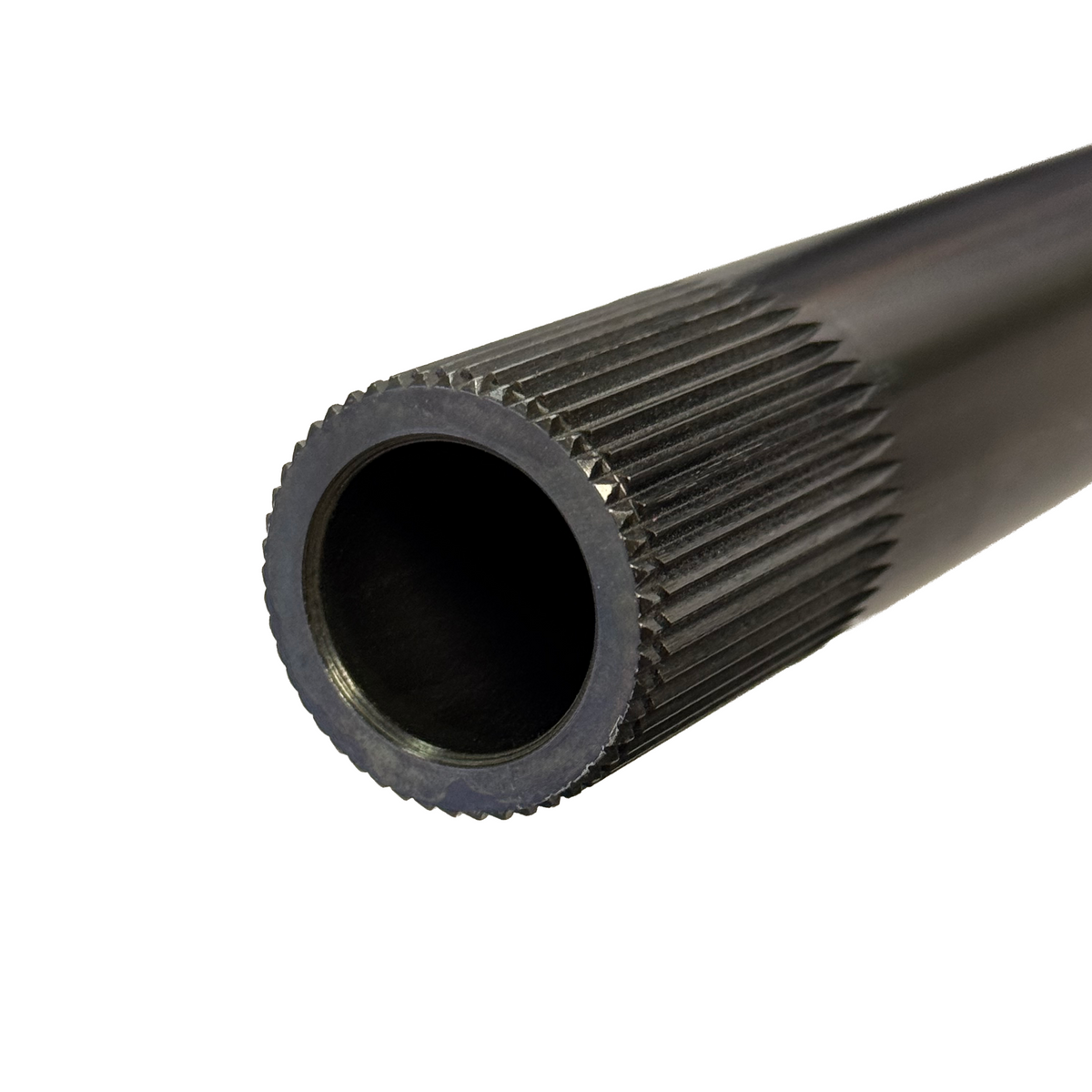

1-1/4" 48-Spline Hollow Sway Bar – 37-1/2" Long

1-1/4" 48-Spline Hollow Sway Bar – 37-1/2" Long – #179-3750

Build a properly matched sway bar system around this 1-1/4-inch hollow splined bar. Featuring .188-inch wall construction, 48-spline ends, and 1 inch of spline length per side, it is designed for custom suspension applications where bar length, arm position, and packaging must work together.

When paired with compatible sway bar arms and end links, the bar transfers load between the left and right suspension to help control body roll and improve chassis stability.

Key Features

• 4130 Alloy Steel: Manufactured from high-strength 4130 steel for the durability and torsional performance required in demanding suspension applications.

• Hollow .188-Inch Wall Construction: Reduces weight compared with a solid bar of the same outside diameter while providing dependable torsional resistance.

• Black Zinc-Plated Finish: Helps protect the steel against corrosion while providing a clean, uniform black appearance.

• 48-Spline Ends: Provides positive arm engagement and multiple indexing positions for setting the sway bar arms at the proper operating angle.

• 1-Inch Spline Length: Each end provides 1 inch of engagement for compatible sway bar arms.

• Universal Configuration: Suitable for custom chassis, trucks, hot rods, pro-touring, racing, and fabrication applications.

Specifications

• Material: 4130 Alloy Steel

• Finish: Black Zinc Plated

• Length: 37.50"

• Outside Diameter: 1-1/4"

• Wall Thickness: .188"

• Construction: Hollow

• Spline Pattern: 1-1/4" × 48

• Spline Length: 1" Per End

Before Ordering

This is a universal suspension component and is not vehicle-specific. Measure the required overall bar length and confirm compatibility with your sway bar arms, mounting bushings, end links, and chassis layout before ordering.

Final sway bar performance is affected by the bar’s wall thickness, working length, sway bar arm length, and mounting geometry.

What’s Included

• (1) 1-1/4" × 48-Spline Hollow Sway Bar

Sway bar arms, bushings, mounts, end links, and installation hardware are sold separately unless otherwise specified.
