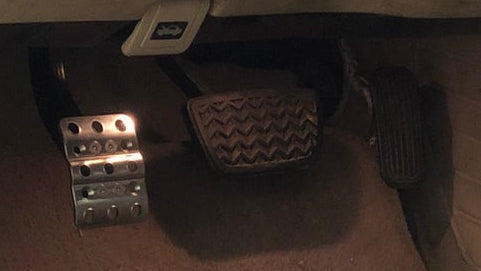

1998–2005 Lexus GS300 / GS400 / GS430 Bolt-In Clutch Pedal Kit

The HLSS bolt-in clutch pedal kit provides a clutch pedal and hydraulic master-cylinder solution for manual transmission conversions on 1998–2005 Lexus GS300, GS400 and GS430 models.

The HLSS mounting bracket installs without cutting or drilling the firewall. The kit includes a Wilwood clutch pedal, Wilwood master cylinder with remote reservoir, hydraulic clutch line, installation hardware and instructions.

Vehicle Fitment

• 1998–2005 Lexus GS300
• 1998–2000 Lexus GS400
• 2001–2005 Lexus GS430
• Left-hand-drive models only
• JZS160, UZS160 and UZS161 chassis

This kit does not fit the right-hand-drive Toyota Aristo. That can be found HERE

Features

• Bolt-in clutch pedal conversion
• No cutting or drilling of the firewall required
• HLSS-designed mounting bracket
• Wilwood clutch pedal
• Wilwood master cylinder
• Remote-mounted fluid reservoir
• Braided hydraulic clutch line
• Installation hardware included
• Installation instructions included
• Available with a 5/8-inch or 3/4-inch bore master cylinder
• Optional adjustable pedal stop
• Optional OEM-style clutch pedal pad

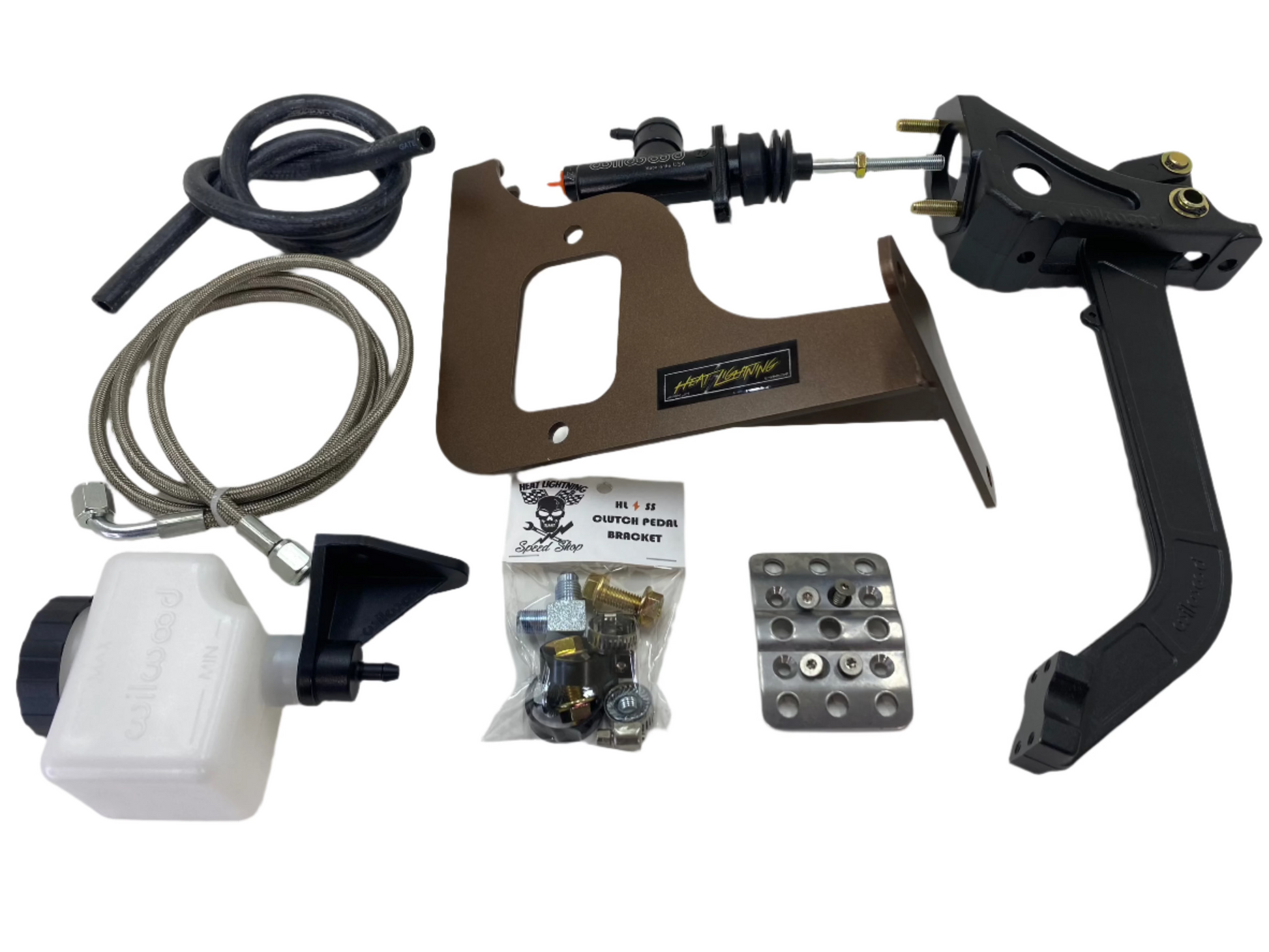

Kit Includes

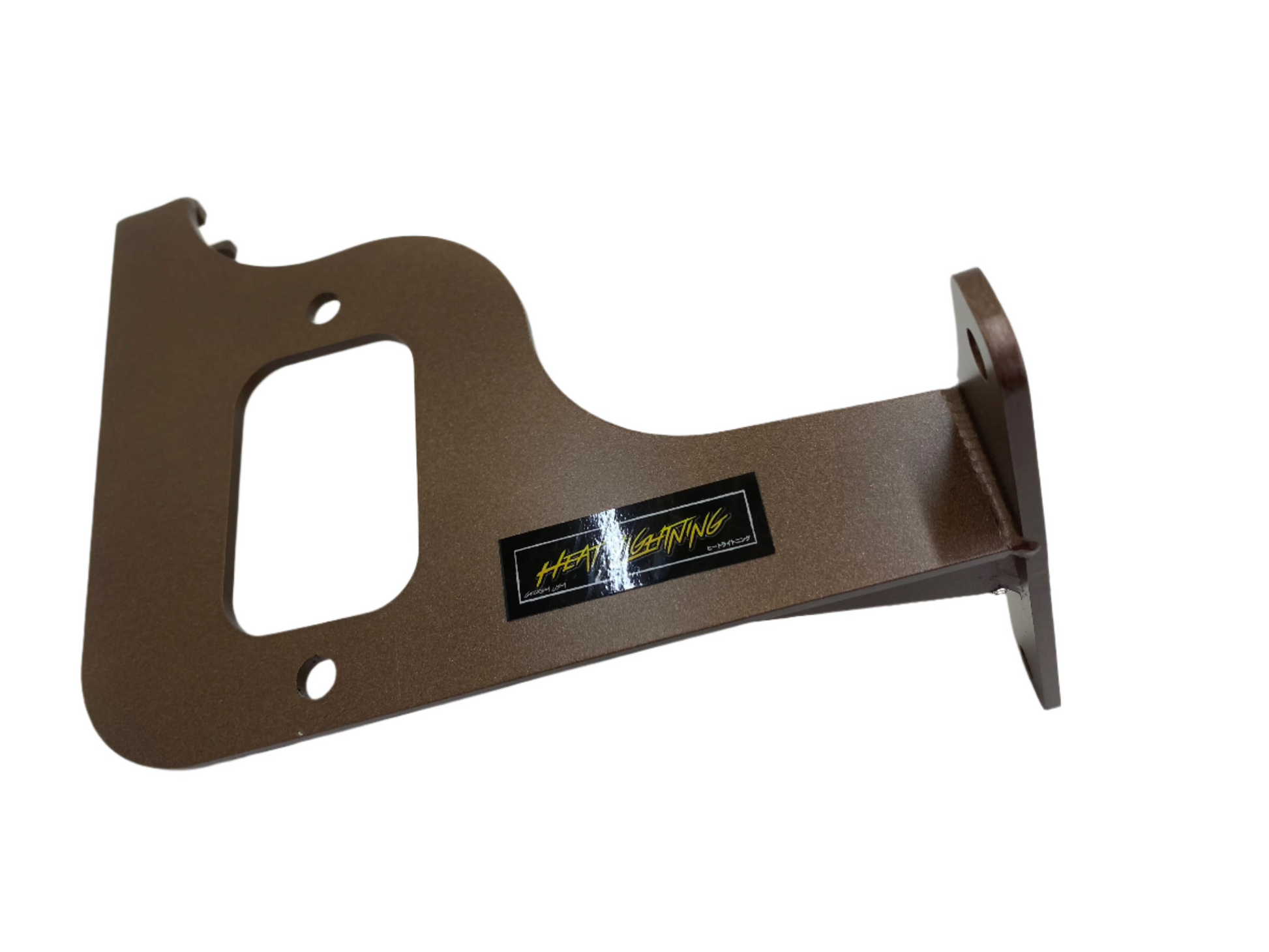

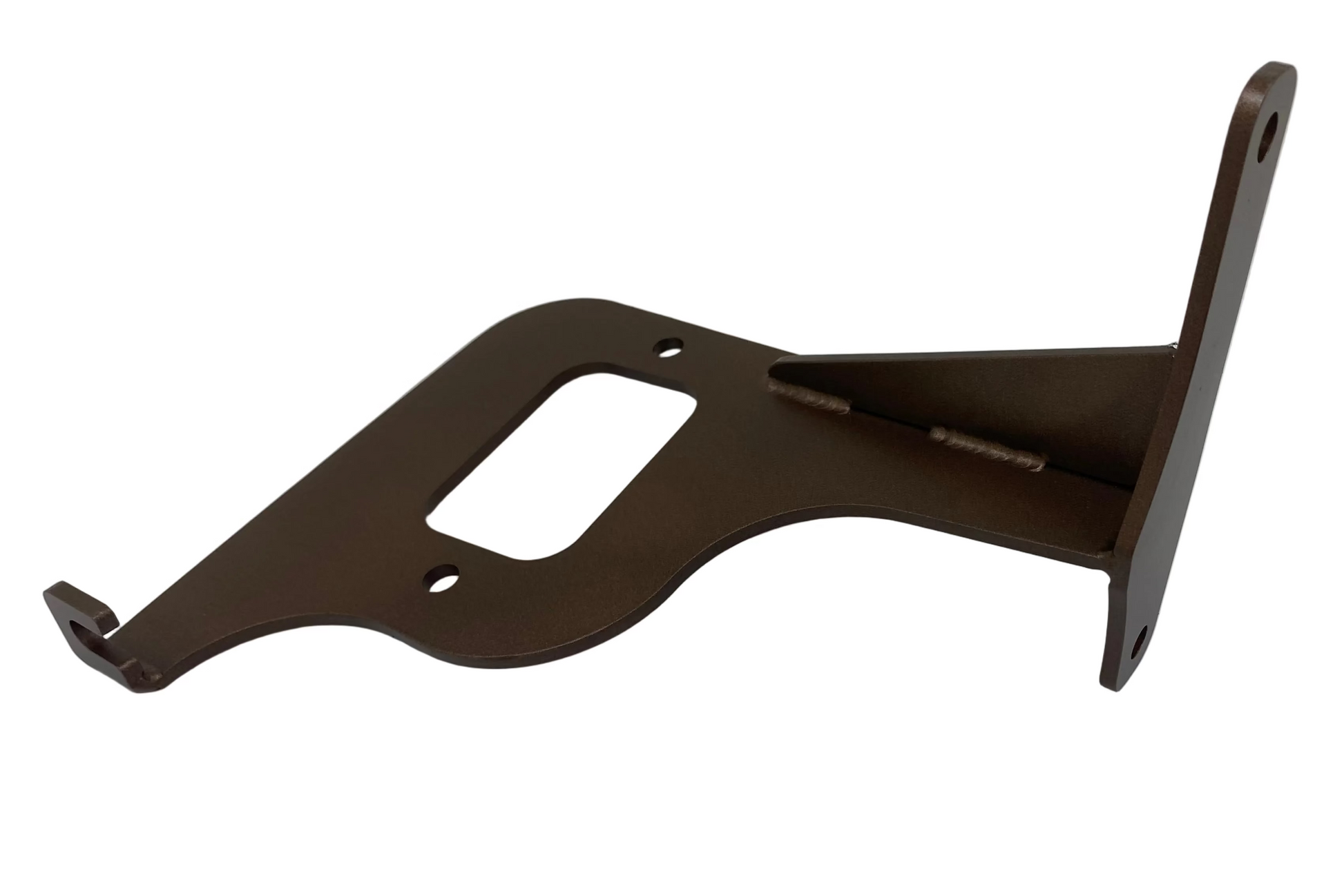

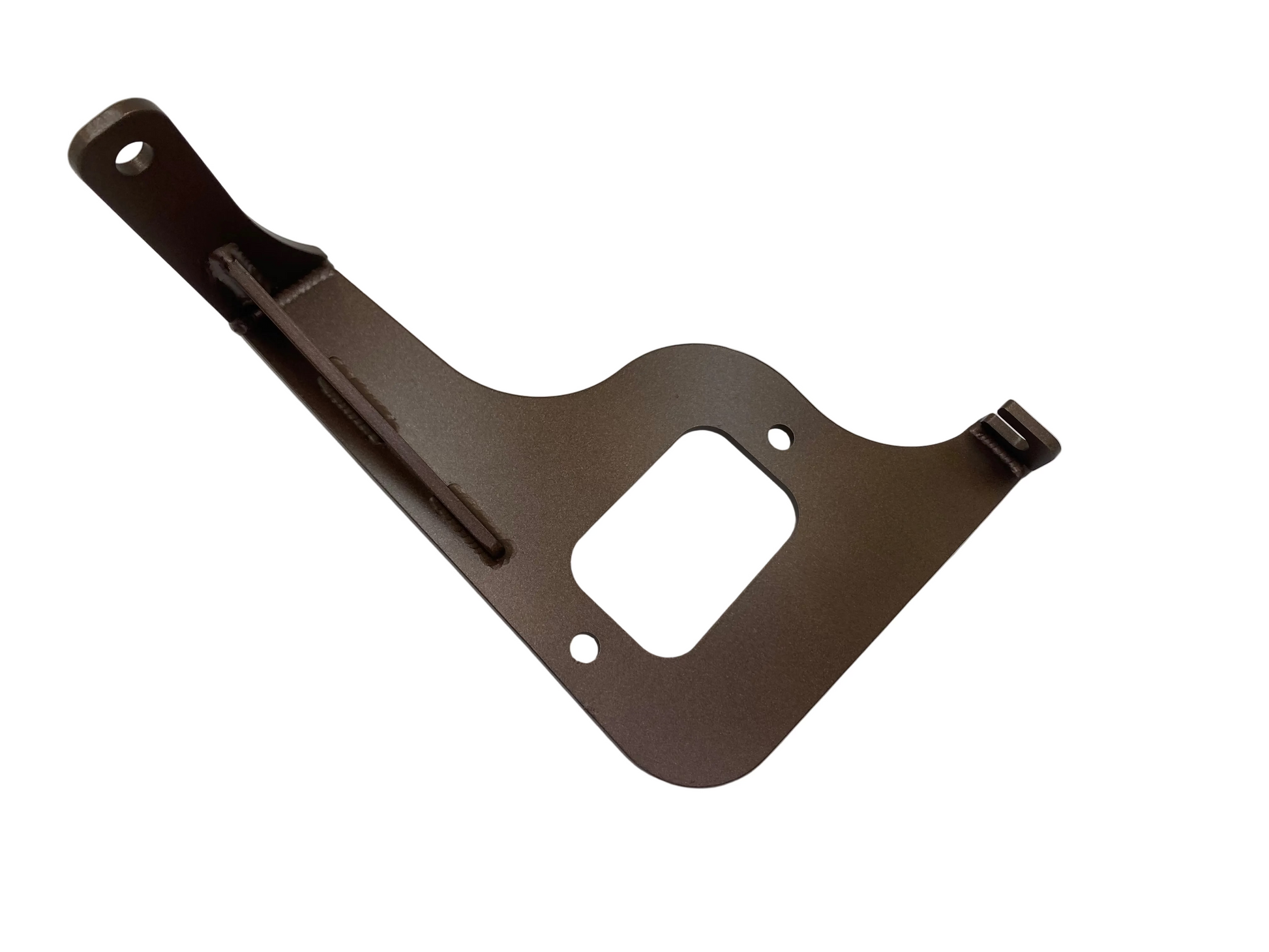

• HLSS clutch pedal mounting bracket
• Wilwood clutch pedal
• Wilwood master cylinder
• Remote-mount reservoir
• Hydraulic clutch line
• Required pedal-bracket installation hardware
• Installation instructions

Choose Your Master Cylinder

5/8-Inch Bore: Select this option when a 5/8-inch master cylinder is required for your transmission and slave-cylinder combination.

3/4-Inch Bore: Select this option when a 3/4-inch master cylinder is required for your transmission and slave-cylinder combination.

Confirm the correct master-cylinder size for your setup before ordering. Master cylinders cannot be exchanged after purchase.

Optional Add-Ons

Adjustable Pedal Stop: Limits clutch-pedal travel when required by the clutch or slave-cylinder setup.

OEM-Style Pedal Pad: Replaces the standard Wilwood pedal pad with an HLSS pad and OEM Toyota rubber cover designed to more closely match the factory brake and accelerator pedals.

Installation Requirements

• The factory foot-operated parking brake must be removed.
• The ABS ECU must be relocated.
• The customer must provide the correct fitting to connect the included clutch line to the slave cylinder.
• The included clutch line uses a -4AN connection at the slave-cylinder end.
• Verify master-cylinder and slave-cylinder compatibility before ordering.


Recommended Supporting Components

• 1998-2005 GS300 / GS400 / GS430 Brake Conversion Bracket: This bracket is designed to convert your factory foot parking brake to use a SC300 or SC400 hand parking brake assembly in your GS.

• 1998-2005 GS300 / GS400 / GS430 Clutch Pedal Kit - RESERVOIR MOUNT: We designed a simple bolt on reservoir mount for those who want a quick and easy mounting solution.

Installation

Professional installation is recommended. The hydraulic system must be properly connected, filled and bled before use.

Verify pedal travel, master-cylinder travel, clutch disengagement and clearance around the pedal assembly before operating the vehicle.
