1K0-253-115-AB Genuine VW/Audi Turbocharger Outlet Exhaust Gasket
1K0-253-115-AB Genuine VW/Audi Turbocharger Outlet Exhaust Gasket
Couldn't load pickup availability
Genuine VW/Audi turbocharger outlet exhaust gasket, part number 1K0-253-115-AB. This gasket seals the joint between the matching turbocharger outlet and catalytic-converter inlet pipe. A sound seal keeps exhaust gas within the intended passage at a joint exposed to heat and repeated thermal cycling.
Technical details
- Original part number: 1K0-253-115-AB / 1K0253115AB.
- Documented replacement for 1K0-253-115-K / 1K0253115K.

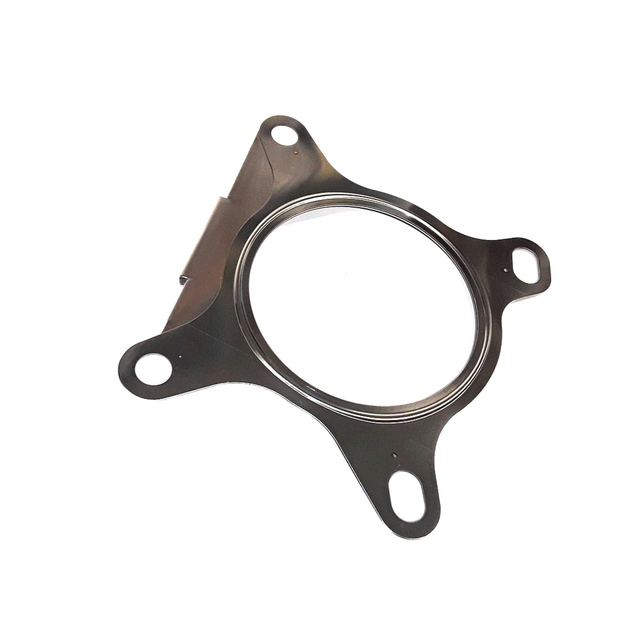

- The product photo shows the central sealing opening, raised sealing profile and four attachment openings.
- Supplied as one gasket. The turbocharger, catalytic converter, exhaust pipe and mounting hardware are separate.
- Intended for the specified factory outlet flange. Aftermarket turbos and downpipes can require a different gasket.
Common reasons to replace
Fit a new gasket when the matching turbocharger-to-converter joint is separated for service. Heat exposure, damage during removal or an unevenly clamped joint can leave the previous gasket unable to seal properly.
A ticking or blowing noise at the joint, soot around the flange or an exhaust odor warrants inspection for leakage. These signs can also result from loose hardware, a cracked pipe or a damaged flange. Check the complete connection before choosing parts. A leak near oxygen-sensor locations can affect the gas reaching the sensors, so diagnosis should establish the actual source.
Installation and service notes
Allow the exhaust assembly to cool before service and support the pipe assembly so its weight does not pull against the turbocharger flange. Remove the old gasket, inspect both mating surfaces and address cracks, distortion or damaged fasteners.
Align the new gasket and pipe without forcing the joint together. Use the vehicle's required replacement hardware and tightening sequence, following the factory specification for that engine and flange. Check support brackets and hangers for strain or poor alignment. After reassembly, verify that the joint is sealed and that the exhaust has clearance from nearby components.
Fitment
| Vehicle | Model years | Engine / flange restrictions |
|---|---|---|
| Audi A3 | 2006–2013 | 8P front-wheel drive; 2.0L turbo gasoline only |
| Audi A3 quattro | 2009–2013 | 8P quattro; 2.0L turbo gasoline only |
| Audi Q3 | 2015–2018 | 8U front-wheel drive; 2.0L turbo gasoline only |
| Audi Q3 quattro | 2015–2018 | 8U quattro; 2.0L turbo gasoline only |
| Audi TT | 2008–2009 | Mk2 front-wheel drive; 2.0L turbo gasoline only |
| Audi TT quattro | 2009–2015 | Mk2 quattro; 2.0L turbo gasoline only; not 3.2L or TT RS |
| Audi TTS quattro | 2009–2015 | Mk2 TTS; 2.0L turbo gasoline only |
| Volkswagen GTI | 2006–2008 | Mk5 turbocharger outlet; 2.0L turbo gasoline |
| Volkswagen GTI | 2009 | Mk5; 2.0L turbo gasoline |
| Volkswagen GTI | 2010–2014 | Mk6; CCTA / CBFA 2.0L turbo gasoline engines |
| Volkswagen Jetta GLI | 2012–2013 | Sedan; 2.0L turbo gasoline; matching four-fastener outlet flange |
| Volkswagen CC | 2011–2017 | Front-wheel drive; 2.0L turbo gasoline; not 3.6L |
| Volkswagen Tiguan | 2017 | First-generation 2.0L turbo gasoline; FWD / AWD |
| Volkswagen Tiguan Limited | 2018 | First-generation Limited; 2.0L turbo gasoline |
Confirm the original turbocharger outlet and converter inlet flange before ordering. Modified exhaust assemblies require direct gasket comparison.
SKU: 1K0-253-115-AB
