-3 AN Bulkhead Tab Vertical (Stainless Steel)

-3 AN Vertical Bulkhead Tab (Stainless Steel) - #182-1027

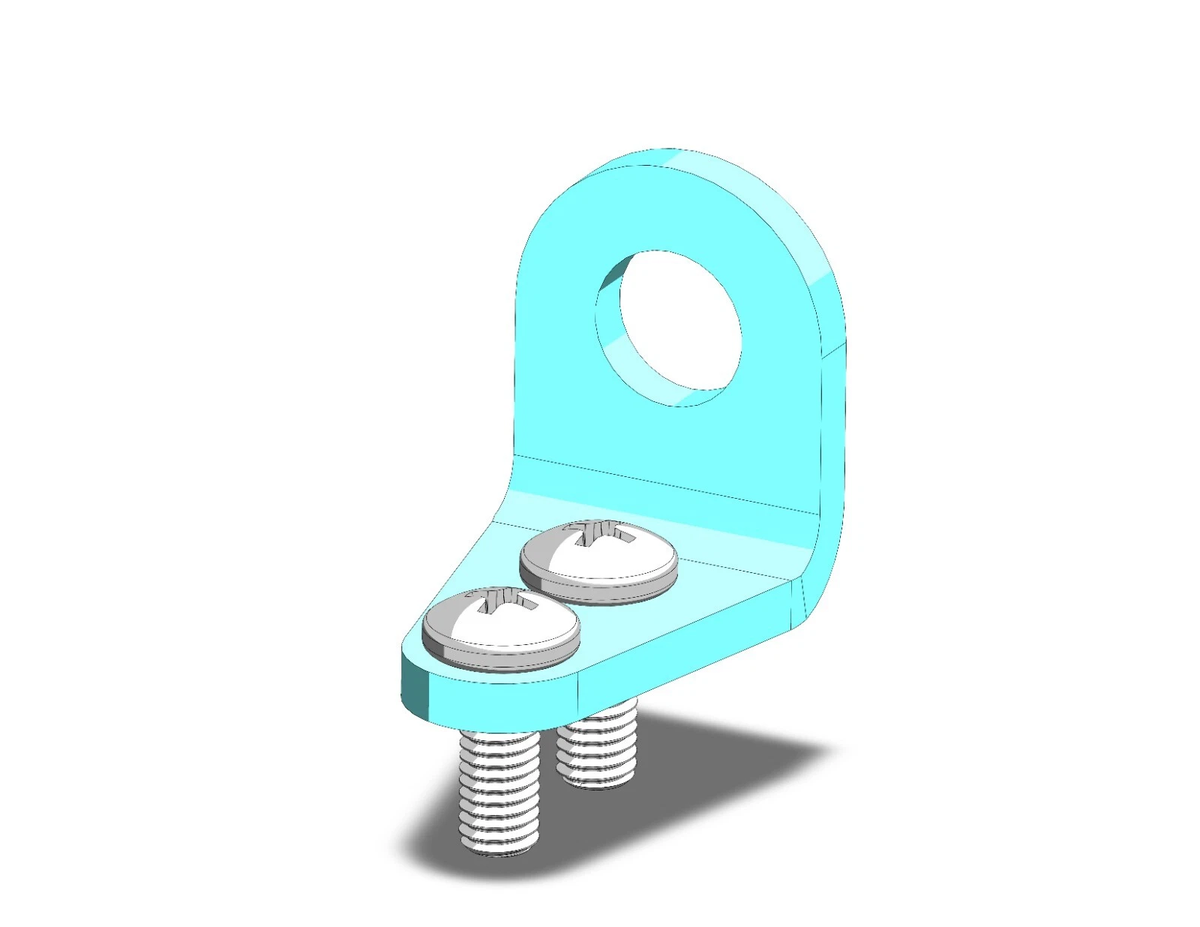

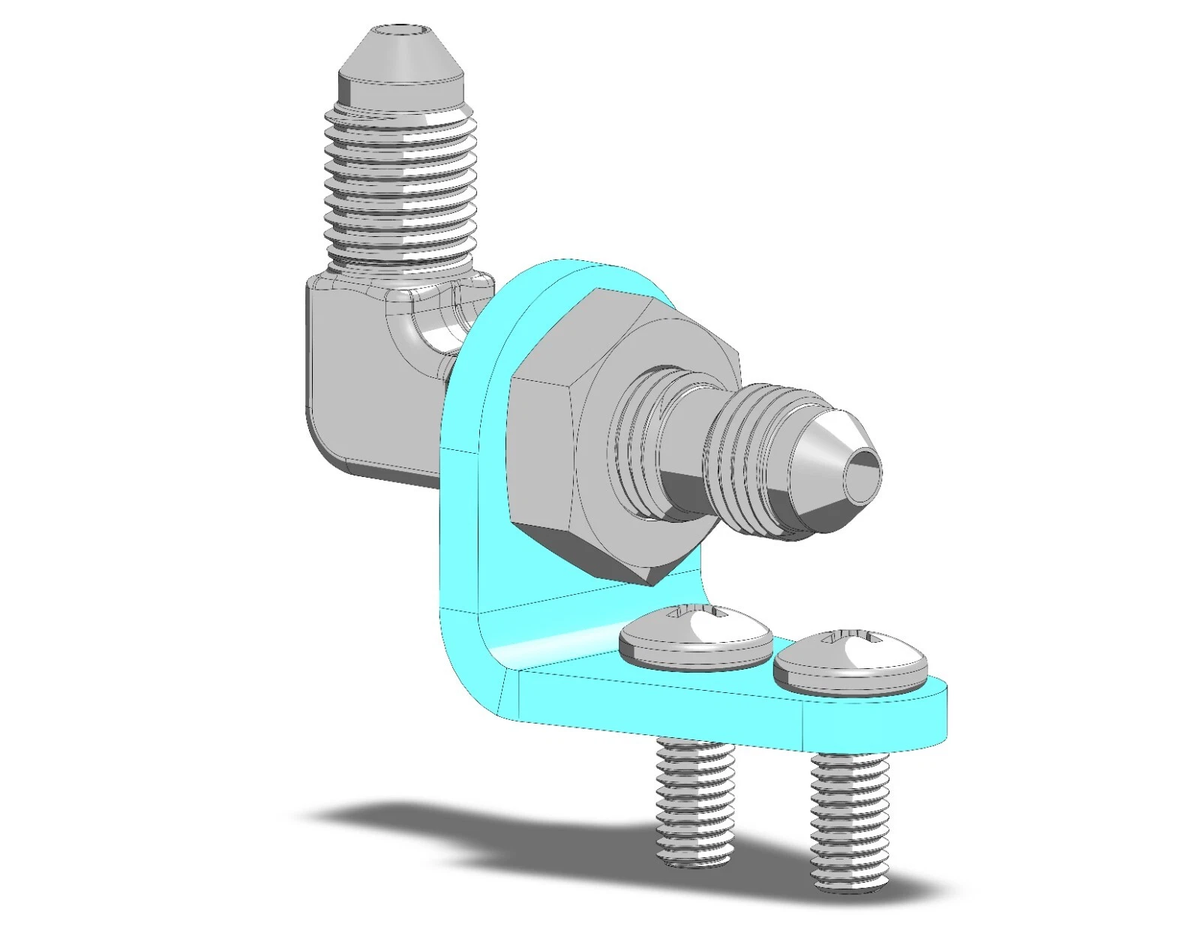

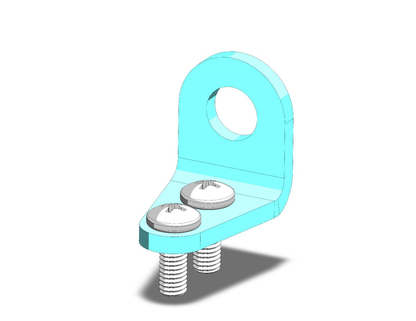

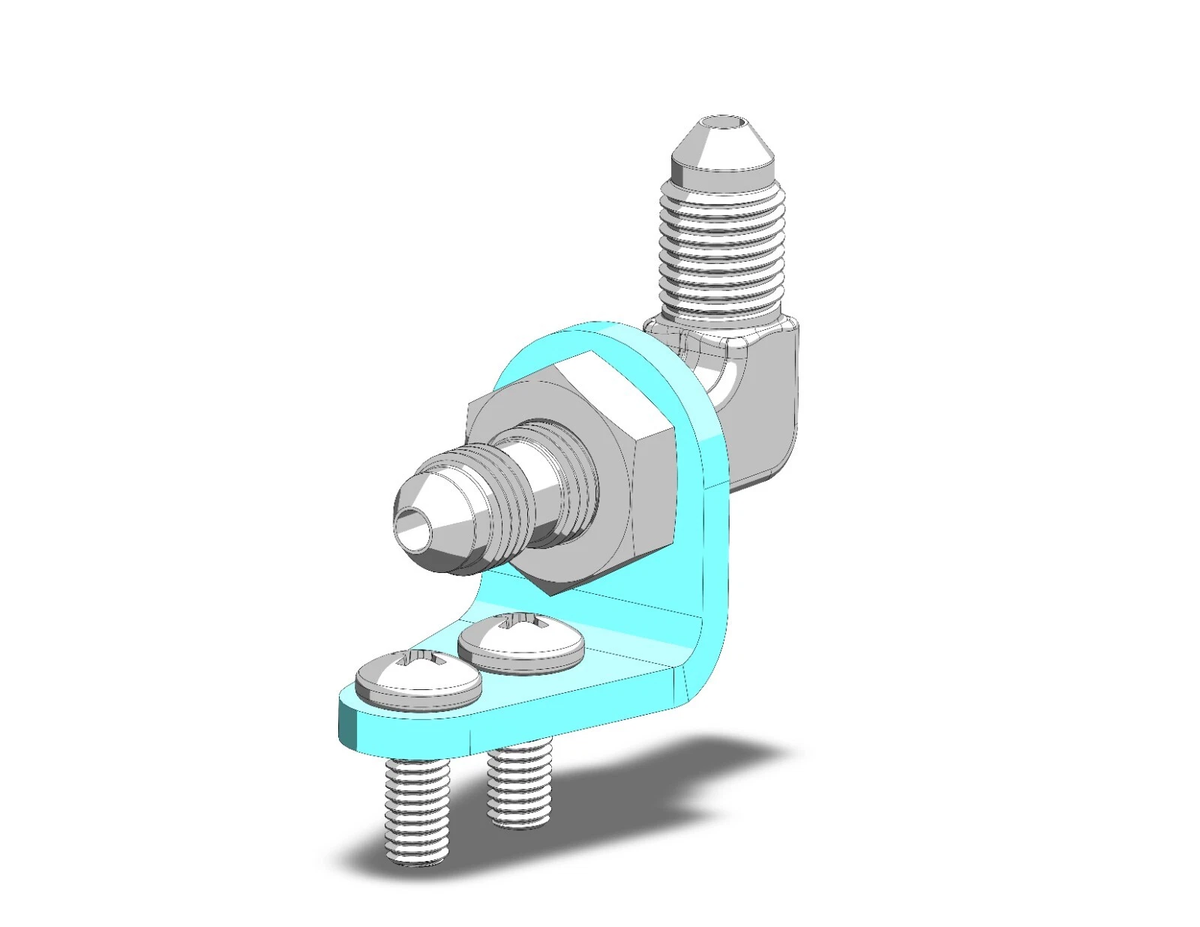

The GSIMFAB stainless steel -3 AN vertical bulkhead tab provides a clean, secure mounting solution for -3 AN bulkhead fittings. Ideal for routing fuel injection lines, small brake lines, vacuum lines, or small coolant and oil hoses along a chassis, firewall, or other mounting surfaces.

Vertical orientation allows the mounting screws to pass from front to back, keeping fittings tight, aligned, and serviceable.

WHAT IT’S USED FOR

• Mounting -3 AN bulkhead fittings

• Securing fuel, brake, oil, coolant, or air lines

• Organizing hoses and wiring along chassis rails or panels

• Clean pass-through mounting on tabs, plates, or tube structures

ORIENTATION & DESIGN

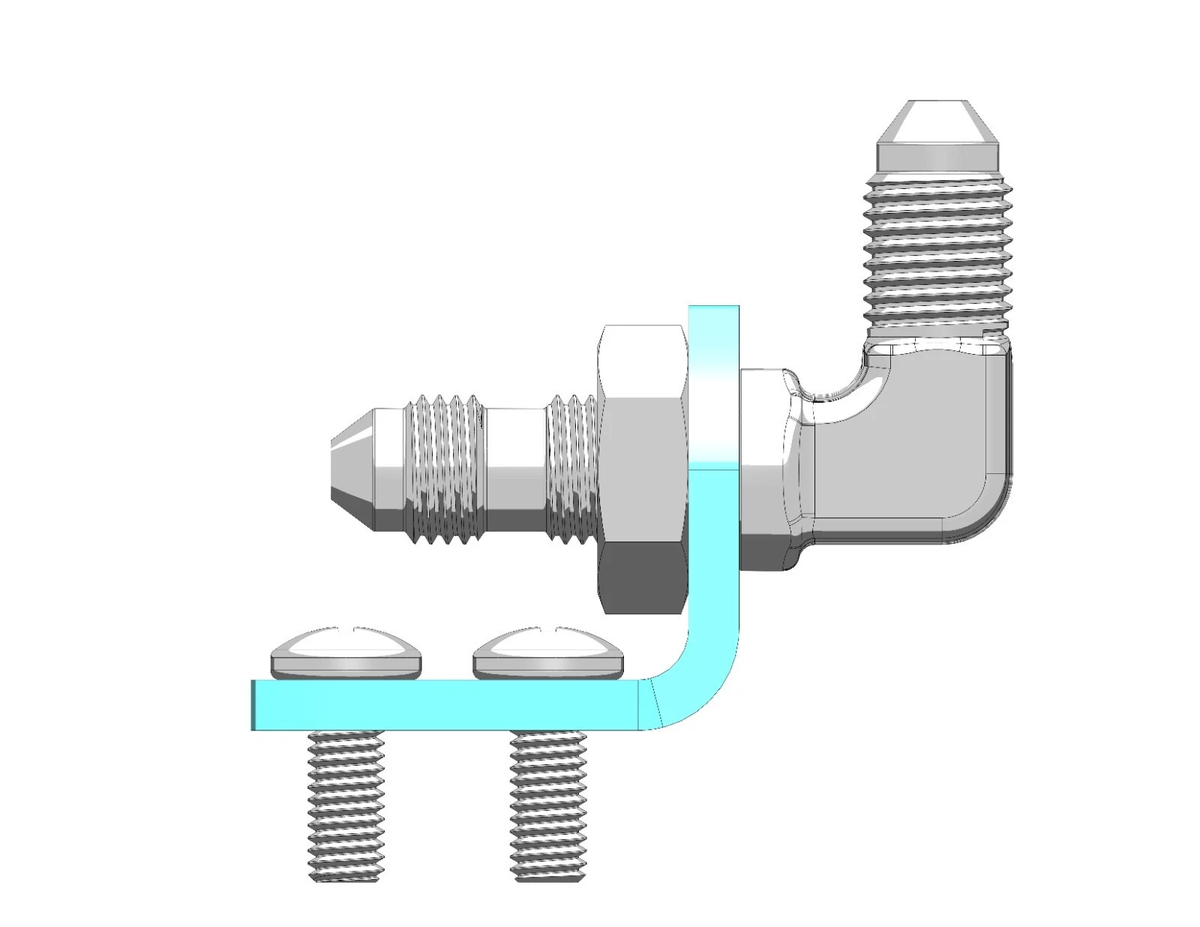

• Screws install front-to-back through the tab

• Vertical-style bulkhead tab

• Keeps bulkhead fittings square and rigid


• Clean, compact footprint for tight builds

UNIVERSAL COMPATIBILITY

• Designed specifically for -3 AN bulkhead fittings

• Works with stainless, aluminum, and plated bulkhead fittings

• Compatible with custom chassis, race cars, trucks, and street builds

• Suitable for fuel systems, brake systems, oil systems, and air lines

FUNCTION

• Provides a rigid mounting point for bulkhead fittings

• Prevents line movement, vibration, and stress

• Helps maintain proper hose routing and clearance

• Improves reliability and serviceability of plumbing systems

HIGH-QUALITY CONSTRUCTION

• Precision laser-cut from 304 stainless steel

• Excellent corrosion resistance

• Deburred and finished for a clean, professional appearance

SECURE FIT

• Designed to clamp bulkhead fittings tightly without flex


• Vertical bolt layout keeps fittings locked under vibration

INSTALLATION

• Bolt-on installation

• Can be mounted to flat panels, tabs, or brackets


• Suitable for professional installers and experienced DIY builders

VERTICAL vs HORIZONTAL GUIDE

Vertical tab: Front-to-back hardware. Best for flat panels and firewalls where backside access is available.
Horizontal tab: Side-to-side hardware. Ideal for frame rails, tube chassis, or tight-access areas.

• Flat panel or firewall → Vertical tab

• Frame rail or tube chassis → Horizontal tab

• Backside access available → Vertical tab

• Tight space / no backside access → Horizontal tab

WHAT’S INCLUDED

• (1) Stainless Steel -3 AN Vertical Bulkhead Tab

• (2) 10-32 x 1/2" Stainless Button Head Screws

• (4) 10-32 Stainless Flat Washers

• (2) 10-32 Stainless Nylock Nuts
