55-87 Chevy & GMC C10 Billet Aluminum Tie Rod Adapter Kit

Tie Rod Adapter Kit - #5114-4

This Tie Rod Adapter Kit is designed to adapt a Mustang II–style rack and pinion to CPP C10 spindles, providing proper steering geometry and secure attachment when converting to rack and pinion steering.

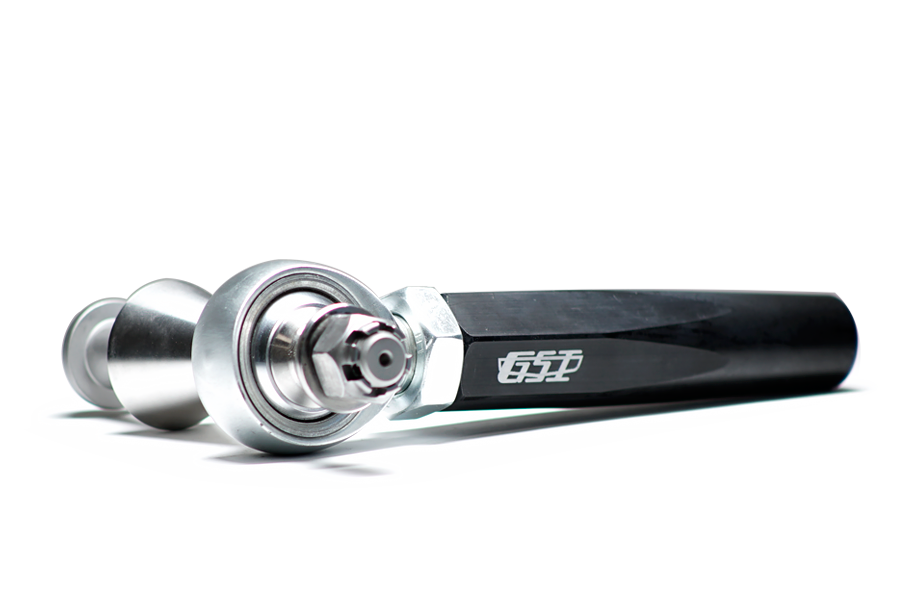

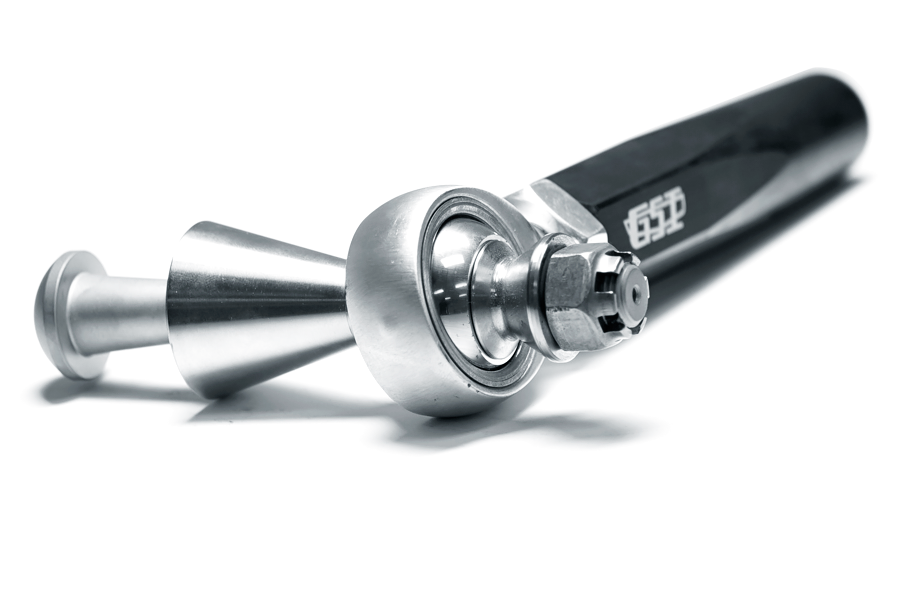

The kit uses black anodized billet 6-inch adapters with one end threaded for a heim joint and the opposite end threaded to install directly onto the rack and pinion. Custom taper pins allow correct mating to 1973-1987 CPP C10 spindle tapers while maintaining strength and alignment.

Key Features & Benefits

• Adapts Mustang II rack & pinion to CPP C10 spindles

• Improves steering geometry and joint articulation

• Black anodized billet aluminum adapters for durability and corrosion resistance

• Heim joint design allows increased misalignment and smooth steering travel

Kit Includes

• (2) Black Anodized Billet Tie Rod Adapter Tubes

• (2) Left-hand Heim Joints with Jam Nuts

• (2) Large Misalignment Spacers

• (2) Small Misalignment Spacers

• (2) Custom 1973-1987 C10 Taper Tins

• (2) 9/16 Jam Nuts

• (2) Castle Nuts

• (2) Cotter Pins

Compatibility

• Mustang II–style rack and pinion

• Rack thread size: 9/16-18 ONLY

• Designed for CPP C10 spindles

• May work with other spindles using the same taper (fitment not guaranteed)

Notes

• Sold as a pair (2 Adapters per kit)

• Intended for performance and aftermarket steering conversions
