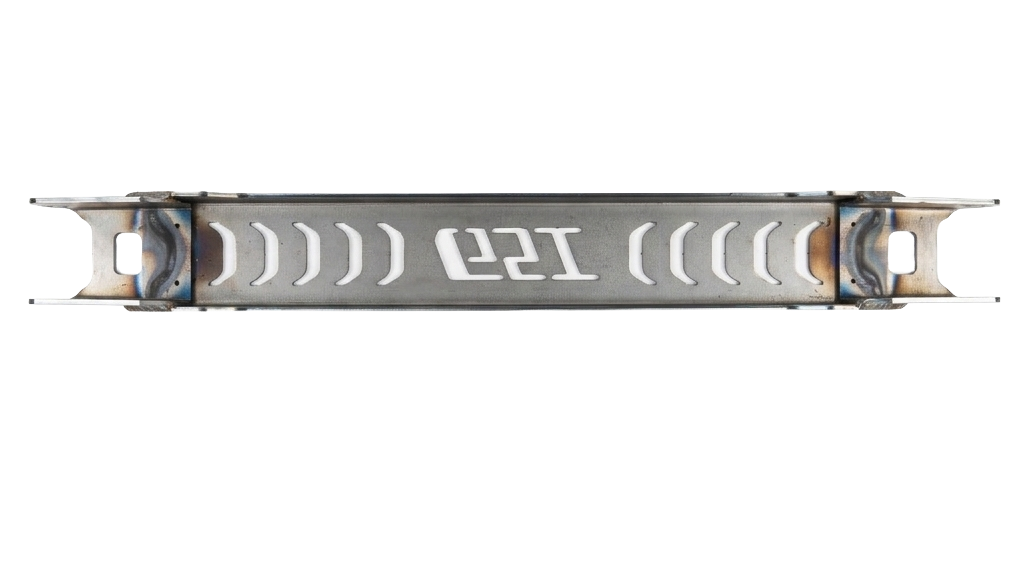

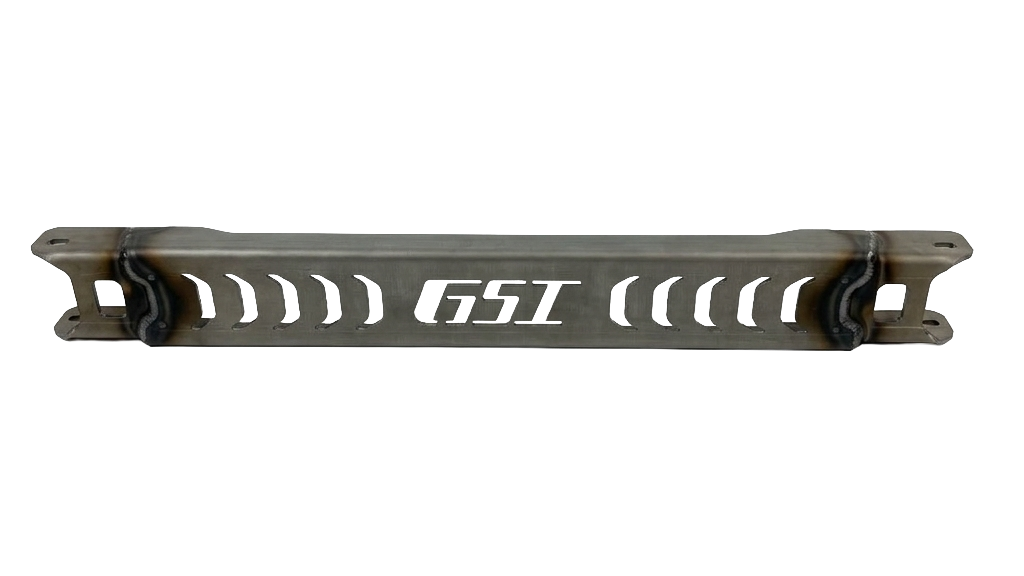

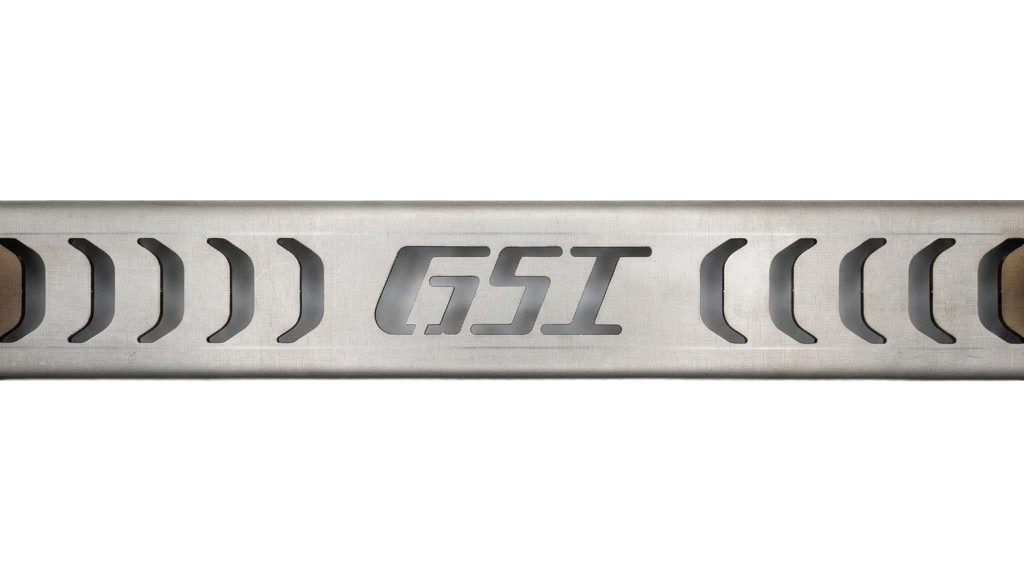

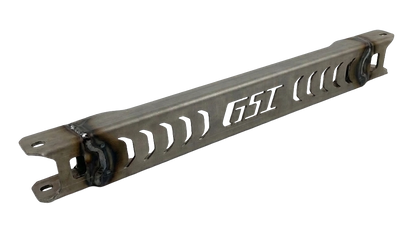

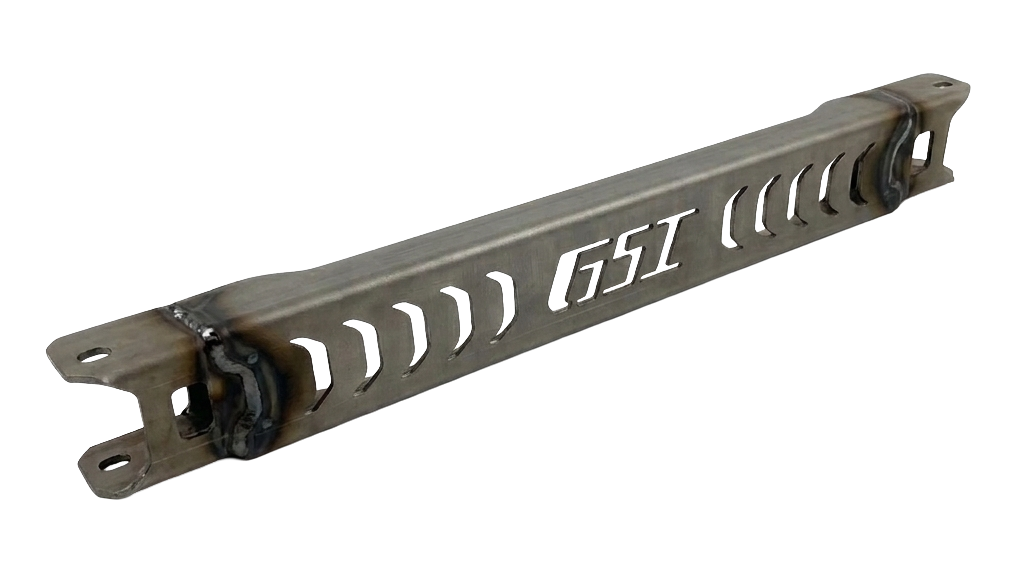

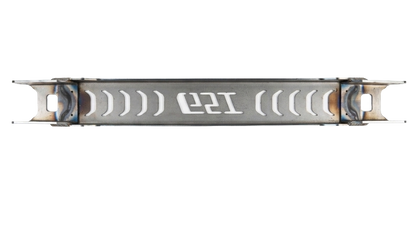

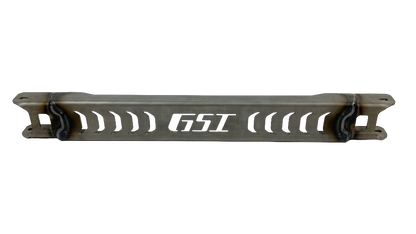

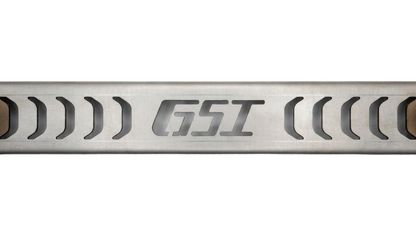

63-72 Chevy & GMC C10 Rear Frame Crossmember (Bolt-On)

63-72 Rear Frame Crossmember - # 120-5600

Our bolt-in rear frame crossmember is designed specifically for 1963-1972 C10 chassis to restore structural integrity after a backhalf or rear frame modification.

When lowering a truck, the factory rear frame structure is often cut or removed, leaving the frame rails unsupported. This crossmember ties the rear of the frame back together, keeping the rails square, rigid, and capable of handling suspension and drivetrain loads without flex or long-term fatigue.

Unlike weld-only options, this crossmember features sliding inlays that insert into the frame rails, providing a strong connection and precise alignment before bolting everything together. The result is a clean install with excellent strength and repeatable fitment.

Key Features & Benefits

• Designed specifically for 1963-1972 C10 frames

• Restores strength after backhalf or notch modifications

• Prevents rear frame rail flex, twist, & cracking

• Bolt-in design with internal frame inlays for added support


Design & Construction

• ASTM A1011 hot-rolled steel

• Precision-cut for consistent fitment

• Internal frame inlays slide into the frame rails for added strength


Dimensions & Specs

• Weight: 12 lbs

• Overall Length: 33 inches

• Frame Rail Inlays:

  • Height: 3.5 inches

  • Depth: 2 inches

• Crossmember Face:

  • Height: 4 inches

  • Depth: approx. 1.5–2.0 inches

Vehicle Fitment

• 1963-1972 Chevy & GMC C10 Trucks


Installation Notes

• Inlays slide into frame rails to align with OEM bed mount holes. (Longer bolts may be required for bed variant)

• On rare occasions, since the stock frame rails have nothing supporting the rear, they tend to bow in over time, narrowing close to an inch; this will require spreading the frame rails via porta power or another accessible tool.

• Welding not required (can be welded if desired)

Installation Notes

• (1) Rear Frame Crossmember with Logo

• (2) 3/8" x 1.25" Bolts


• (4) 3/8" Washers

• (2) 3/8 Nylock Nuts

• (2) 1/2" x 1.25 Bolts

• (4) 1/2" Washers

• (2) 1/2" Nylock Nuts
