63-87 Chevy & GMC C10 Front Lower Deep Drop Bag Cups

63-87 C10 Front Lower Deep Drop Bag Cups - #125-2400

These weld-in front air bag cups are designed for installation into the lower control arm on 1963-1987 Chevy C10 and GMC 2WD 1/2-ton trucks and Suburbans. These provide lower & more secure mounting surfaces for D2500 and D2600 air bags. Supplied in raw steel for welding applications

Key Features & Benefits

• Designed for front lower control arm air bag installations

• Compatible with D2500 and D2600 air bags


• Raw steel finish for secure welding

• Provides stable air bag positioning for lowered suspension setups

• Sold as pair

Design & Construction

• Fabricated from A36 mild steel

• CNC-cut for consistent dimensions and repeatable fitment

• 8.25-inch outside diameter

• 2-inch overall height

• Raw steel finish for welding applications

Fitment

• 1963-1987 Chevrolet C10 2WD 1/2-ton trucks

• 1963-1987 GMC 2WD 1/2-ton trucks

• 1963-1987 Chevy/GMC Suburbans (2WD)

Installation Notes

• Requires cutting an 8-inch diameter hole in the lower control arm

• Air bag plate is to be welded into the control arm

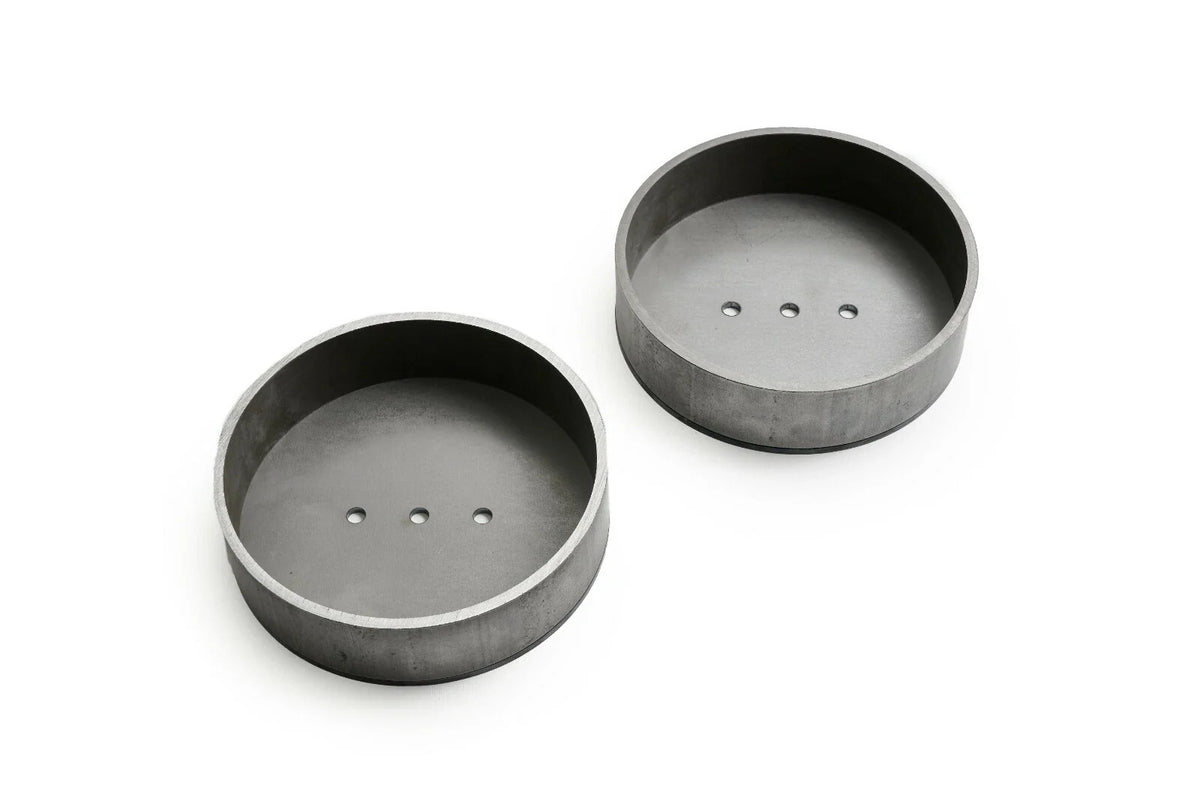

• Retaining ring is welded to bag plate to form a bag cup

• Welding and suspension modification required

• Professional installation recommended

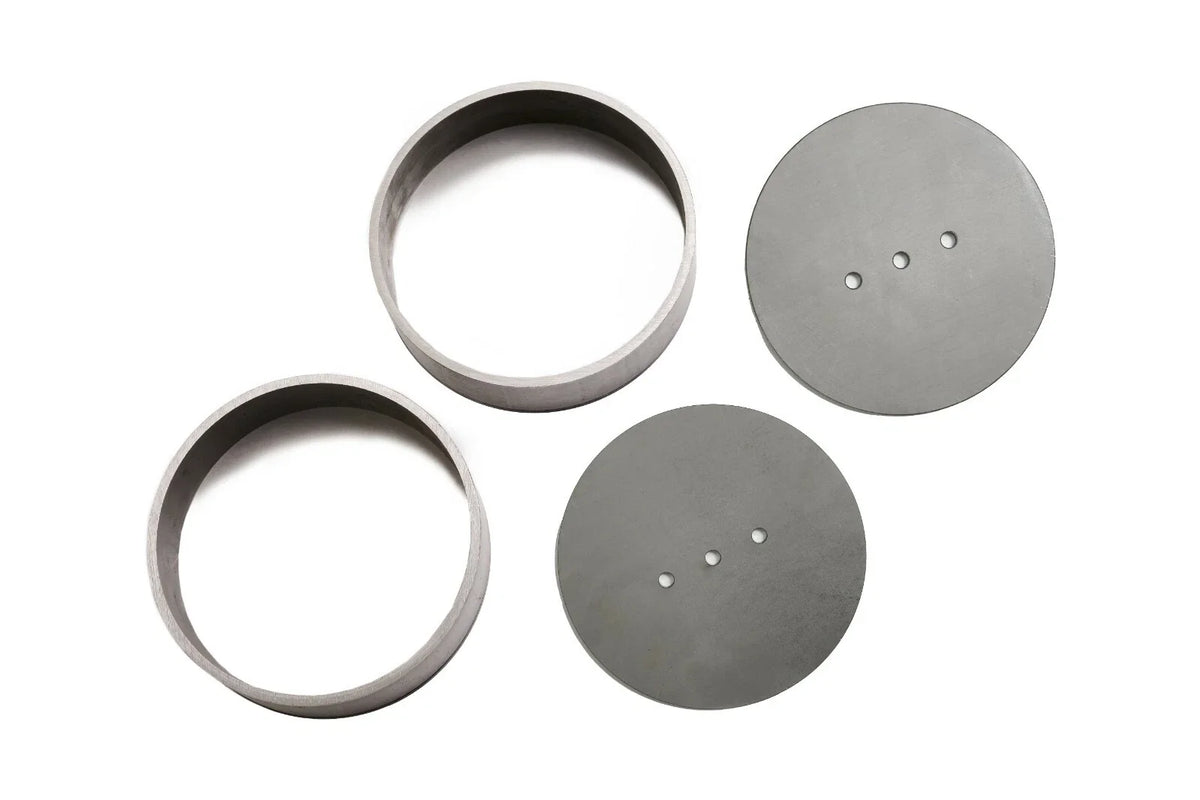

What’s Included

• (2) Deep Drop Bag Plates

• (2 Deep Drop Bag Cup Rings
