REV9 Acura RSX K20A T3T4 Turbocharger Kit

2002-06 Acura RSX (Type-S and Non Type-S) T3/T4 Turbocharger Kit

Compatibility:

• 2002 2003 2004 2005 2006 Acura RSX (Type-S or Non Type-S)
• 2003 2004 2005 Civic Hatchback EP3 (requires cutting / modified intercooler piping)
• 2006 2007 2008 2009 2010 2011 Civic SI K20 Motor (requires cutting / modified intercooler piping)

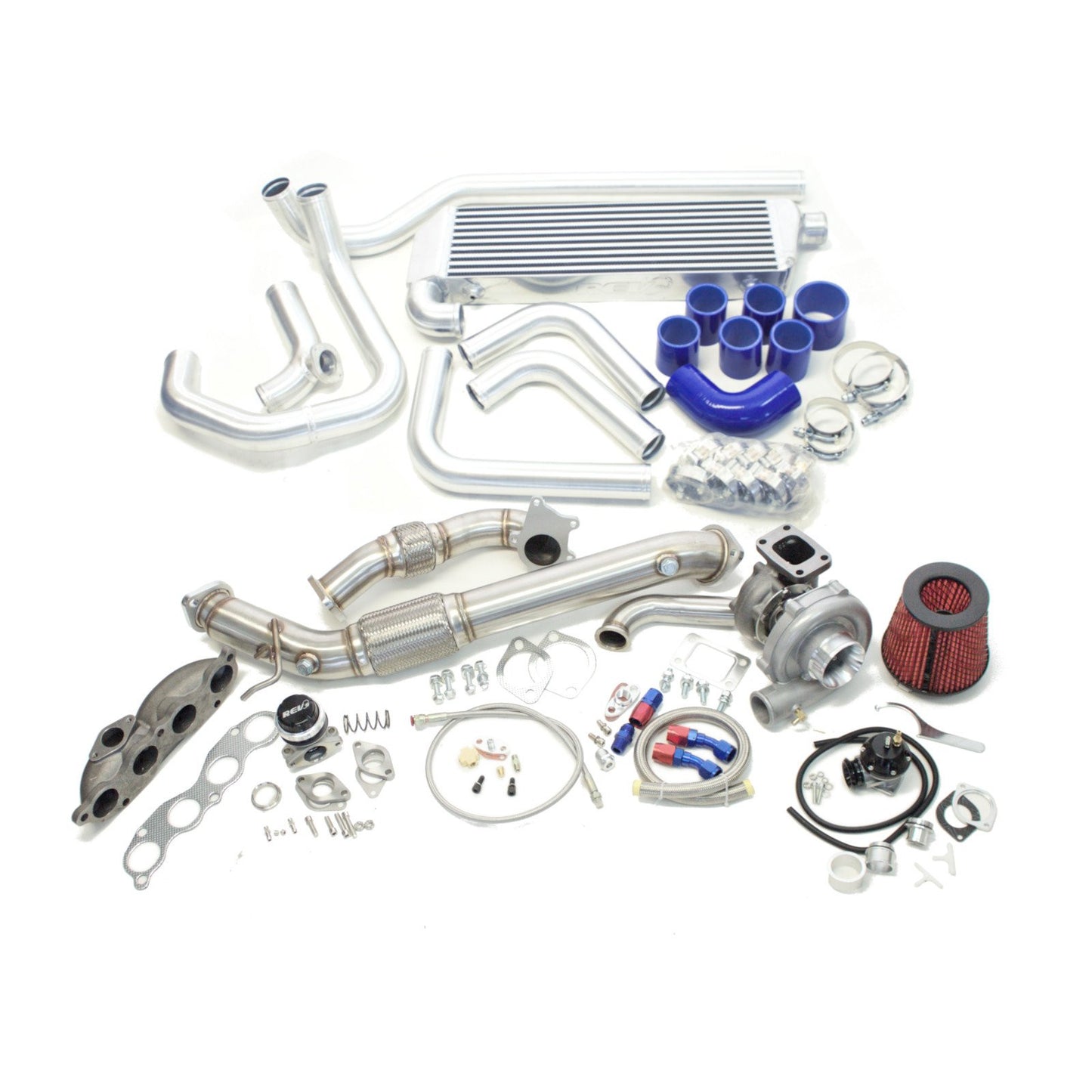

Kit Includes:

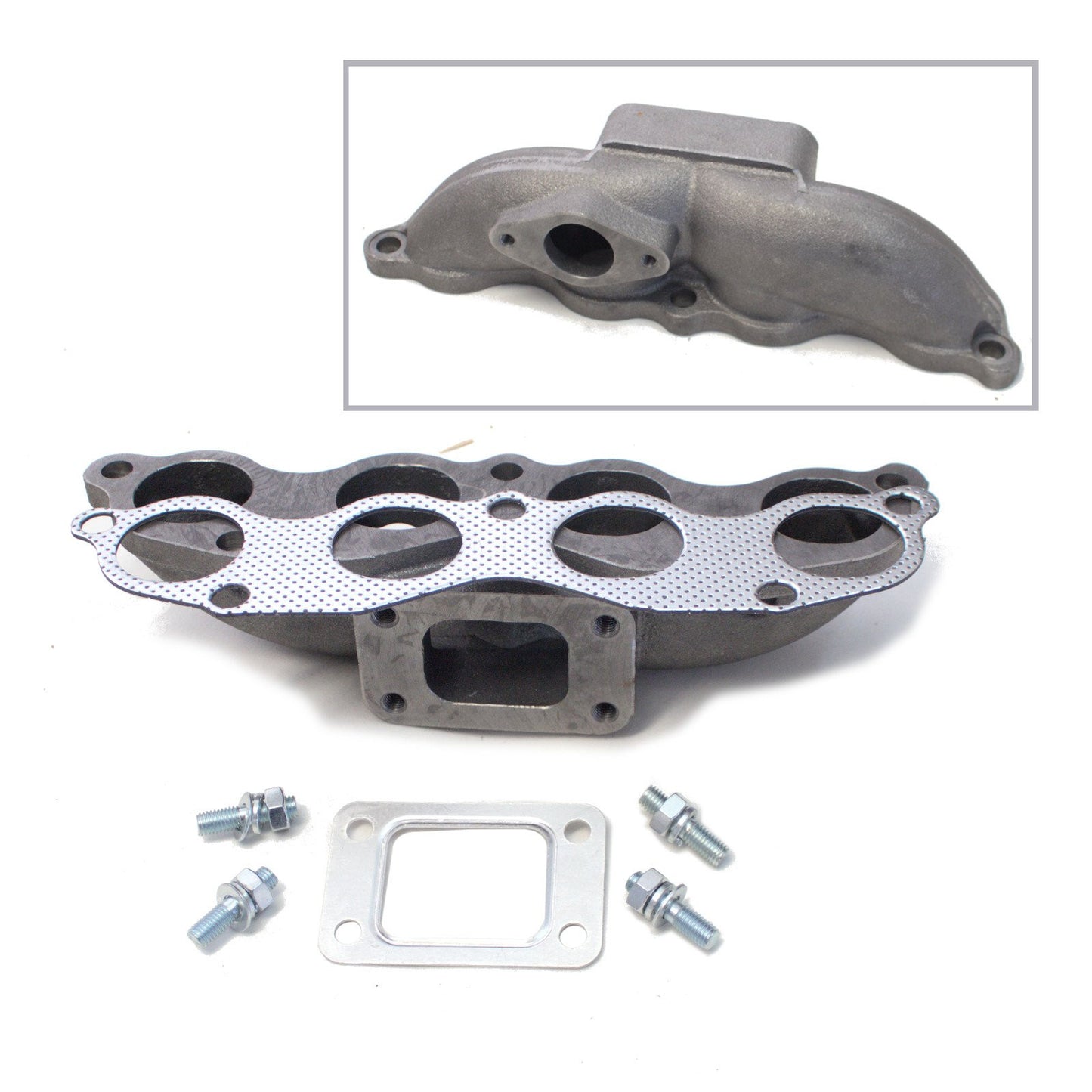

• K20A cast manifold

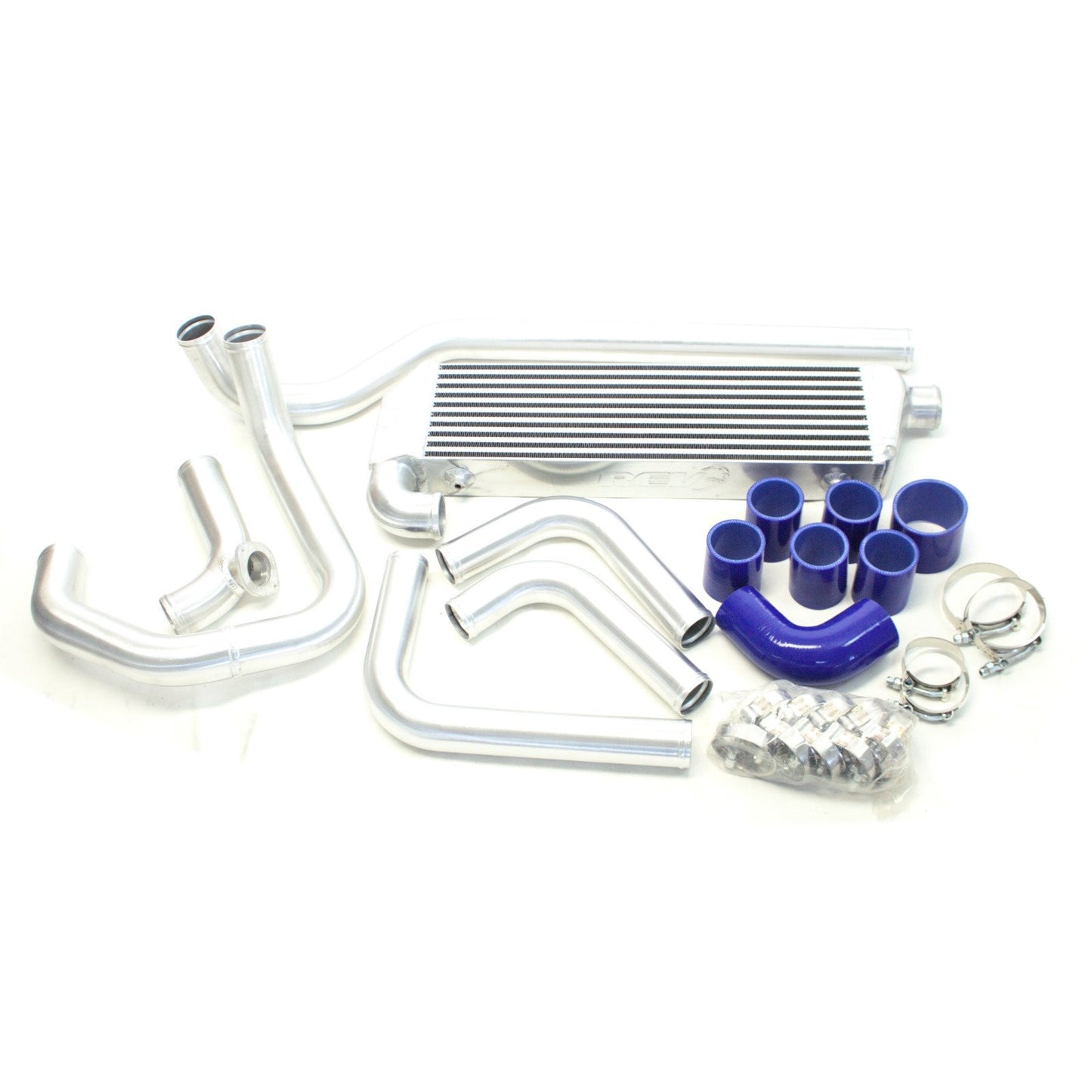

• direct bolt-on aluminum intercooler piping for RSX (includes silicone and clamps)
• intercooler
• TX-50E-57 .63 AR turbocharger

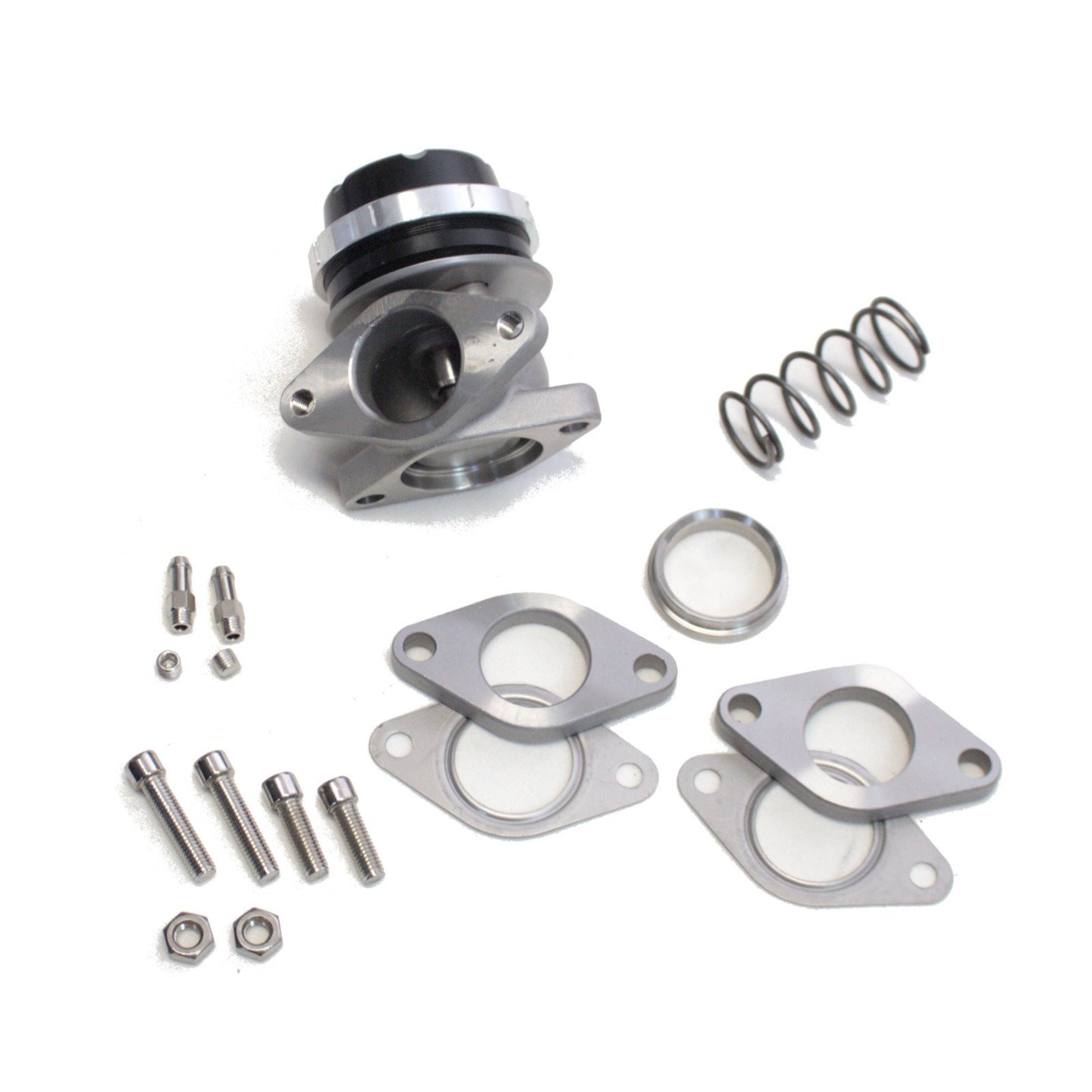

• 38mm Wastegate (Set at 5PSI) Comes With Extra 10 PSI Spring In Order To Make 15 PSI Maximum Setting.

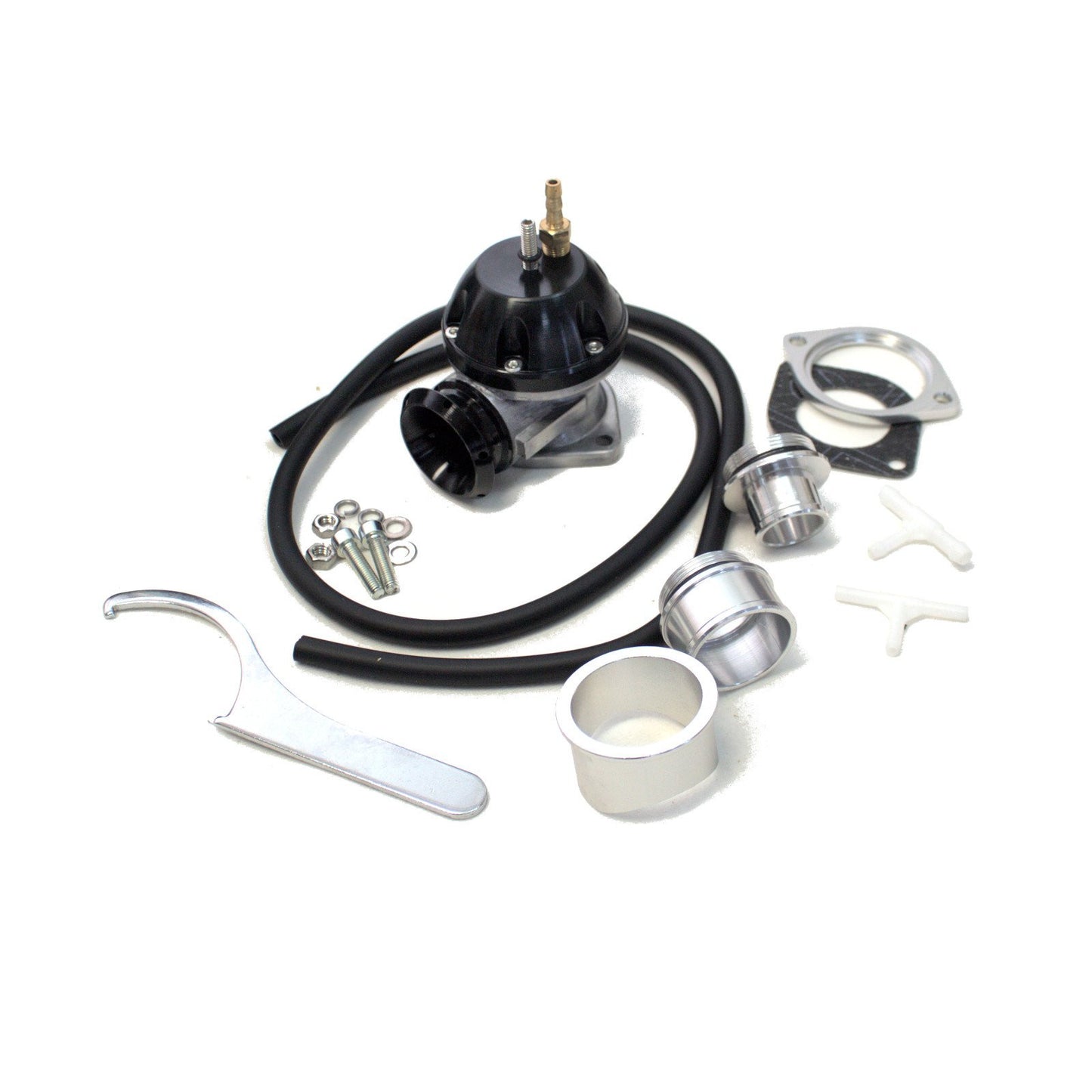

• Blow Off Valve

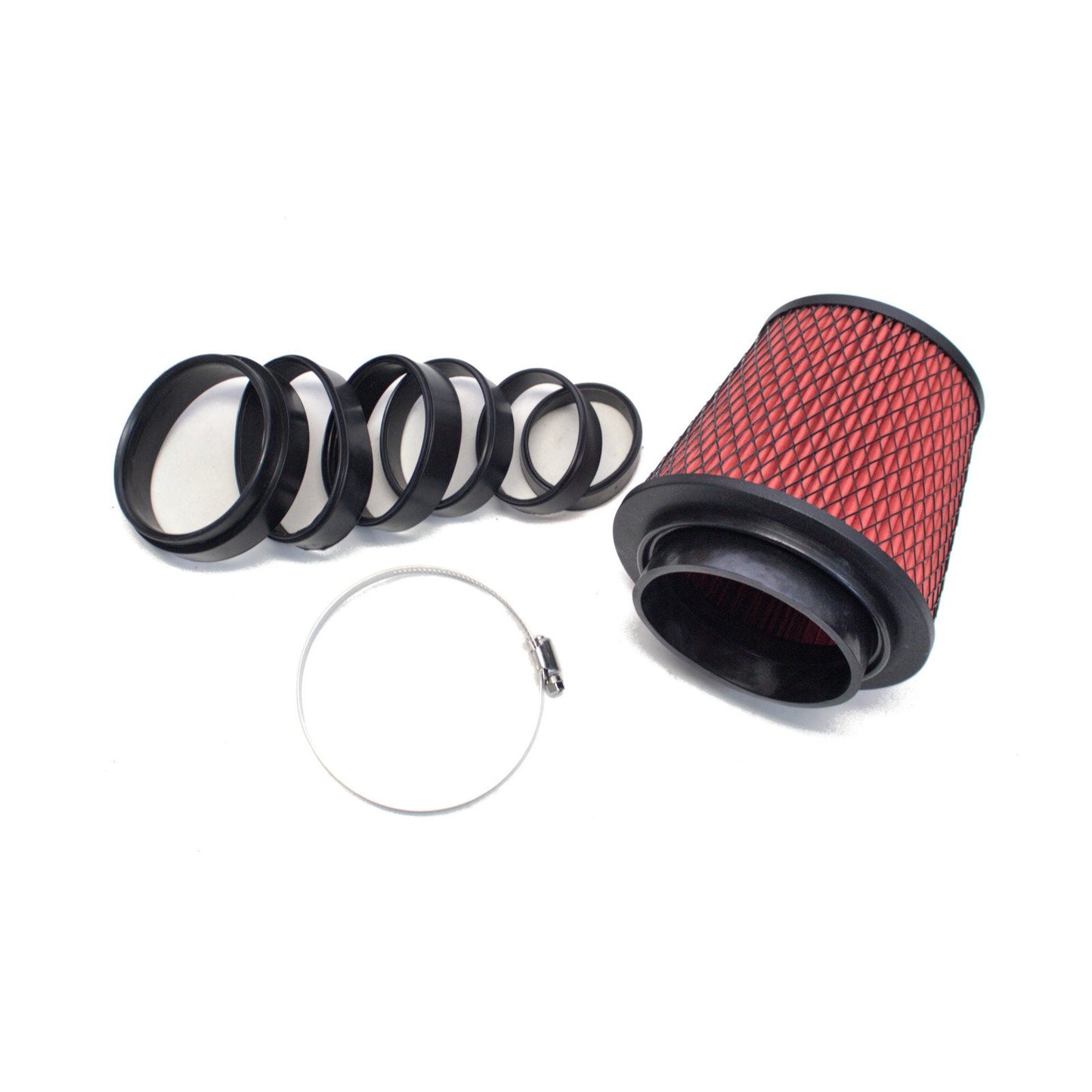

• intake piping and intake cone
• wastegate dump tube

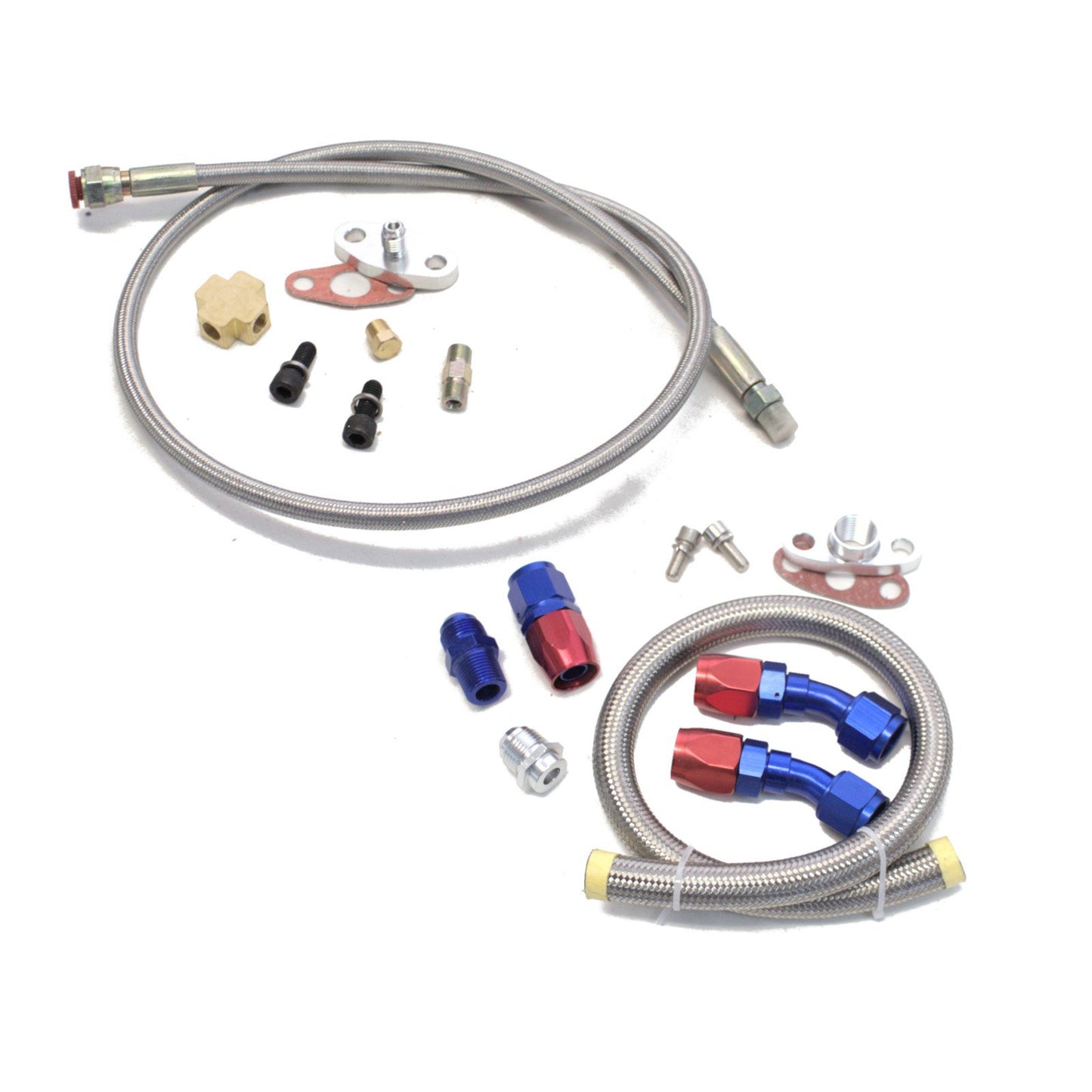

• oil feed line and oil return line kit

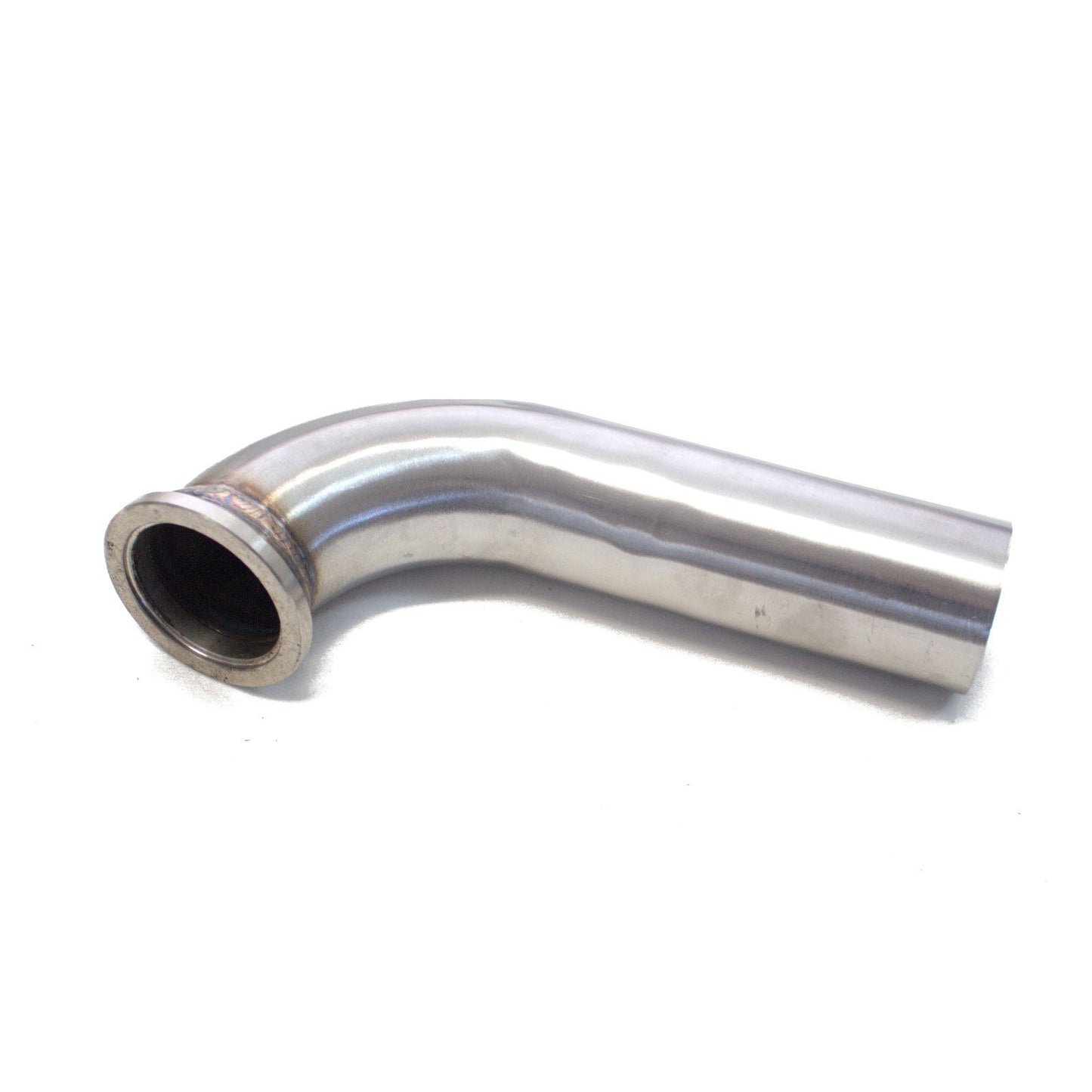

• stainless steel turbo elbow

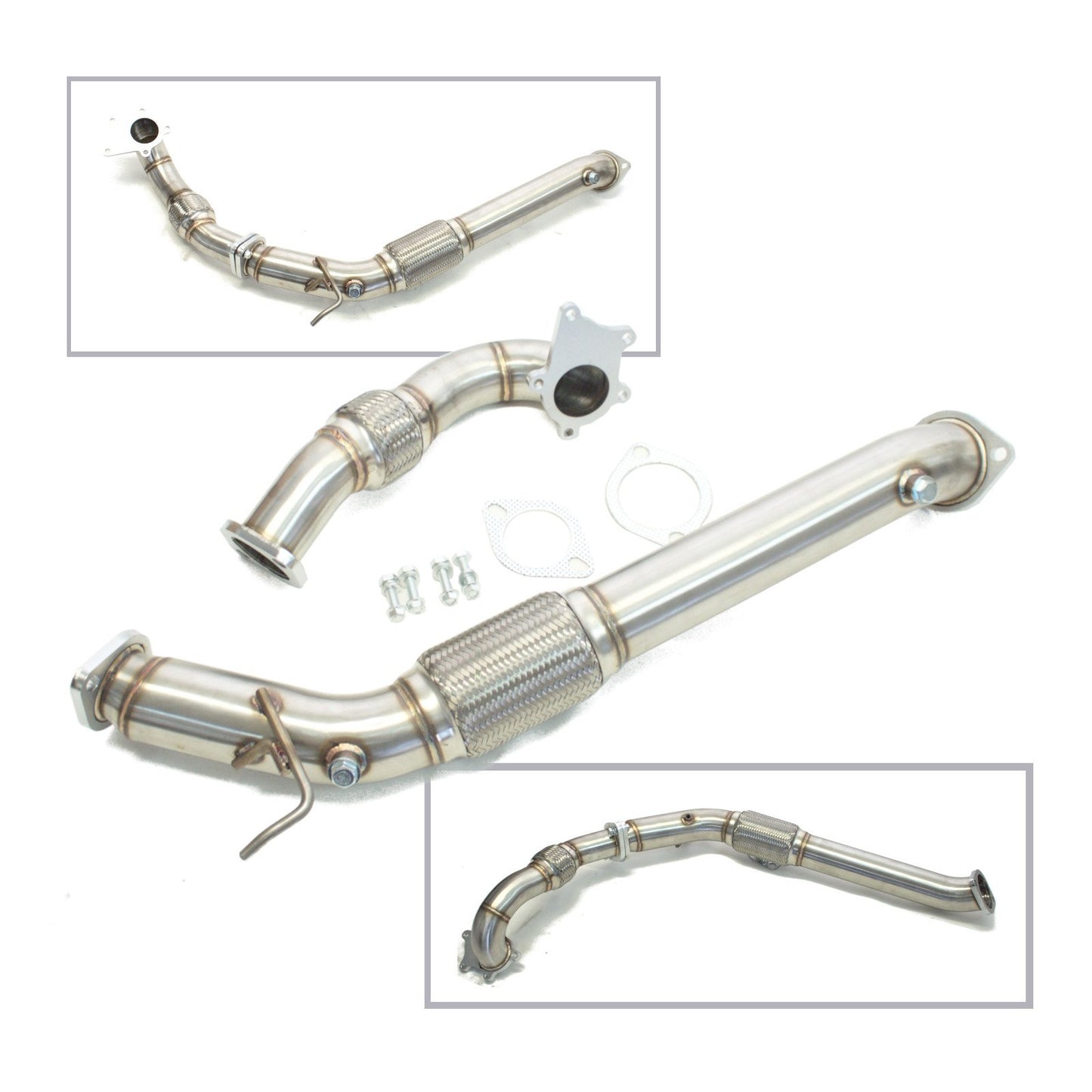

• 3" stainless steel turbo downpipe

Includes all hardware. Requires ECU upgrade, larger injectors and a high flow fuel pump.

Specifications:

TX-50E Turbocharger .63 AR

Compressor Inlet: 3.00" Inch
Compressor Outlet: 2.00" Inch
Compressor Cover: TX-50E Cover
Compressor Wheel Diameter: 53mm / 75mm
Turbine Wheel Diameter: 57mm / 65mm
Exhaust Trim: .63 AR
Turbine Flange Type: T3 Flange
Downpipe Flange Type: 5-Bolt Standard Type
Cooling Type: Oil Cooled Only
Horsepower Rating: 200-400HP+

1 Year Warranty (must be installed by a professional mechanic to be valid)
