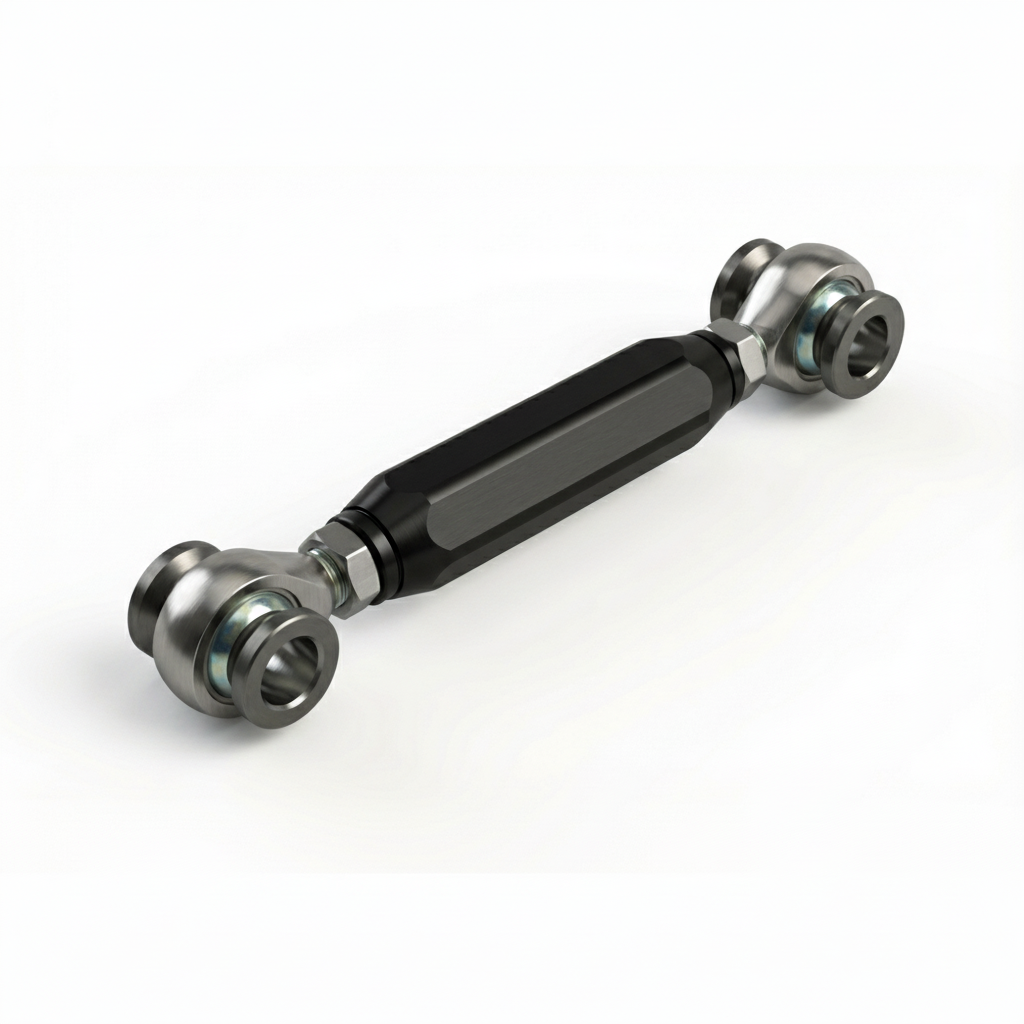

Adjustable Billet Sway Bar End Link Assembly (6.75" - 8")

Sway Bar End Link Assembly- #179-5000
The GSI Billet Sway Bar End Link Assembly provides a rigid, deflection-free connection to protect your suspension geometry. Unlike standard rod ends that develop noise and "slop," our Teflon-lined joints are self-lubricating and stay tight over time. This maintenance-free design ensures smooth, quiet articulation and instant sway bar response in real-world driving conditions. Engineered for builders who demand show-quality billet with road-proven reliability.

The GSI Advantage

• Maintenance-Free Teflon Lining: Our 3-piece alloy Heim joints feature an integrated Teflon (PTFE) liner. This self-lubricating race ensures smooth, quiet operation by eliminating metal-to-metal contact. You get the precision of a rod end without the "squeak" or the need for constant greasing.

• Precision Billet Link Tube: Machined from high-grade aluminum and finished in black anodize, these tubes offer superior strength & corrosion resistance. They are designed to resist flex, ensuring your sway bar reacts instantly to body roll.

• On-Vehicle Adjustability: By utilizing opposing threads (1/2-20 left-hand & right-hand), you can fine-tune the length of your link or balance your vehicle while the assembly is still installed. Simply loosen the jam nuts and rotate the center tube.

Design & Construction

• Weight: 1 Pound

• 6061-T6 Billet Aluminum: Max strength-to-weight ratio

• 3-Piece Alloy Rod Ends: Precision-ground spherical bearings with integrated PTFE (Teflon) liners.

• 1/2-20 Threaded Bore: Heavy-duty threading for superior pull-out strength & reliability.

• Stainless Misalignment Spacers: Stepped 3/8" bore design to maximize pivot clearance.

• Anodized Protection: Mil-spec hard coat for a show-quality, weather-resistant finish.

Measurement & Fitment Guide

Choosing the correct link length is critical for suspension geometry. This assembly uses a 4-3/8" billet tube and is designed for a specific adjustment window to ensure maximum thread strength and safety.

Adjustment Range (Center-to-Center):

• Minimum Length: 6.75"

- Achieved when both Heim joints are fully seated against the billet tube.

• Maximum Safe Extension: 8.00"

- Achieved by extending the Heims while maintaining the required 0.75" of thread engagement inside the tube.

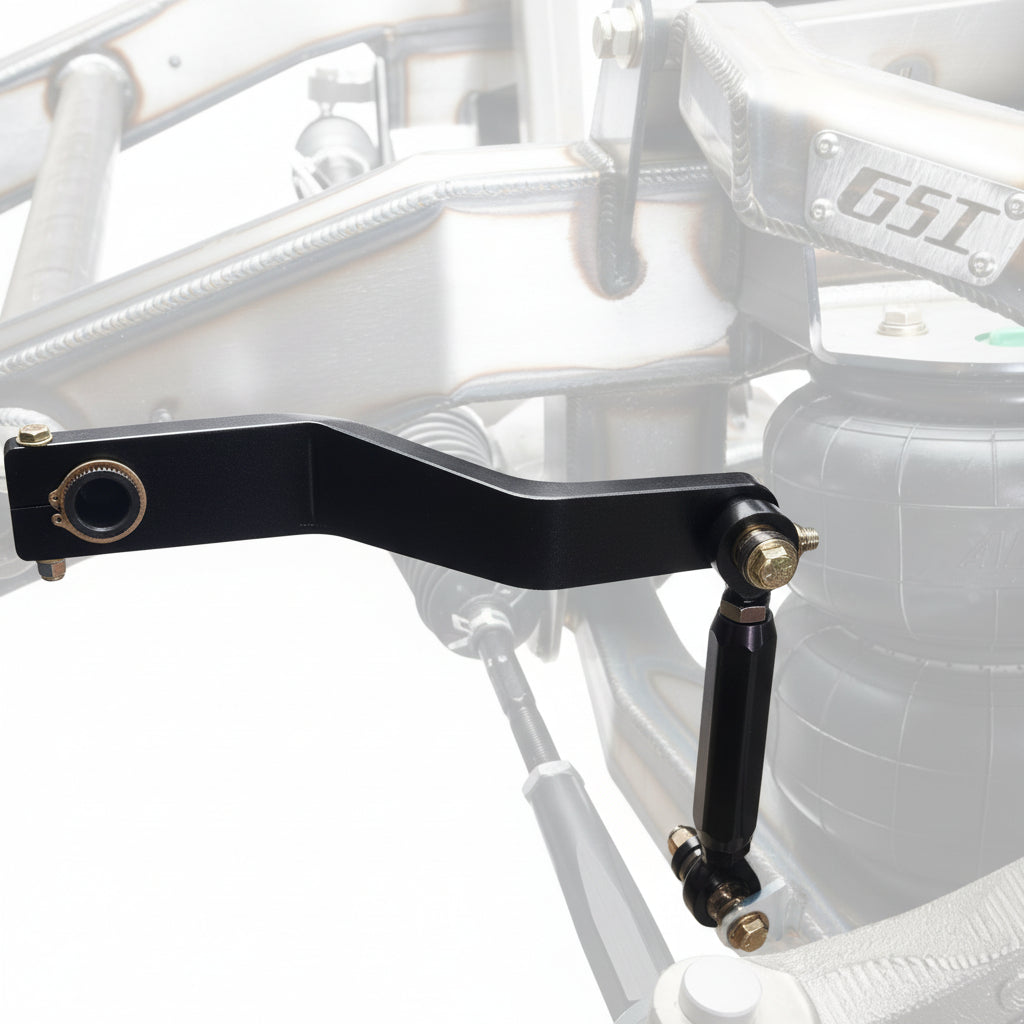

How to Measure Your Build:

1. Level the Vehicle: Set your vehicle at your desired ride height (on the ground or on a four-post lift).

2. Align the Sway Bar: Position your sway bar arms so they are parallel to the frame/ground.

3. Measure the Gap: Measure the distance from the center of the sway bar mounting hole to the center of the control arm mounting point.

4. Confirm the Window: If your measurement falls between 6.75" and 8.00", this assembly is the correct fit for your chassis.

Vehicle Applications

• Classic & Modern Truck or Car Platforms


• Pro-Touring & Performance Vehicles

• Off-Road, UTV, ATV, Marine & Custom Projects

What's Included

• (1) Billet Aluminum Sway Bar End Link Tube

• (1) Left Hand Alloy Heim Joint

• (1) Right Hand Alloy Heim Joint

• (1) Left Hand Jam Nut

• (1) Right Hand Jam Nut

• (4) Stainless Steel Misalignment Spacers (For 3/8 Bolts)
