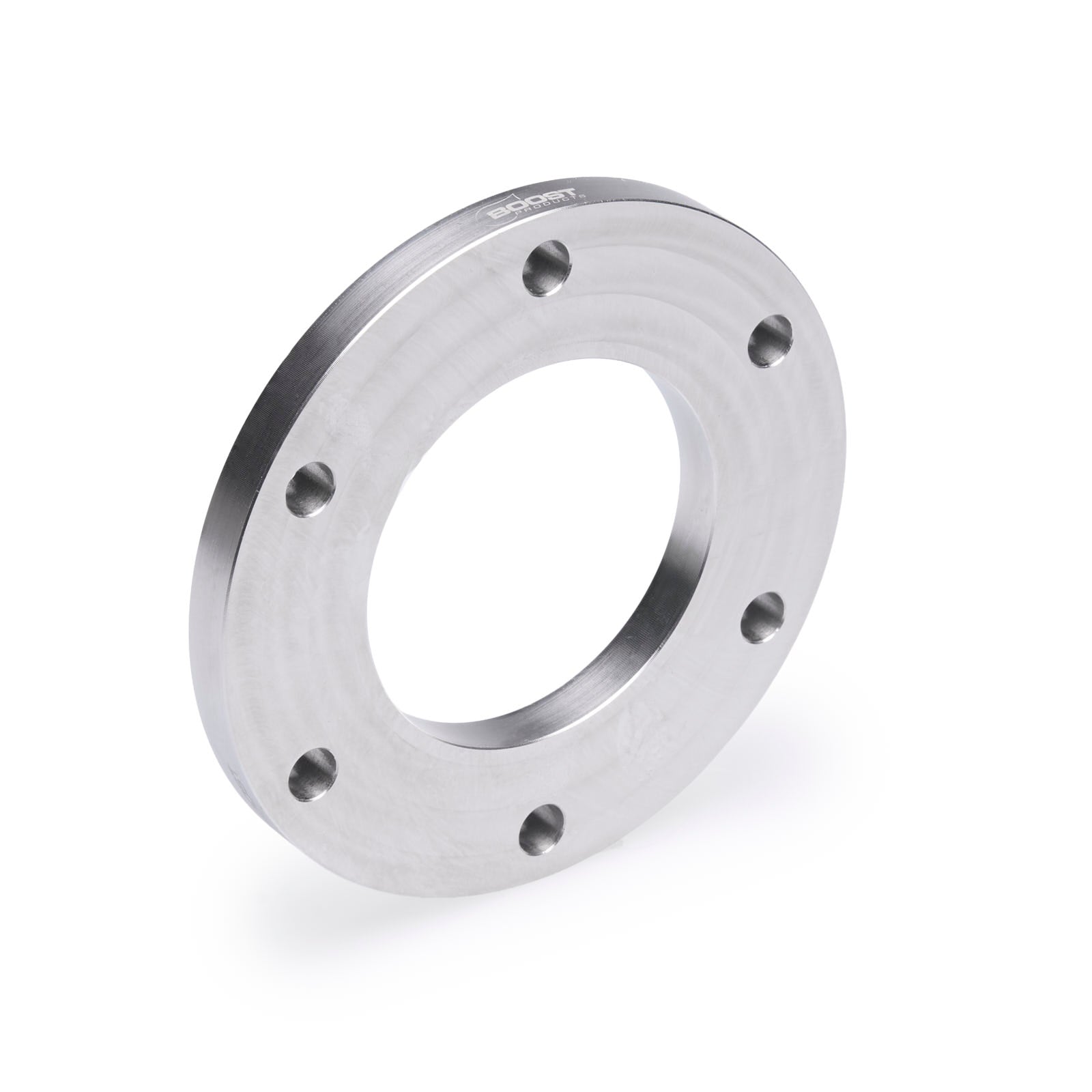

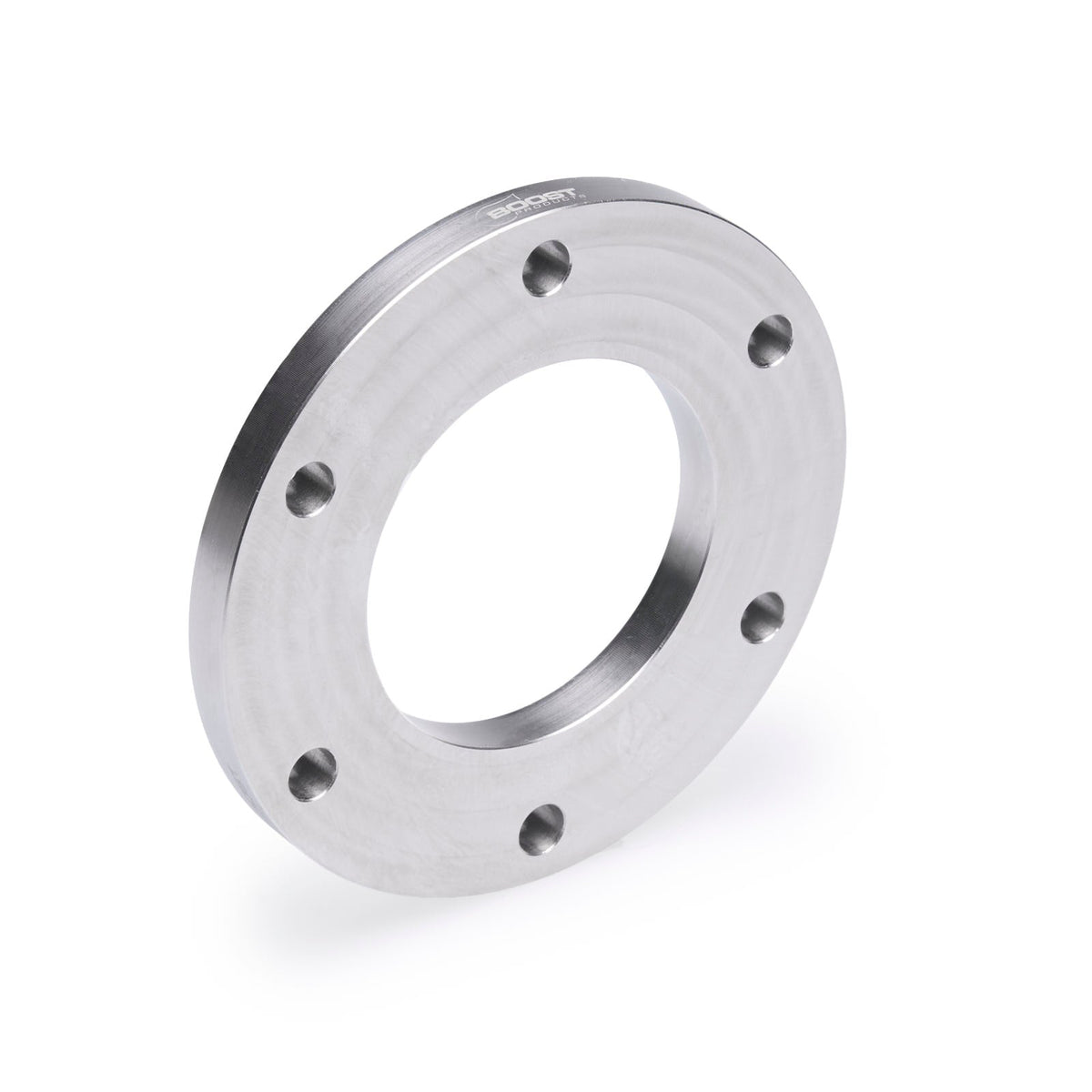

Downpipe Flange Holset Super HX40, 14cm²

Flange for fabrication of the downpipe

Premium stainless steel downpipe flange

This flange is used to fit the downpipe to the turbocharger, at the turbine outlet. All turbo related flanges are CNC milled and guarantee a perfect smooth surface and 100% accurate measurements. Additionally we supply stainless elbows and collectors needed for the fabrication of an exhaust turbo manifold, exhaust systems and more.

Material: Stainless steel 1.4301 / SS304
Material thickness: 10mm
Dimensions cut-out: 67mm
Hole distance: 101,6mm (diagonal)
Thread: for M8
Extras / Features: No threads! Holes with ID 8,80mm

For / Fits:
Holset Super HX40, 14cm²
Turboausgang BorgWarner AirWerks S200 (317222, 317246)

If you are unsure whether the flange adapts to your turbocharger, get the dimensions here. If in doubt, you can make us a sketch of the exhaust side, we compare it for you!
