BULL BOOST PERFORMANCE Billet ITB Vacuum Manifold With Idle Valve Mount For Toyota BEAMS 3SGE

Part Number: 720595378697

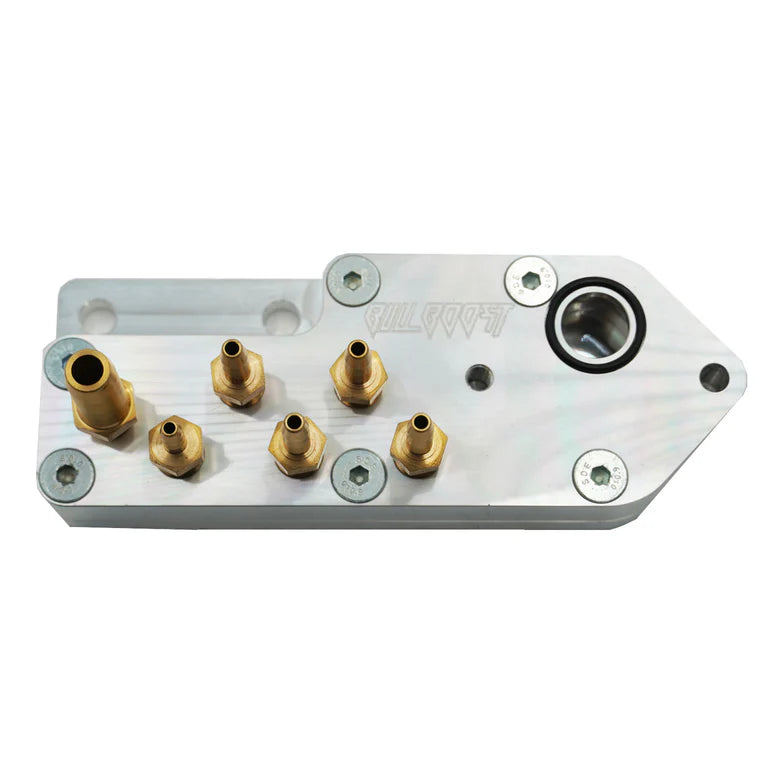

The BULL BOOST PERFORMANCE Billet ITB Vacuum Manifold is designed specifically for Toyota BEAMS 3SGE ITB setups to provide a stable and reliable vacuum source when converting from a traditional intake plenum to individual throttle bodies.

When running ITBs, the factory intake plenum is eliminated, removing the common vacuum source needed for components like the brake booster and MAP sensor. This billet vacuum block combines vacuum from each throttle body into one centralized manifold for consistent vacuum operation and improved drivability.

The integrated Idle Air Control Valve (IACV) mounting provision also allows clean idle control when using standalone ECU systems.

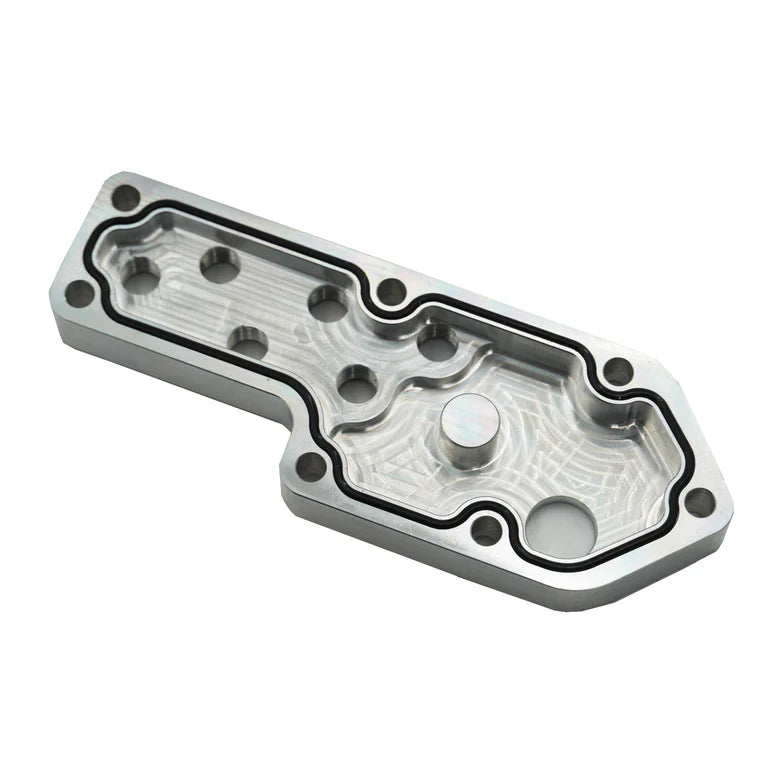

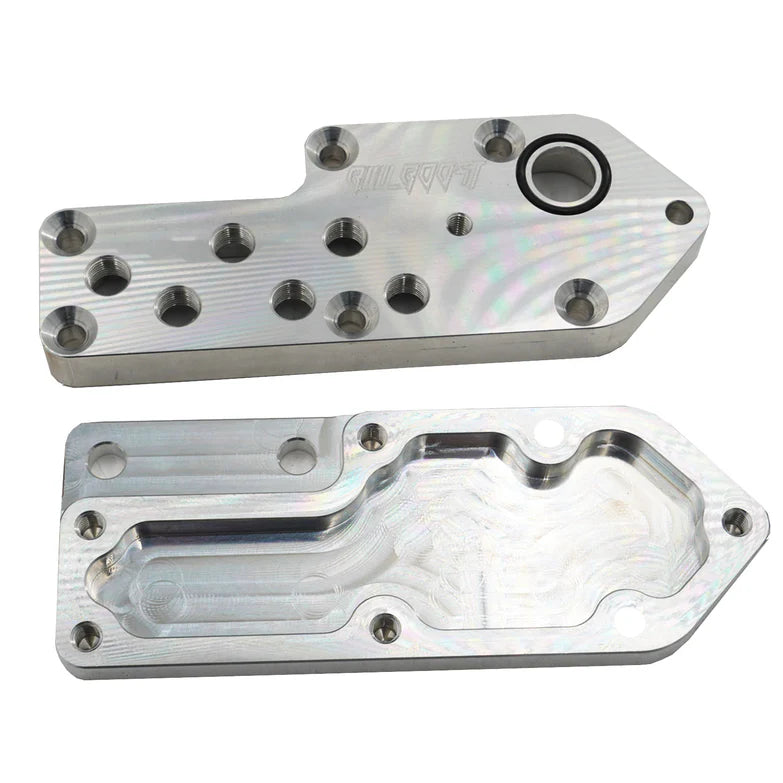

Precision-machined from billet aluminum, this compact unit mounts neatly beneath the throttle bodies using factory mounting points for a clean OEM-style installation.

Features

• Designed for Toyota BEAMS 3SGE ITB setups
• Combines vacuum from all throttle bodies into one stable source
• Supports brake booster vacuum operation
• Provides stable MAP sensor reference signal
• Integrated Idle Air Control Valve (IACV) mounting provision
• Compact billet aluminum construction
• Clean under-throttle-body mounting solution
• Uses factory mounting locations
• No modification required for installation
• Ideal for standalone ECU applications

Benefits

• Improves vacuum consistency on ITB setups
• Helps maintain proper brake booster function
• Provides accurate MAP sensor readings
• Simplifies standalone ECU idle control integration
• Cleans up engine bay vacuum routing

Fitment

Compatible with Toyota BEAMS 3SGE Engines including:

• Toyota Corolla Levin AE111 1995-2000
• Toyota Sprinter Trueno AE111 1995-2000
• Toyota Celica ST202/ST202C 1997-1999
• Toyota MR2 SW20 1997-1999
• Toyota Altezza SXE10 1998-2005

Compatible with:

• AE111 ITBs on BBP Adapter

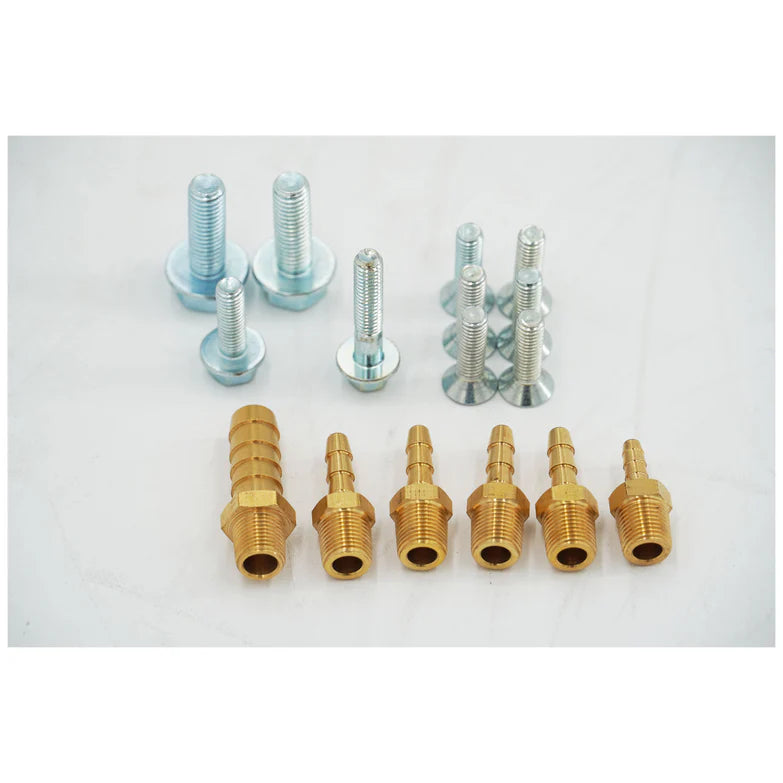

What's Included

• (1) Billet Vacuum Block
• (1) 1/8" NPT to 1/8" Hose Barb Fitting (MAP Sensor)
• (4) 1/8" NPT to 3/16" Hose Barb Fittings (Throttle Bodies)
• (1) 1/8" NPT to 3/8" Hose Barb Fitting (Brake Booster)
• (2) M8 Flanged Hex Bolts
• (1) O-Ring for Idle Valve Seal
• (2) M6 Idle Valve Mounting Bolts

⚠️ Idle Valve Not Included

Installation Notes

• Professional installation recommended
• Designed to bolt directly to factory lower manifold adapter mounting points
• Verify compatibility with your specific ITB and standalone ECU setup before purchase
