Starter Motor by Durautos.com

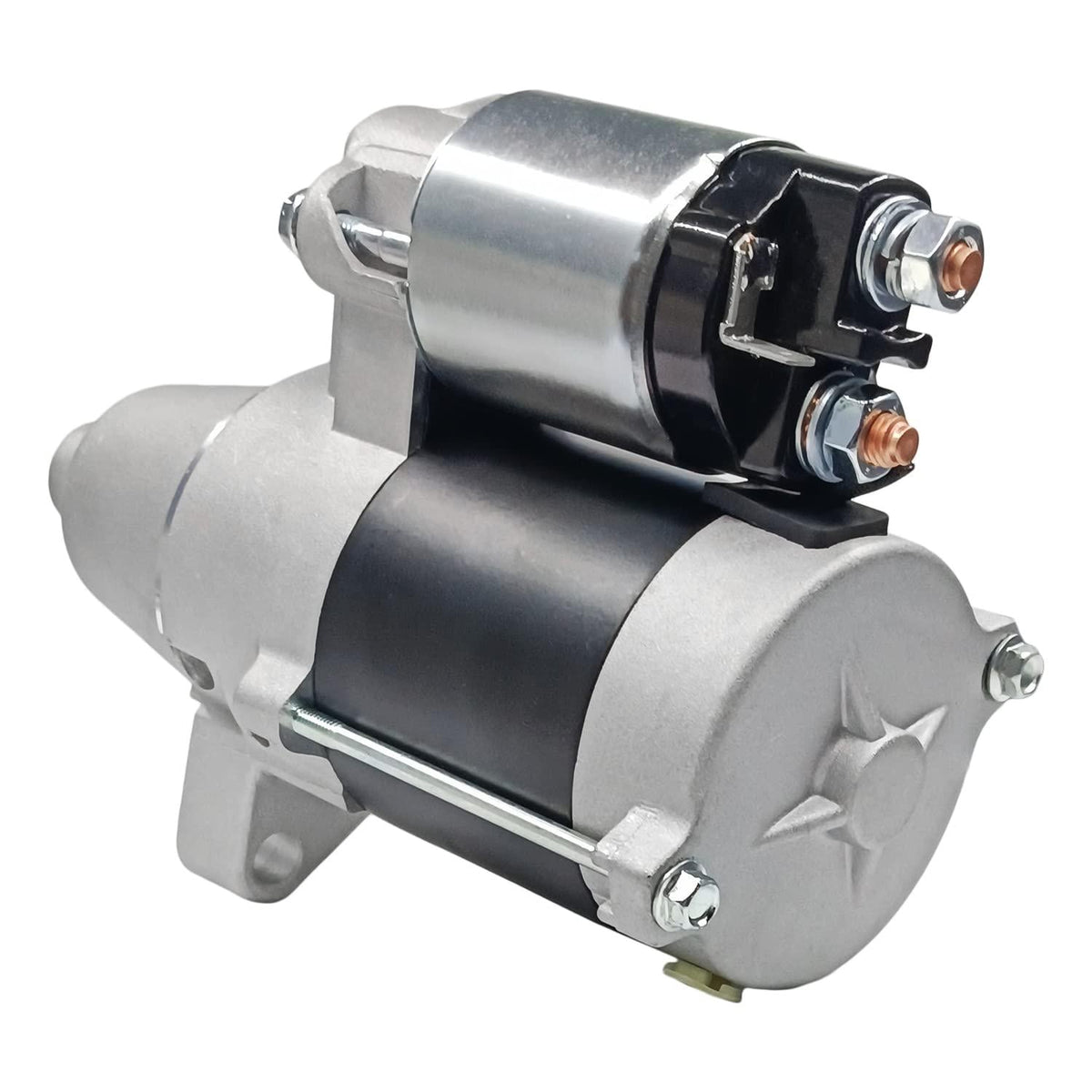

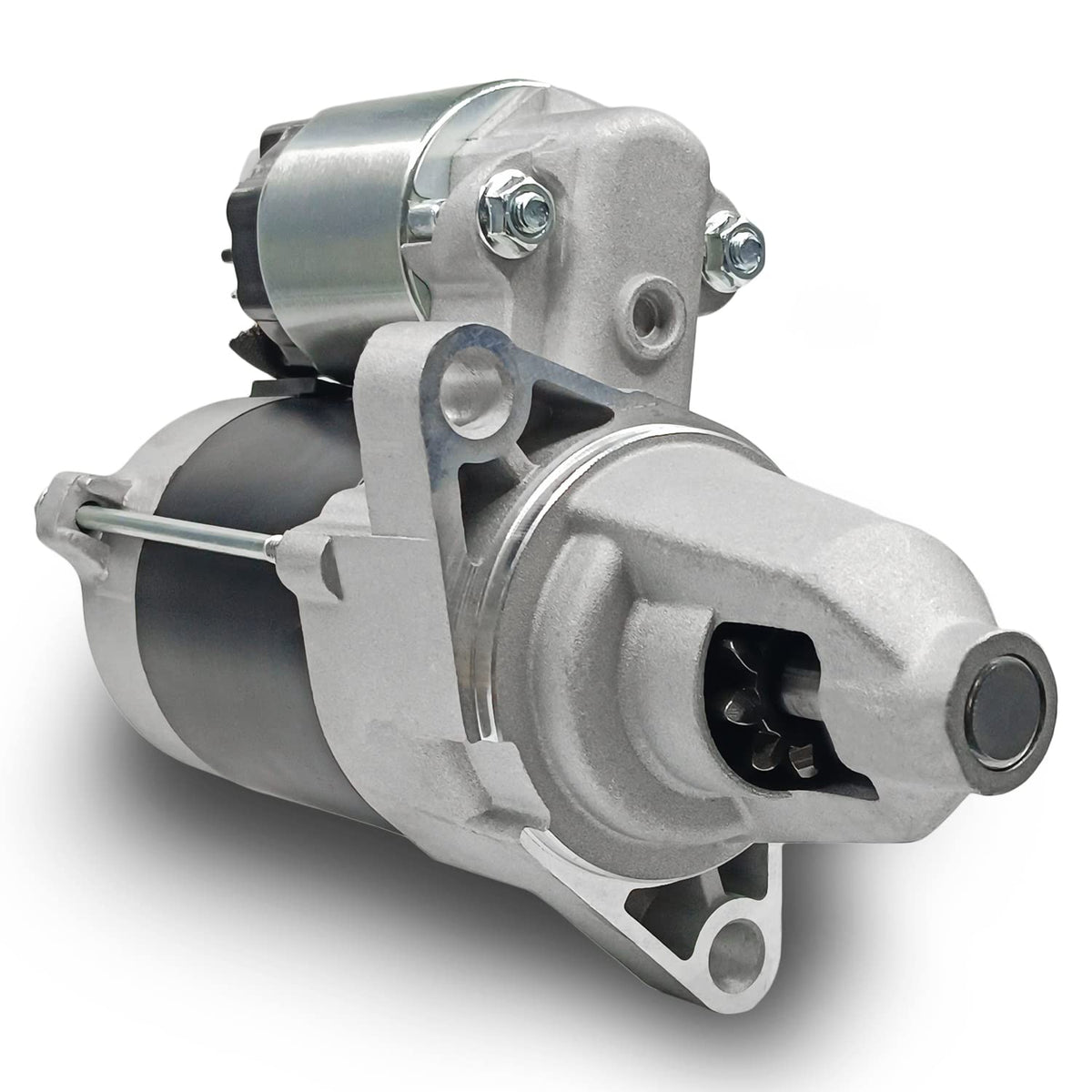

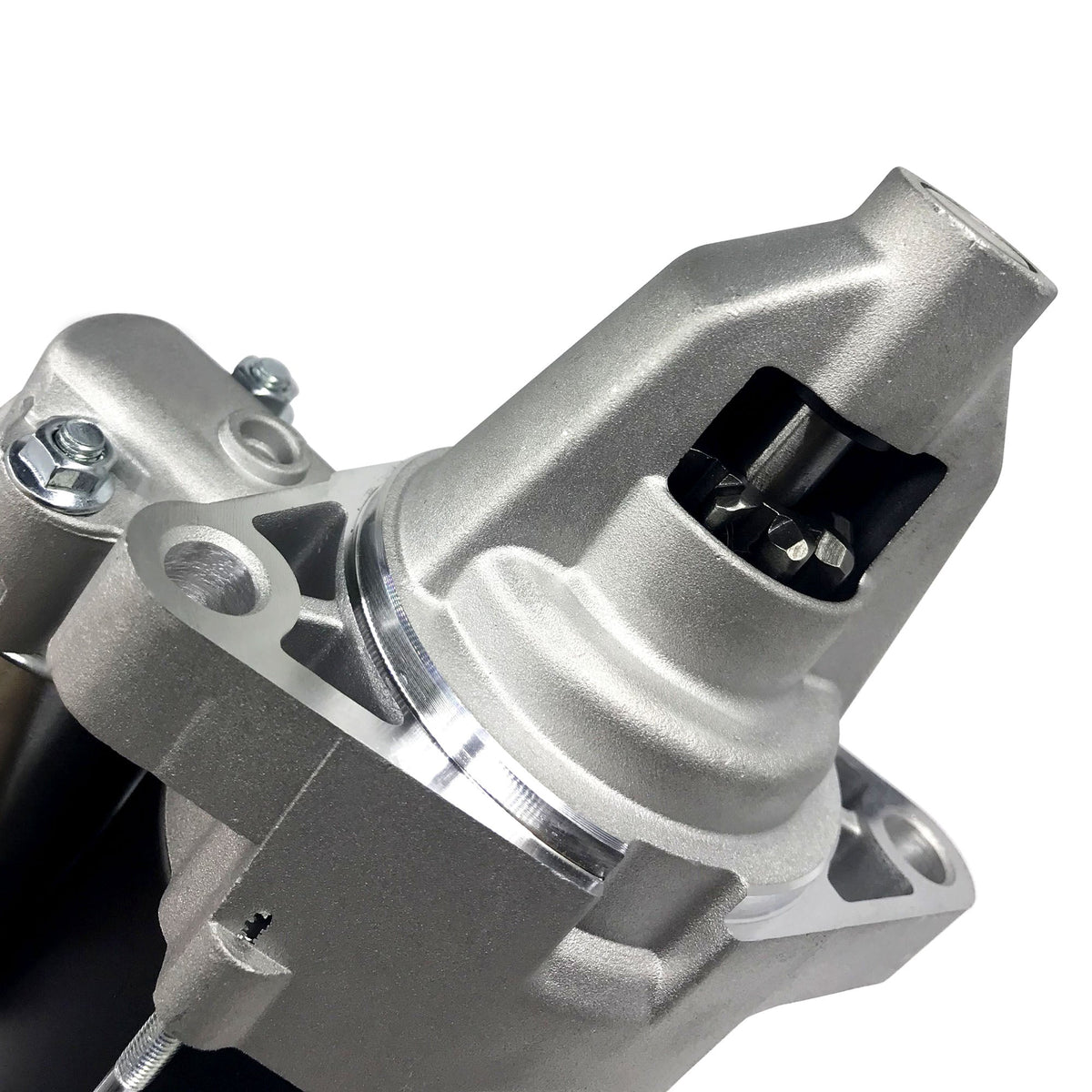

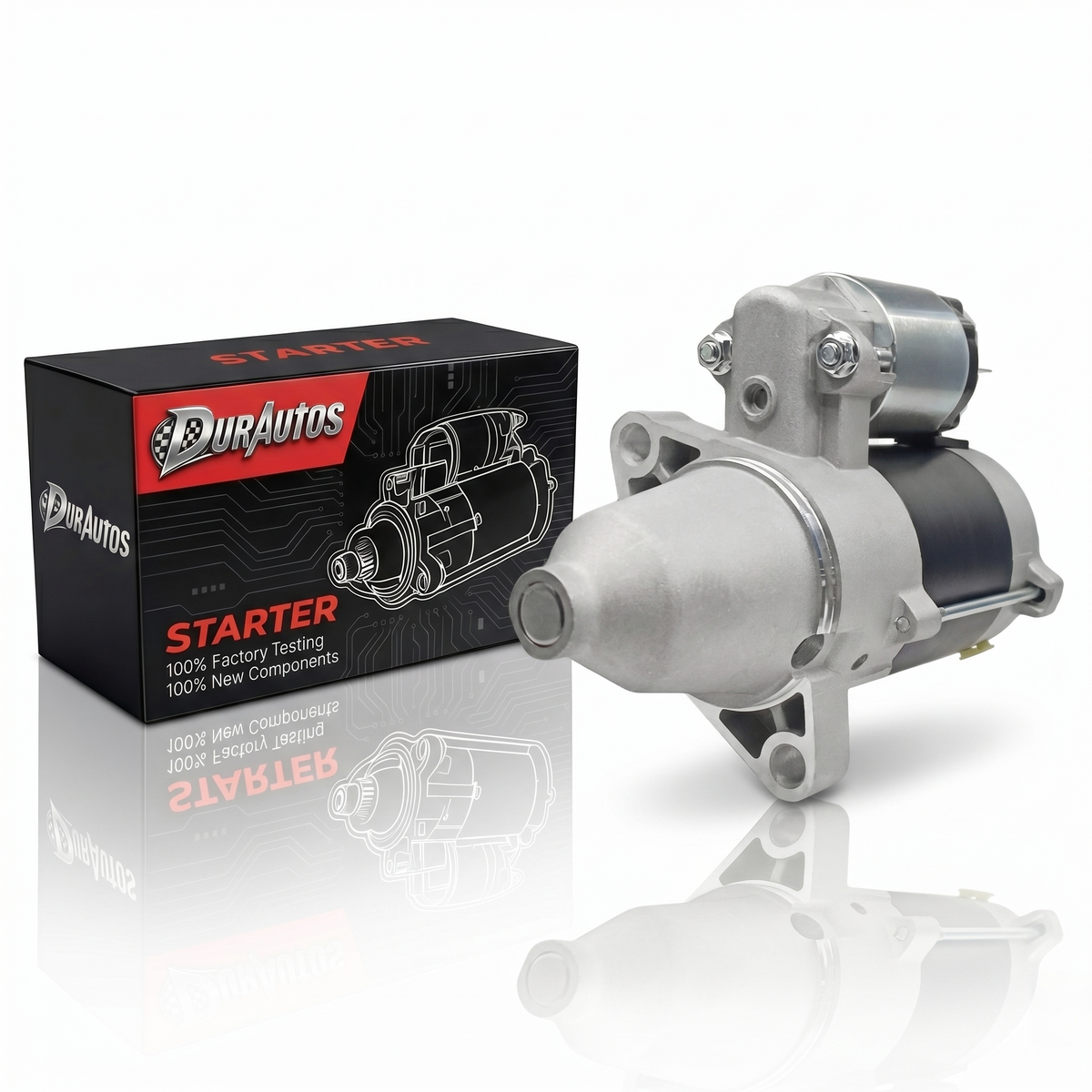

Durautos Starter Motor for Briggs & Stratton Vanguard V-Twin 32-35HP, Replaces 845760 & 84006533

Durautos Starter Motor for Briggs & Stratton Vanguard V-Twin 32-35HP, Replaces 845760 & 84006533

$91.99 USD
$79.98 USD $91.99 USD
Sale Sold out
Durautos Starter Motor for Briggs and Stratton 845760, Briggs 845640 & 84006533 (Vanguard 32HP-35HP)
★★★★★ 5.0/5 (23 Customer Reviews)
9-Tooth Drive | CCW Rotation | Lester 19612
Restore dependable, fast cranking to your heavy-duty equipment with the ultimate Briggs and Stratton 845760 starter. The Durautos Premium Starter Motor is also fully compatible as a Briggs 845640 starter and 84006533 starter motor, engineered specifically for high-performance Vanguard 35hp starter and 32HP V-Twin applications. Built with strict adherence to pragmatic quality, providing robust starting torque to eliminate ignition drag. 100% Brand New—No Core Charge.

Vehicle Fitment & Compatibility Guide

BRIGGS & STRATTON Vanguard Engines (32HP - 35HP)
Make Model / Series Year Engine Details
Briggs & Stratton Vanguard V-Twin 2007-2009+ 32HP, 35HP Air Cooled (Replaces 845760, 845640, 84006533)
⚠ IMPORTANT FITMENT VERIFICATION: Features a 9-Tooth gear with Counter-Clockwise (CCW) rotation. Perfectly matches requirements for Briggs and Stratton 845760 starter and Vanguard 35hp starter systems. Please count your original teeth and verify OEM application before ordering.

Technical Specifications

100% New
12V
0.6 KW
9 Teeth
CCW
PMDD

Cross Reference Numbers & Core Keywords Match

Briggs and Stratton 845760 starter Briggs 845640 starter 84006533 starter motor Vanguard 35hp starter B&S 807383 B&S 809054 B&S 845761 Denso 428000-0230 Denso 428000-0231 Lester 19612 Arrowhead SN0529 Cargo 114716

The Durautos Advantage

  • V-Twin Heavy Crank: Specifically tuned internal field coils to overcome the high-compression resistance of 32HP and Vanguard 35HP twin cylinders.
  • Debris Shield Protection: Enclosed PMDD frame helps block fine grass trimmings, moisture, and landscaping dust from clogging the brushes.
  • Plug & Play Integration: Machined mounting faces align perfectly with original Briggs crankcase bosses for quick bolt-on speed.
  • Zero Core Charge: 100% brand new assembly; no return core tracking or dealership core fees required.

FREQUENTLY ASKED QUESTIONS

How do I test if my Vanguard 32HP/35HP engine won't start due to a faulty starter vs. battery or solenoid?
Scenario: Commercial Zero-Turn or heavy-duty power equipment with a Briggs Vanguard V-Twin engine won't crank on the job site.
Testing Protocol & Specific Values:
  1. Battery Voltage Under Load: Measure 12V DC battery resting voltage (fully charged = 12.6V+). Have an assistant turn the key to START: if voltage drops below 10.5V, charge or replace the battery.
  2. Solenoid Jump Test: Ensure safety switches (seat, PTO, brake) are engaged. Jumper 12V positive directly to the starter's main terminal post using an insulated jumper cable.
Comparison Conclusion: If the starter spins rapidly when jumped directly, your starter motor is functional and the ignition switch, safety module, or starter solenoid is at fault. If direct contact yields heavy sparks or zero rotation under 12.6V power, the starter's internal carbon brushes or 0.6kW armature windings are burned out, requiring full replacement.
My original starter has 14 teeth. Is this 9-tooth Lester 19612 / 84006533 model compatible?
Scenario: Verifying pinion tooth count on Briggs & Stratton Vanguard V-Twin engines.
Technical Tooth Count & Mesh Guidelines:

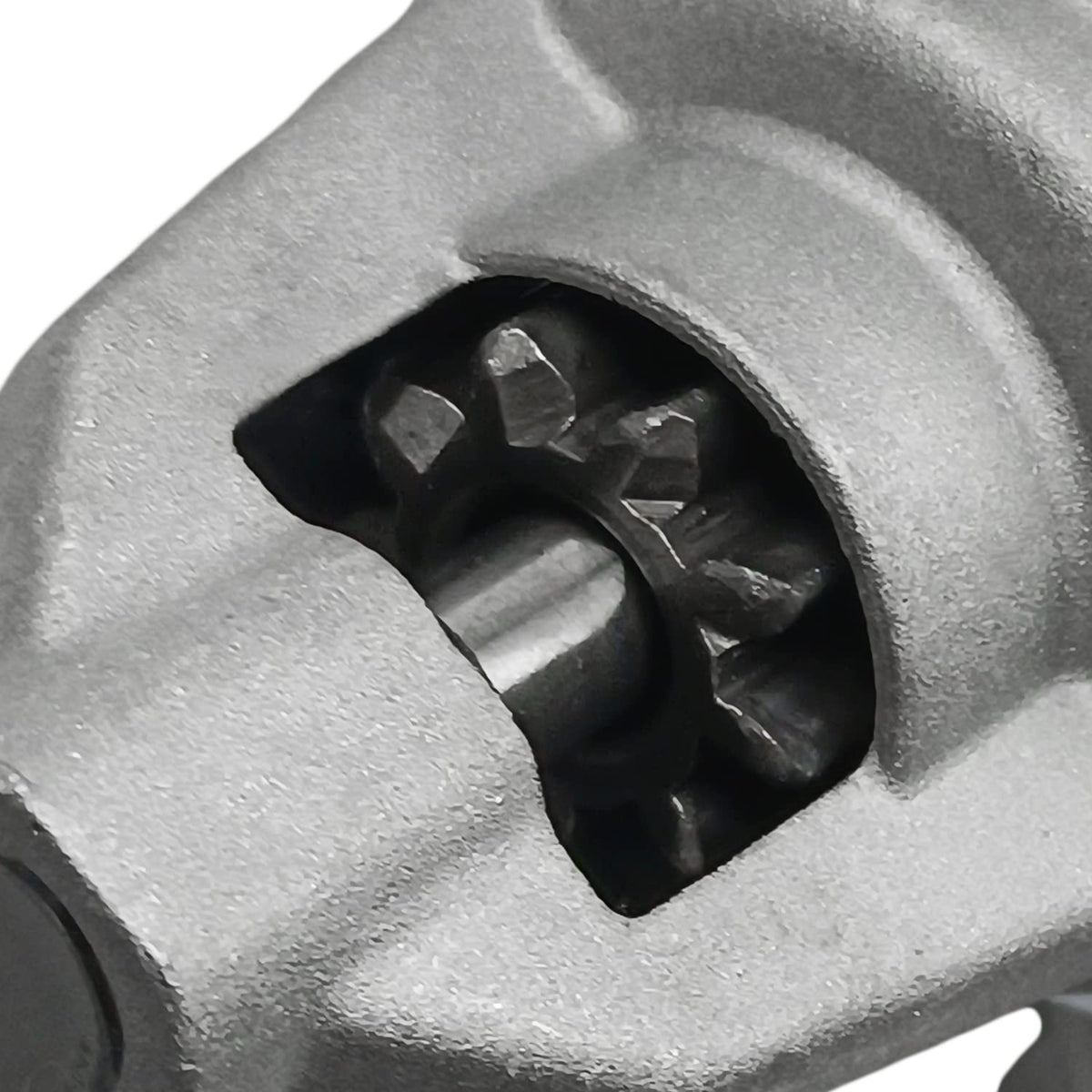

  • 9-Tooth Pinion Gear (Lester 19612 / Replaces 845760): Designed specifically for Vanguard 32HP & 35HP flywheels requiring a 9-tooth CCW (counter-clockwise) pinion pitch diameter.
  • 14-Tooth or 16-Tooth Models: Pinion gear diameter and pitch spacing are fundamentally different. Installing a 9-tooth starter on a 14-tooth setup will cause severe gear binding, tooth grinding, or stripped flywheel ring gear teeth.
Comparison Conclusion: Always physically count the gear teeth on your original starter pinion before purchasing. If your original unit features 9 teeth and CCW rotation on a Vanguard engine, this unit is a 100% direct drop-in fit.
How does Durautos 19612 compare to OEM Briggs/Denso ($230+) and cheap knockoffs ($35)?
Scenario: Evaluating commercial equipment durability, heat tolerance, and fleet repair budget.
Price & Performance Benchmarks:
  • Price Benchmark: OEM Briggs & Stratton / Denso ($230–$290) vs. Cheap Knockoffs ($35–$45) vs. Durautos Commercial Grade ($60–$75).
  • Build Quality: Low-cost aftermarket starters use recycled magnet blocks and copper-clad aluminum (CCA) wiring, which fail when engine bay temperatures exceed 80°C. Durautos utilizes 100% pure copper armature windings, high-temp epoxy insulation rated to 150°C, and dust-sealed bearings.
  • Cycle Test Rating: Durautos starter assemblies are laboratory stress-tested for 10,000+ continuous start cycles to handle high-compression V-Twin engine cranking.
Comparison Conclusion: Durautos delivers 100% of OEM cranking power and heat resistance at less than 1/3 of the OEM dealer price, completely eliminating $0 core deposit returns and reducing fleet downtime.
What are the installation steps, required tools, and bolt torque specs for replacing Lester 19612 / 845760?
Scenario: Field replacement on commercial Vanguard-powered equipment.
Installation Specs & Torque Values:
  • Difficulty Level: Beginner DIY — Average replacement time is 15–20 minutes.
  • Required Tools: Ratchet, 1/2" socket, 10mm socket, wire brush for cleaning chassis ground connections.
  • Torque Specs: Starter mounting bolts to engine block: 15–18 ft-lbs (20–24 Nm). Main B+ battery terminal stud nut: 5–6 ft-lbs (7–8 Nm). Do not overtighten brass terminal studs.
Comparison Conclusion: Completing this quick 20-minute DIY swap yourself saves $120–$180 in mobile service fees while restoring immediate starting reliability to your commercial machine.
What warranty protection and return policy does Durautos offer for Vanguard Lester 19612?
Scenario: Peace of mind during peak commercial landscaping and farming operations.
Warranty & Service Policy Values:
  • Warranty Period: Full 1-Year (365-Day) replacement warranty against electrical and mechanical manufacturing defects.
  • Core Charge: $0 Core Charge — 100% brand-new unit; no old core return shipping or hidden fees.
  • Warehouse Dispatch: Shipped directly from US-based warehouse inventory within 24 business hours to minimize equipment downtime.
Comparison Conclusion: Backed by responsive US-based customer support, Durautos ensures rapid 3–5 day replacement dispatch in the unlikely event of a defect, keeping your equipment running with zero hassle.
For product selection or volume-order questions, contact Racing Precision Motorsports.
