V-Twin Air-Cooled Models:

V-Twin Air-Cooled Models:

Zero Turn Models (2012-2014):

Z-Force 48/54/60	Kawasaki FR/FS Engine
RZT 46/50/54	Kawasaki FR/FS Engine
LTX1046 / LTX1050	Kawasaki FR/FS Engine

John Deere MIA Reference: Manufacturer Cross-Reference:

Scenario: You turn the key on your Cub Cadet Z-Force/RZT or John Deere ZTrak mower equipped with a Kawasaki FR/FS V-Twin engine and hear a single "click" or slow cranking.
Testing Protocol & Specific Values:

1. Battery Voltage Test: Check resting DC voltage across battery terminals using a multimeter. Fully charged resting state is 12.6V+. While turning the key to START, if voltage drops below 10.5V, charge or replace the 12V battery first.
2. Solenoid Jump Test: With safety interlocks engaged (seat sensor, brake pedal, PTO off), use an insulated jumper cable to briefly connect the 12V battery positive terminal directly to the main terminal post on the starter motor.

Comparison Conclusion: If the starter spins rapidly when jumped directly, your starter motor is fully functional and the ignition switch, safety module, or starter solenoid is at fault. If direct battery contact produces heavy sparks or zero rotation under 12.6V power, the starter's internal carbon brushes or 0.8kW PMDD armature windings are burned out, requiring full replacement.

Scenario: Identifying replacement starters for Kawasaki FR541V–FR730V and FS481V–FS730V V-Twin engines.
Technical Tooth Count & Mesh Guidelines:

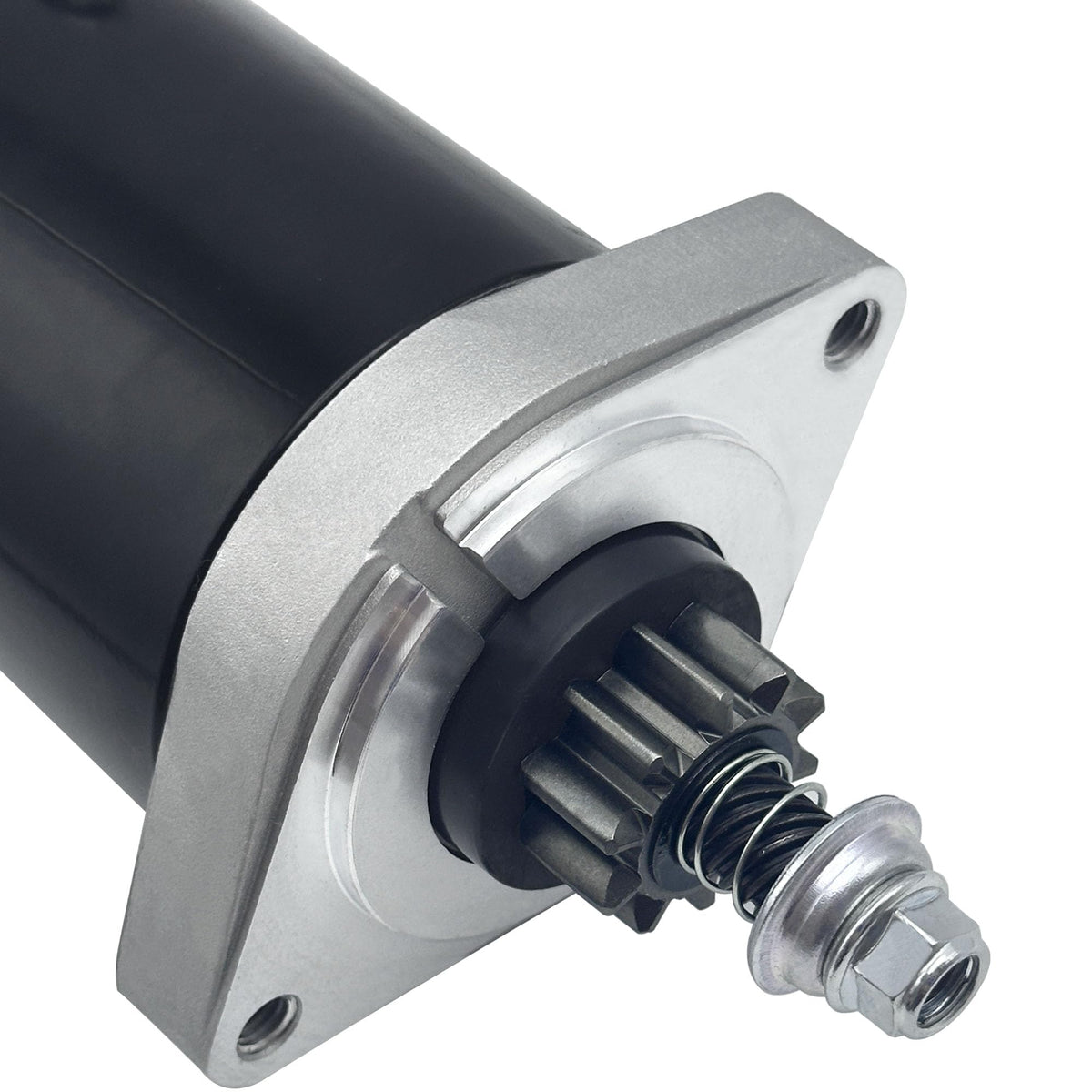

• 10-Tooth Steel Pinion Gear (Lester 5954): Precision-matched for Kawasaki FR/FS series flywheels requiring a 10-tooth CCW (counter-clockwise) pinion pitch diameter.
• OEM Part Cross-Check: Directly interchanges with Kawasaki OEM numbers 21163-0711, 21163-7024, 21163-0727, 21163-0749, and John Deere OEM numbers MIA11761, MIA11949, MIA12455.

Comparison Conclusion: Always verify the stamped OE part number on your original starter or count pinion teeth. If your original unit features 10 teeth and CCW rotation on a Kawasaki FR or FS engine, Lester 5954 is a 100% direct drop-in fit.

Scenario: Evaluating long-term durability for residential lawn care and commercial landscaping fleets.
Price & Performance Benchmarks:

• Price Benchmark: OEM Kawasaki / John Deere ($220–$280) vs. Cheap Knockoffs ($30–$40) vs. Durautos Premium ($55–$70).
• Build Quality: Low-cost aftermarket units use recycled magnet blocks and copper-clad aluminum (CCA) wiring that break down when engine compartment temperatures exceed 75°C. Durautos utilizes 100% pure copper armature windings, high-temp epoxy insulation rated to 150°C, and dust-sealed bearings.
• Cycle Test Rating: Durautos starter assemblies are laboratory stress-tested for 10,000+ continuous start cycles to handle high-compression V-Twin engine cranking.

Comparison Conclusion: Durautos delivers 100% of OEM cranking power and heat tolerance at less than 1/3 of the OEM price, eliminating upfront core deposits and providing multi-season dependable performance.

Scenario: DIY replacement on zero-turn and lawn tractors (Cub Cadet, John Deere, Toro).
Installation Specs & Torque Values:

• Difficulty Level: Beginner DIY — Average replacement time is 15–20 minutes.
• Required Tools: Ratchet, 12mm socket, 10mm socket, wire brush for cleaning chassis ground connections.
• Torque Specs: Starter mounting bolts to engine crankcase: 15–18 ft-lbs (20–24 Nm). Main B+ battery terminal stud nut: 5–6 ft-lbs (7–8 Nm). Do not overtighten brass terminal studs.

Comparison Conclusion: Completing this quick 20-minute DIY swap in your driveway saves $120–$180 in mobile dealer service fees while restoring immediate starting reliability to your mower.

Scenario: Peace of mind during peak summer mowing operations.
Warranty & Service Policy Values:

• Warranty Period: Full 1-Year (365-Day) replacement warranty against electrical and mechanical manufacturing defects.
• Core Charge: $0 Core Charge — 100% brand-new unit; no old core return shipping or hidden fees.
• Warehouse Dispatch: Shipped directly from US-based warehouse inventory within 24 business hours to minimize equipment downtime.

Comparison Conclusion: Backed by responsive US-based customer support, Durautos ensures rapid 3–5 day replacement dispatch in the unlikely event of a defect, keeping your lawn tractor running with zero hassle.
