- Kubota ZD326 Commercial Zero Turn
- Kubota ZD331 Commercial Zero Turn
- Kubota ZD28 28HP Diesel (1996-2005)
- Kubota ZD25 25HP Diesel (1996-2005)
- Engine Compatibility D1105 L3 (1123cc / 69cid)
1
/
of
6
Starter Motor by Durautos.com
Durautos Starter Motor for Kubota ZD326 ZD331 & D1105 Diesel, Replaces 1G069-63010
Durautos Starter Motor for Kubota ZD326 ZD331 & D1105 Diesel, Replaces 1G069-63010
Regular price
$82.99 USD
Regular price
$72.98 USD
Sale price
$82.99 USD
Quantity
Couldn't load pickup availability
Durautos Premium Replacement Starter
Durautos Kubota ZD326 Starter & ZD331 Starter Replacement (Fits ZD28 Diesel)
12V 1.1 kW 9 Teeth CW Rotation PLGR
OE Reference: 1G069-63010 | Lester 18413 / 18417
Compatibility Guide
Match the equipment model, engine and listed year range below. Final fitment should be confirmed against the OE or Denso number on the original unit.
Fitment checkpoint: Verify OE reference 1G069-63010 or Denso 428000-1160. Also compare the 9-tooth drive, CW rotation, connector and mounting configuration with the removed starter.
Technical Specifications
Condition100% Brand New
Voltage12V
Power Rating1.1 kW
Tooth Count9 Teeth
RotationCW (Clockwise)
Starter TypePLGR (Gear Reduction)
Cross Reference & Top Matches
Reference numbers are grouped by brand and fitment search terms for faster checking. Match at least one OE or interchange number with your original application.
POPULAR FITMENT SEARCHES
Kubota ZD326 starter Kubota ZD331 starter replacement Kubota ZD28 diesel starter
KUBOTA
1G069-63010 1G069-63011 1G069-63012 77700-02596
DENSO
428000-1160 428000-1161
LESTER
Lester 18413 / 18417
ARROWHEAD
SND0476
The Durautos Advantage
- Application-focused configuration: The 1.1 kW PLGR design, 9-tooth drive and CW rotation perfectly match the high-torque needs of a Kubota ZD28 diesel starter or D1105 applications.
- Complete starter assembly: Supplied as a brand-new replacement unit for direct swap with your original Kubota or Denso starter.
- No core return: Keep or recycle the removed starter locally; no core deposit or return shipment is required.
- Clear fitment checks: Equipment models, engine details, specifications and interchange numbers are organized for easier verification.
Frequently Asked Questions
How do I confirm this Kubota ZD326 starter or ZD331 starter replacement fits my mower?
Confirm that your equipment is a listed model (such as the ZD326, ZD331, or if you need a Kubota ZD28 diesel starter) equipped with a D1105 engine. Then compare your original starter's OEM number against the Kubota (e.g., 1G069-63010) or Denso references above, ensuring it shares the 12V, 1.1 kW, 9-teeth, and CW rotation specs.
Can a weak battery cause symptoms similar to a failed starter?
Yes. Slow cranking or a clicking sound can also result from a discharged battery, corroded terminals, loose grounds, damaged cables or a control-circuit issue. Inspect and test the starting system before replacing components. If diagnosis is uncertain, use a qualified equipment technician.

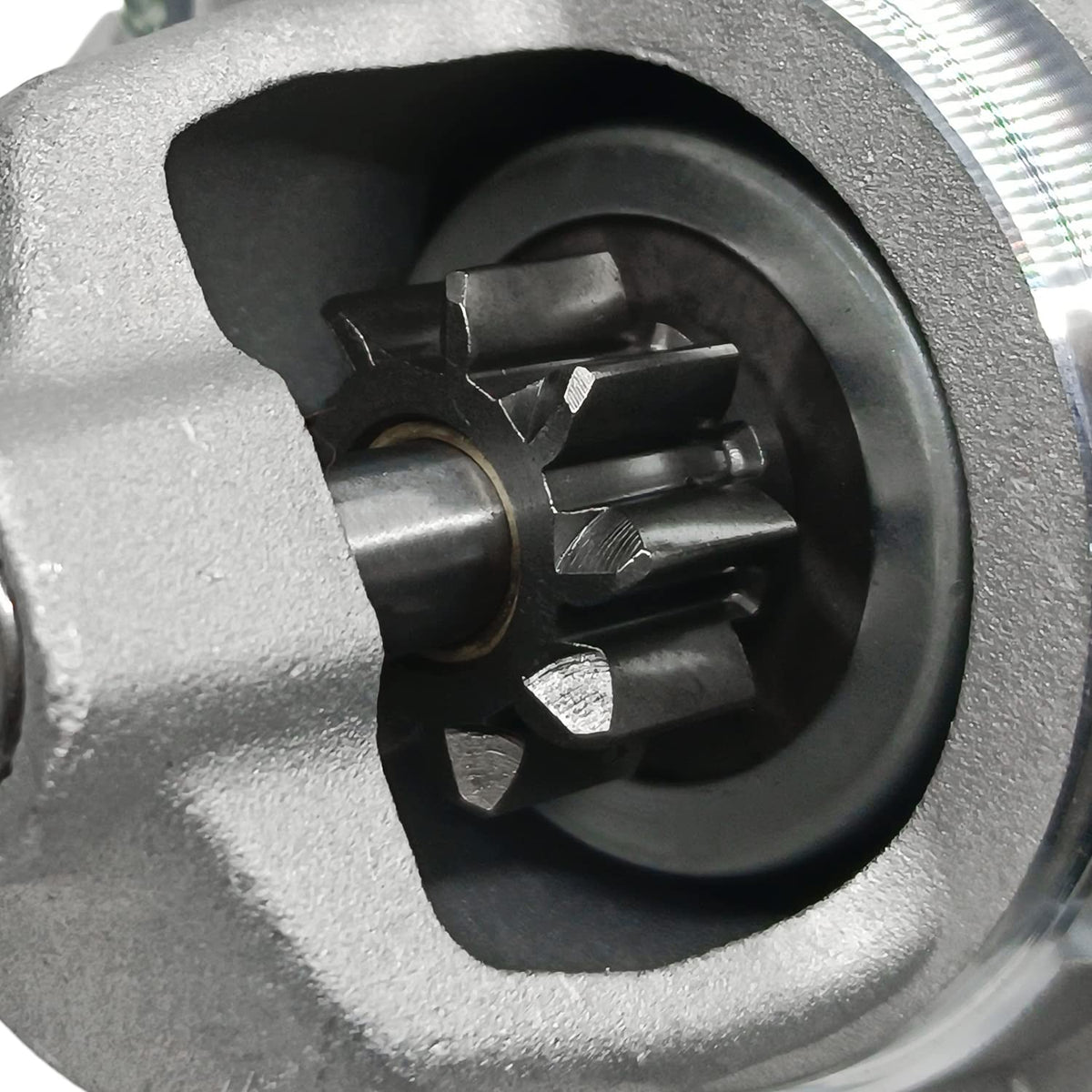

Why must the tooth count and rotation match exactly?
The drive gear and rotation must match the original starting system for correct flywheel engagement. Compare the removed starter and equipment specifications before installation; do not install a unit with a different gear or rotation.
What is included, and are mounting bolts supplied?
The package contains the starter motor assembly only. Mounting bolts are not included. Inspect the original hardware and replace worn or damaged hardware with parts specified for your specific Kubota mower.
What should I check before installation or a warranty request?
- Disconnect the negative battery cable before removing the old starter.
- Photograph the original wiring positions and compare mounting points.
- Use the equipment service manual for installation procedures and fastener specifications.
- For warranty terms or a claim, contact Durautos support with the order number and product details.
For product selection or volume-order questions, contact Racing Precision Motorsports.
SKU: YWD6003
