Godspeed Audi A6 Quattro (C8) 2019–2025 MAXX-Sports Inverted Coilovers (48mm FLM)

Godspeed Audi A6 Quattro (C8) 2019–2025 MAXX-Sports Inverted Coilovers (48mm FLM)

SKU: MMXI7024-48-A

Product Description

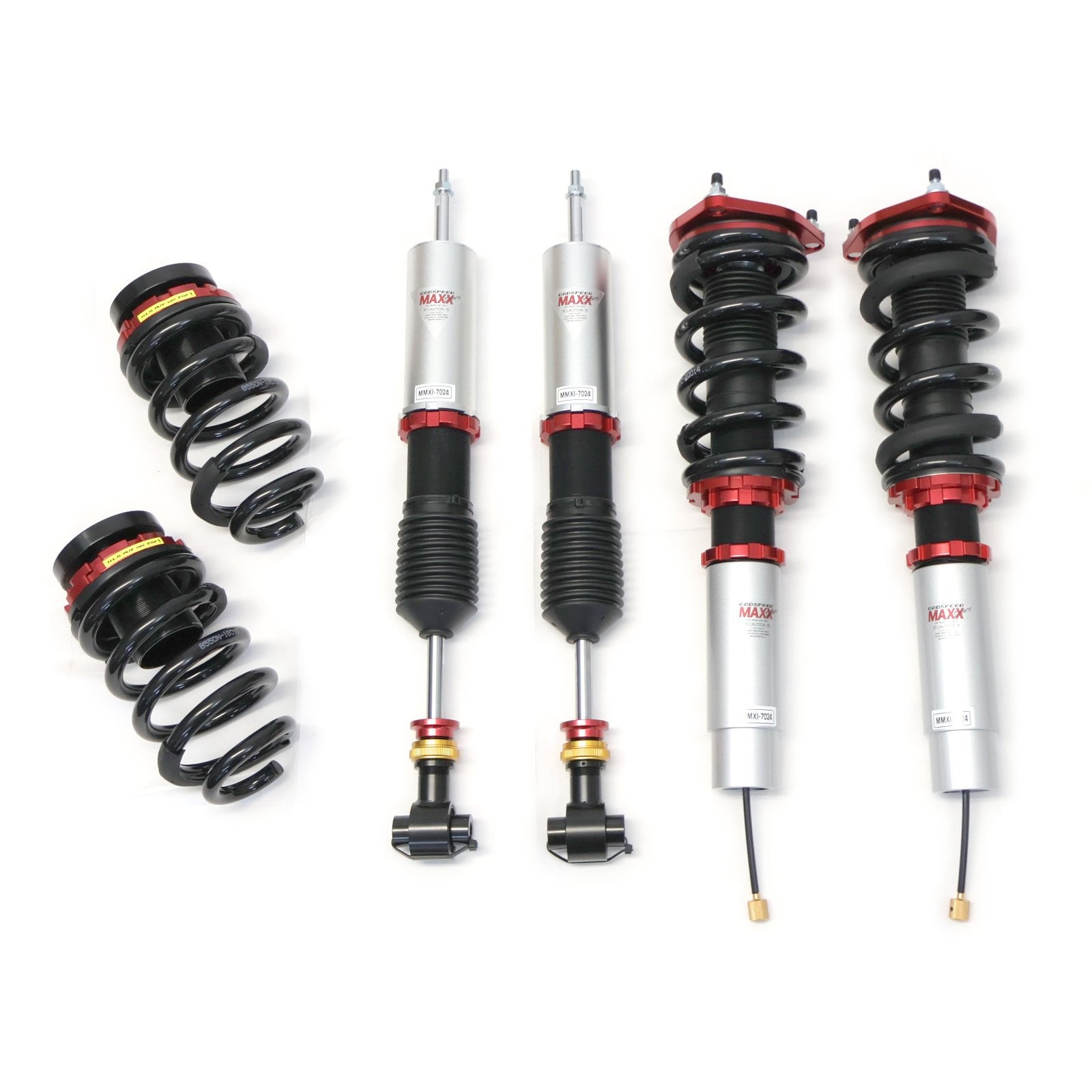

The Godspeed MAXX-Sports Inverted Coilover System for the Audi A6 Quattro (C8) 2019–2025 is engineered to deliver enhanced handling, superior durability, and precision adjustability for both spirited street driving and competitive off-road use. Designed with motorsport-inspired inverted shock technology, this suspension system significantly improves rigidity, steering response, and overall vehicle stability compared to traditional upright coilovers.

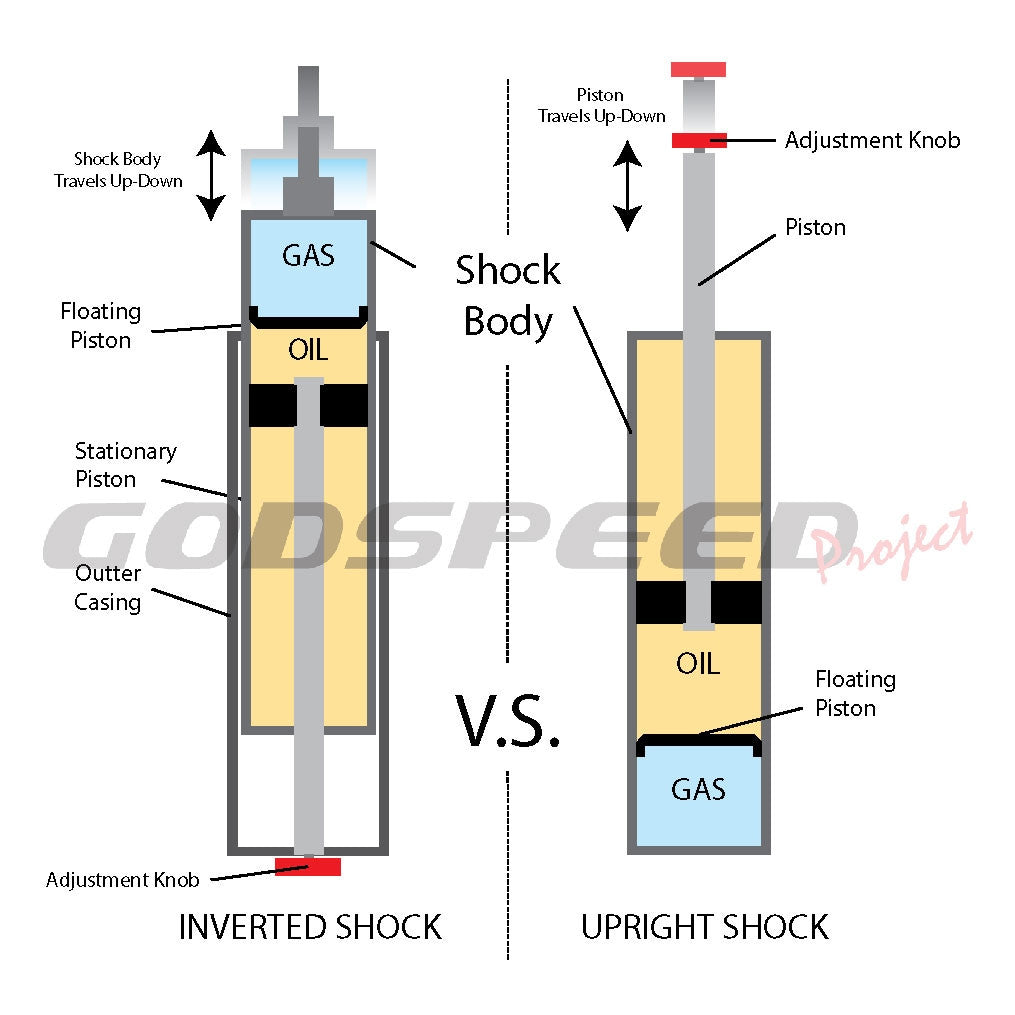

Godspeed’s inverted strut design positions the thicker shock shaft at the bottom, reducing flex under hard cornering, braking, and acceleration. This translates to sharper turn-in, improved chassis feedback, and a more controlled driving experience. By relocating the oil chamber and seals higher within the shock body, critical components are better protected from dirt, debris, and road contaminants—helping extend service life.

The 48mm FLM monotube shock bodies offer increased oil capacity and improved heat dissipation, ensuring consistent damping performance during aggressive driving or extended track sessions. With 20 levels of adjustable damping, drivers can fine-tune rebound and compression to achieve the ideal balance between ride comfort and performance.

Independent ride height and spring preload adjustment allow precise stance tuning without compromising suspension travel. This system utilizes an inverted front shock design with a standard rear configuration, ensuring optimal performance where it matters most while maintaining everyday drivability.

Key Features & Benefits

• Fits Audi A6 Quattro (C8) 2019–2025 – All Trims

• Godspeed MAXX-Sports Series performance suspension

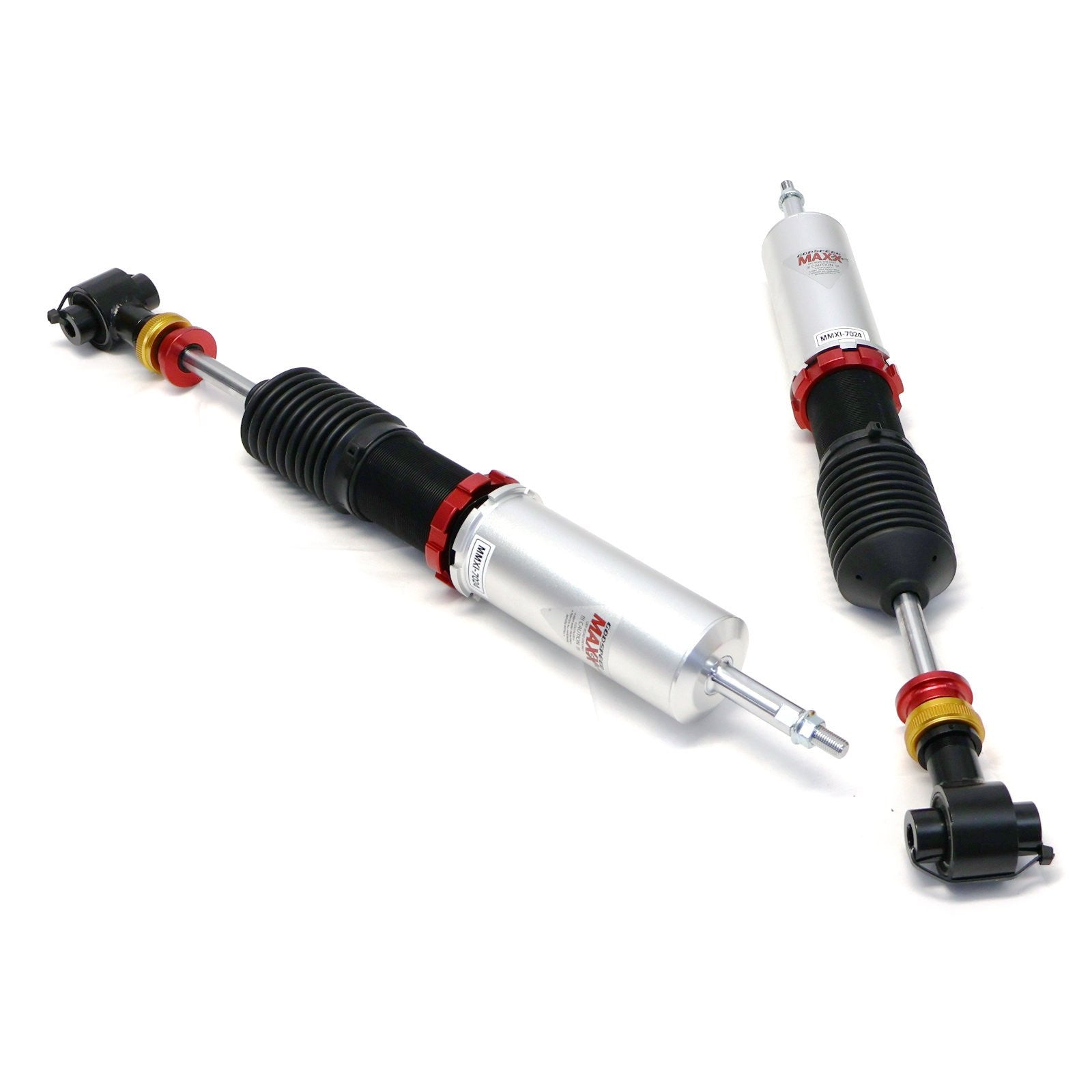

• Inverted monotube front shocks for increased rigidity and reduced flex

• 48mm FLM shock bodies for superior heat management

• 20-way adjustable damping for street or performance driving

• Independent ride height and spring preload adjustment

• Improved steering response and high-speed stability

• Application-specific design for optimal comfort and control

Technical Specifications

• Damping Levels: 20-Level Adjustable

• Shock Type (Front): Inverted Mono-Tube

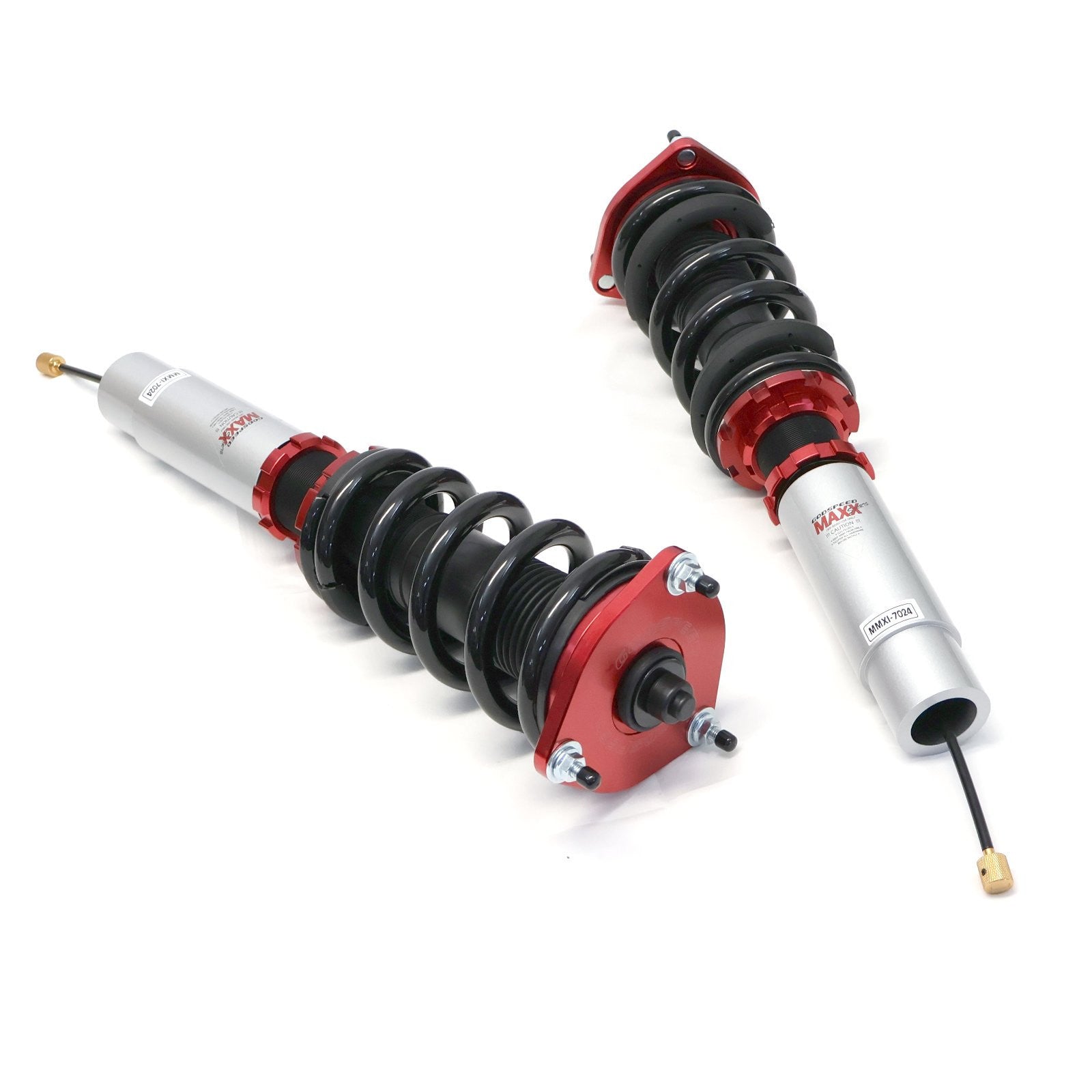

• Shock Type (Rear): Mono-Tube (Standard Type)

• Height Adjustment: Yes

• Top Mount (Front): Yes, Standard Type

• Top Mount (Rear): Yes, Standard Type

• Spring Rate (Front): 14 kg/mm (784 lbs/in)

• Spring Rate (Rear): 10 kg/mm (560 lbs/in)

• Spring Length (Front): 200 mm (7.87 in)

• Spring Length (Rear): 180 mm (7.09 in)

• Spring Inner Diameter (Front): 85 mm (3.35 in) / 70 mm (2.76 in)

• Spring Inner Diameter (Rear): 85 mm (3.35 in) / 70 mm (2.76 in)

Compatibility Notes

• Audi A6 Quattro (C8)

• Model Years: 2019–2025

• All trims

• Vehicles equipped with electronic dampers require an EDC disable module to prevent service warning lights

Important Notes

• For off-road and competition use only

• Professional installation and wheel alignment are strongly recommended
