Godspeed Audi A7 (4KS) 2019–2025 MAXX-Sports Inverted Coilovers (48mm FLM)

Godspeed Audi A7 (4KS) 2019–2025 MAXX-Sports Inverted Coilovers (48mm FLM)

SKU: MMXI7024-48-B
Availability: In Stock – Only 2 Left

Product Description

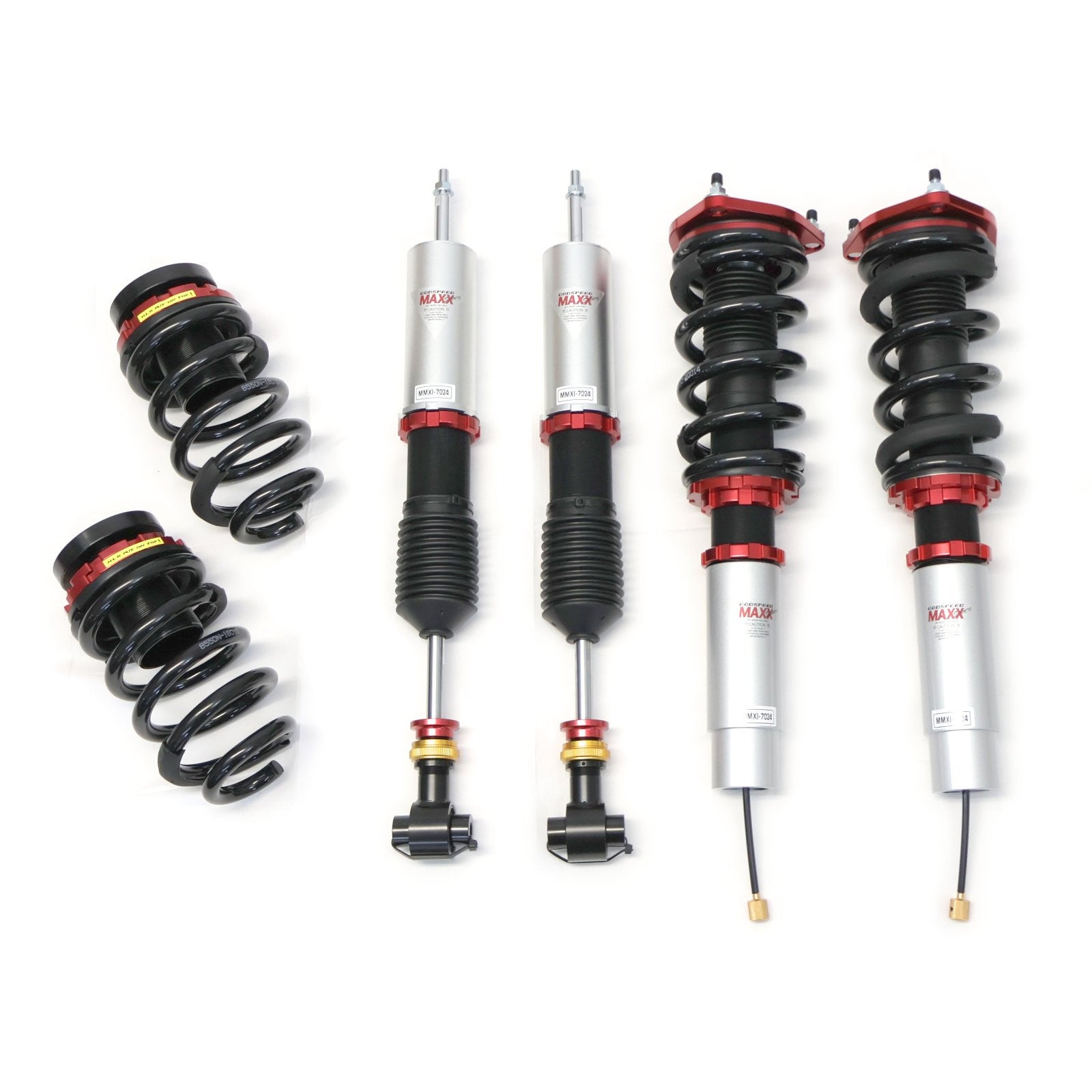

The Godspeed MAXX-Sports Inverted Coilover System for the Audi A7 (4KS) 2019–2025 delivers motorsport-inspired performance, strength, and adjustability in a package designed for aggressive street driving and track use. Featuring advanced inverted shock technology, this system provides improved rigidity, sharper steering response, and enhanced durability compared to traditional upright coilovers.

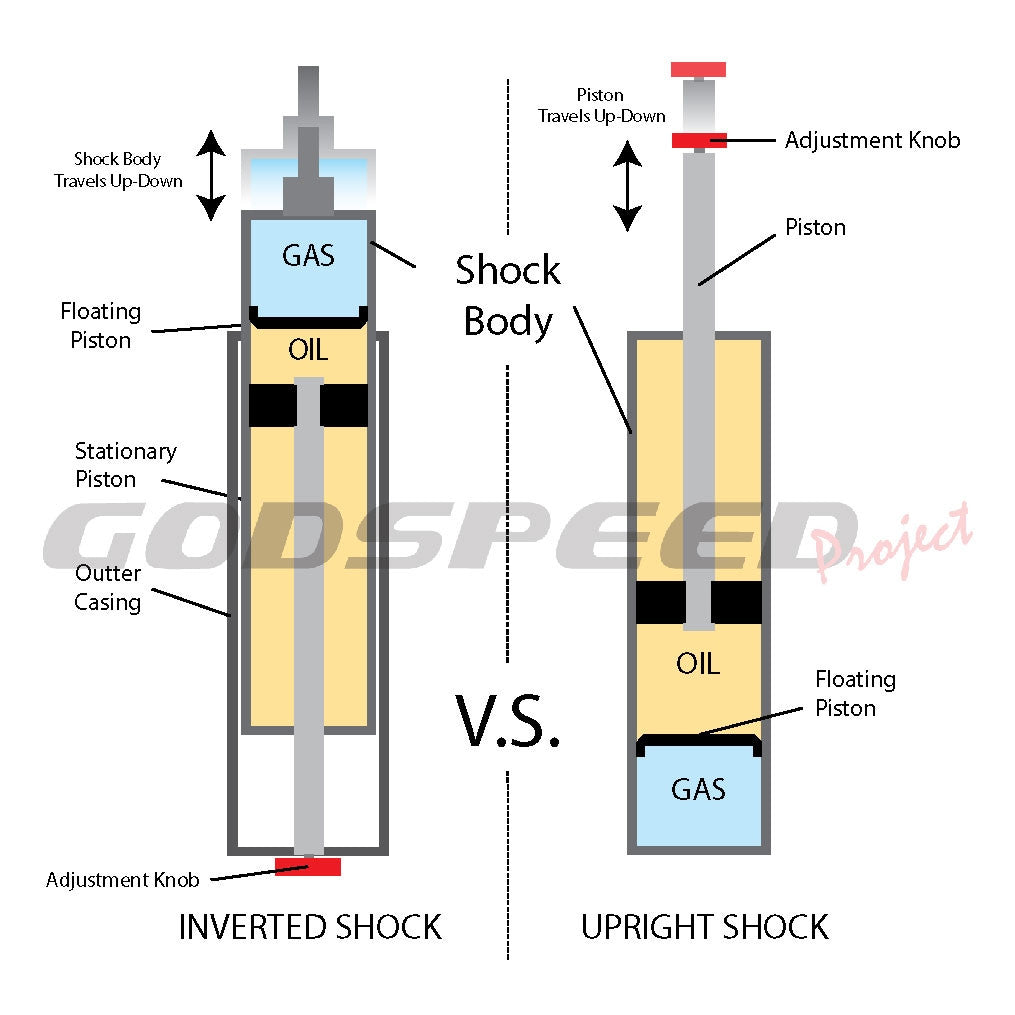

Unlike conventional designs, inverted struts place the thicker shock shaft at the bottom, significantly reducing flex under cornering, braking, and high-load conditions. This results in a more connected front end, improved chassis feedback, and greater stability during spirited driving. The inverted design also positions critical seals and oil chambers higher up, helping protect them from road debris, moisture, and salt—extending overall service life.

The 48mm FLM monotube shock bodies offer excellent heat dissipation, allowing the suspension to maintain consistent damping characteristics even during extended aggressive driving or track sessions. With 20 levels of adjustable damping, drivers can easily fine-tune ride comfort, handling balance, and responsiveness to suit daily driving, canyon runs, or competitive use.

Where applicable, the front suspension utilizes pillow ball top mounts for more precise steering input and improved alignment control. Ride height is independently adjustable, allowing you to dial in your desired stance without affecting shock travel or performance.

This system is engineered specifically for the Audi A7 platform, with a front inverted shock design and standard rear configuration, ensuring optimal balance between performance, comfort, and reliability.

Key Features & Benefits

• Fits Audi A7 (4KS) 2019–2025 – All Trims

• Godspeed MAXX-Sports Series performance coilovers

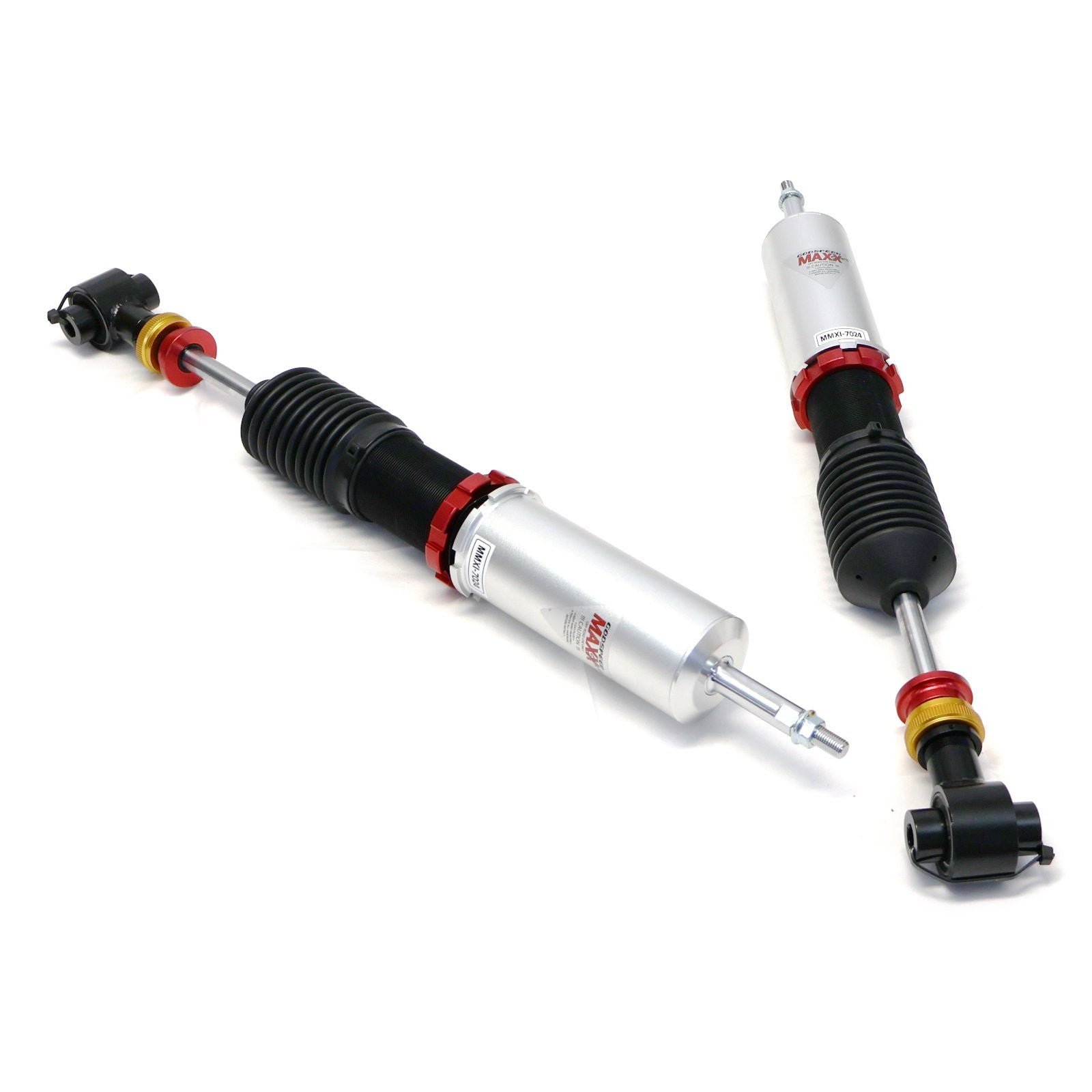

• Inverted monotube shock design (front) for increased rigidity and reduced flex

• 48mm FLM shock bodies for superior heat dissipation

• 20-way adjustable damping for personalized ride quality

• Independent ride height and spring preload adjustment

• Improved steering response and vehicle stability

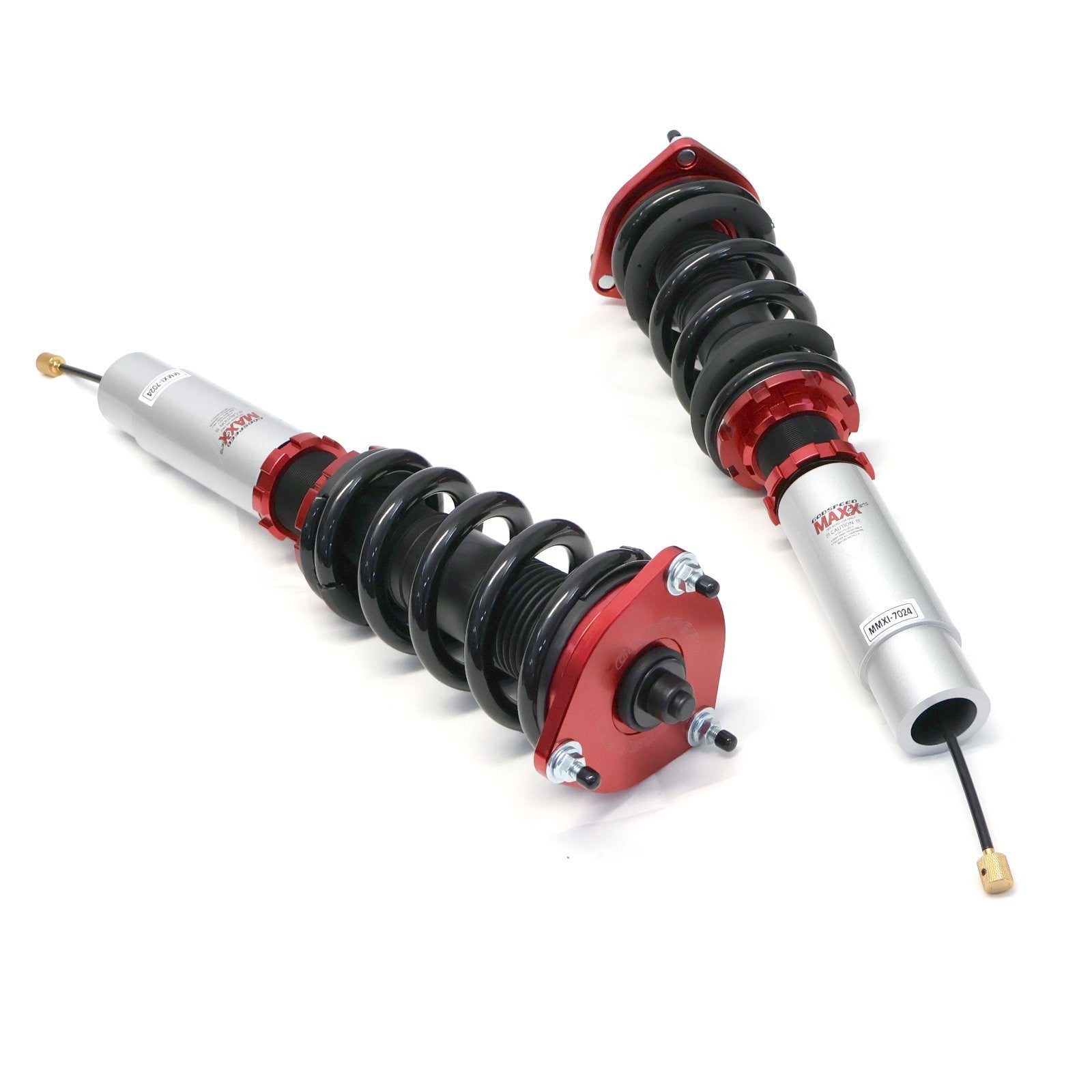

• Pillow ball top mounts (front) for precise suspension feedback

• Designed for aggressive street driving and track use

Technical Specifications

• Damping Levels: 20-Level Adjustable

• Front Shock Type: Inverted Mono-Tube

• Rear Shock Type: Mono-Tube (Standard)

• Height Adjustment: Yes

• Front Top Mount: Yes, Standard Type

• Rear Top Mount: Yes, Standard Type

• Spring Rate (Front): 14 kg/mm (784 lbs/in)

• Spring Rate (Rear): 10 kg/mm (560 lbs/in)

• Spring Length (Front): 200 mm (7.87 in)

• Spring Length (Rear): 180 mm (7.09 in)

• Spring Inner Diameter (Front): 85 mm (3.35 in) / 70 mm (2.76 in)

• Spring Inner Diameter (Rear): 85 mm (3.35 in) / 70 mm (2.76 in)

Compatibility Notes

• Audi A7 (4KS)

• Model Years: 2019, 2020, 2021, 2022, 2023, 2024, 2025

• All trims

• Vehicles equipped with electronic dampers require an EDC disable module to prevent service warning lights

Important Notes

• For off-road and competition use only

• Professional installation and alignment are highly recommended

California Proposition 65 Warning

This product contains Nickel, which is known to the State of California to cause cancer and reproductive harm.
