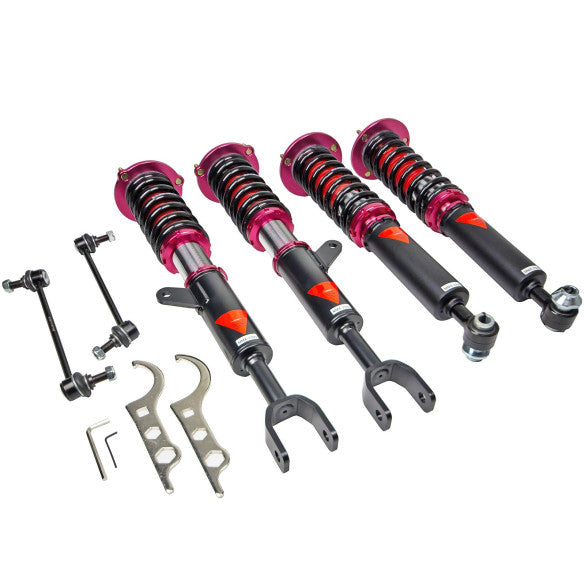

Godspeed BMW 6-Series Gran Coupe F06 2013-19 Coilovers

Godspeed BMW 6-Series Gran Coupe F06 2013-19 Coilovers

$990.00 USD
$990.00 USD $990.00 USD
Sale Sold out

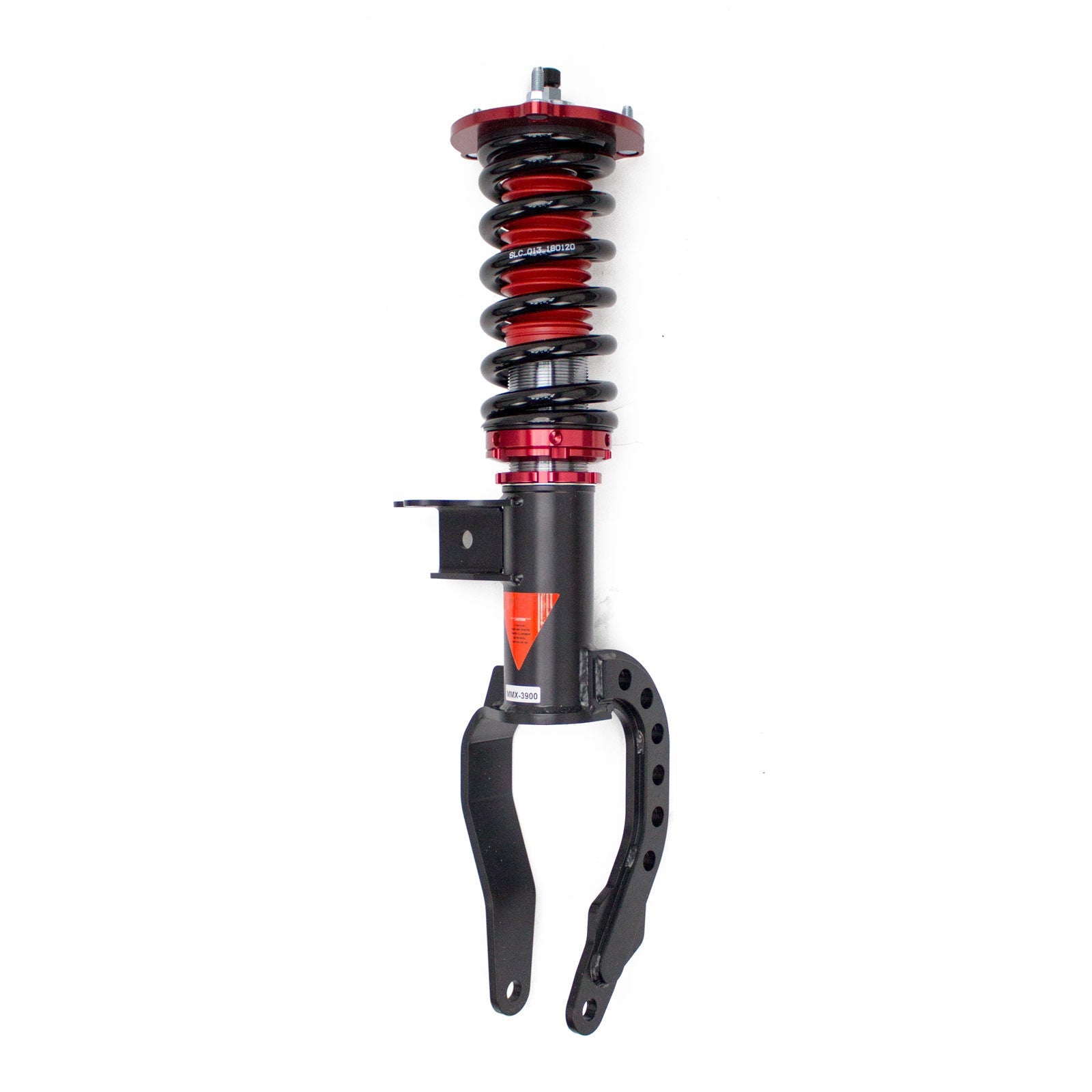

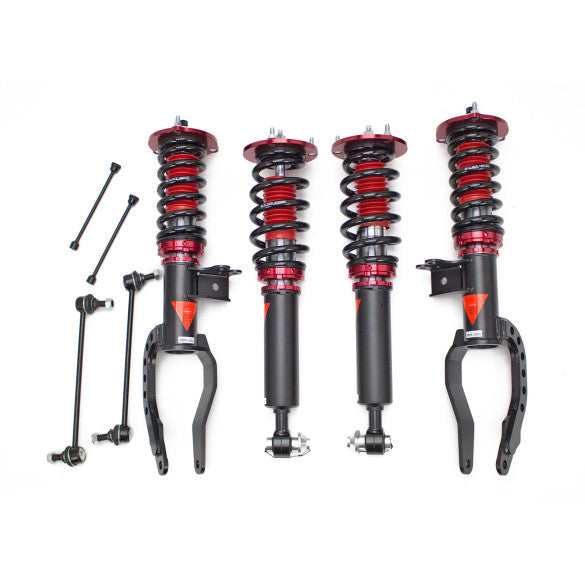

Drivetrain, Style

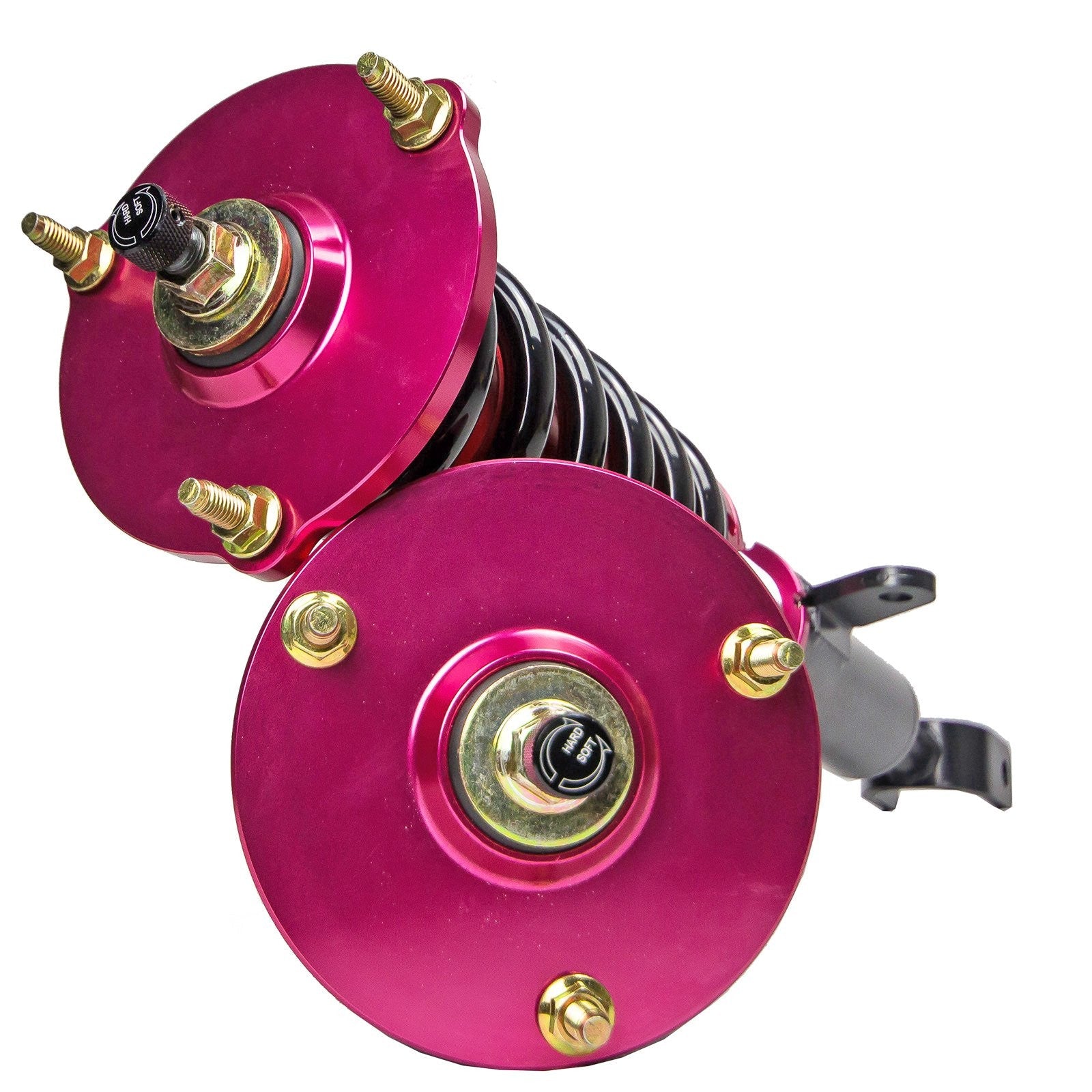

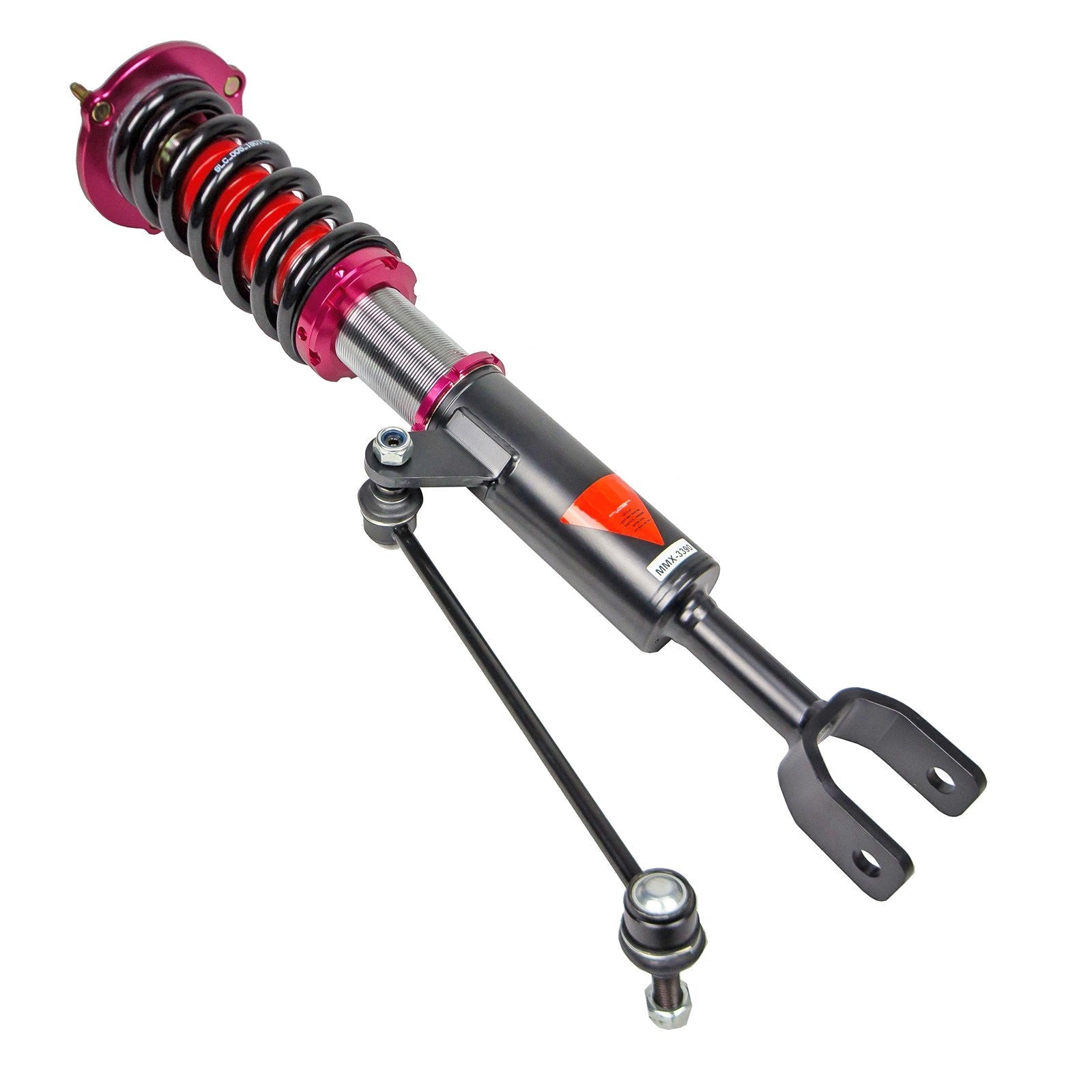

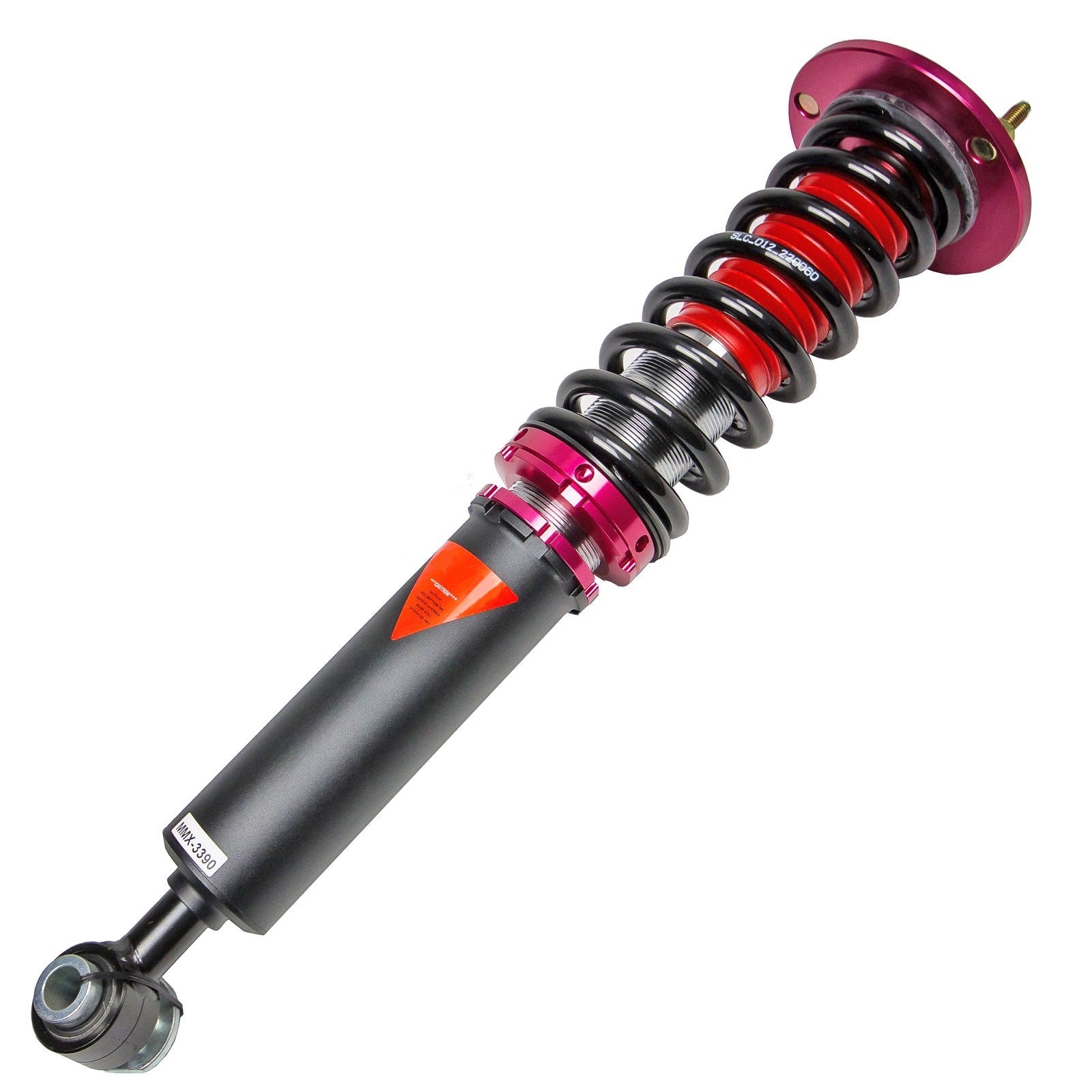

AWD, MAXX

Special Notes No
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 12 kg/mm (672 lbs/inch)
Spring Rate(Rear) 8 kg/mm (448lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 200 mm

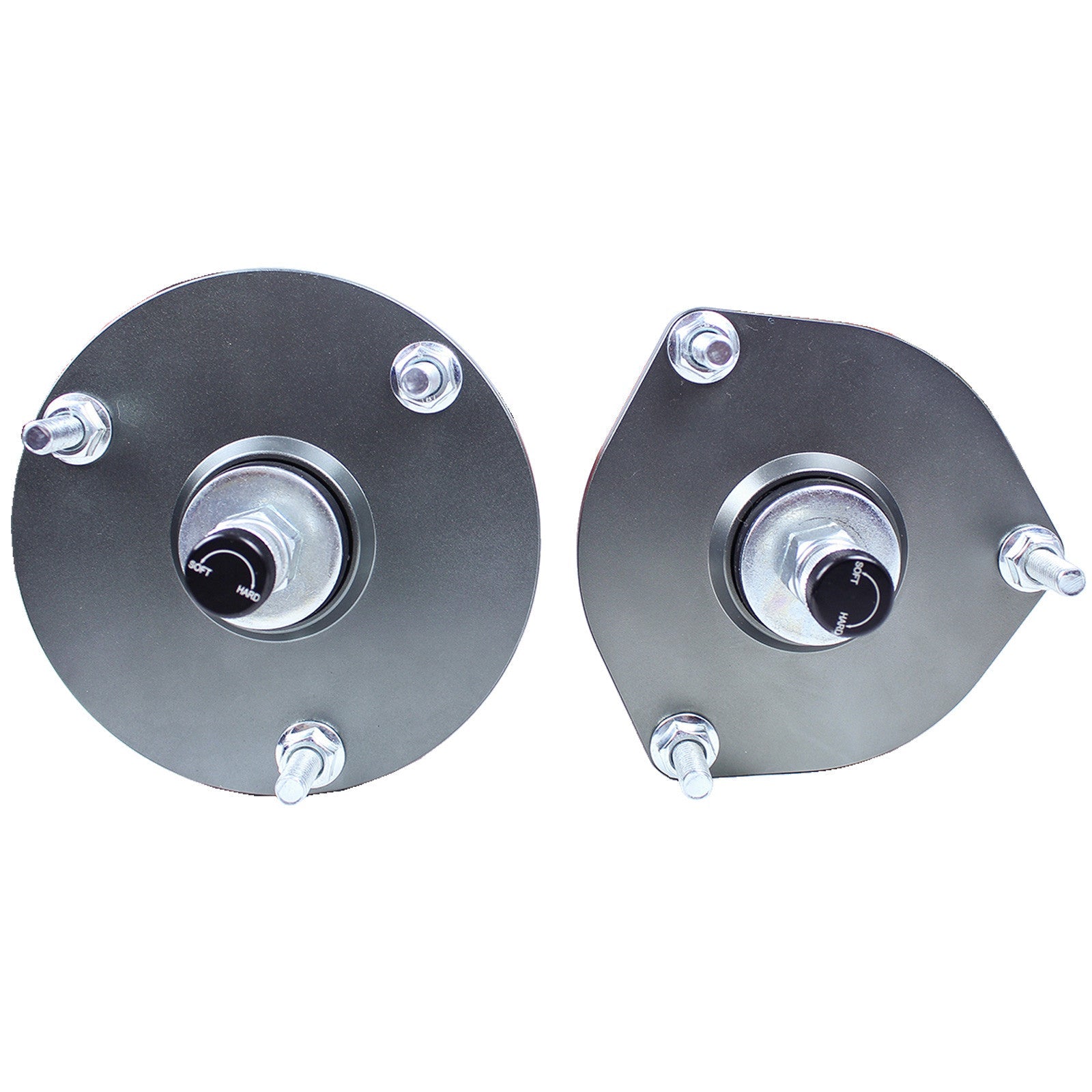

Front Top Mount Yes, Standard Type
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

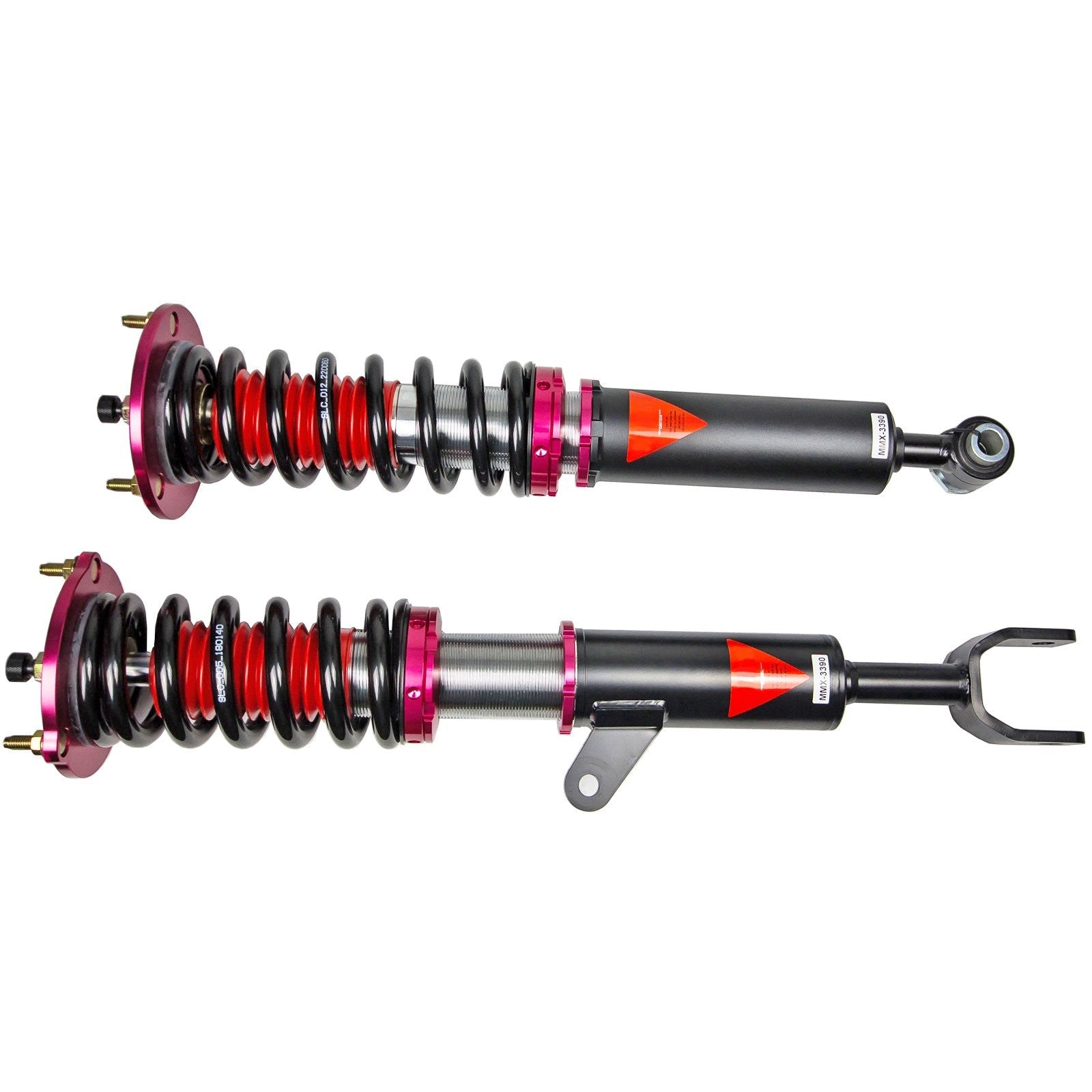

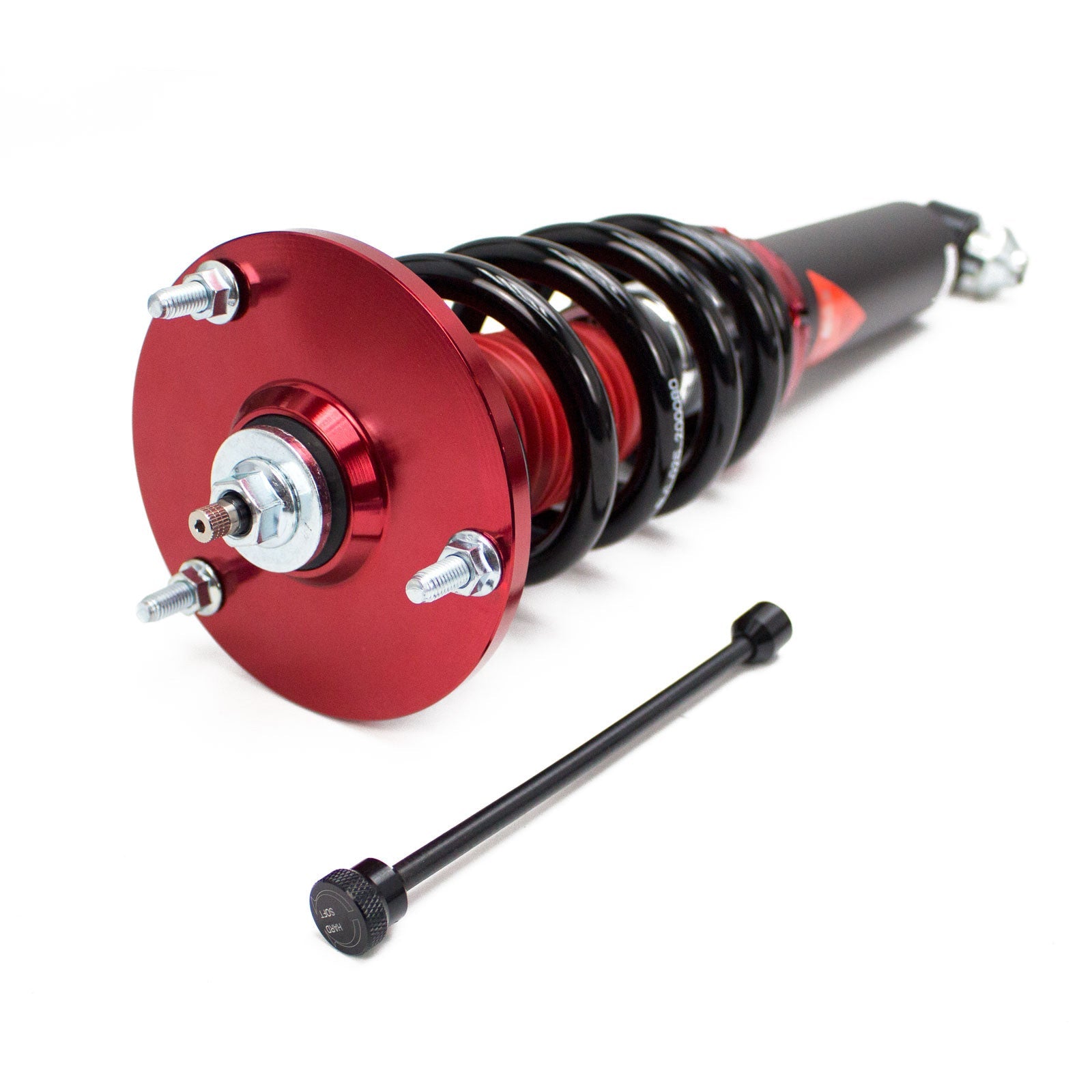

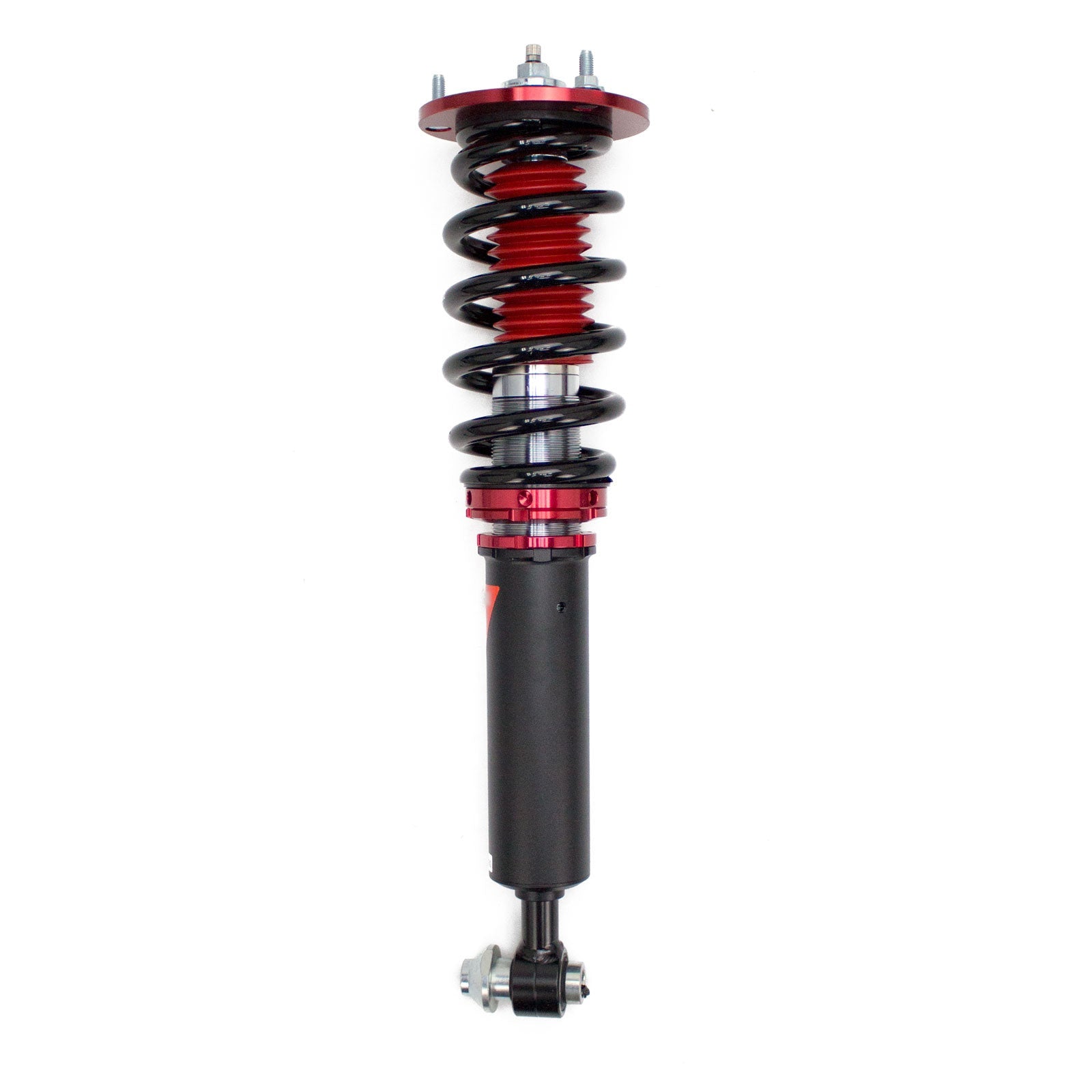

RWD, MAXX

Special Notes
  • Vehicles equipped with electronic damper control: Electronic damper control needs to be disabled.
  • Not for vehicles with "Integral Active Steering"
  • Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 40-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm (784 lbs/inch)
Spring Rate(Rear) 8 kg/mm (448 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 220 mm
Front Top Mount Yes, Standard Type
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

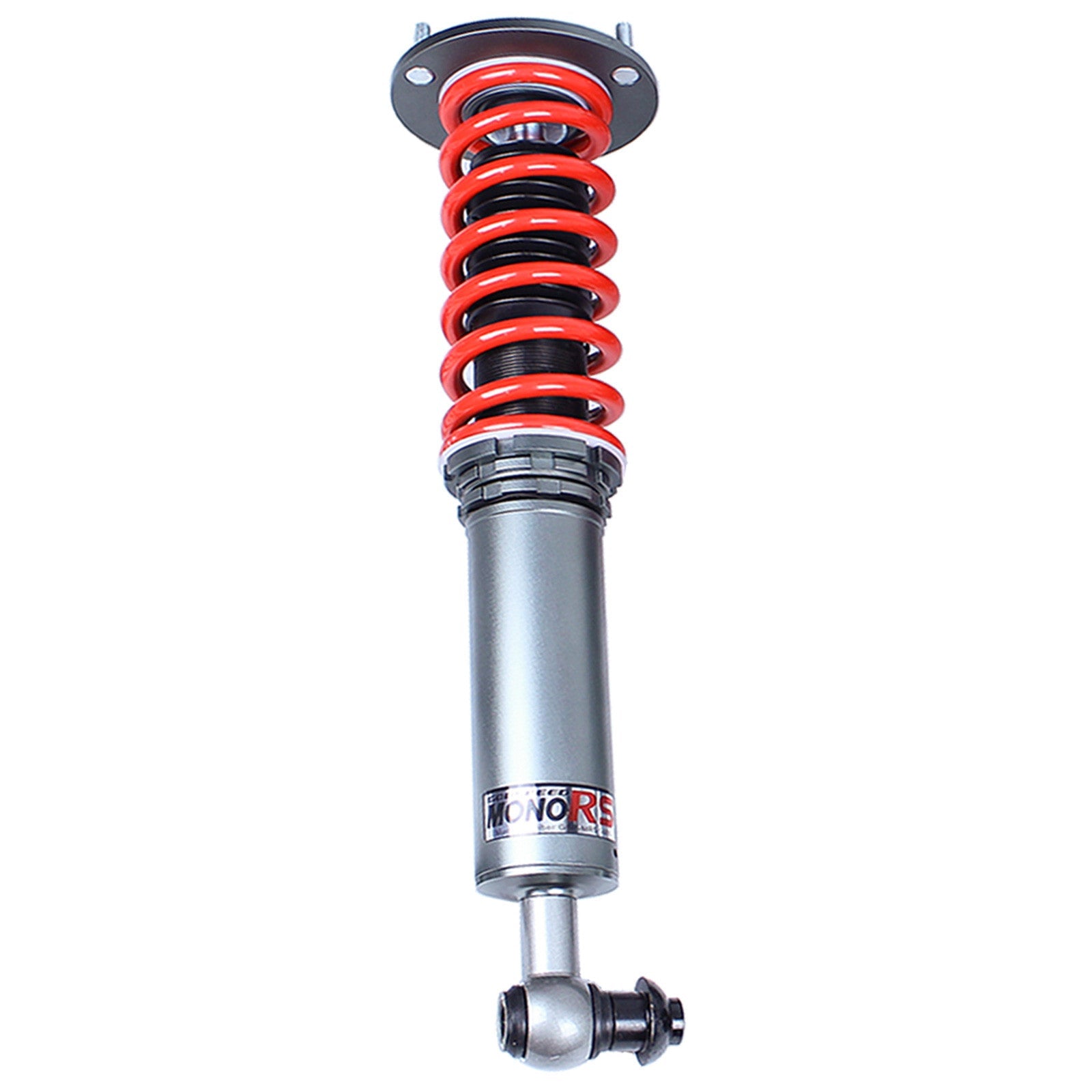

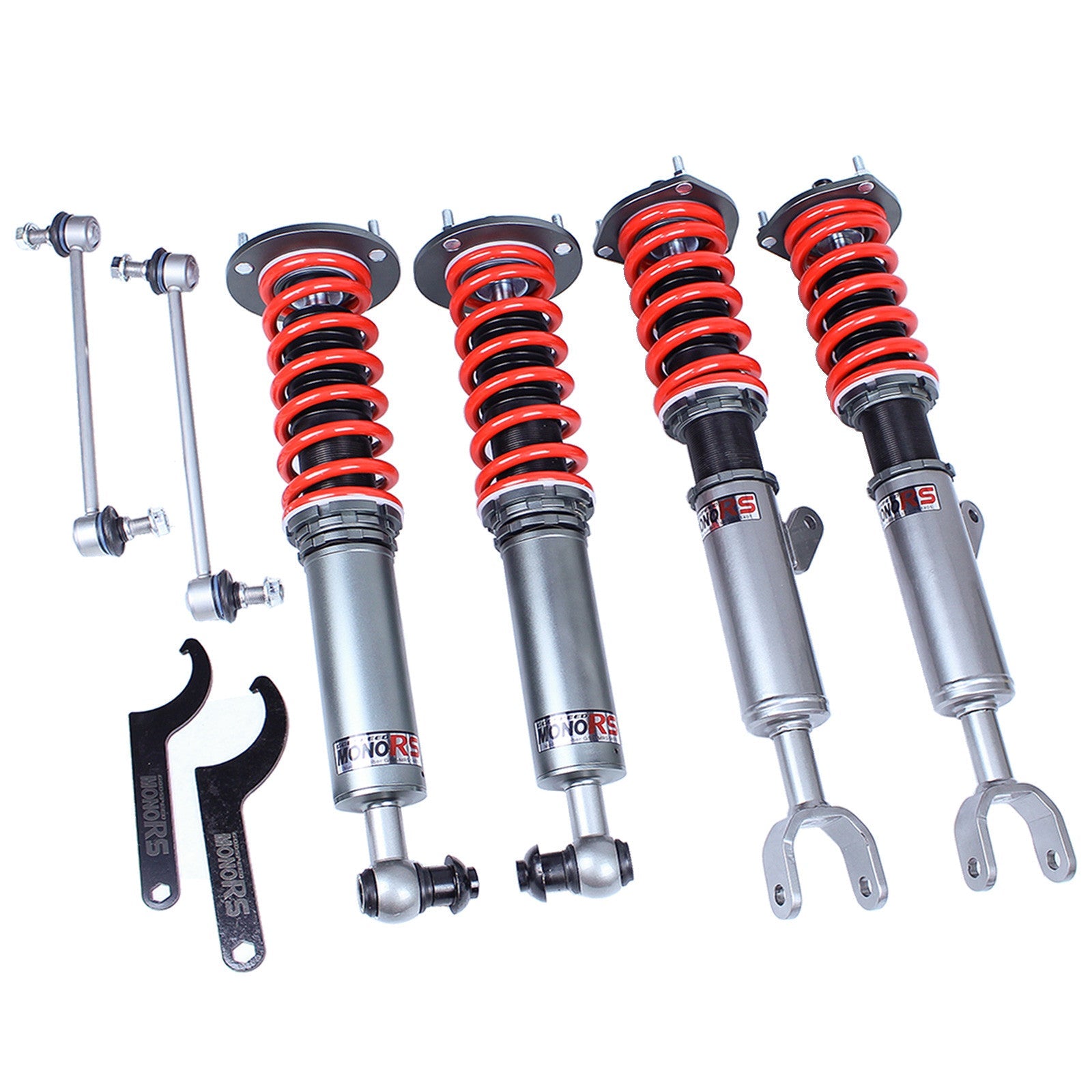

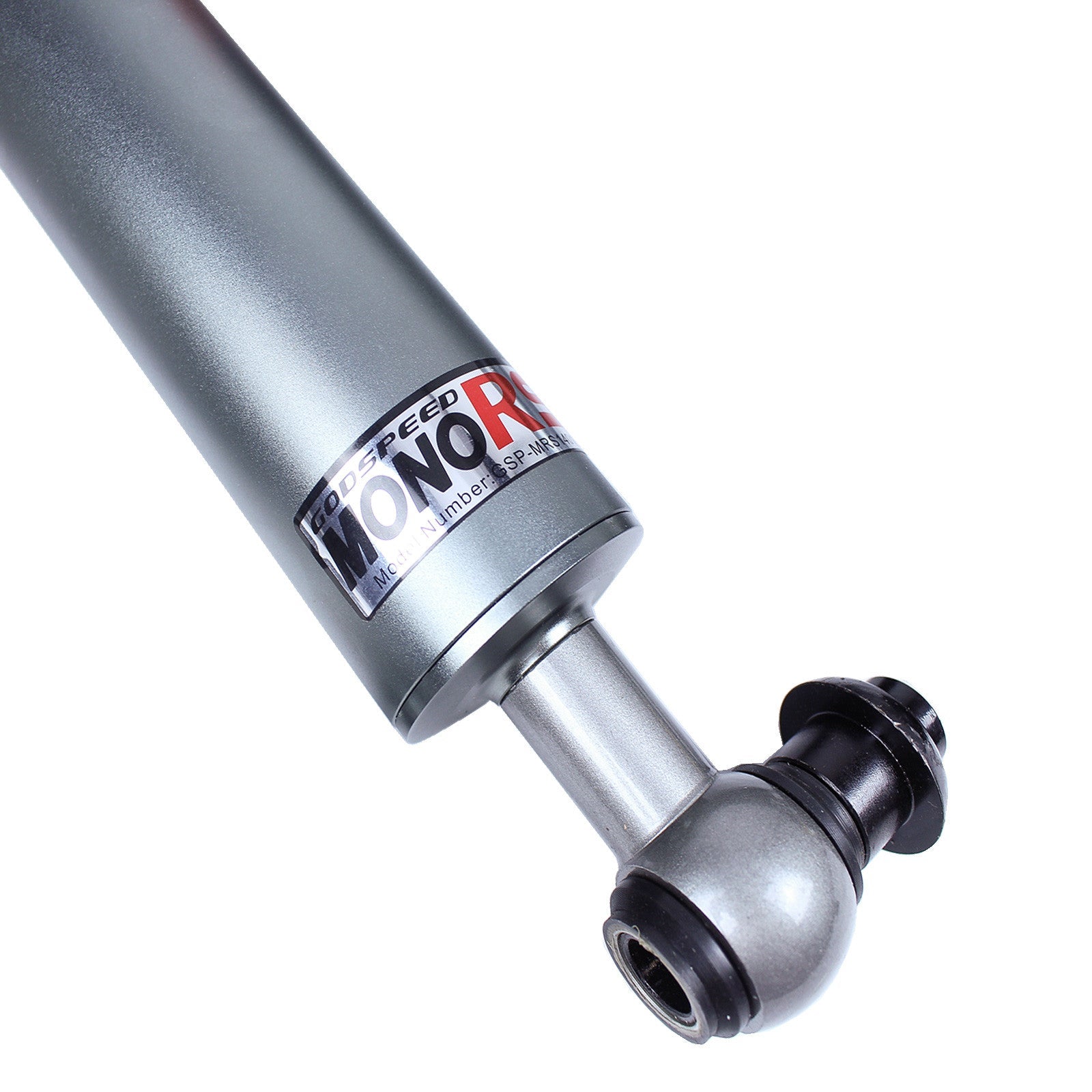

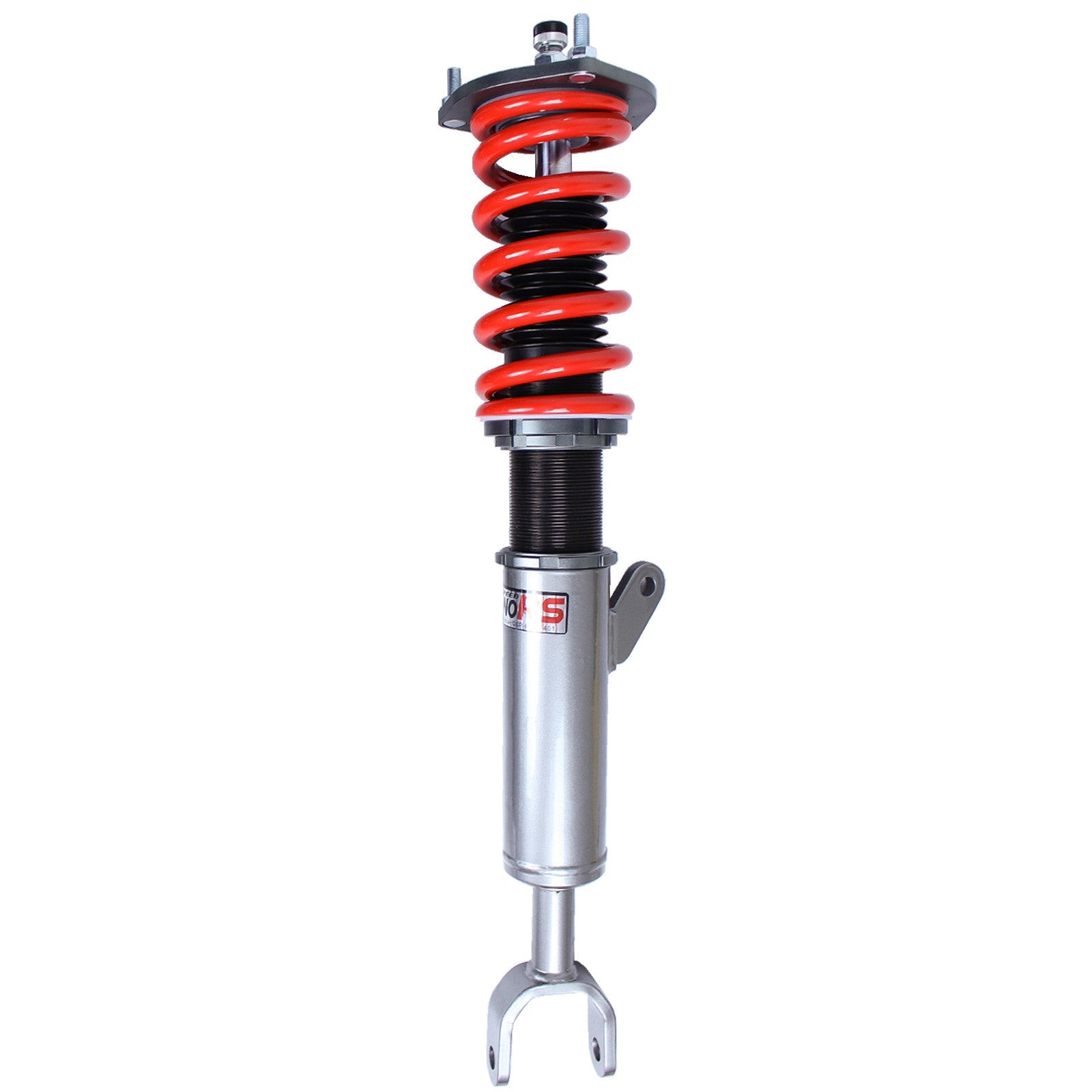

RWD, MonoRS

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 32-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm
Spring Rate(Rear) 6 kg/mm
Spring Length(Front) 180 mm
Spring Length(Rear) 220 mm
Front Top Mount Yes, Standard Type
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm
Spring Inner Diameter(Rear) 62 mm
Warranty Note No
User Guide Coilover User Guide

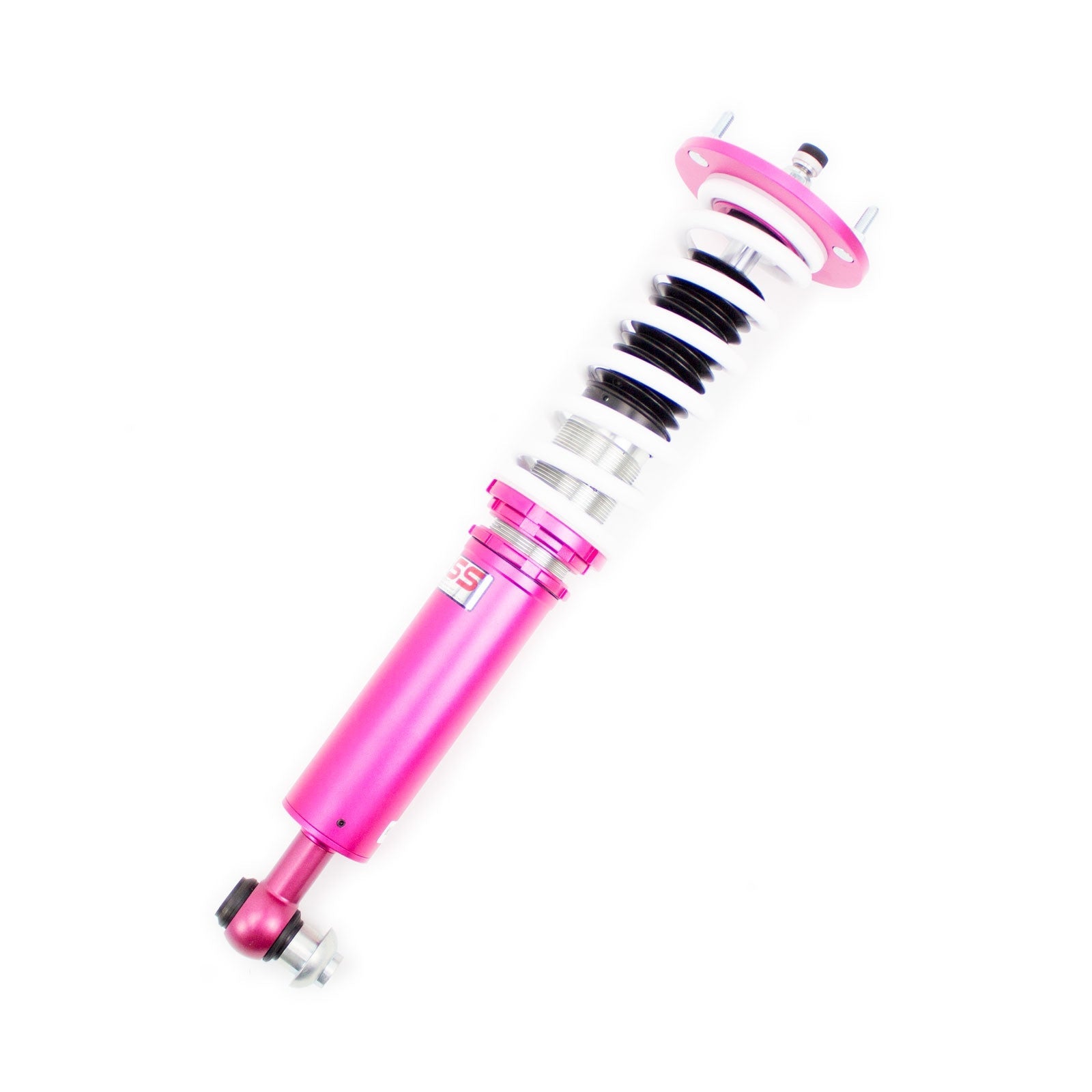

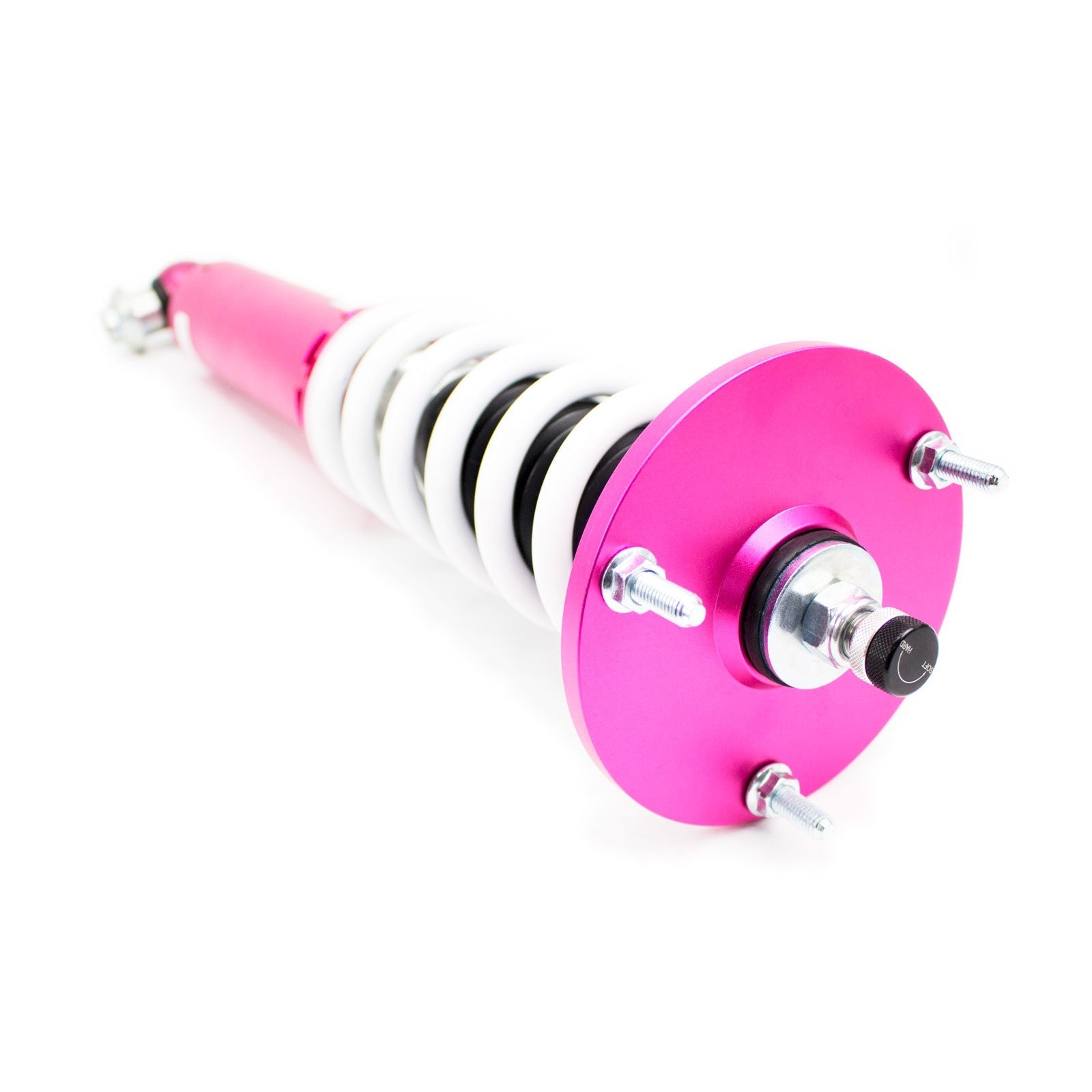

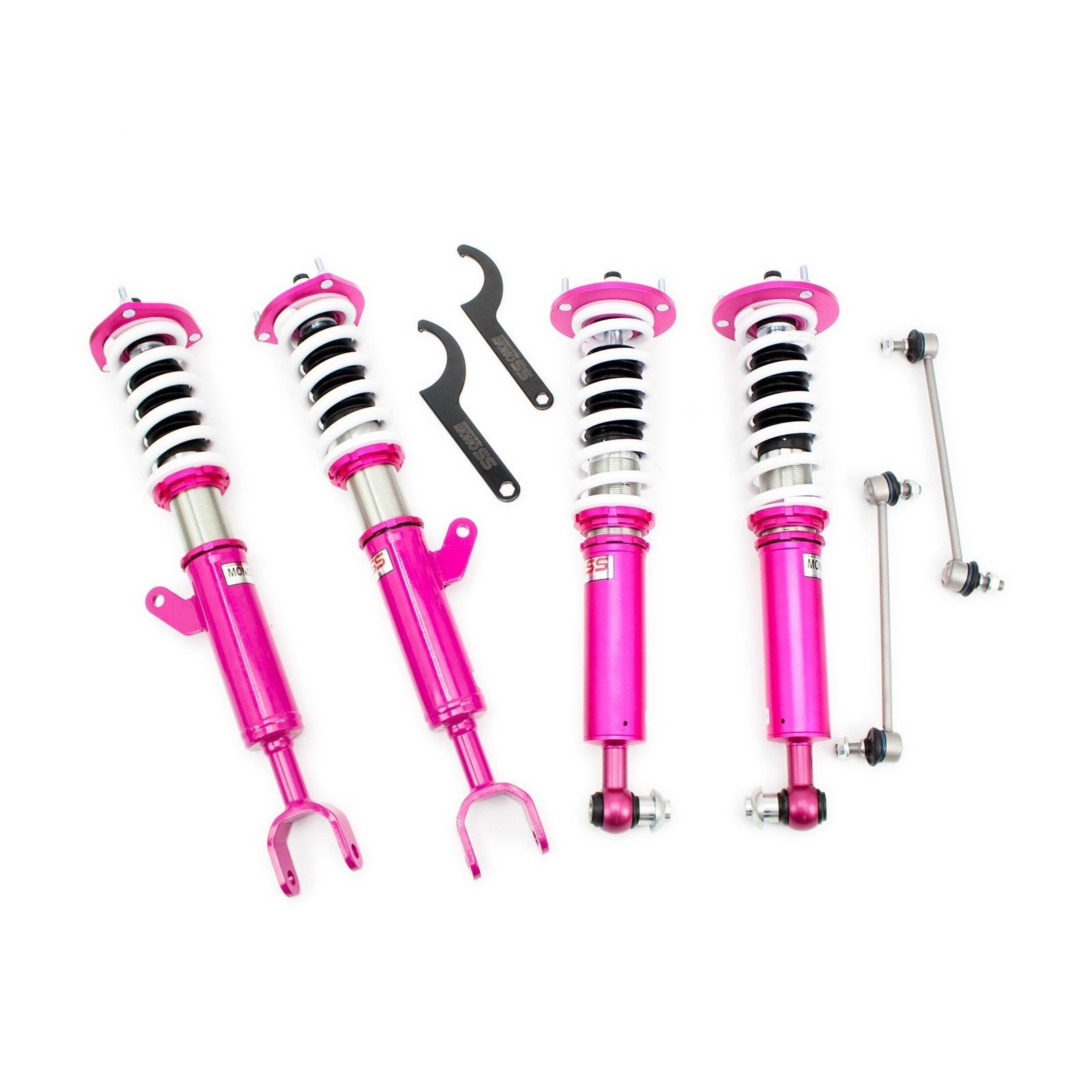

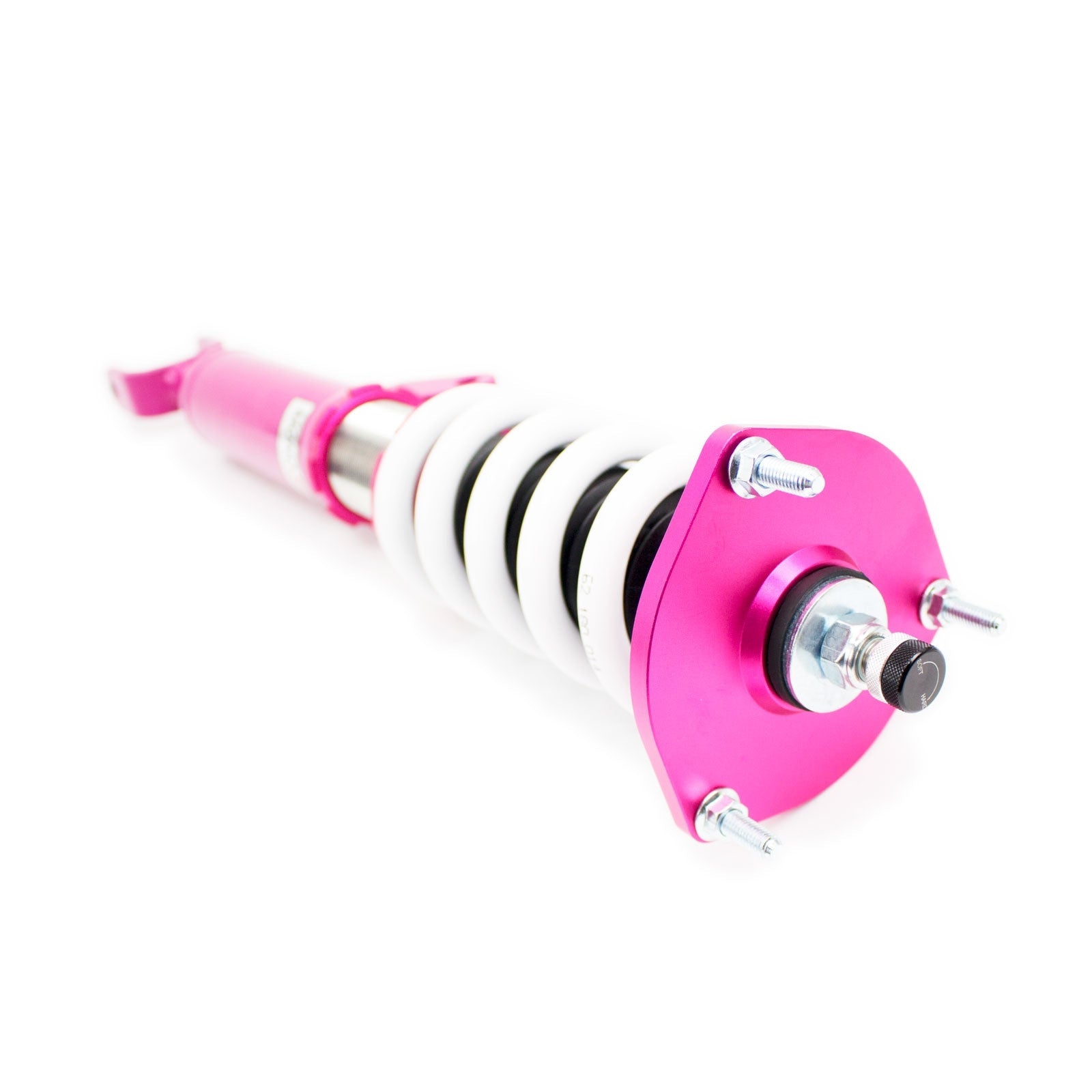

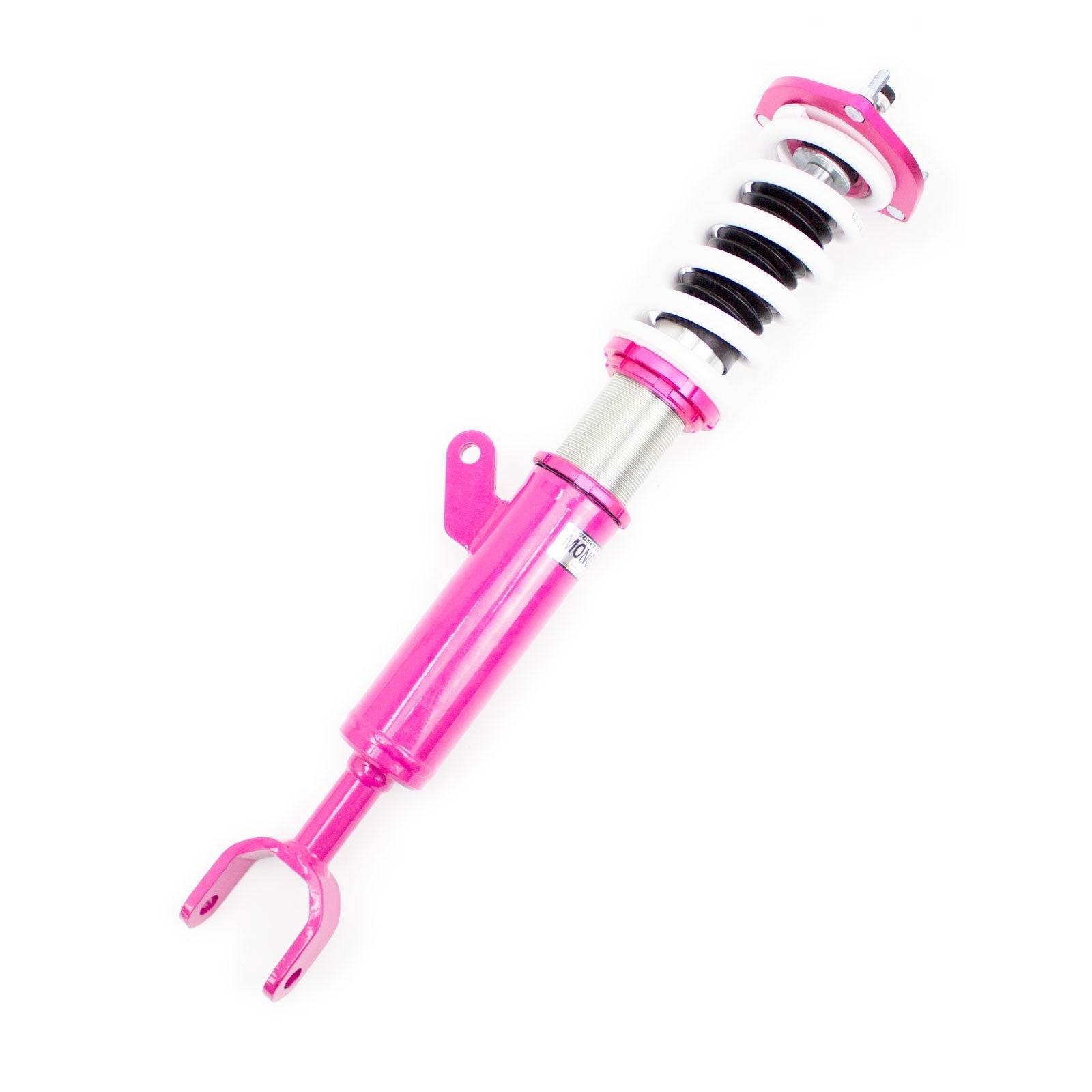

RWD, MonoSS

Special Notes
  • Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
  • Vehicles equipped with electronic damper control: Electronic damper control needs to be disabled.
  • Not for vehicles with "Integral Active Steering"
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 14 kg/mm (784 lbs/inch)
Spring Rate(Rear) 6 kg/mm (336 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 220 mm
Front Top Mount Yes, Standard Type
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

SKU: 1FN5E
