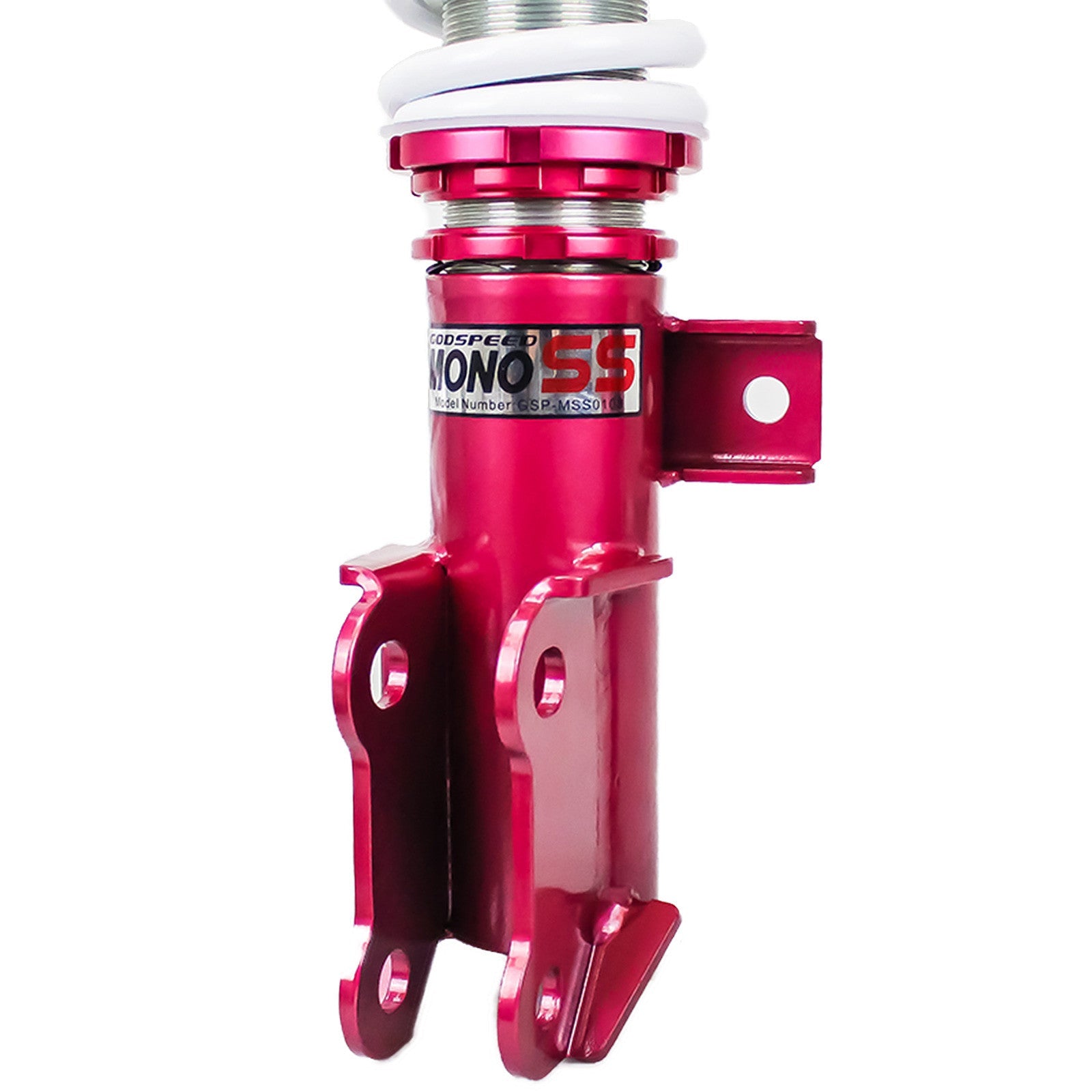

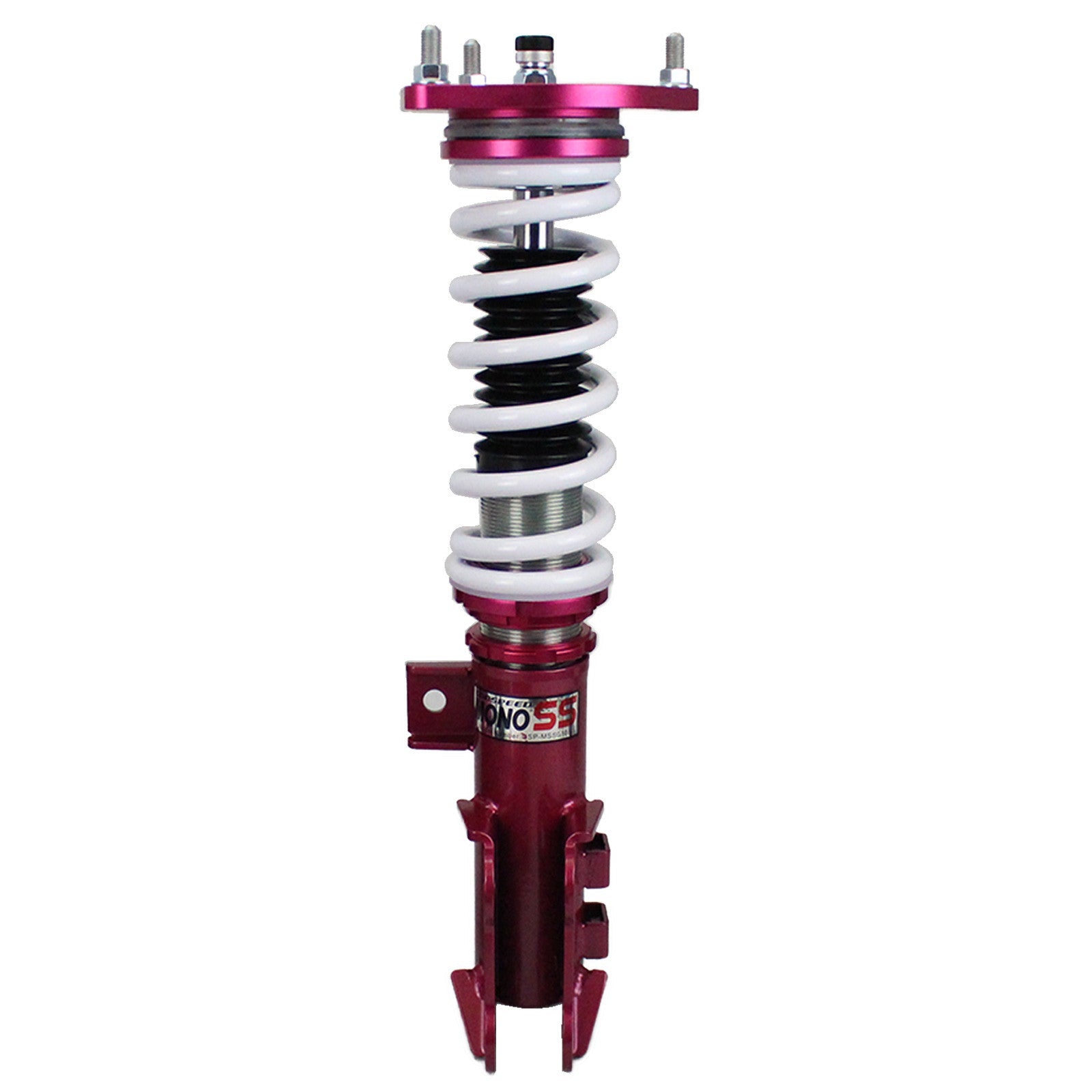

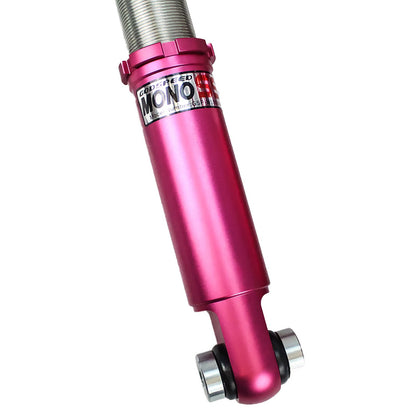

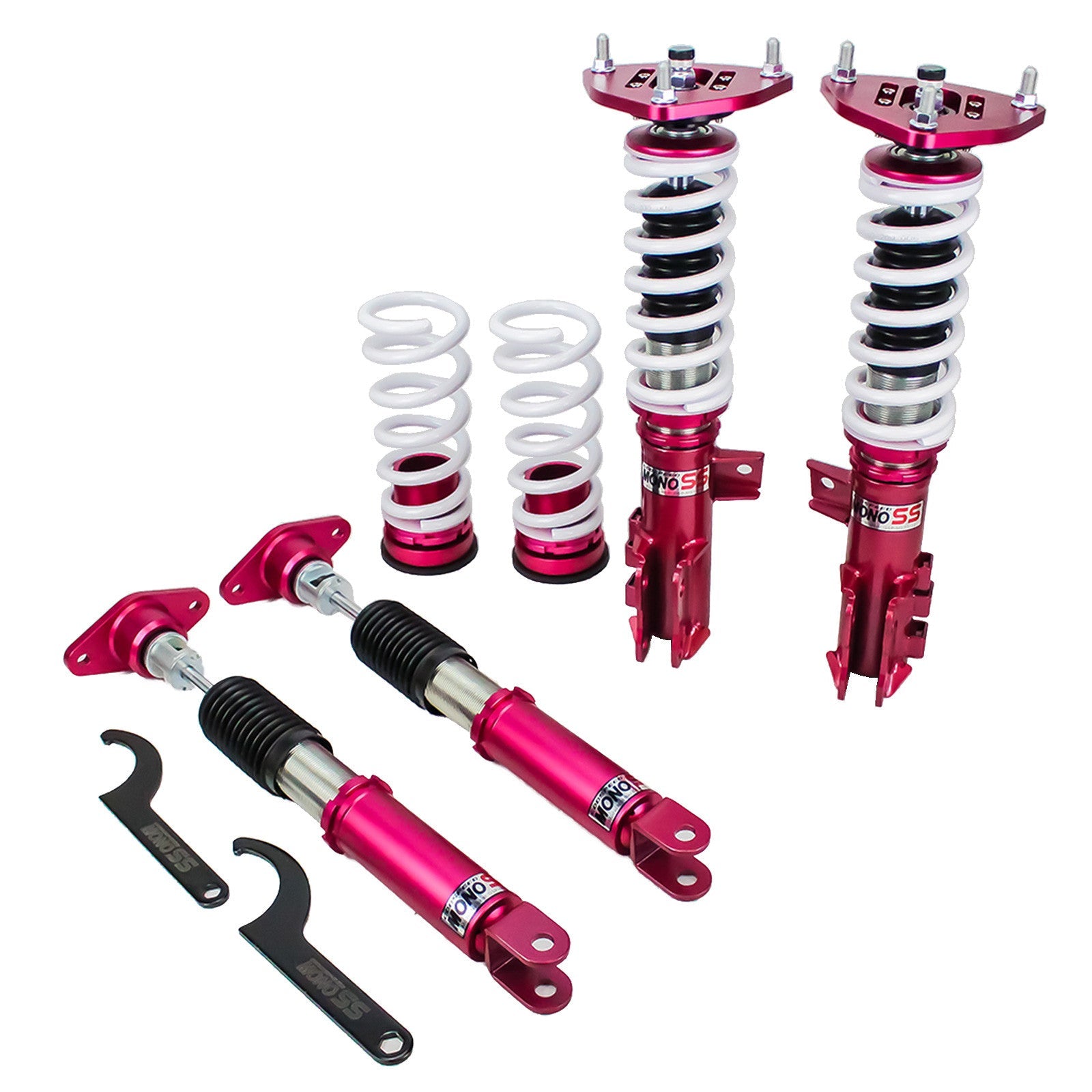

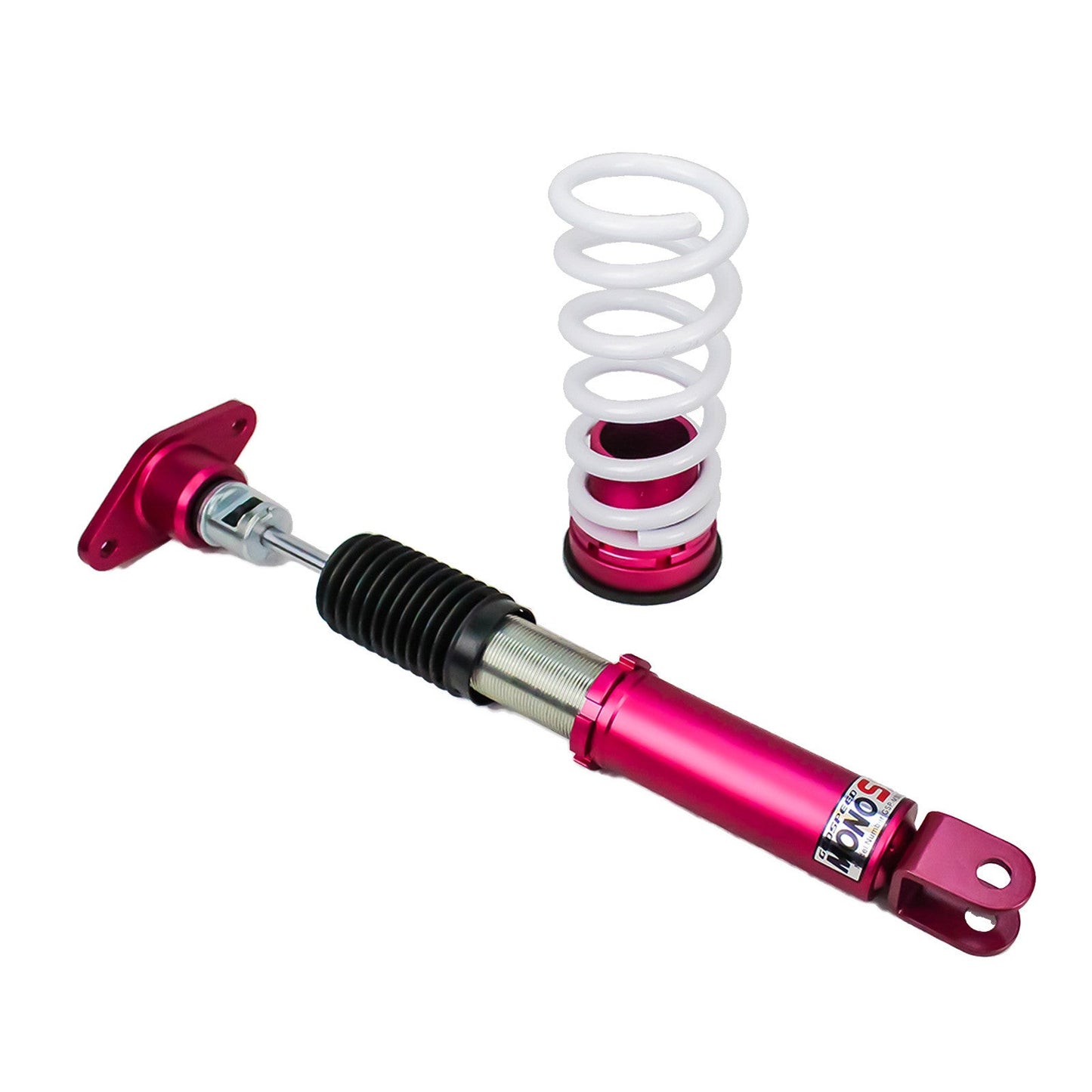

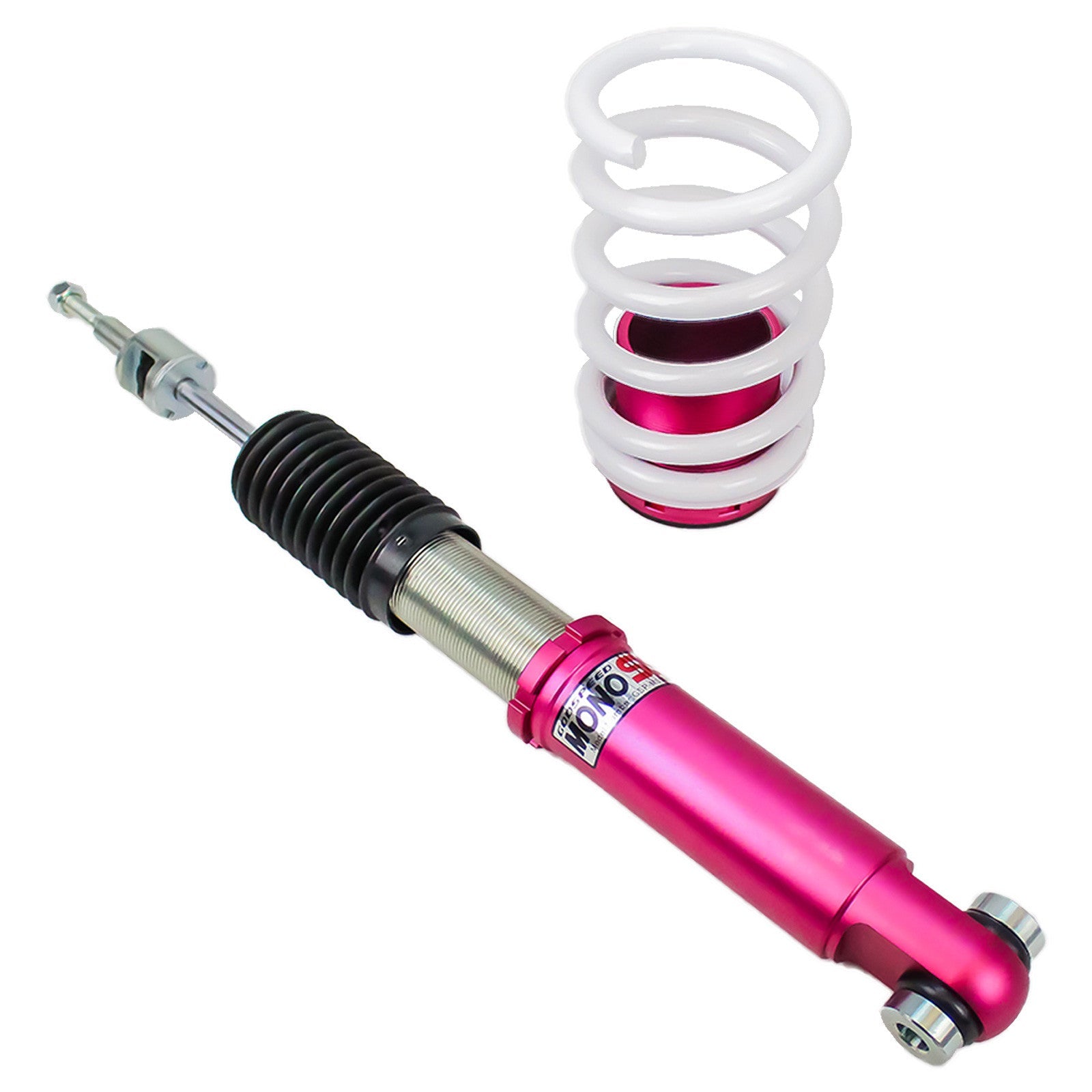

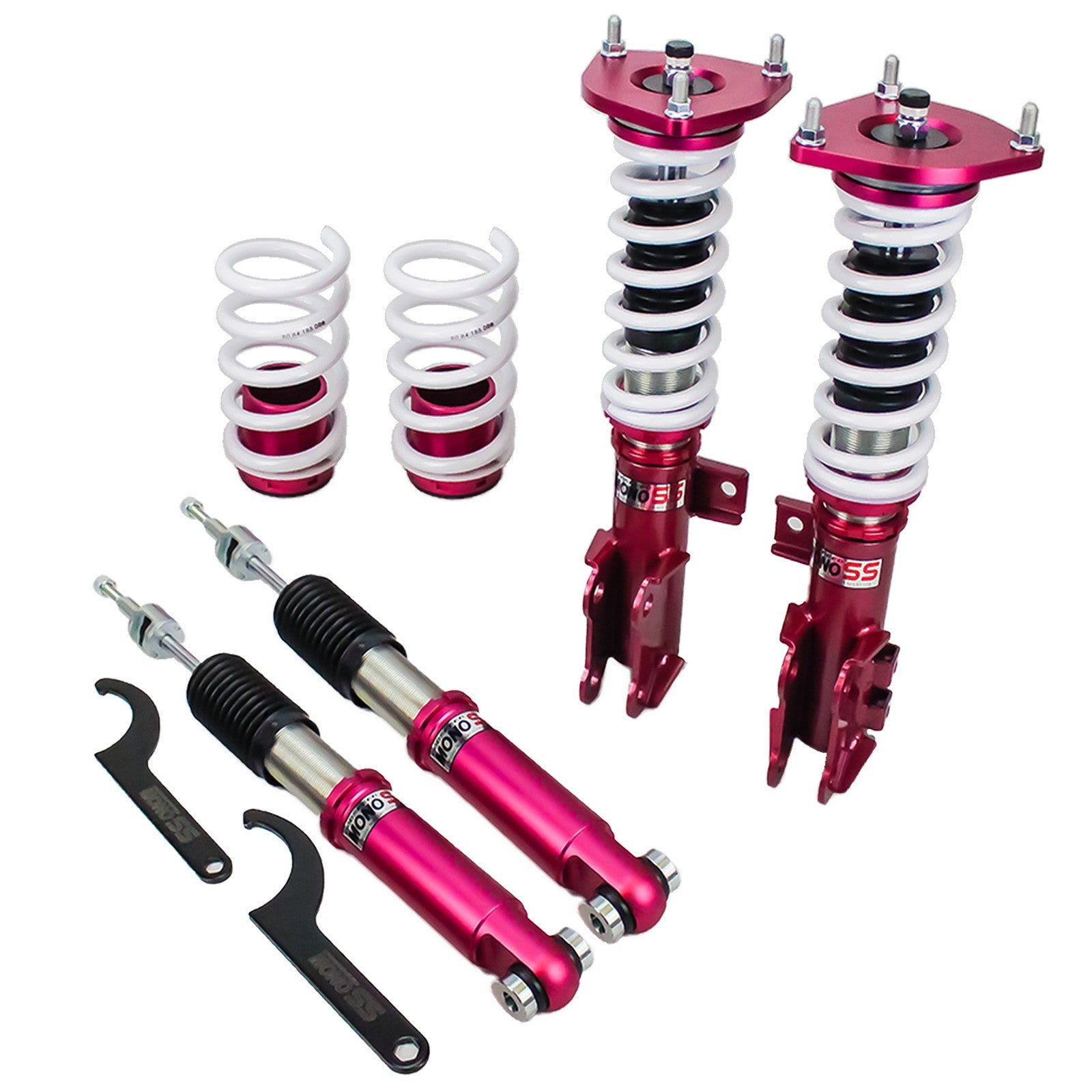

Godspeed Kia Sportage (SL/TL) MonoSS Coilovers

Godspeed Kia Sportage (SL/TL) MonoSS Coilovers

$750.00 USD
$750.00 USD $750.00 USD
Sale Sold out
Model, Year

SL FWD, 2011-2016

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 6 kg/mm (336 lbs/inch)
Spring Rate(Rear) 7 kg/mm (392 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 200 mm

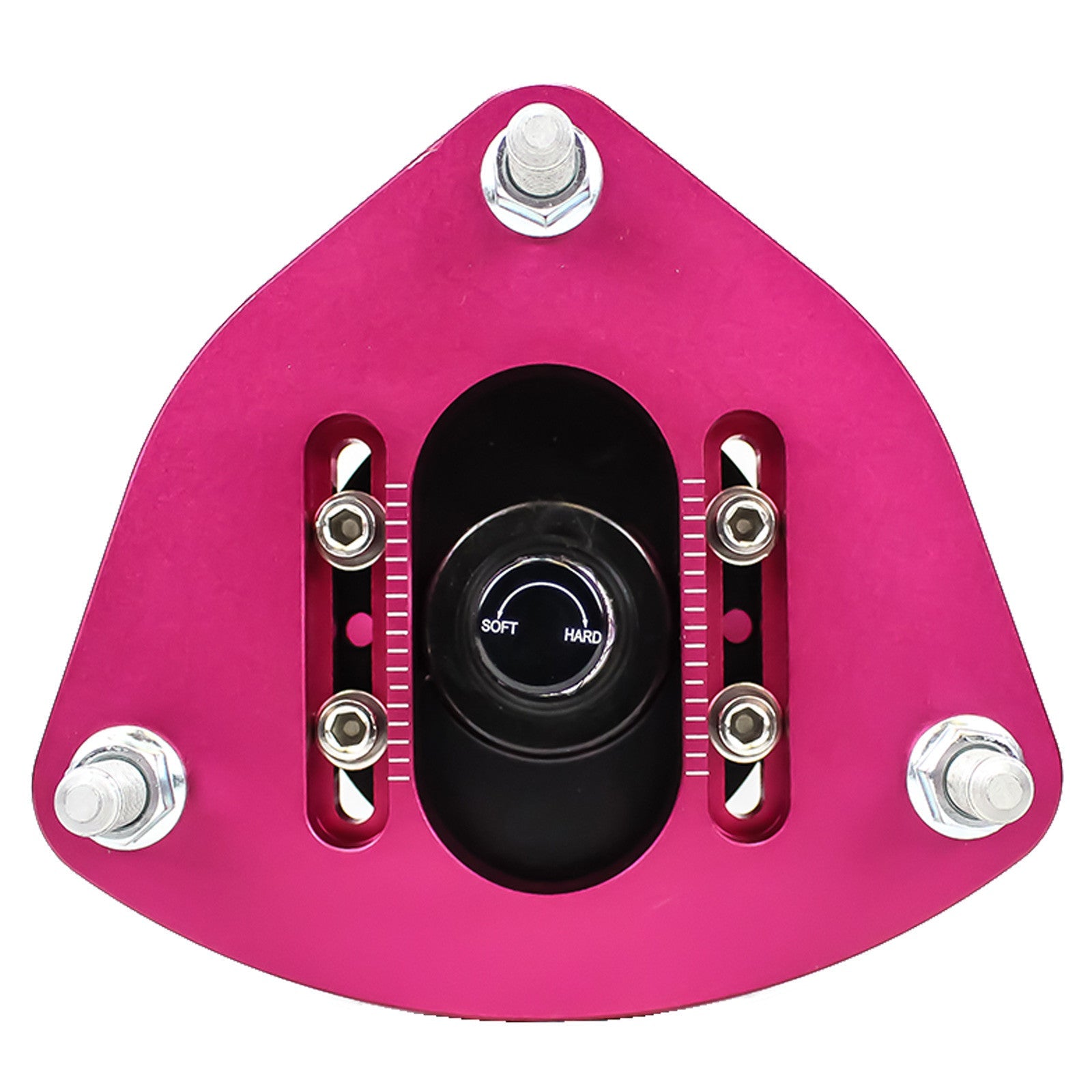

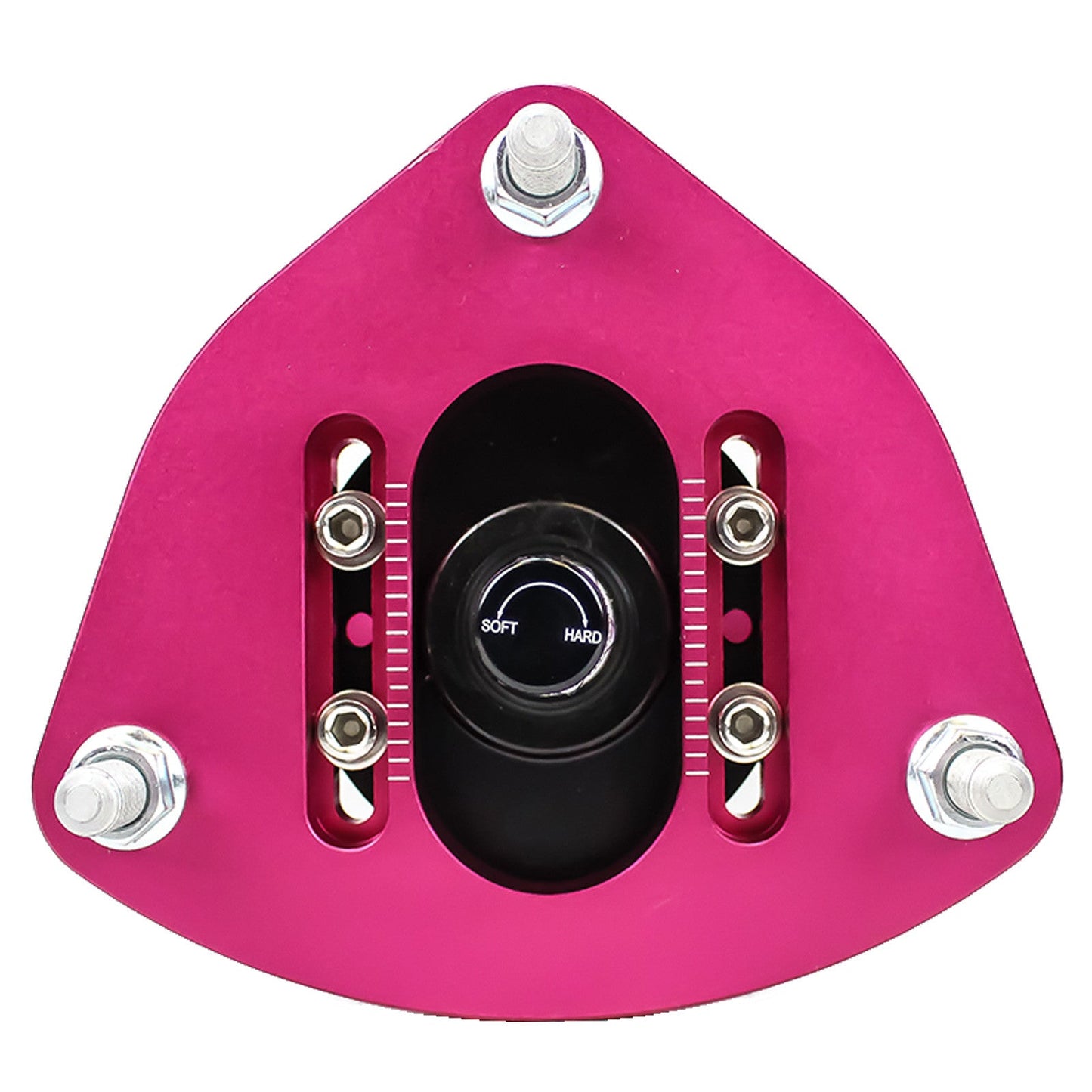

Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

TL, 2017-2021

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 6 kg/mm (336 lbs/inch)
Spring Rate(Rear) 6 kg/mm (336 lbs/inch)
Spring Length(Front) 200 mm
Spring Length(Rear) 185 mm

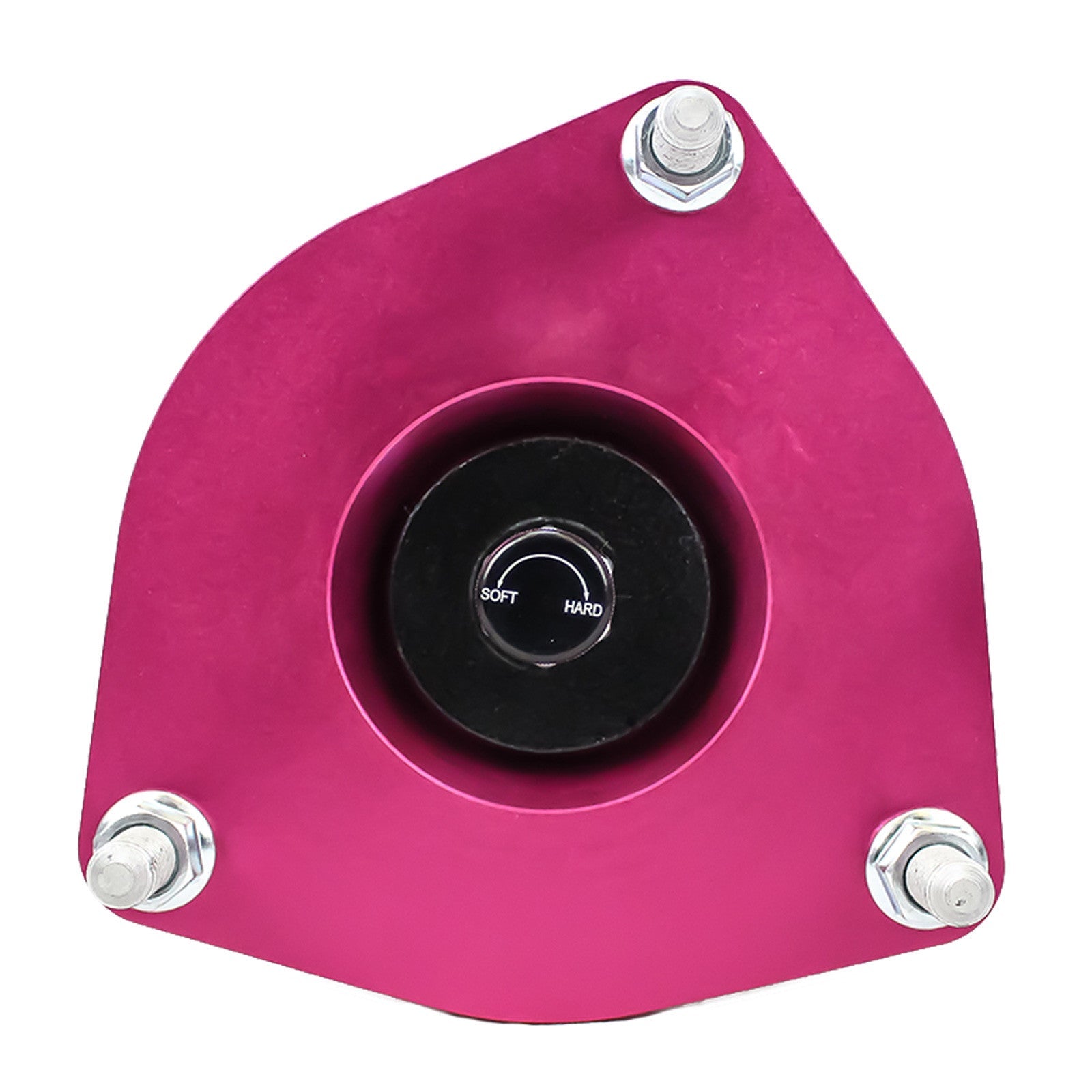

Front Top Mount Yes, Standard Type
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

SKU: 9CGZO
