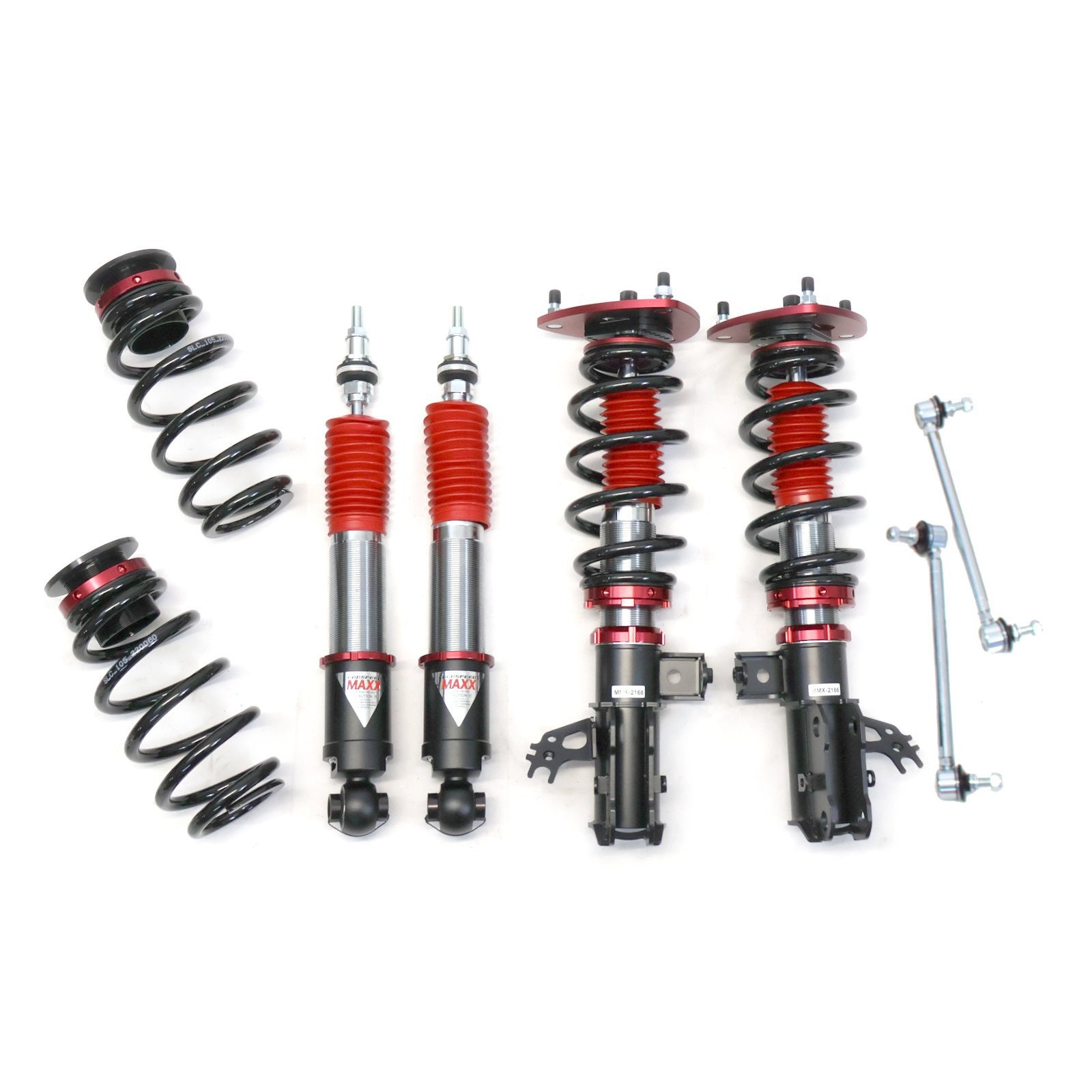

GODSPEED Lexus ES350 (GSV10) 2019–2023 MAXX Coilovers – 40-Way Adjustable

GODSPEED Lexus ES350 (GSV10) 2019–2023 MAXX Coilovers – 40-Way Adjustable

The GODSPEED MAXX Coilover Suspension Kit for the 2019–2023 Lexus ES350 (GSV10) delivers a premium blend of comfort, performance, and custom adjustability, making it the ideal upgrade for drivers who want improved handling without sacrificing daily drivability. Designed as Godspeed’s flagship single-adjustable coilover system, the MAXX series offers a street-friendly ride paired with race-oriented capability at an exceptional value.

Each MAXX coilover is built around a 52mm carbon seamless steel monotube damper equipped with a 44mm internal piston, providing quick damper response, consistent performance, and excellent heat dissipation. The system is filled with high-quality shock oil imported from Italy, ensuring stable damping behavior in a wide range of temperatures—perfect for spirited driving, highway cruising, and track day demands.

The cold-bent SAE9252 steel springs offer a carefully engineered balance between stiffness and comfort, while the 40 levels of damper adjustability allow fine-tuning to match your preferred driving characteristics. Whether you want a smoother street ride or a firmer, more responsive setup, the MAXX system adapts easily.

Full-length height adjustability allows you to lower the vehicle without compromising ride quality or increasing spring preload. At the top, the front coilovers feature pillow-ball upper mounts with integrated camber plates, providing sharper steering feedback and additional alignment control. Rear units reuse the factory top mount for an easy and clean installation. Bottom brackets are constructed from either T7075 forged aluminum or reinforced steel, offering strength, reduced weight, and built-in brake line brackets where required.

Key Features

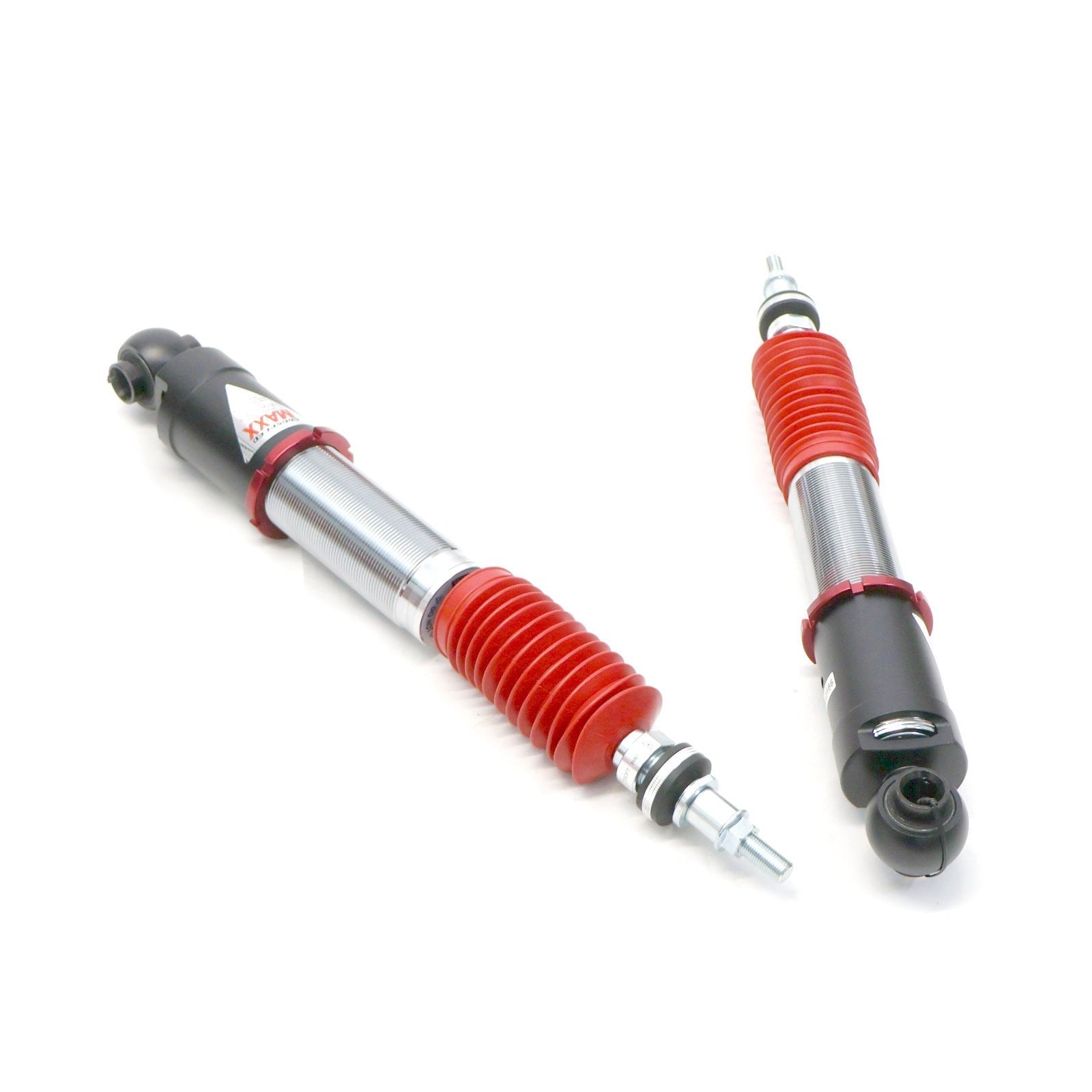

• High-performance monotube damper with 52mm body & 44mm piston

• 40 levels of damping adjustment – customize softness or stiffness

• Premium Italian shock oil for consistent performance in all climates

• SAE9252 high-strength cold-bent steel springs

• Full-length height adjustment without affecting preload

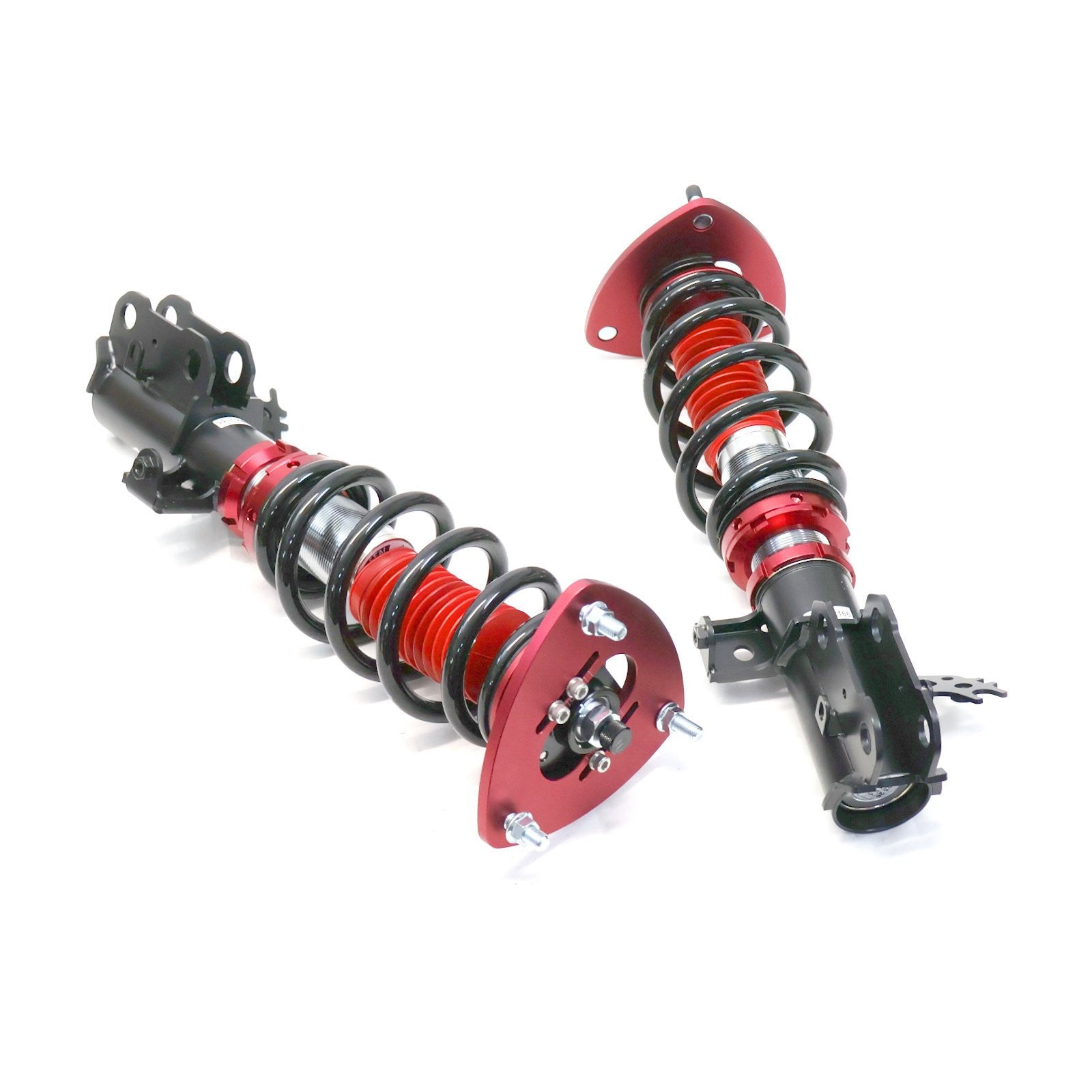

• Front pillow-ball top mounts w/ camber plates for sharper steering

• Lightweight T7075 forged aluminum / steel brackets with brake line mounts

• Built for both comfort and high-performance driving

Fitment

• Compatible with: Lexus ES350 (GSV10) 2019–2023 All Models

• Excludes: Vehicles equipped with Adaptive Variable Suspension (AVS)

Technical Specifications

• Damping Levels: 40-way adjustable

• Height Adjustment: Yes

• Front Spring Rate: 6 kg/mm (336 lbs/in)

• Rear Spring Rate: 6 kg/mm (336 lbs/in)

• Front Spring Length: 220 mm

• Rear Spring Length: 220 mm

• Front Top Mount: Pillow-ball w/ camber plate

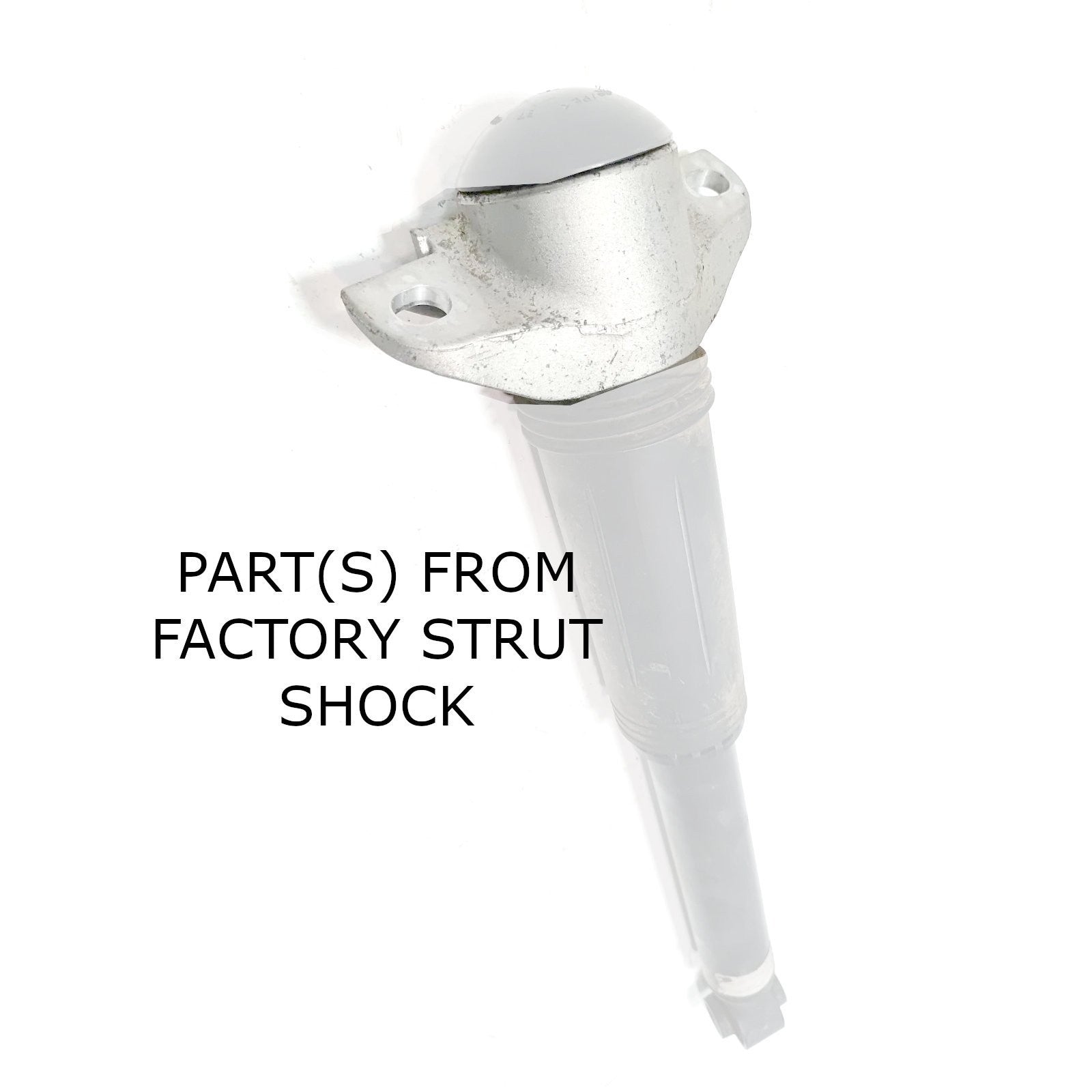

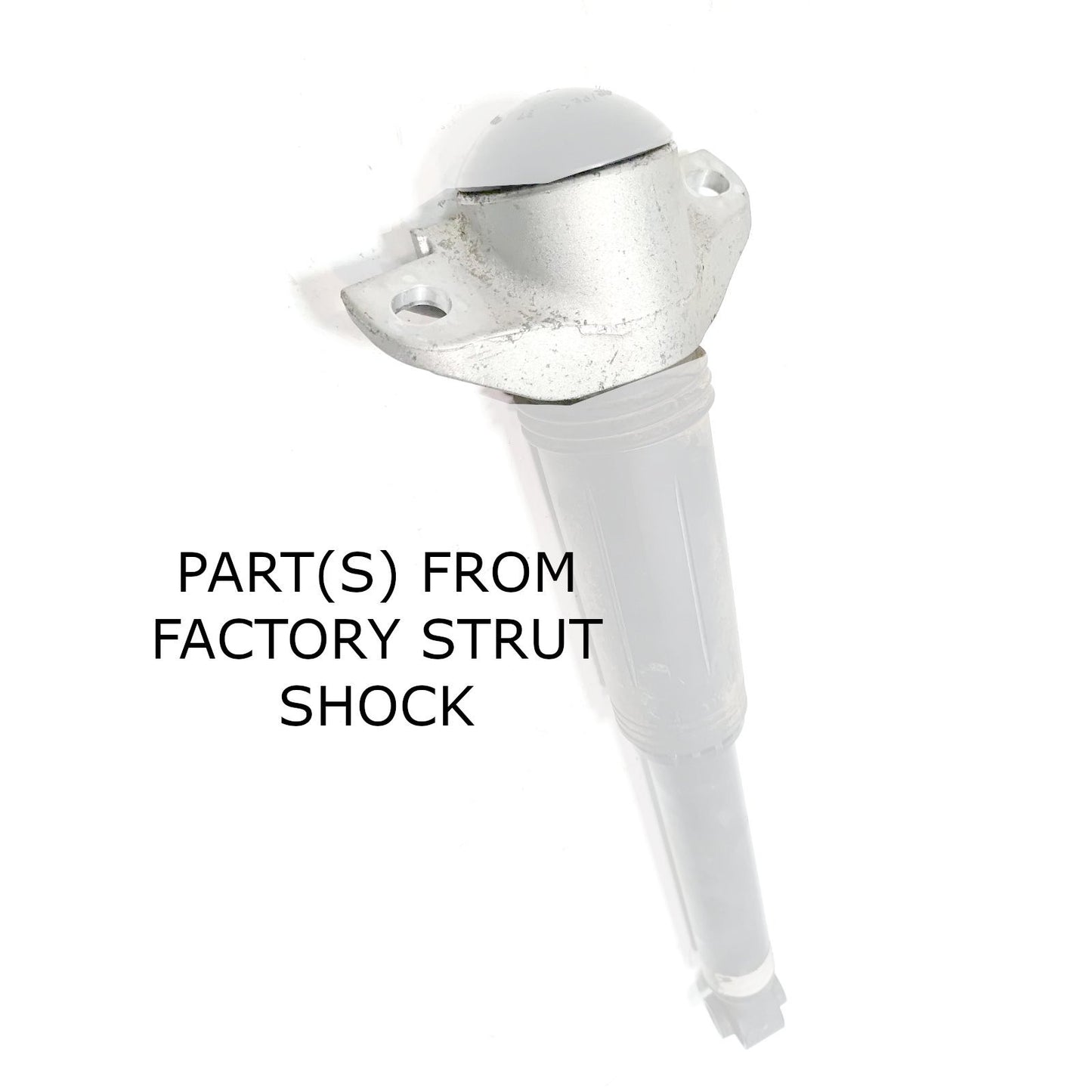

• Rear Top Mount: Reuse factory

• Spring Inner Diameter (Front): 62 mm

• Spring Inner Diameter (Rear): 62 mm

Warranty Information

This GODSPEED MAXX kit includes a 1-year manufacturer warranty.
To process a warranty claim, you must provide proof of purchase from an authorized dealer along with photo and video documentation showing the defect. Visual evidence allows you to keep the defective part rather than returning it for inspection.

California Proposition 65 Warning

This product contains nickel, a substance known to cause cancer and reproductive harm.
For additional information, visit P65Warnings.ca.gov.
