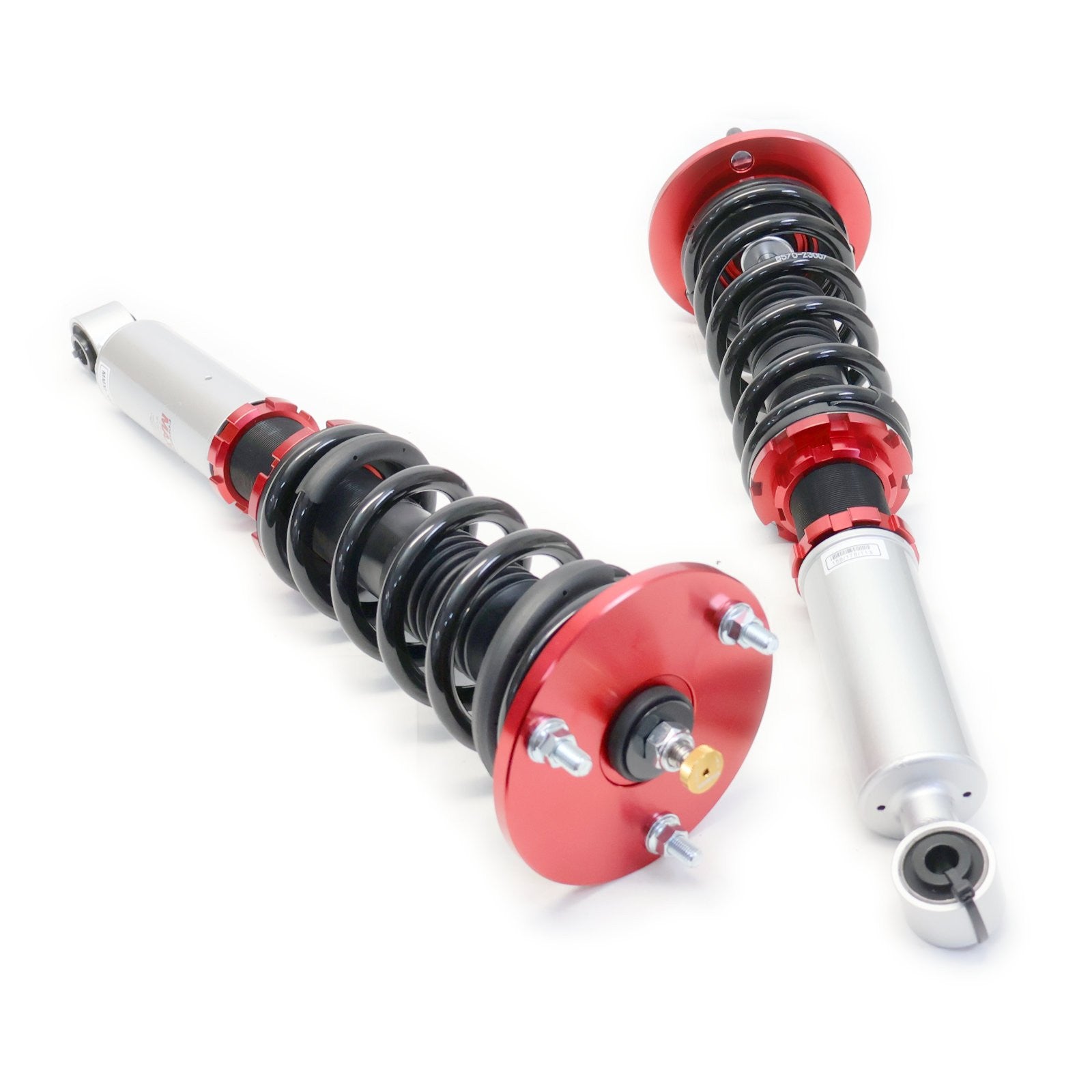

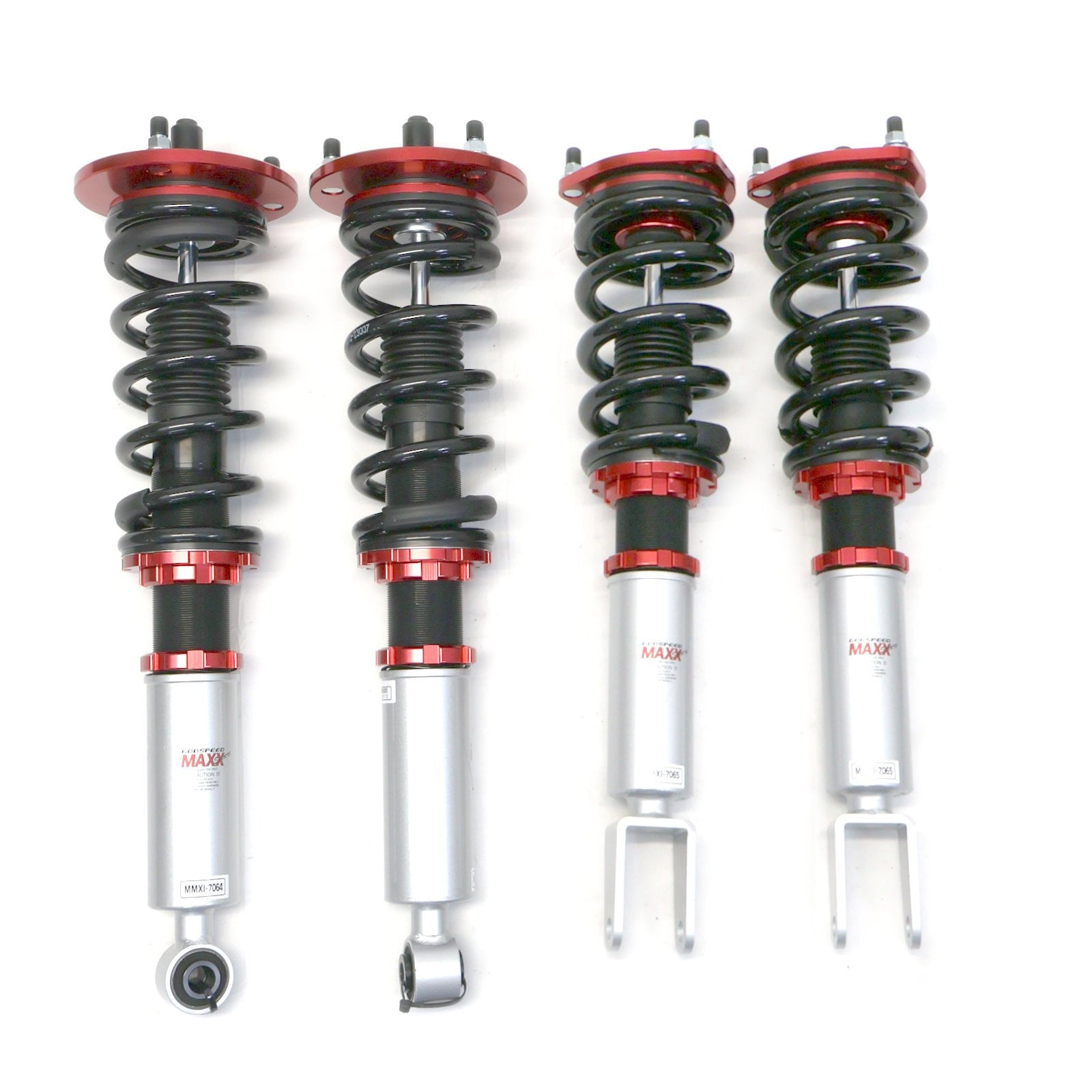

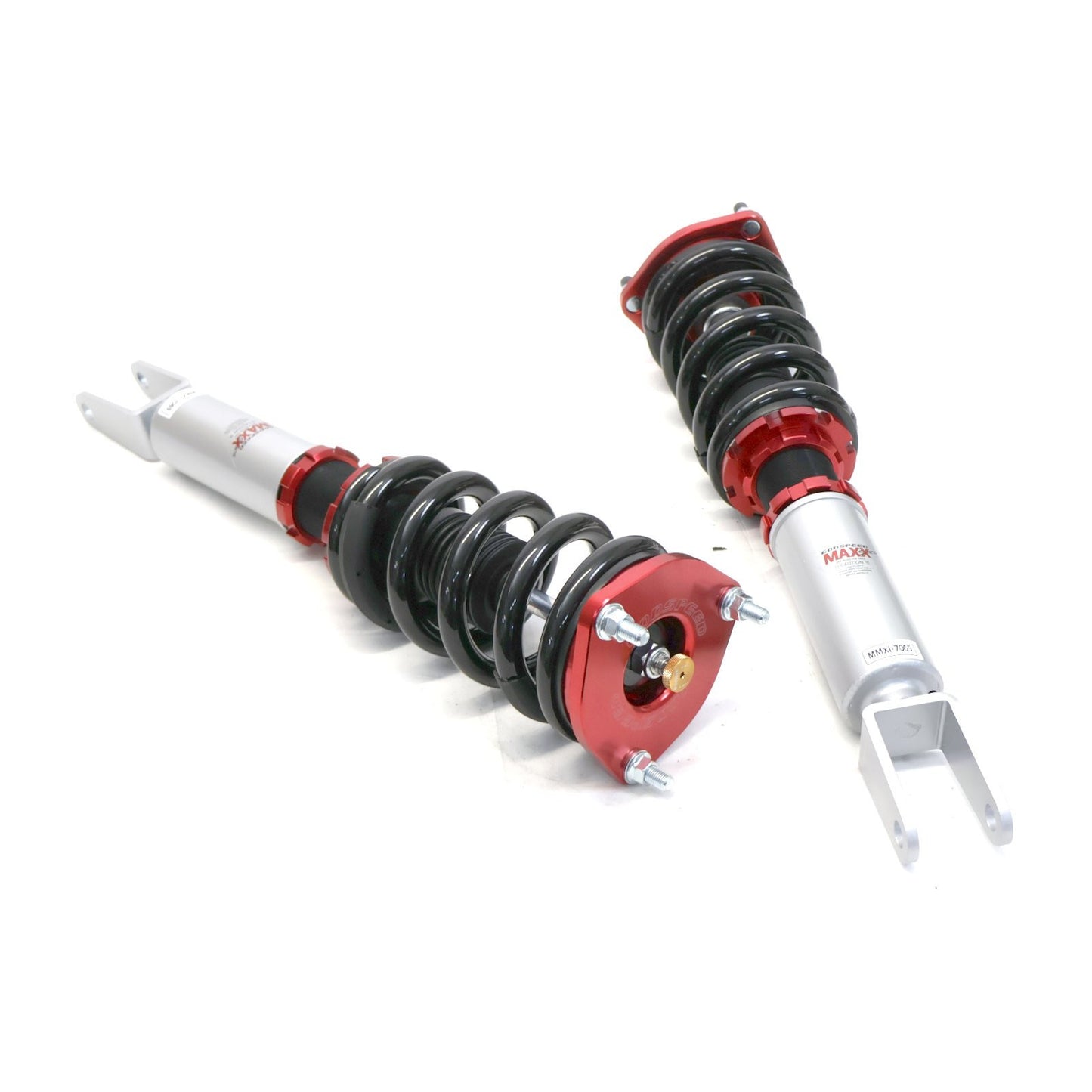

GODSPEED Lexus LS (UCF40) 2007–2017 MAXX-Sports Coilovers – Air-to-Coil Compatible

GODSPEED Lexus LS (UCF40) 2007–2017 MAXX-Sports Coilovers – Air-to-Coil Compatible

Take your Lexus LS (UCF40, 2007–2017) to the next level of handling, precision, and ride customization with GODSPEED MAXX-Sports Coilovers. Built with inverted shock technology, these coilovers are engineered to deliver motorsport-level performance while maintaining streetable comfort. Perfect for enthusiasts seeking sharper steering response, superior stability, and full adjustability, the MAXX-Sports series is a standout upgrade for your luxury sedan.

Unlike conventional upright shocks, GODSPEED inverted struts place the thicker shaft at the bottom, reducing flex under aggressive driving and improving rigidity for more precise control. This design elevates the oil chamber away from dirt, debris, and road salt, protecting critical components while extending service life. A larger shock body allows superior heat dissipation for consistent performance in spirited driving or track conditions.

With 20 levels of damping force adjustment, the MAXX-Sports coilovers allow you to fine-tune rebound and compression to match your driving preference — from smooth daily driving to aggressive track handling. Front struts, where applicable, include adjustable camber plates with pillow ball mounts for maximum alignment flexibility, sharper steering feel, and precise cornering performance.

Each coilover set is engineered for optimal balance between performance and reliability, with configurations tailored for front-only, rear-only, or full sets, depending on vehicle requirements. Spring and damper tuning is carefully matched to maintain Lexus comfort while delivering a sportier, more controlled ride.

Key Features

• GODSPEED inverted shock design – enhanced strength, rigidity, and sharper handling

• 20-way adjustable damping – customize rebound and compression for your driving style

• Front camber plates w/ pillow ball mounts – precise alignment and steering feedback

• Protected seals and internals – extended service life

• Superior heat dissipation – consistent performance in all conditions

• Application-specific setup – front only, rear only, or full set for best performance

• Air-to-coil compatible – maintain flexibility with air suspension systems where applicable

Fitment

• Compatible With: Lexus LS (UCF40) 2007–2017

• Shock Type: Front – Standard Mono-Tube / Rear – Standard Mono-Tube

• Height Adjustable: Yes

• Top Mount (Front): Standard Top Mount w/ pillow ball (where applicable)

• Top Mount (Rear): Standard Top Mount

Technical Specifications

• Damping Levels: 20-way adjustable

• Front Spring Rate: 18 kg/mm (1008 lbs/in)

• Rear Spring Rate: 7 kg/mm (392 lbs/in)

• Front Spring Length: 200 mm

• Rear Spring Length: 230 mm

• Spring Inner Diameter (Front): 85 mm / 70 mm

• Spring Inner Diameter (Rear): 85 mm / 70 mm

Special Notes

• For off-road and competition use only.

• Designed to enhance handling and driver feedback while retaining structural durability.
