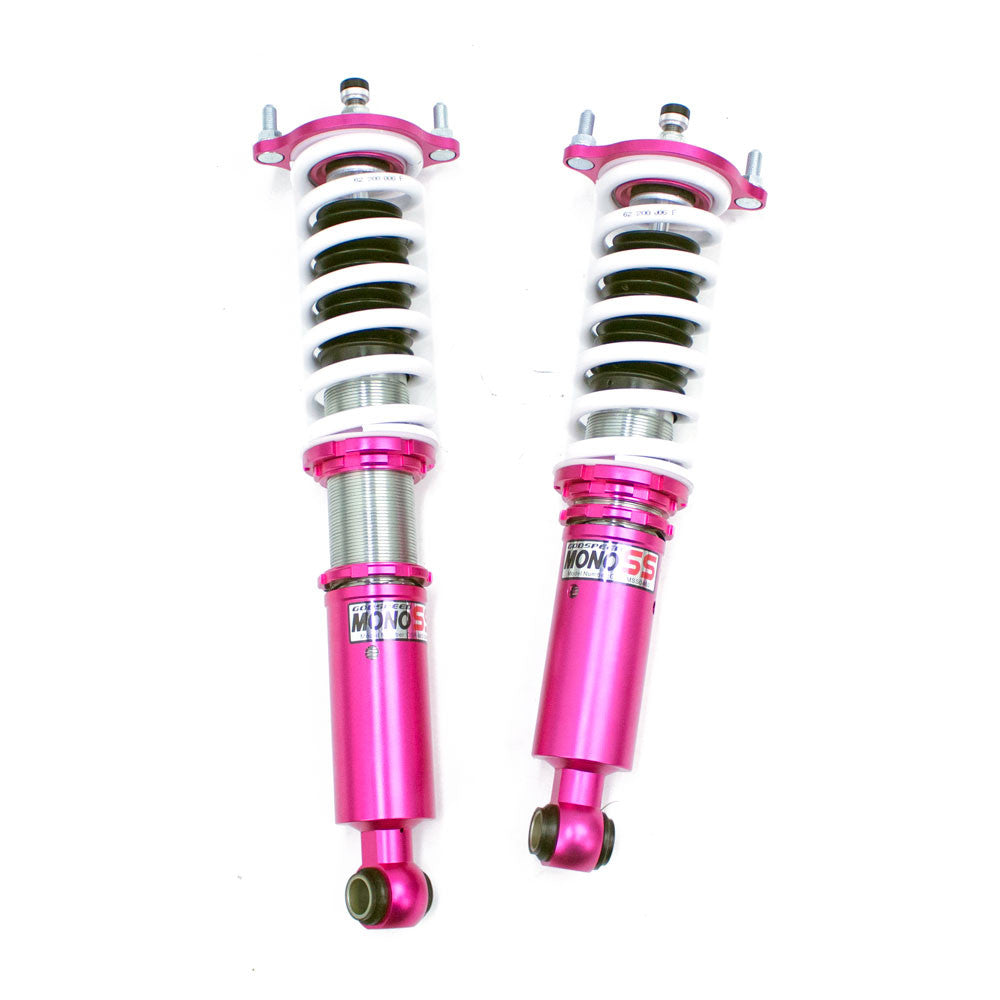

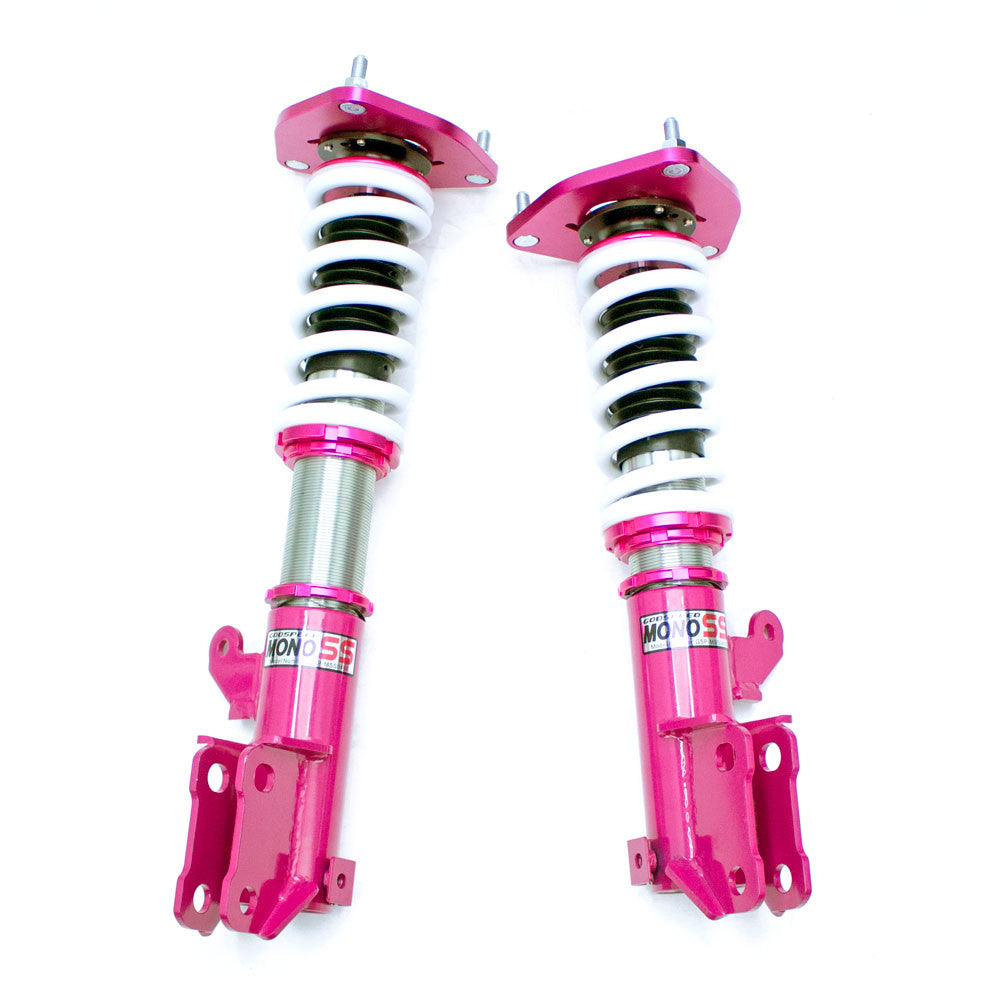

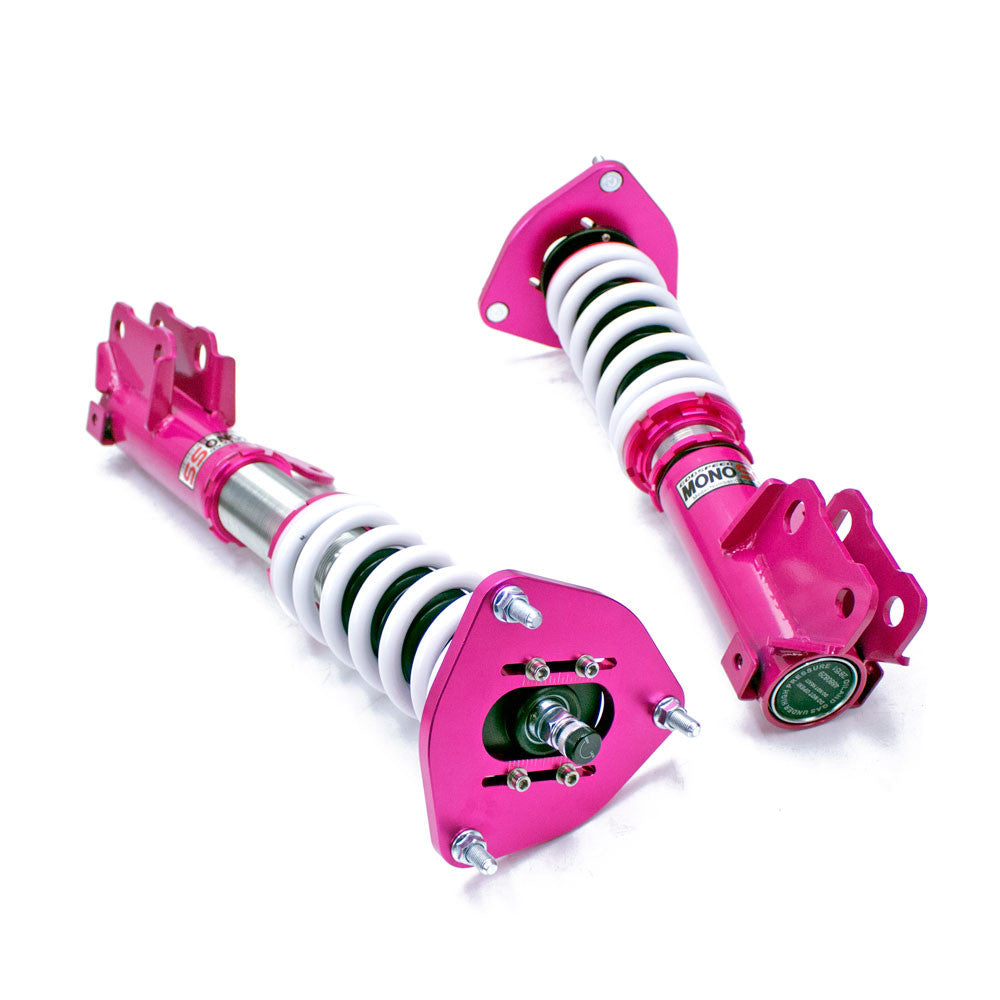

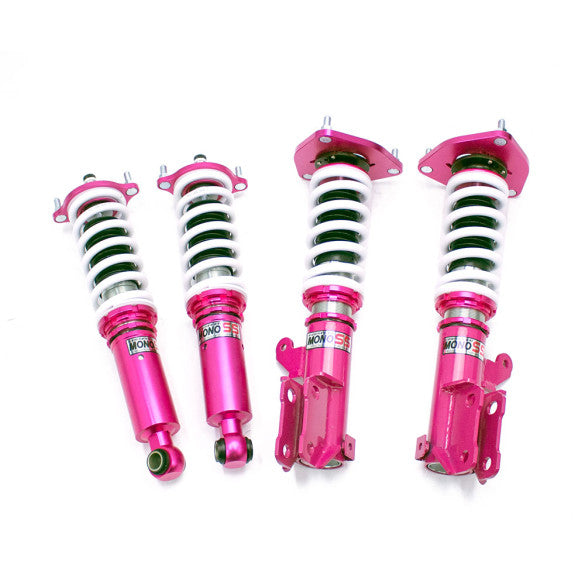

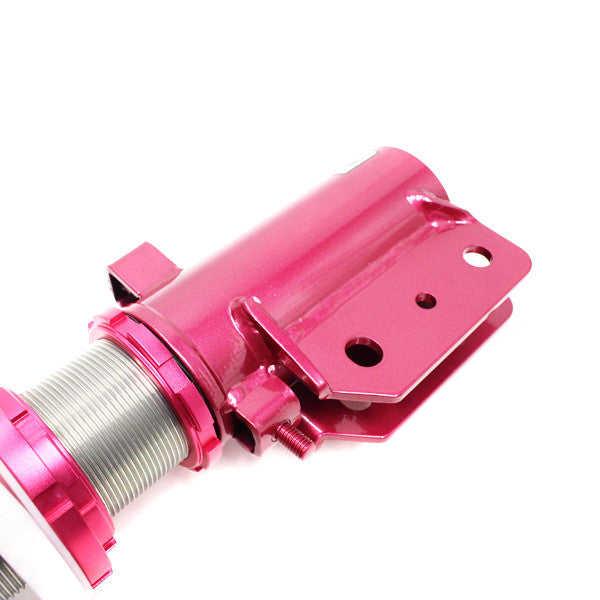

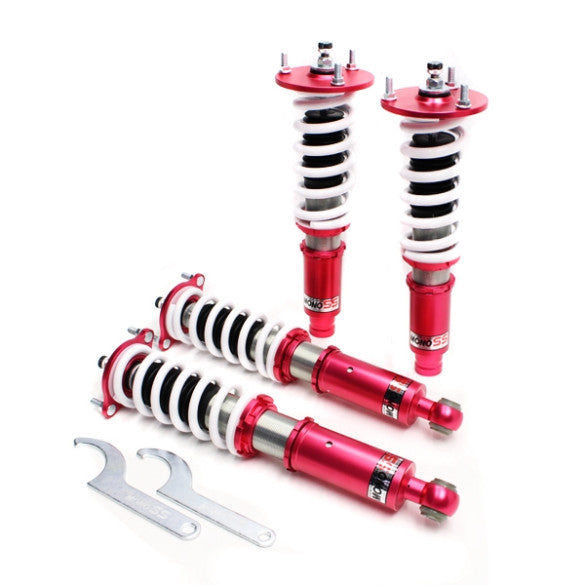

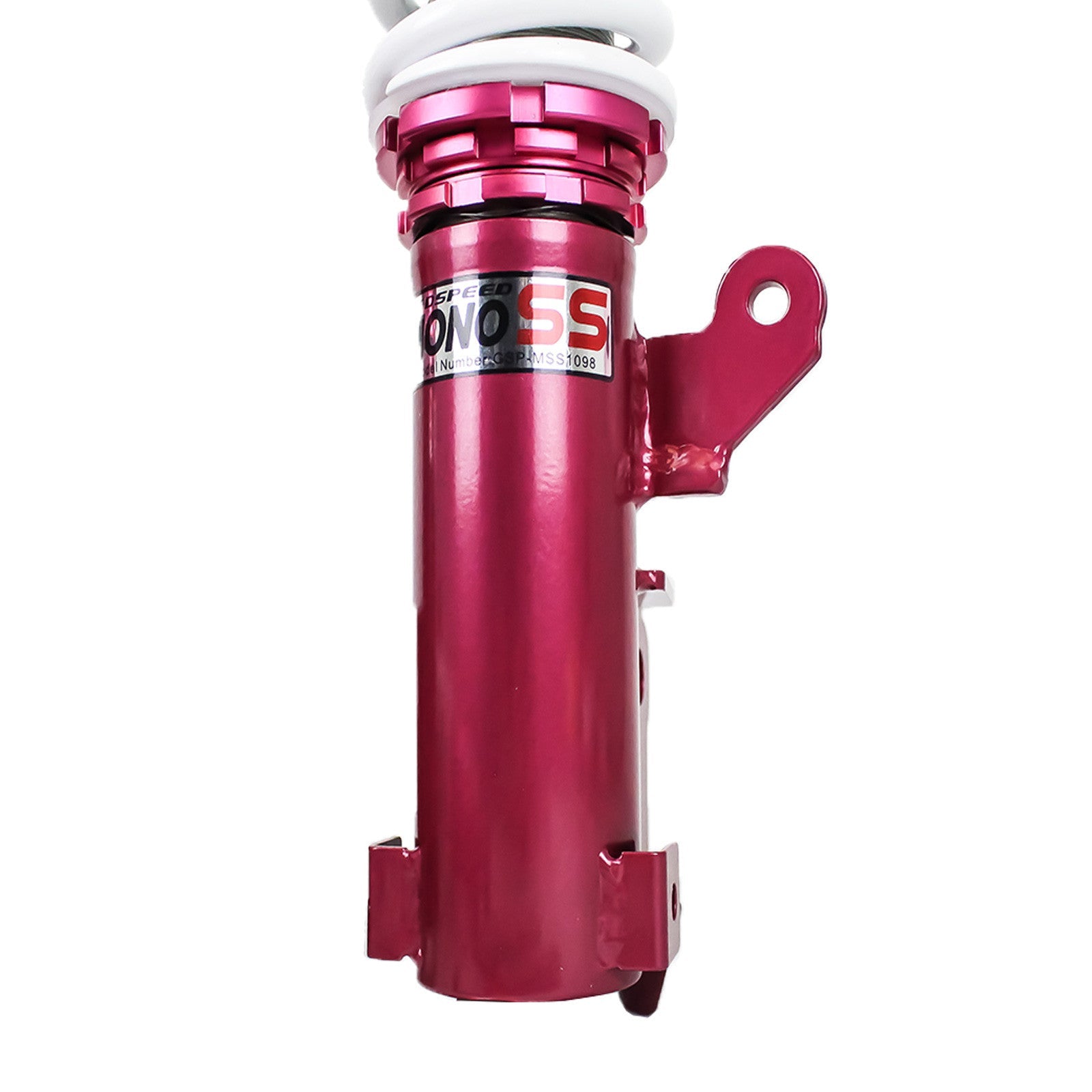

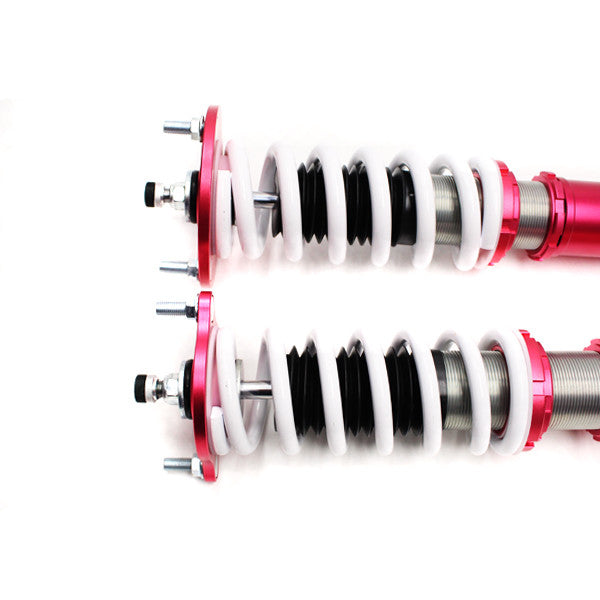

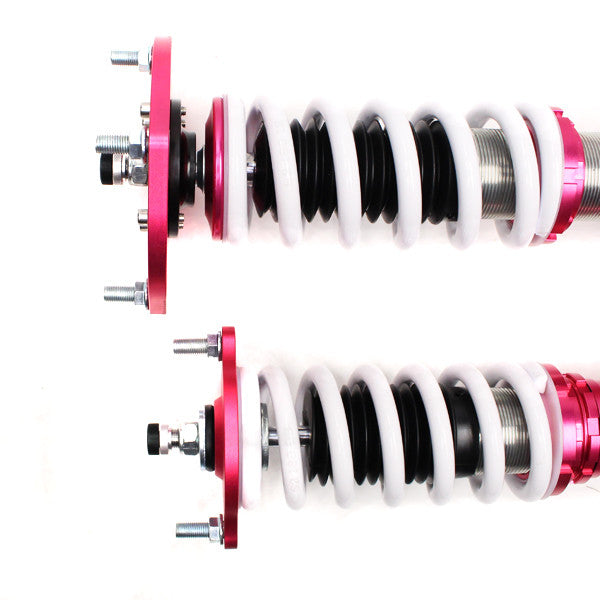

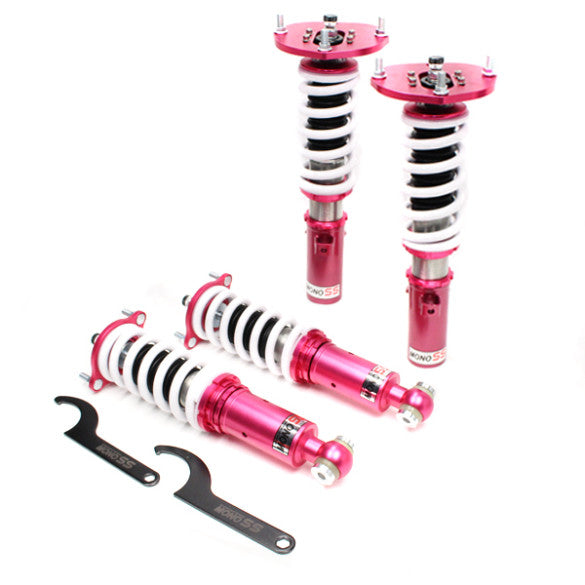

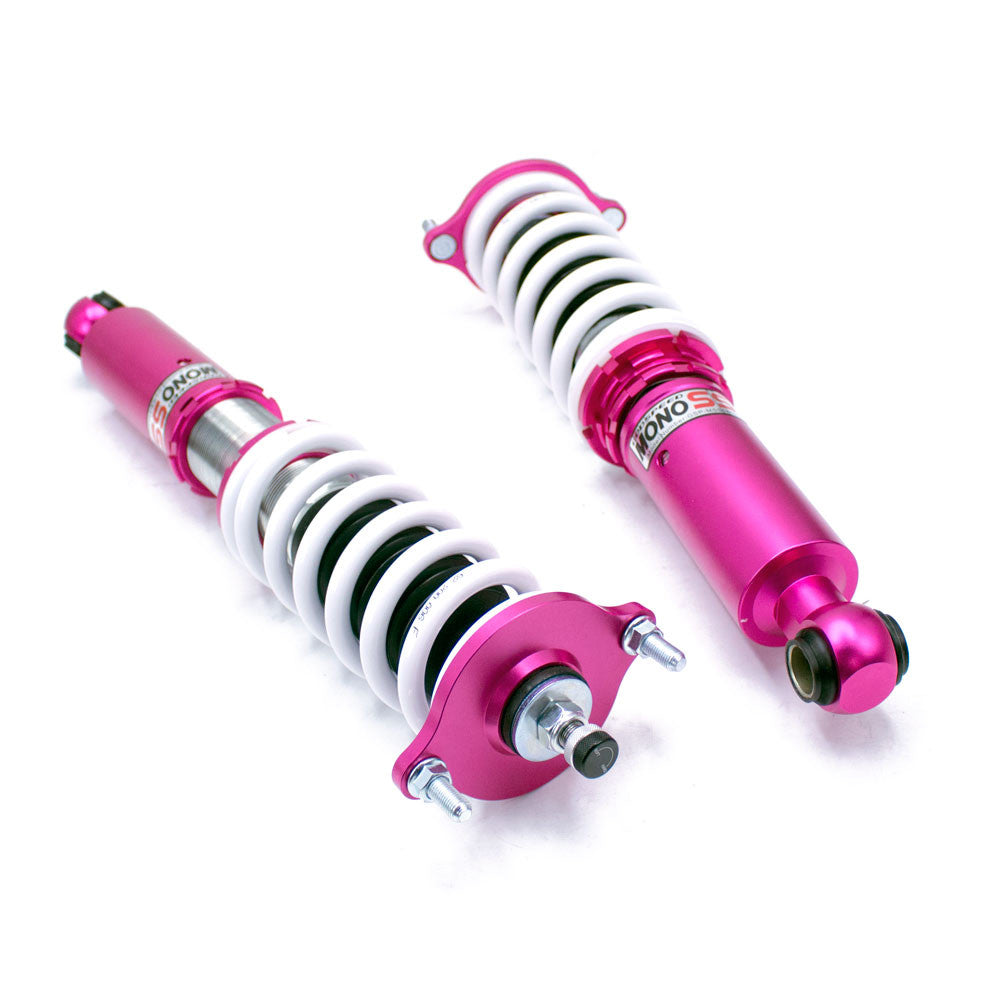

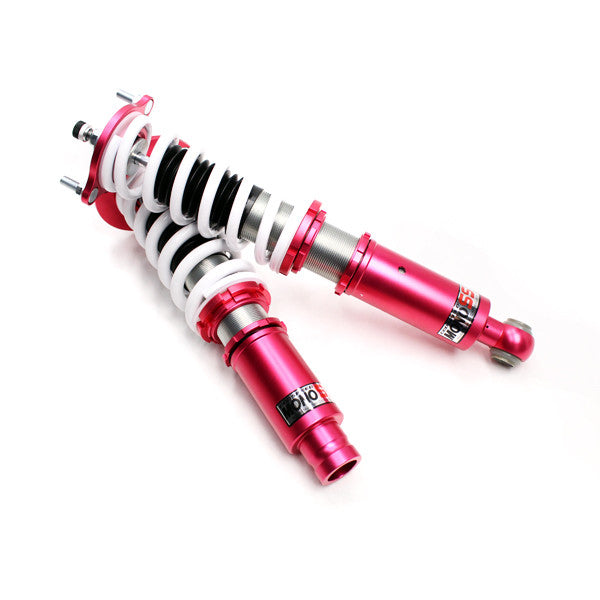

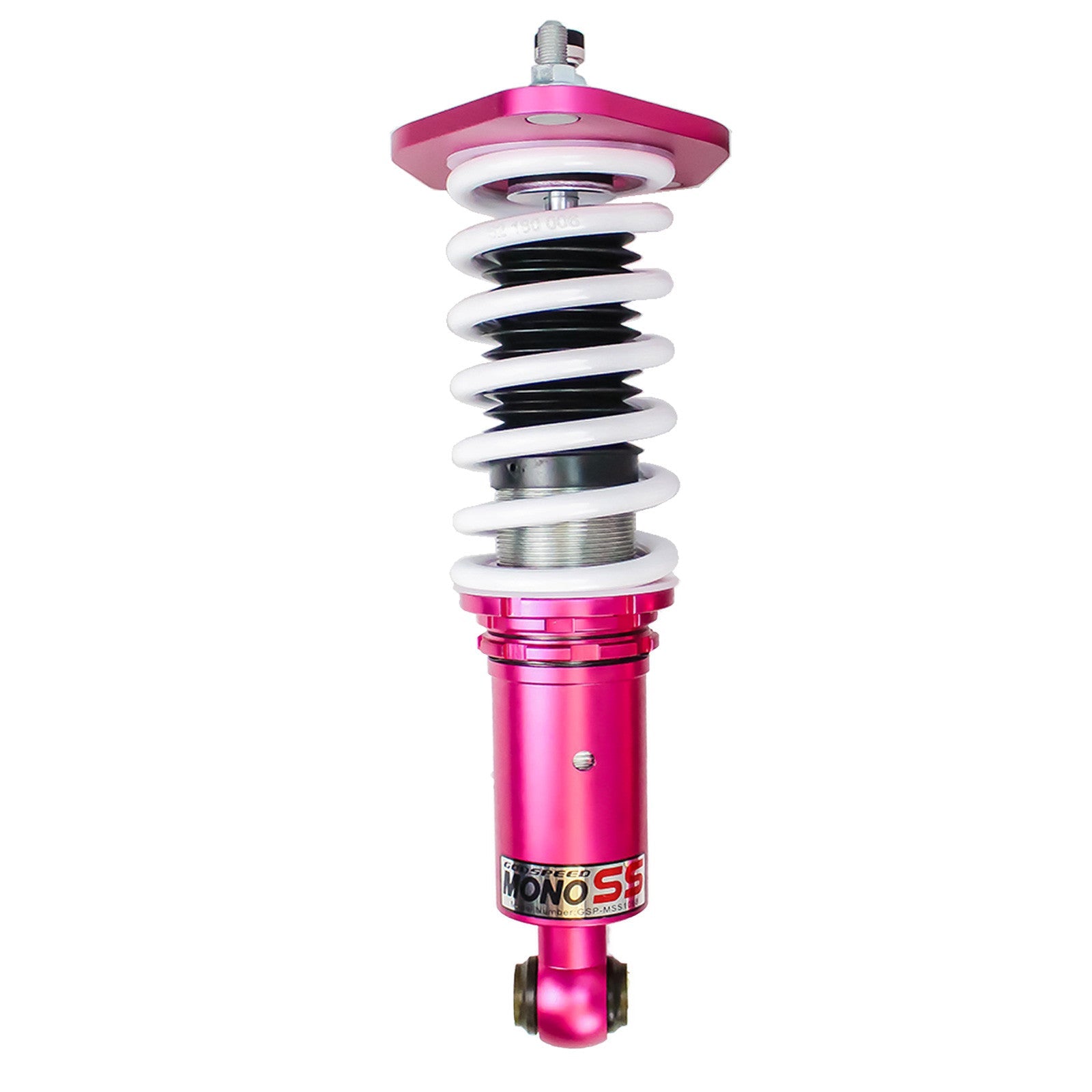

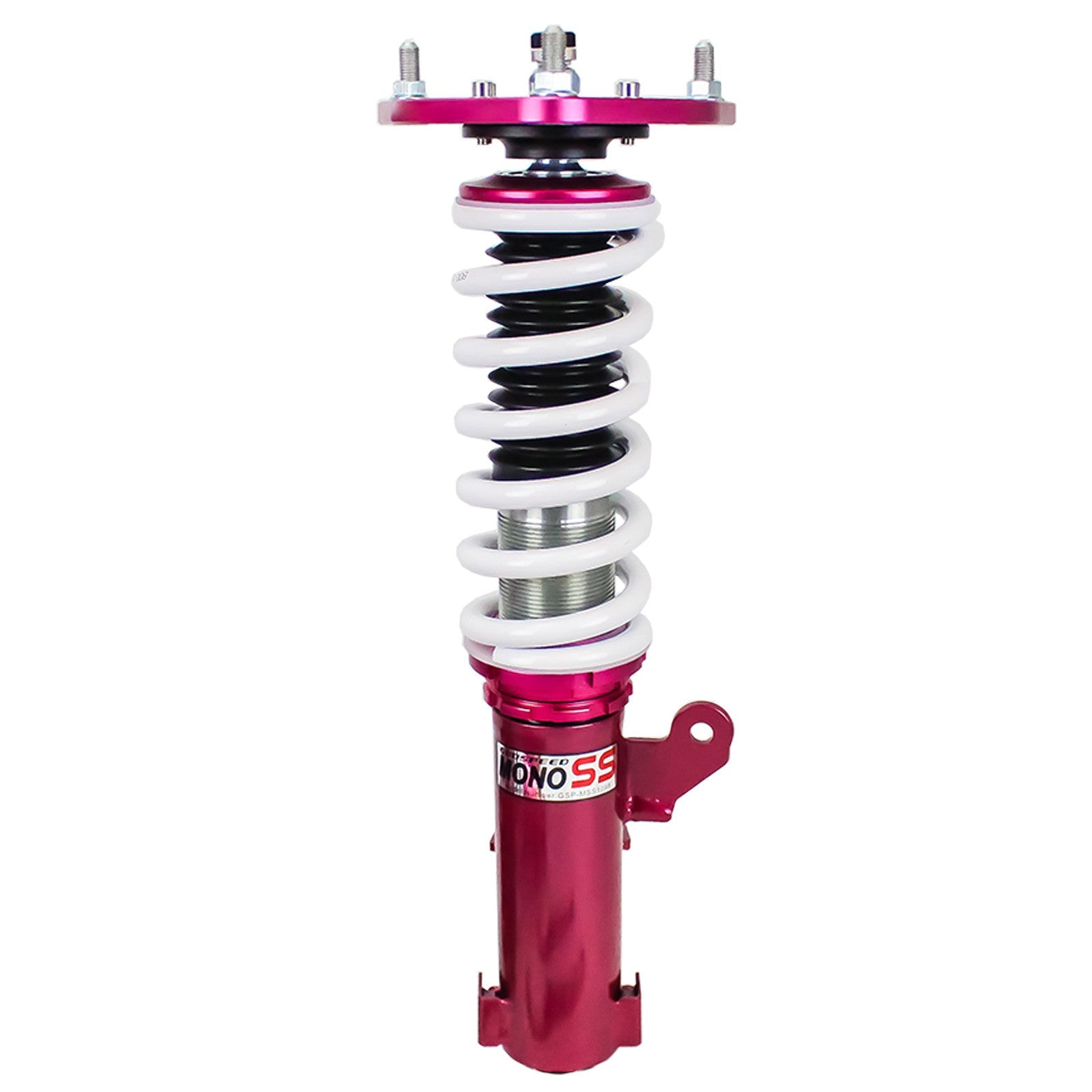

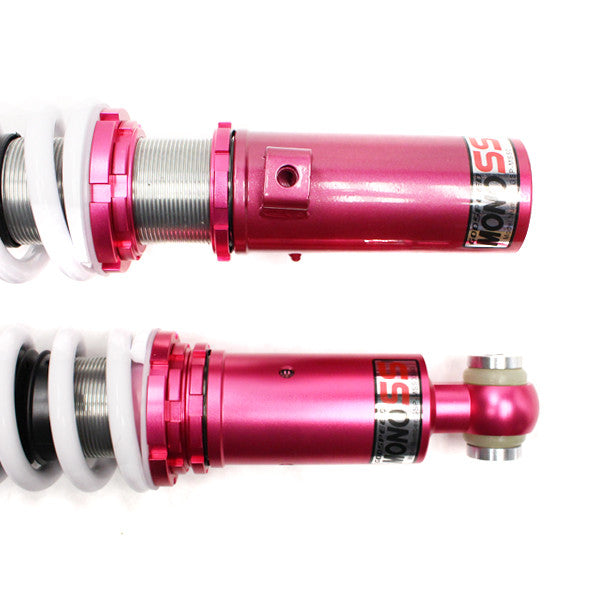

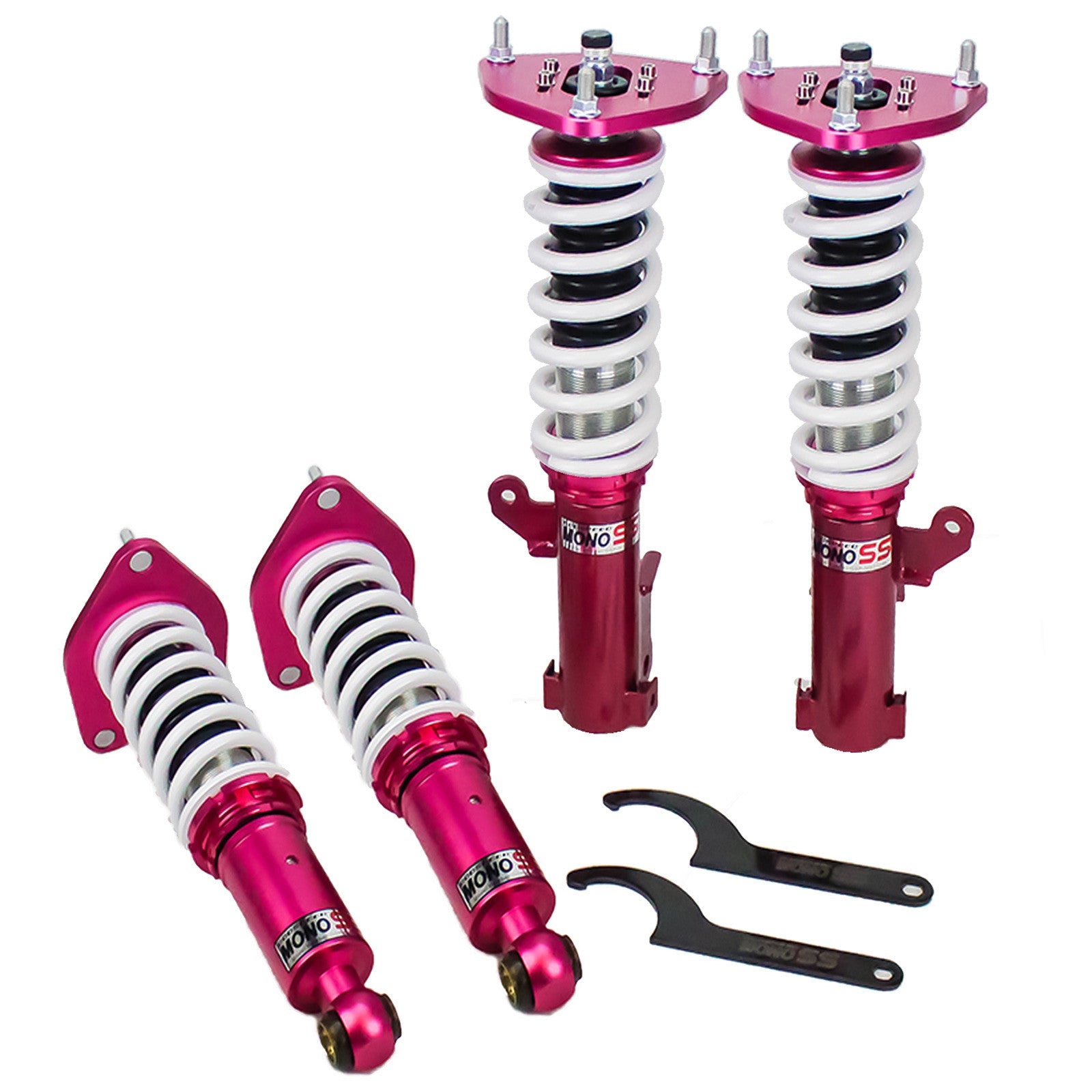

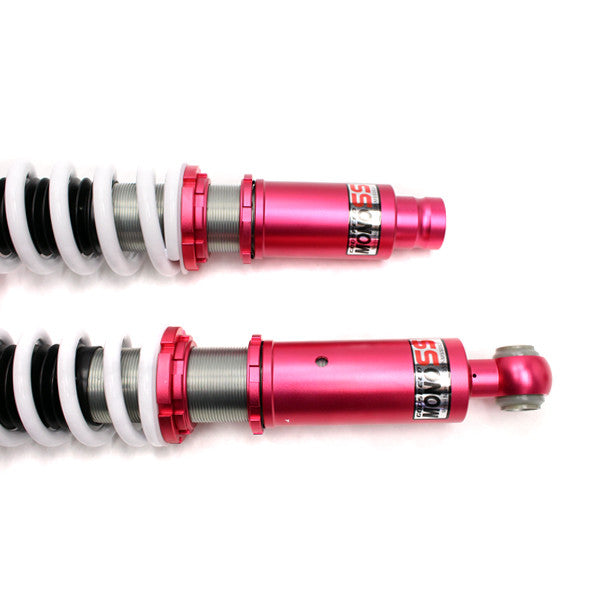

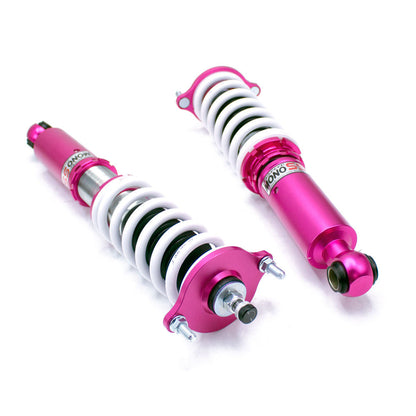

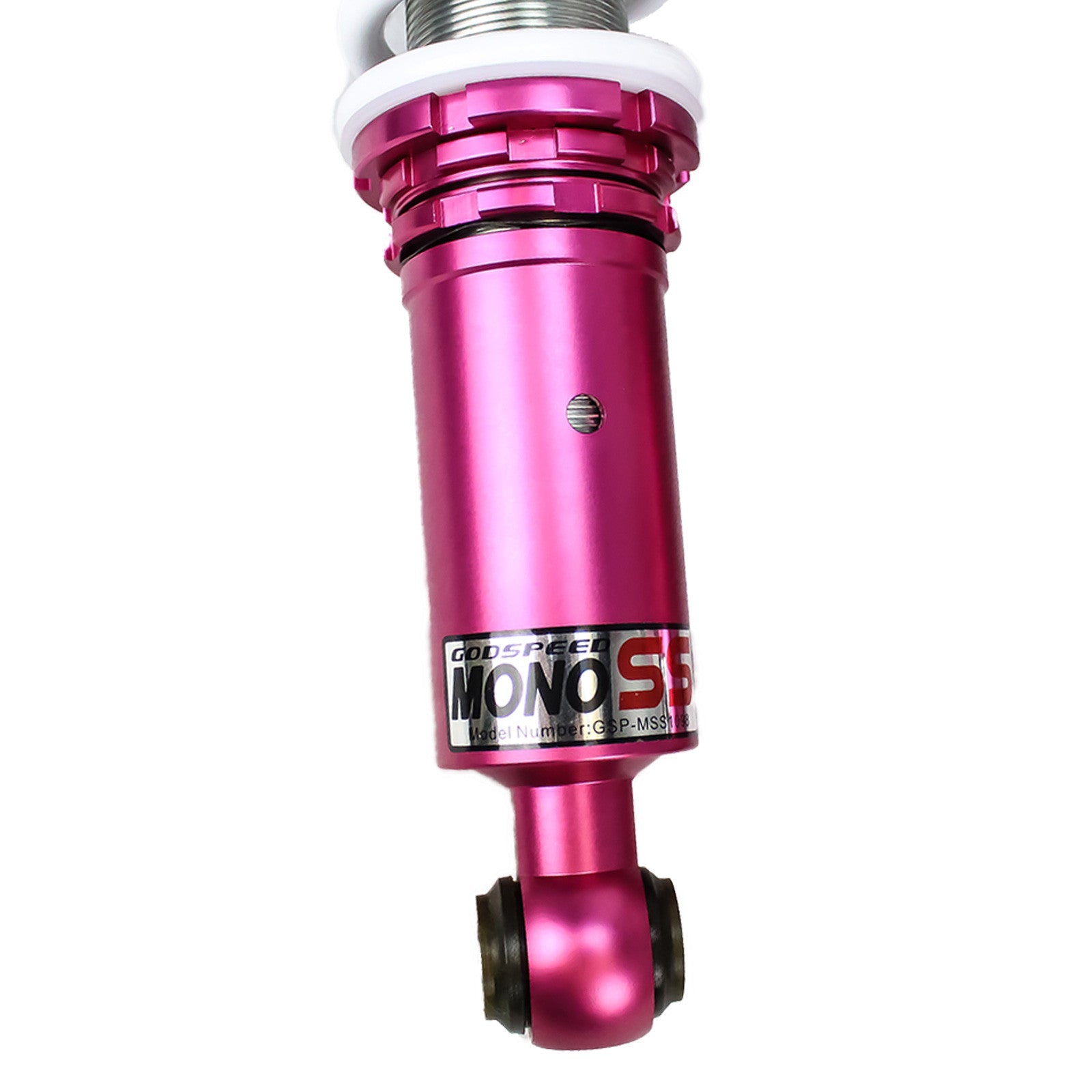

Godspeed Mitsubishi Eclipse (D3/D5/DK/D2) MonoSS Coilovers

Godspeed Mitsubishi Eclipse (D3/D5/DK/D2) MonoSS Coilovers

$750.00 USD
$750.00 USD $750.00 USD
Sale Sold out
Model, Year

D2 FWD, 1990-1994

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 12 kg/mm (672 lbs/inch)
Spring Rate(Rear) 8 kg/mm (448 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 180 mm

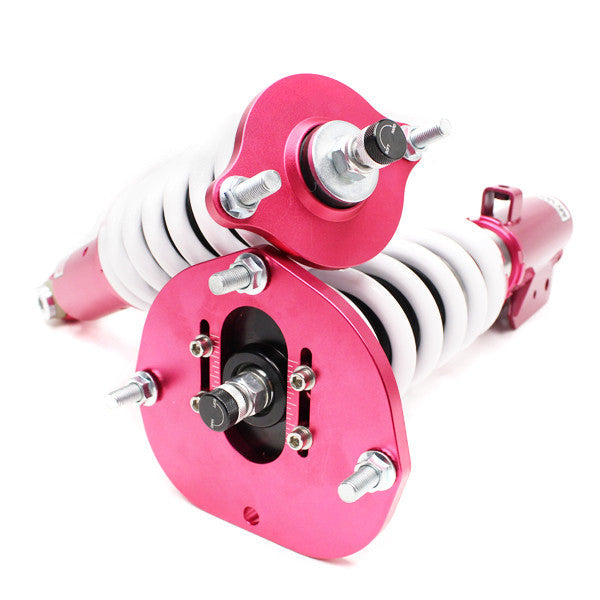

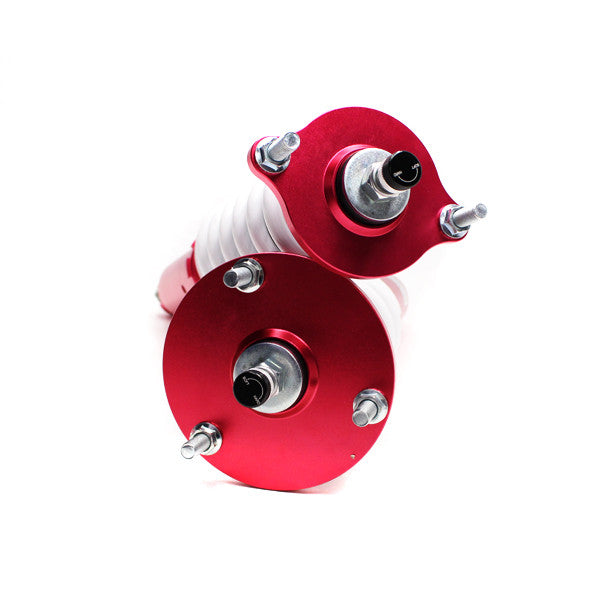

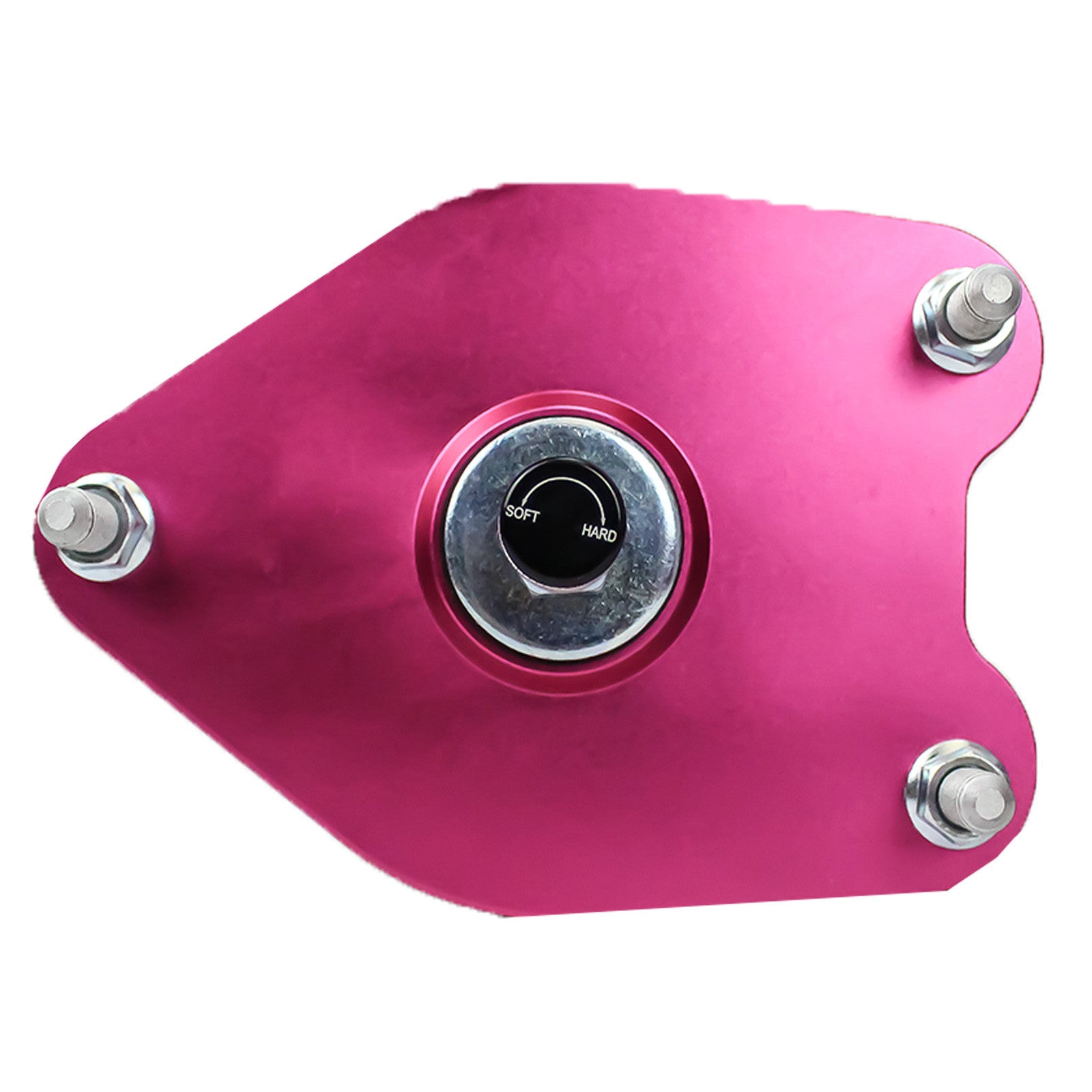

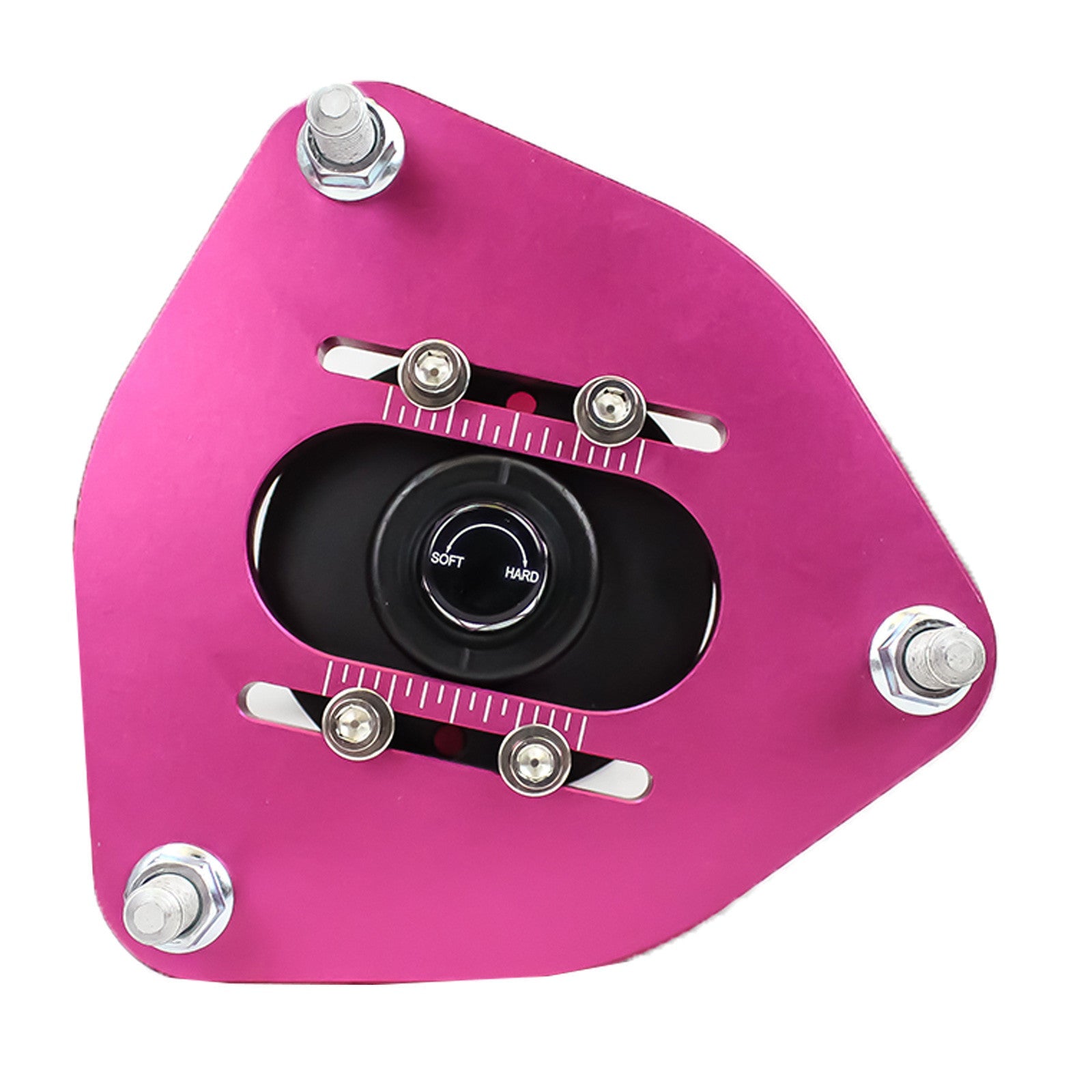

Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

D3, 1995-1999

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 12 kg/mm (672 lbs/inch)
Spring Rate(Rear) 6 kg/mm (336 lbs/inch)
Spring Length(Front) 200 mm
Spring Length(Rear) 200 mm
Front Top Mount Yes, Standard Type
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

D5, 2000-2005

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 10 kg/mm (560 lbs/inch)
Spring Rate(Rear) 6 kg/mm (336 lbs/inch)
Spring Length(Front) 180 mm
Spring Length(Rear) 200 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount Yes, Standard Type
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note No
User Guide Coilover User Guide

DK, 2006-2012

Special Notes Prior to installation, verify all hardware and properly tighten and spring preload is set to 5-10mm(1/4-3/8in). Our technical department is available to answer any other questions.
Damping Levels 16-Level
Height Adjustment Yes
Spring Rate(Front) 8 kg/mm (448 lbs/inch)
Spring Rate(Rear) 6 kg/mm (336 lbs/inch)
Spring Length(Front) 200 mm
Spring Length(Rear) 180 mm
Front Top Mount Yes, Pillow Ball w/ Camber Plate
Rear Top Mount No, Reuse Factory
Spring Inner Diameter(Front) 62 mm (2.44 inch)
Spring Inner Diameter(Rear) 62 mm (2.44 inch)
Warranty Note N/A
User Guide Coilover User Guide

SKU: 1FN0N
