Godspeed Project MAXX Coilovers for Ford Mustang (S650) 2024-2027 w/ MagneRide – 40-Way Adjustable

Part Number: MMX2176-B
Brand: Godspeed Project

Drop the S650. Dial In the Handling. Take Control of Your Mustang.

The Godspeed Project MAXX Coilovers are designed for the 2024-2027 Ford Mustang S650 equipped with MagneRide suspension, combining track-oriented suspension performance with adjustability for street driving.

Featuring a monotube design, 40-way damping adjustment, and independent ride-height and spring-preload adjustment, the MAXX system gives you the ability to fine-tune your Mustang's stance and suspension response.

Why Upgrade?

• 40-way adjustable damping
• Monotube shock design
• Independent ride-height adjustment
• Adjustable spring preload
• 52mm carbon steel shock bodies
• 44mm internal pistons
• High-tensile SAE9252 steel springs
• Lightweight aluminum shock components
• T7075 forged aluminum / carbon steel brackets
• High-viscosity-index IP F.A. shock oil
• Rebuildable shock absorbers
• Replaceable shock cartridges
• Street and track-oriented performance

Vehicle Fitment

2024-2027 Ford Mustang (S650)
All Models with MagneRide Suspension

Specifications

• Series: MAXX
• Suspension Type: Coilover
• Shock Design: Monotube
• Damping Adjustment: 40-Way
• Shock Body Diameter: 52mm
• Internal Piston: 44mm
• Spring Material: SAE9252 High-Tensile Steel
• Ride Height Adjustment: Independent
• Spring Preload: Adjustable
• Recommended Spring Preload: 10mm
• MagneRide Application: Yes

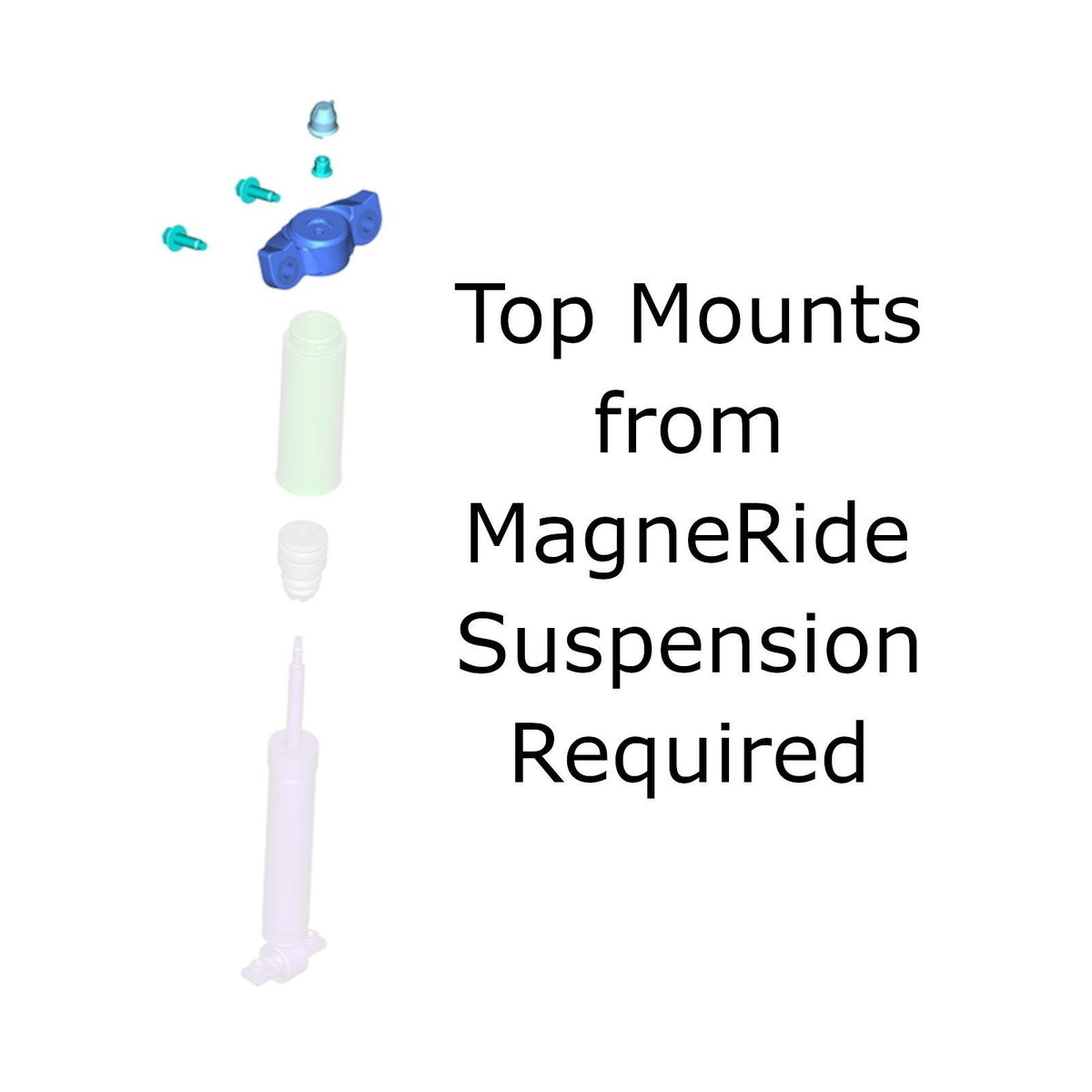

Important MagneRide Notice

A compatible bypass/disable module is required when removing the factory MagneRide suspension.

According to Godspeed Project, the module is required to disable the MagneRide service warning and address the associated 80 MPH speed limitation after the factory electronic dampers are removed.

Bypass module is not stated as included with this coilover kit.

Please make sure you have the correct MagneRide bypass solution for your specific Mustang before installation.

Installation & Setup

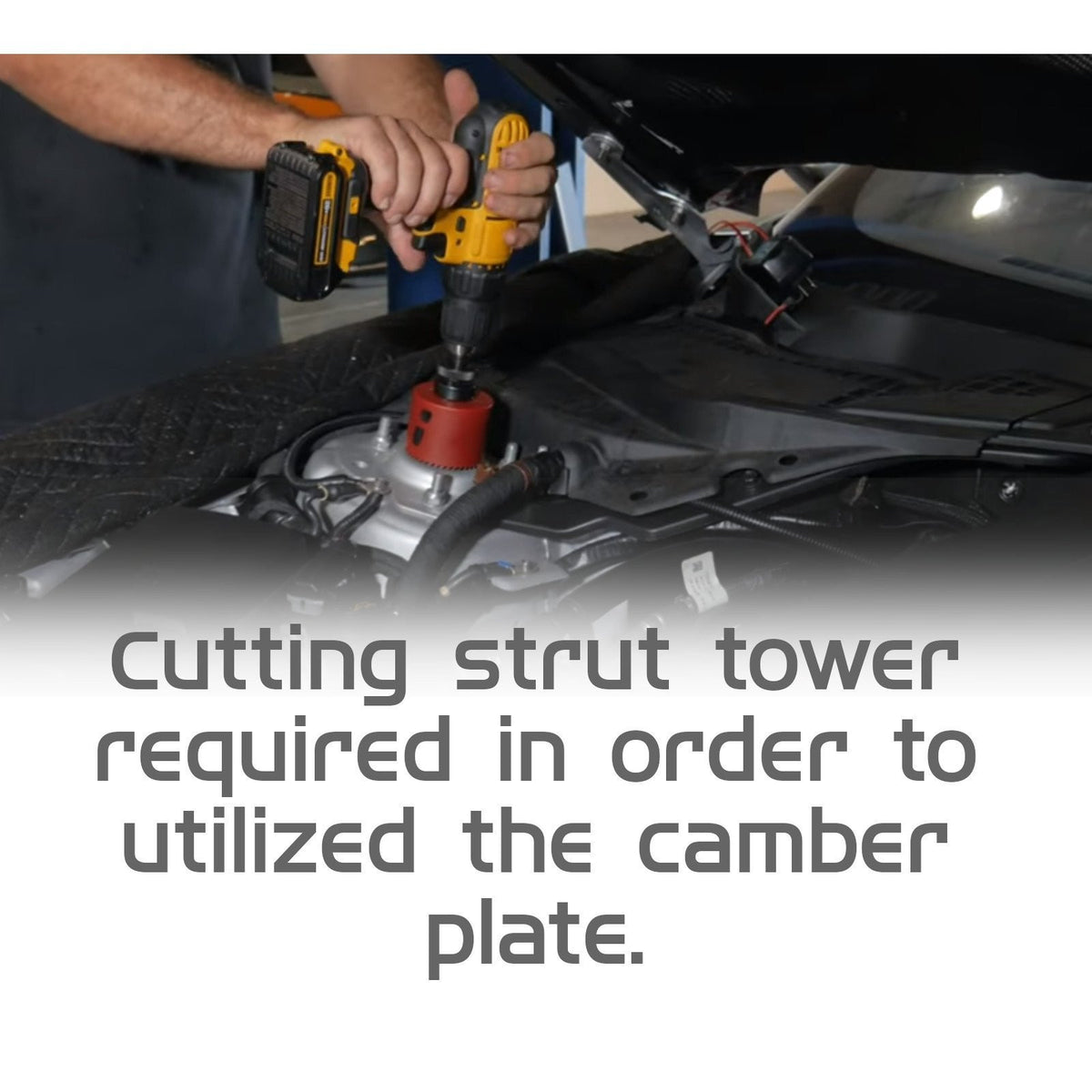

Proper ride height, spring preload, damping, suspension clearance, and alignment should be checked and adjusted during installation.

Godspeed Project specifies 10mm spring preload for this application.

A professional four-wheel alignment is strongly recommended after installation and final ride-height adjustment.

Professional Installation Available

RPM Racing offers professional coilover and suspension installation services.

Contact RPM Racing for installation availability, pricing, and scheduling.

Drop the S650. Dial in the suspension. Give your MagneRide Mustang the stance and handling it deserves.
