GODSPEED Toyota Avalon (GSX50) 2019–2023 MAXX Coilovers – 40-Way Adjustable

GODSPEED Toyota Avalon (GSX50) 2019–2023 MAXX Coilovers – 40-Way Adjustable

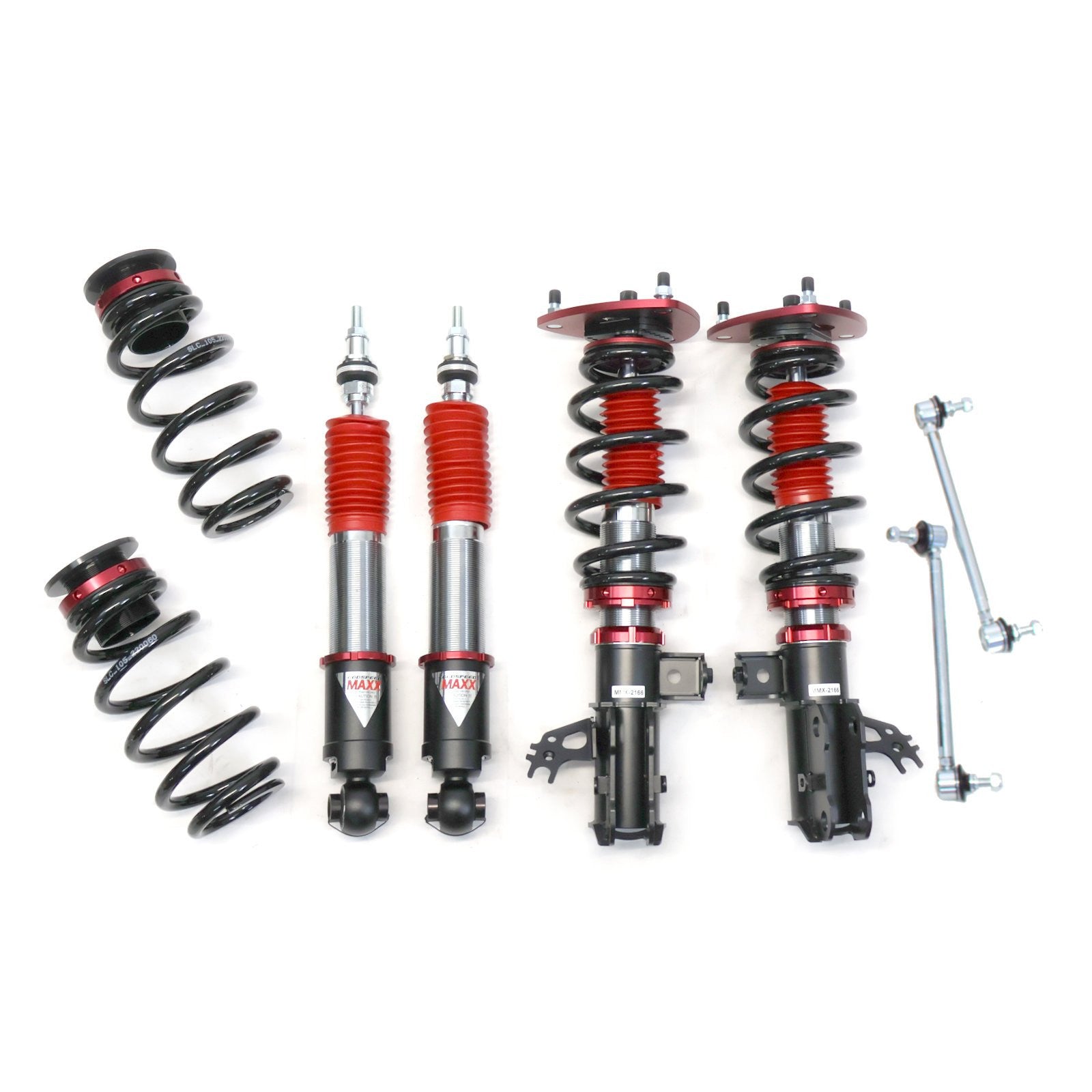

Upgrade your 2019–2023 Toyota Avalon (GSX50) with the GODSPEED MAXX Coilover Suspension Kit, designed for drivers seeking a perfect balance between street comfort and track-ready performance. As Godspeed Project’s premier single-adjustable coilover system, the MAXX series delivers a race-inspired driving experience without compromising daily drivability or reliability.

Each coilover features a 52mm carbon seamless steel monotube damper with a 44mm internal piston, offering rapid damping response, exceptional consistency, and superior heat dissipation. Combined with high-quality Italian shock oil, these coilovers provide precise control in all driving conditions, from spirited street driving to high-performance track use.

The cold-bent SAE9252 steel springs are engineered for an optimal balance between ride comfort and handling performance. With 40 levels of damper adjustment, you can fine-tune your suspension to match your preferred driving style. Full-length height adjustability allows you to lower the Avalon without sacrificing spring preload or ride quality.

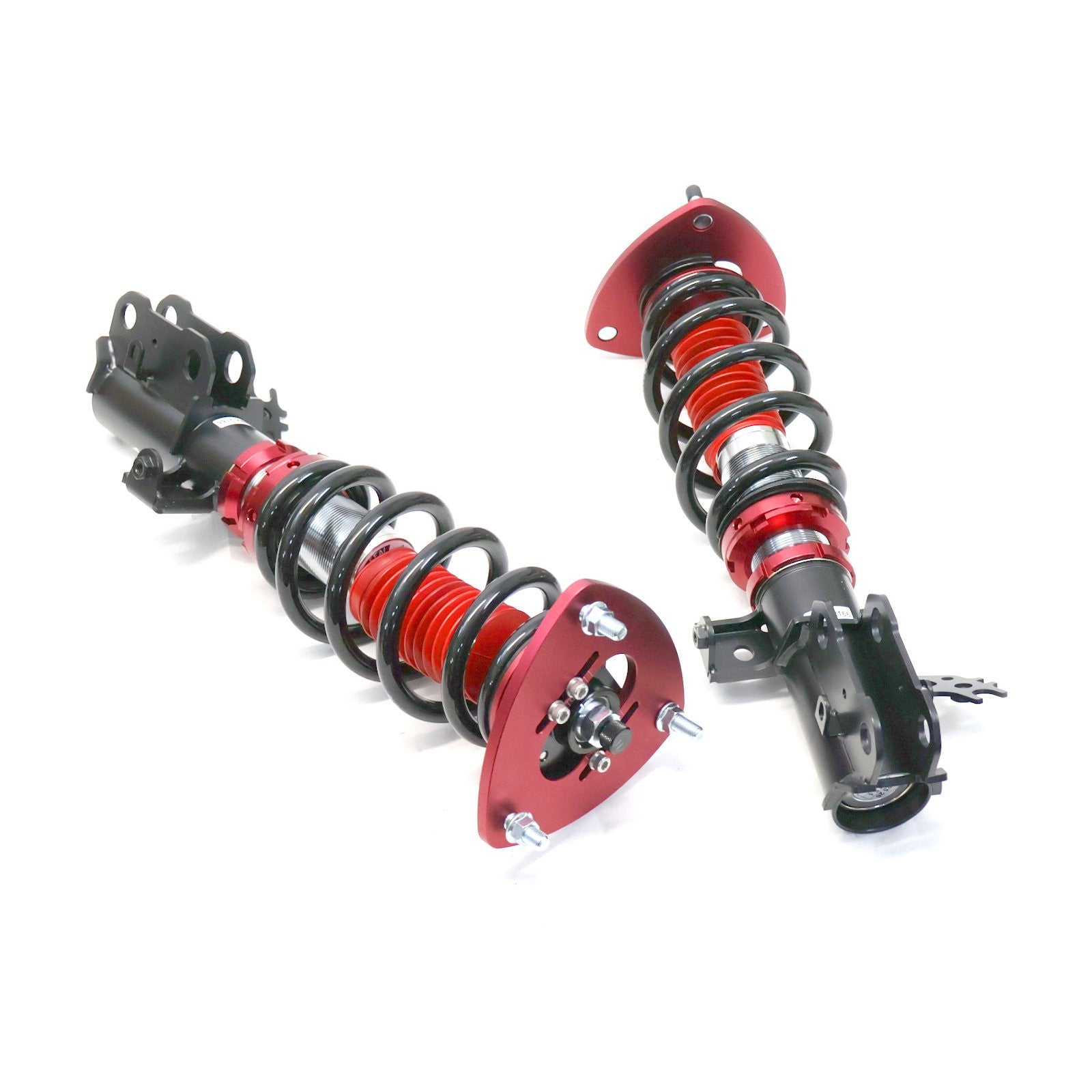

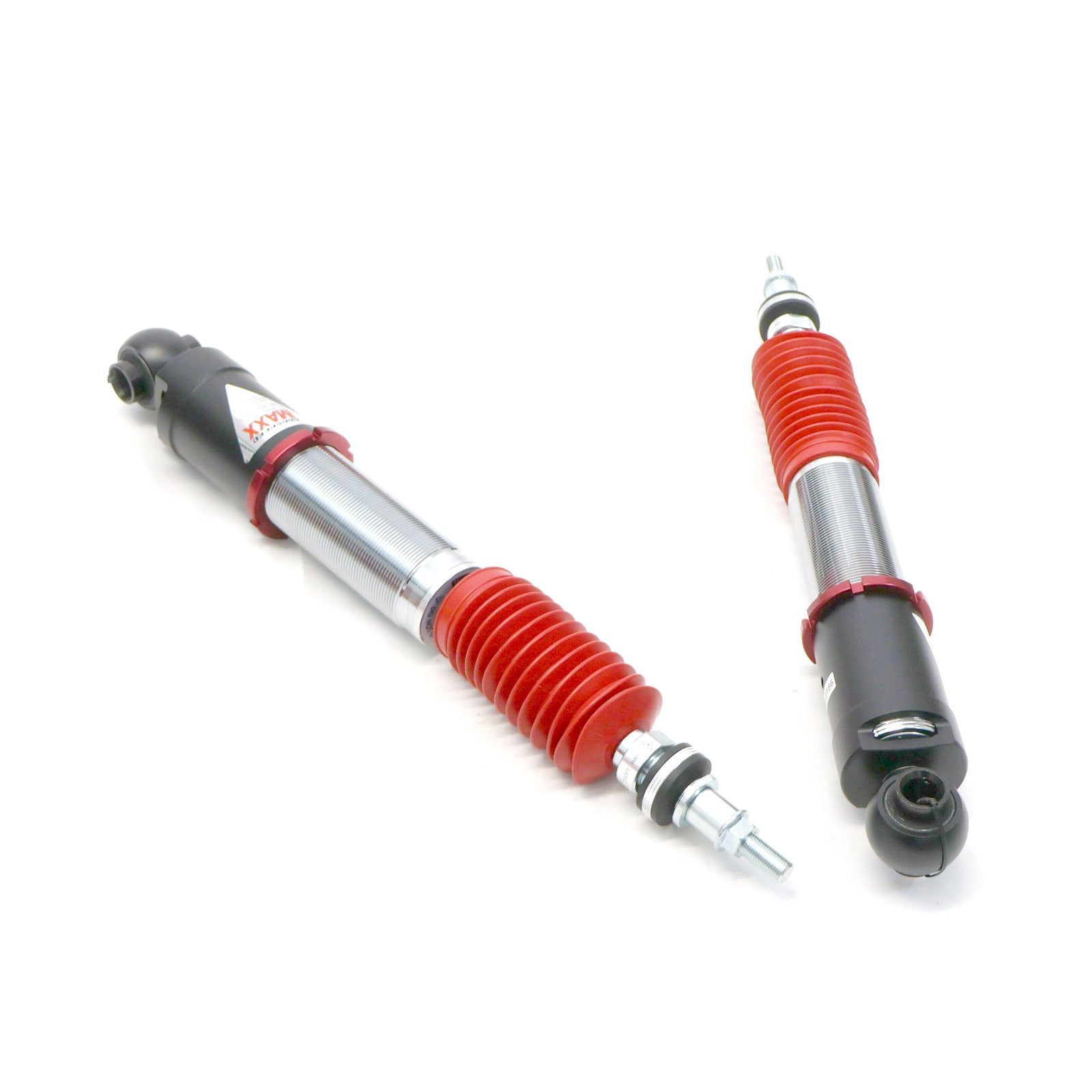

The front coilovers utilize pillow-ball top mounts with camber plates for precise steering response and alignment control, while rear coilovers reuse the factory top mounts for a clean and straightforward installation. Bottom brackets are crafted from T7075 forged aluminum or reinforced steel, providing strength, reduced weight, and integrated brake line brackets where applicable.

Key Features

• High-performance monotube dampers – 52mm body with 44mm internal piston

• 40-way damping adjustability – fine-tune softness or stiffness

• Premium Italian shock oil for consistent performance

• Cold-bent SAE9252 steel springs for optimal performance/comfort balance

• Full-length height adjustment without affecting spring preload

• Front pillow-ball top mounts w/ camber plates

• T7075 forged aluminum or steel lower brackets with brake line mounts

• Designed for both street comfort and track-level performance

Fitment

• Compatible with: Toyota Avalon (GSX50) 2019–2023 All Models

• Excludes: Vehicles equipped with Adaptive Variable Suspension (AVS)

Technical Specifications

• Damping Levels: 40-way adjustable

• Height Adjustment: Yes

• Front Spring Rate: 6 kg/mm (336 lbs/in)

• Rear Spring Rate: 6 kg/mm (336 lbs/in)

• Front Spring Length: 220 mm

• Rear Spring Length: 220 mm

• Front Top Mount: Pillow-ball w/ camber plate

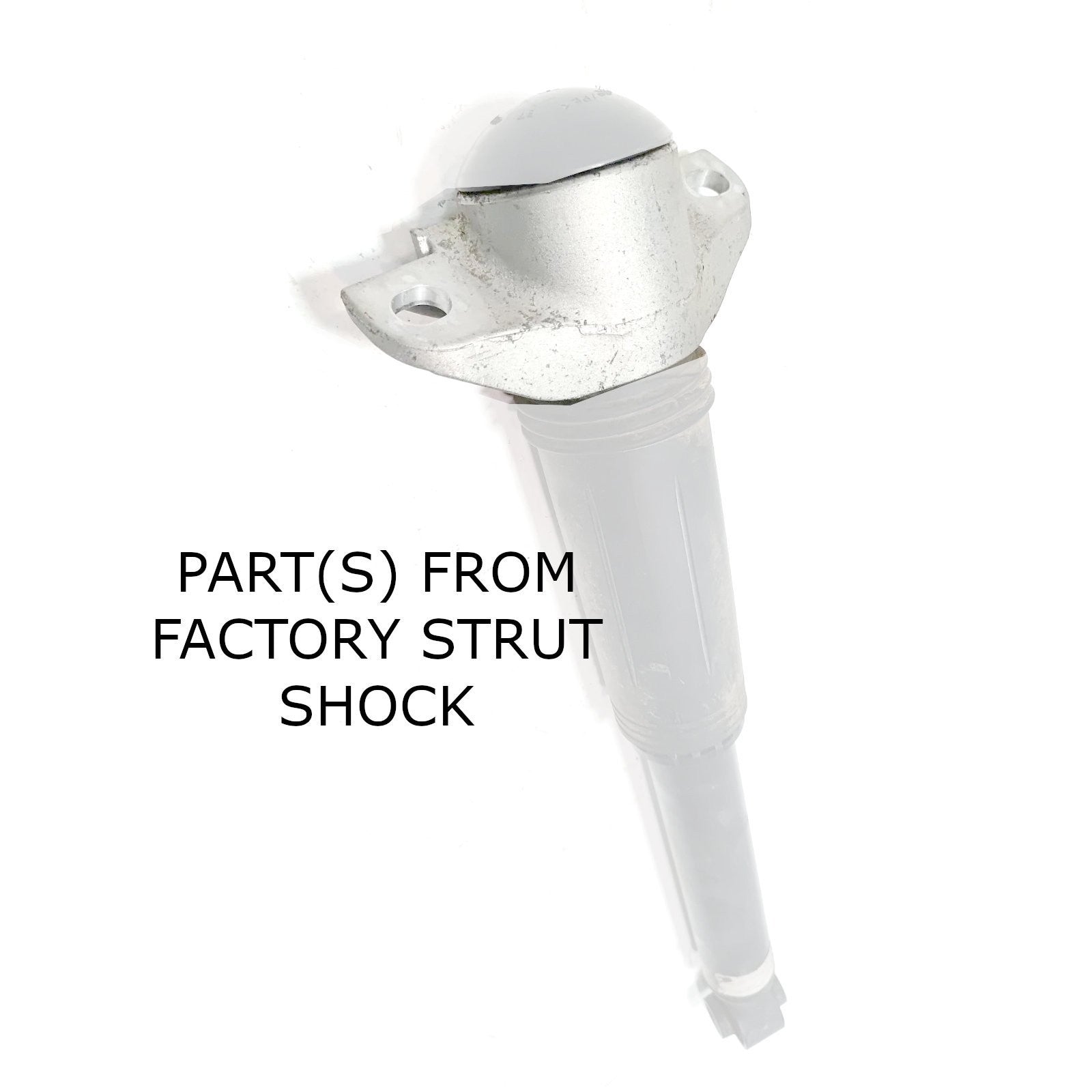

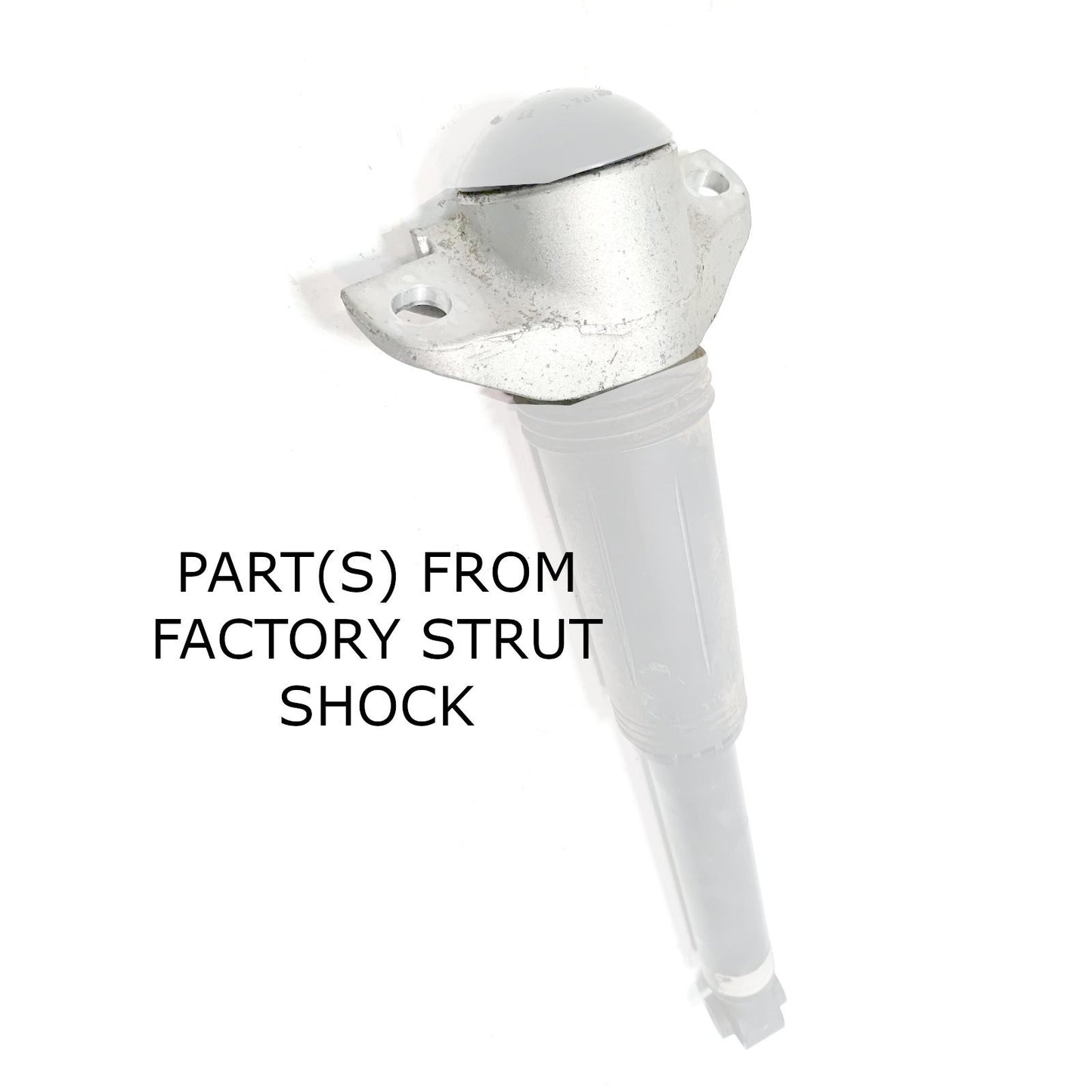

• Rear Top Mount: Reuse factory

• Spring Inner Diameter (Front): 62 mm

• Spring Inner Diameter (Rear): 62 mm

Warranty Information

This GODSPEED MAXX Coilover Kit includes a 1-year manufacturer warranty. To submit a claim, proof of purchase from an authorized dealer is required along with photo and video documentation showing the defect. Visual evidence allows you to keep the defective part rather than returning it for inspection.

California Proposition 65 Warning

This product contains nickel, a substance known to cause cancer and reproductive harm.
For more information, visit P65Warnings.ca.gov.
