GODSPEED Toyota Camry AWD (XV70) 2018–2024 MAXX Coilovers – 40-Way Adjustable

GODSPEED Toyota Camry AWD (XV70) 2018–2024 MAXX Coilovers – 40-Way Adjustable

The GODSPEED MAXX Coilover Suspension Kit is engineered for drivers of the 2018–2024 Toyota Camry AWD (XV70) who demand premium handling, improved stability, and a customizable driving experience. As Godspeed’s flagship single-adjustable coilover system, the MAXX series blends race-inspired performance with street-friendly comfort, making it an ideal upgrade for daily driving, spirited canyon runs, and weekend track use.

Constructed with a monotube damper housed in a carbon seamless steel 52mm body, the MAXX system delivers exceptional strength, heat dissipation, and consistent shock response. Inside, a 44mm high-response piston works with Italian high-grade shock oil to provide smooth damping control across a wide temperature range—ensuring reliable performance on both the street and the track.

Each coilover is equipped with cold-bent SAE9252 high-strength steel springs designed to balance comfort with precise handling. With 40 levels of damping adjustment, you can fine-tune the suspension for a softer, more comfortable ride or a tighter, performance-focused setup. Full length height adjustability allows you to dial in the perfect stance without compromising spring preload or ride quality.

The front units come equipped with pillow-ball top mounts and camber plates, delivering sharper steering response and alignment correction. The rear suspension reuses factory top mounts for a straightforward installation process. Lower brackets are constructed from T7075 forged aluminum or high-strength steel, reducing weight while maintaining rigidity, and include integrated brake line brackets when applicable.

Key Features

• Monotube damper design with 52mm body & 44mm piston

• 40 levels of damping adjustment for personalized performance

• Italian high-performance shock oil for stable damping at all temperatures

• SAE9252 high-strength steel cold-bent springs

• Full-length height adjustability without affecting spring preload

• Front pillow-ball top mounts with camber plates

• Lightweight T7075 forged aluminum or carbon steel brackets

• Integrated brake line brackets (when applicable)

• Ideal for daily driving, spirited street use, and track conditions

Spring & Fitment Specifications

• Front spring rate: 6 kg/mm (336 lbs/in)

• Rear spring rate: 6 kg/mm (336 lbs/in)

• Front spring length: 220 mm

• Rear spring length: 220 mm

• Front top mount: Pillow-ball w/ camber plate

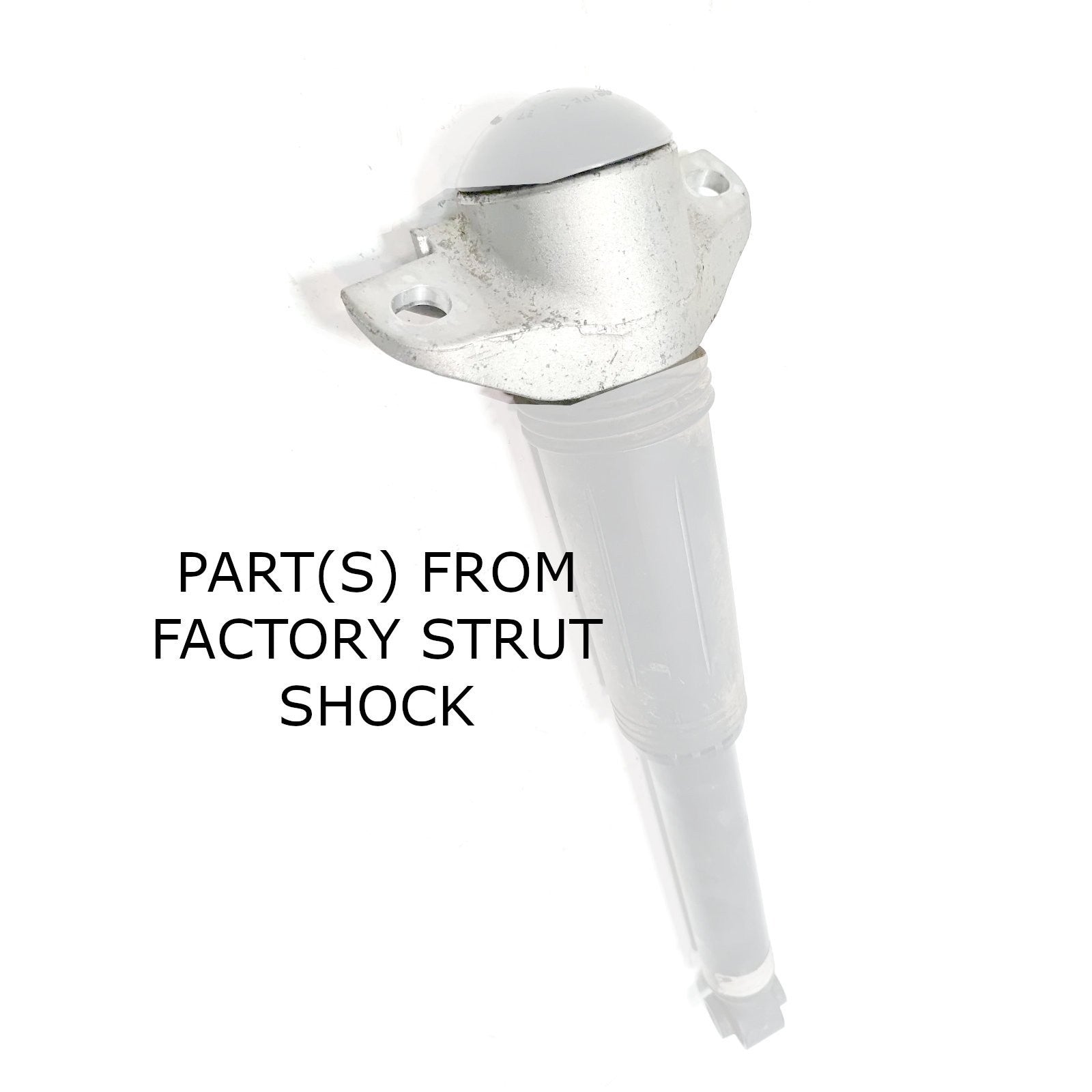

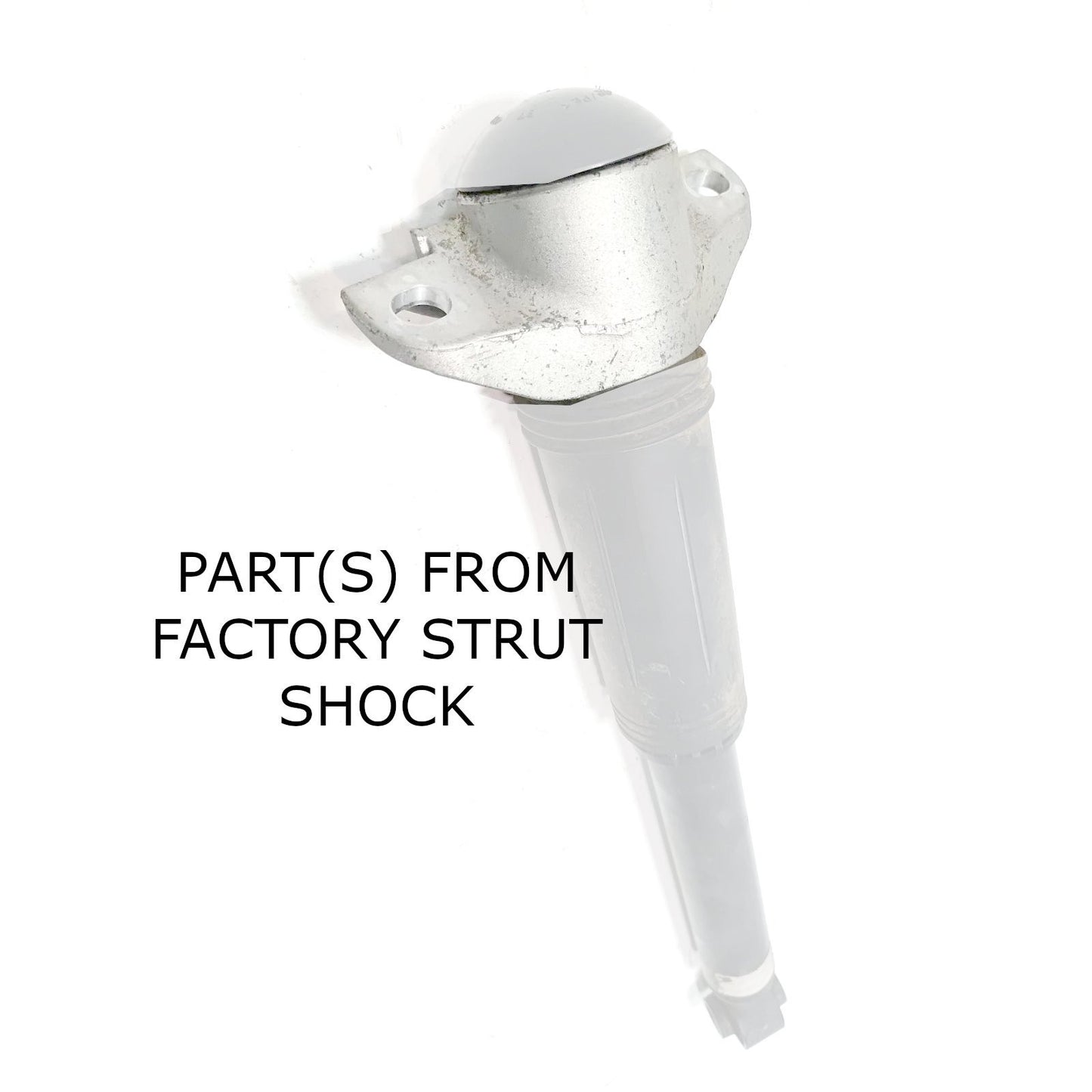

• Rear top mount: Reuse factory

• Spring inner diameter (front): 62 mm

• Spring inner diameter (rear): 62 mm

• Damping levels: 40-way adjustable

• Height adjustable: Yes

• Vehicle compatibility: Toyota Camry AWD (XV70) 2018–2024, all trims
