GODSPEED Toyota Camry XLE 3.5L (XV70) 2018–2024 MAXX Coilovers – 40-Way Adjustable

GODSPEED Toyota Camry XLE 3.5L (XV70) 2018–2024 MAXX Coilovers – 40-Way Adjustable

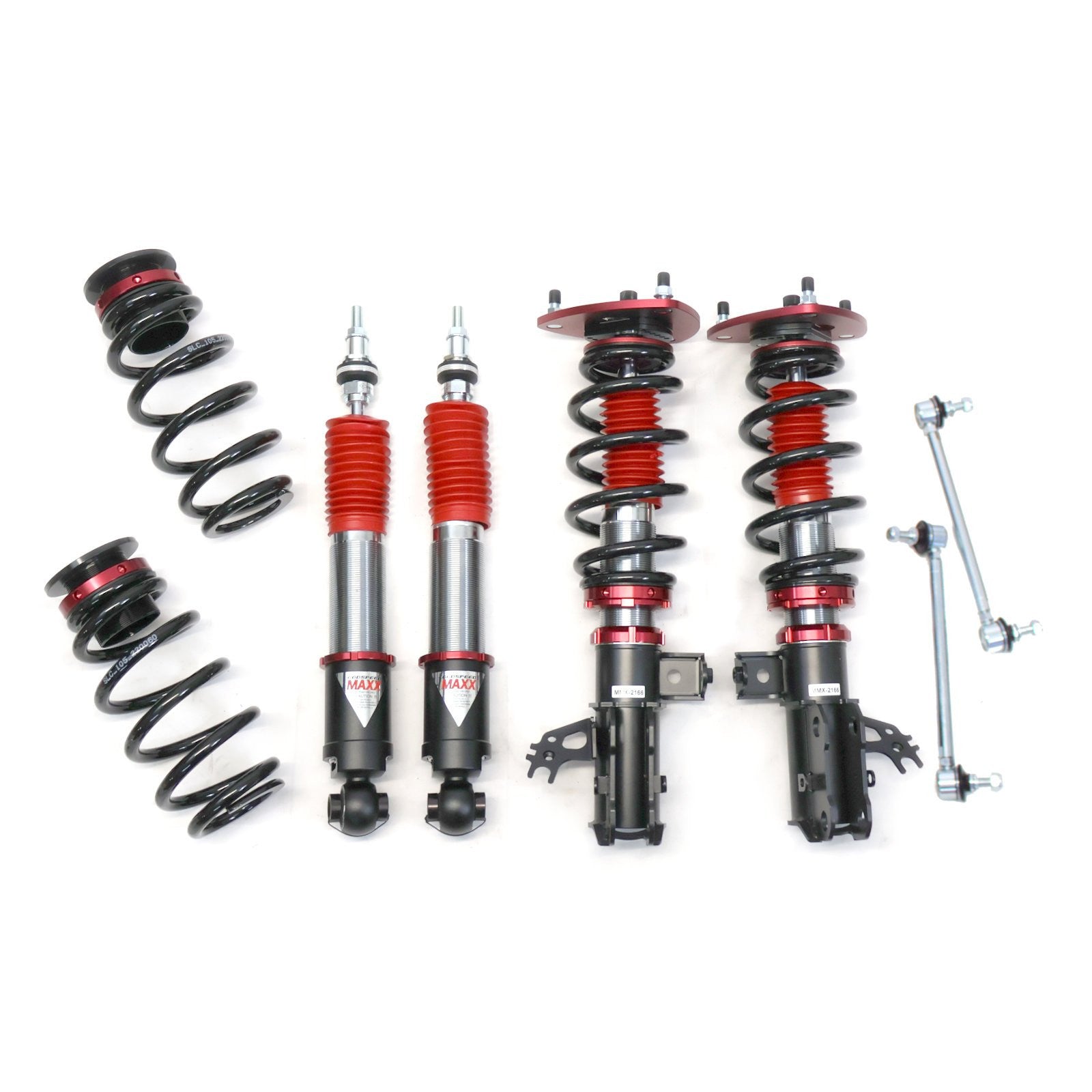

The GODSPEED MAXX Coilover Suspension Kit is designed specifically for the 2018–2024 Toyota Camry XLE 3.5L (XV70), offering a premium upgrade for drivers who want improved handling, precise control, and a customizable ride quality. Engineered as Godspeed’s top-tier single-adjustable coilover system, the MAXX series delivers race-inspired performance while maintaining the comfort needed for daily commuting and long-distance driving.

Built around a high-strength monotube damper, the MAXX coilovers feature a carbon seamless steel 52mm shock body paired with a 44mm internal piston to provide fast damper response and consistent performance. Filled with Italian high-grade shock oil, these units maintain stable damping behavior across a wide range of temperatures, making them ideal for both street and track conditions.

The system utilizes cold-bent SAE9252 steel springs, chosen for their excellent durability and balance between comfort and rigidity. With 40 levels of damper adjustability, drivers can fine-tune softness or stiffness to match their preferred driving style. Full-length height adjustability allows the vehicle to be lowered without affecting spring preload or ride quality.

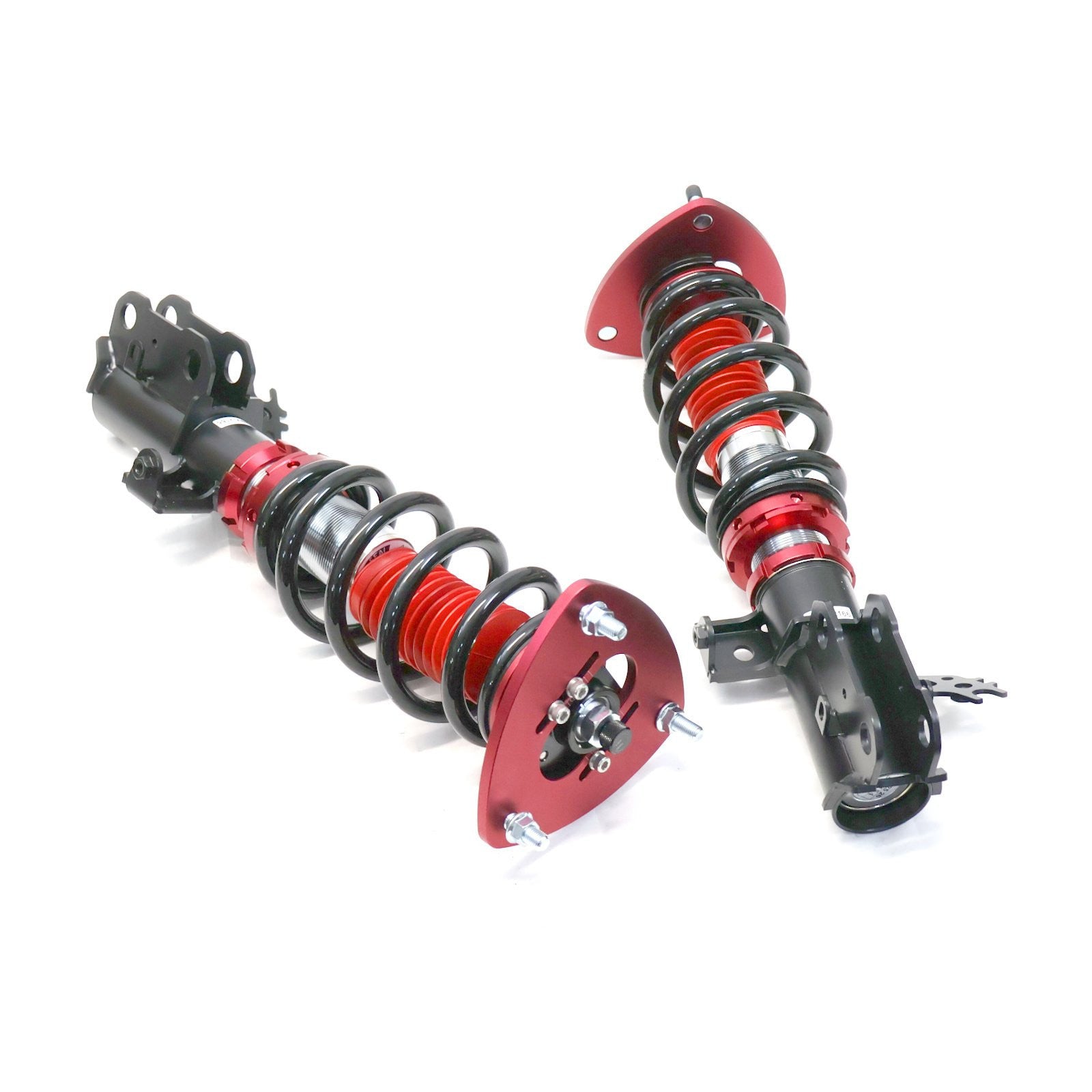

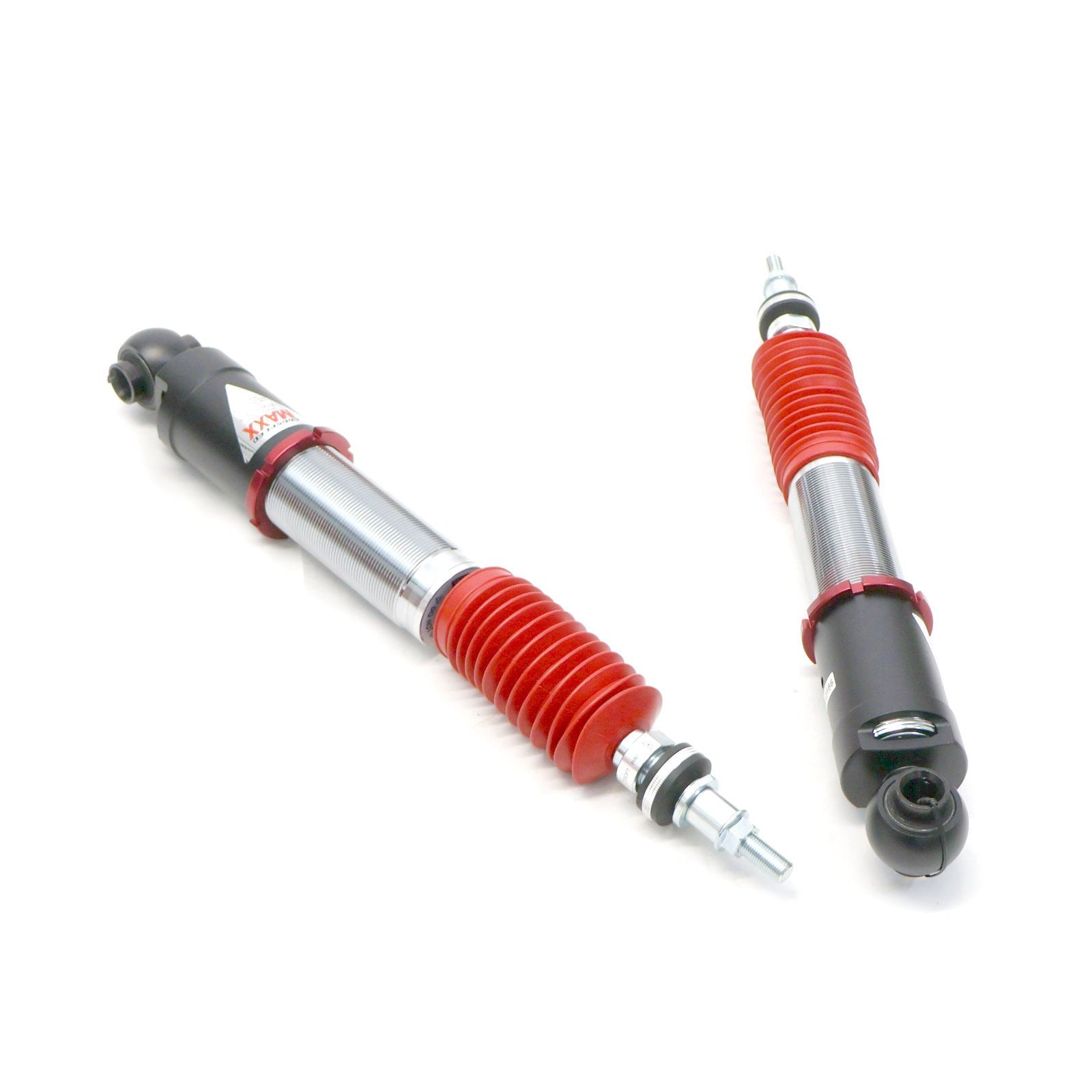

The front coilovers include pillow-ball upper mounts with integrated camber plates, offering sharper steering feedback and additional alignment control. The rear units reuse the factory top mounts for easy installation. Lower mounting brackets are built from T7075 forged aluminum or high-strength steel to reduce weight and improve strength, and include provisions for brake lines when required.

Key Features

• Premium monotube damper design with 52mm body & 44mm piston

• 40 levels of damper adjustment for tailored ride and handling

• High-grade Italian shock oil for consistent performance

• Cold-bent SAE9252 high-strength steel springs

• Full-length height adjustability without compromising spring preload

• Front pillow-ball top mounts with camber plates for sharper steering

• Lightweight T7075 forged aluminum or high-strength steel brackets

• Integrated brake line brackets (when applicable)

• Perfect for daily driving, spirited performance, and weekend track events

Fitment

• Compatible with: Toyota Camry XLE 3.5L (XV70) 2018–2024

• Excludes: XLE 2.5L FWD trims

• All factory trims of the 3.5L V6 model supported

Spring & Technical Specifications

• Damping Levels: 40-way adjustable

• Height Adjustable: Yes

• Front Spring Rate: 6 kg/mm (336 lbs/in)

• Rear Spring Rate: 6 kg/mm (336 lbs/in)

• Front Spring Length: 220 mm

• Rear Spring Length: 220 mm

• Front Top Mount: Pillow-ball with camber plate

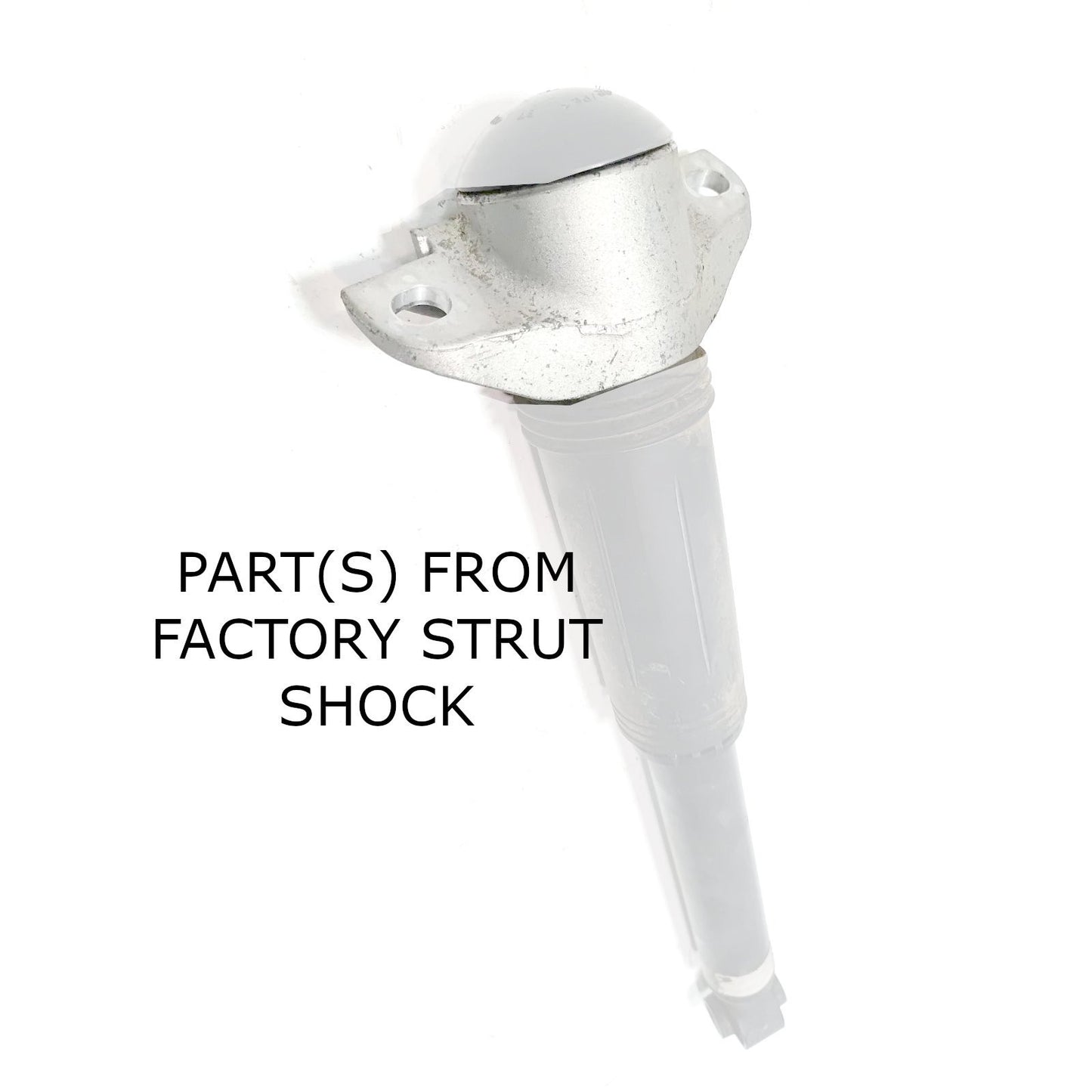

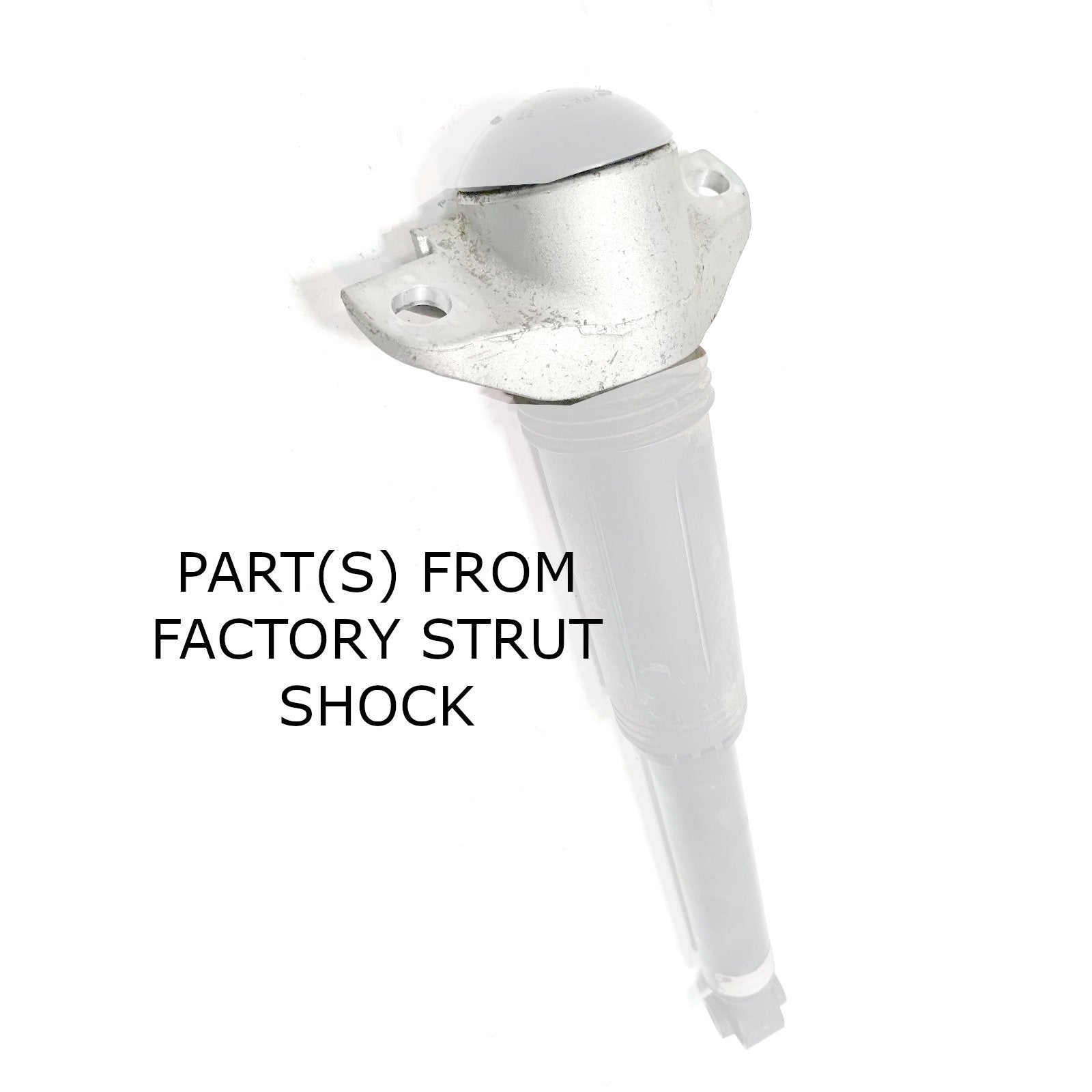

• Rear Top Mount: Reuse factory

• Spring Inner Diameter (Front): 62 mm

• Spring Inner Diameter (Rear): 62 mm

Warranty Information

This GODSPEED product includes a 1-year manufacturer warranty.
Warranty claims require proof of purchase from an authorized dealer along with photo and video documentation clearly showing the defect. Visual proof is used to speed up the process and allow you to retain the defective part without shipping it back for inspection.

California Proposition 65 Warning

This product contains nickel, a substance known to cause cancer and reproductive harm.
Visit P65Warnings.ca.gov for more details.
