GODSPEED Toyota Prius Plug-In (XW30) 2012–2015 MonoSS Coilovers

GODSPEED Toyota Prius Plug-In (XW30) 2012–2015 MonoSS Coilovers

Upgrade your Toyota Prius Plug-In (XW30, 2012–2015) with the GODSPEED MonoSS Coilover Kit, engineered for a perfect balance of street comfort and track-ready performance. Designed as a single-adjustable suspension solution, the MonoSS coilovers deliver precise handling, superior stability, and full ride height customization for your Prius Plug-In.

These coilovers are crafted for enthusiasts who demand responsive performance without sacrificing daily drivability. Whether you’re improving cornering, reducing body roll, or lowering your Prius Plug-In for a cleaner stance, the MonoSS coilovers provide uncompromised quality and performance.

Key Features

• 16 levels of damper adjustment – fine-tune rebound for personalized ride comfort and handling performance

• High-quality Koyo Japan 6204Z bearing pillow ball mounts (front, where applicable) – precise steering and reduced bushing deflection

• Monotube shock design with performance internal piston – maximizes damper response and consistency under all driving conditions

• Cold-bent SAE9252 high-strength steel springs – engineered for an optimal balance of comfort and performance

• Independent ride height and spring preload adjustments – lower your vehicle without compromising spring tension

• Race-quality shock oil – maintains consistent damping even under extreme temperatures

• Durable construction – 52mm carbon steel shock body with anodized finish, T7075 forged aluminum or carbon steel lower brackets, and polyurethane bushings for longevity

Technical Specifications

• Vehicle Fitment: Toyota Prius Plug-In (XW30) 2012–2015

• Excludes: Prius V and Prius C

• Damping Levels: 16-level adjustable

• Height Adjustment: Yes, full length

• Front Spring Rate: 6 kg/mm (336 lbs/in)

• Rear Spring Rate: 8 kg/mm (448 lbs/in)

• Front Spring Length: 180 mm

• Rear Spring Length: 160 mm

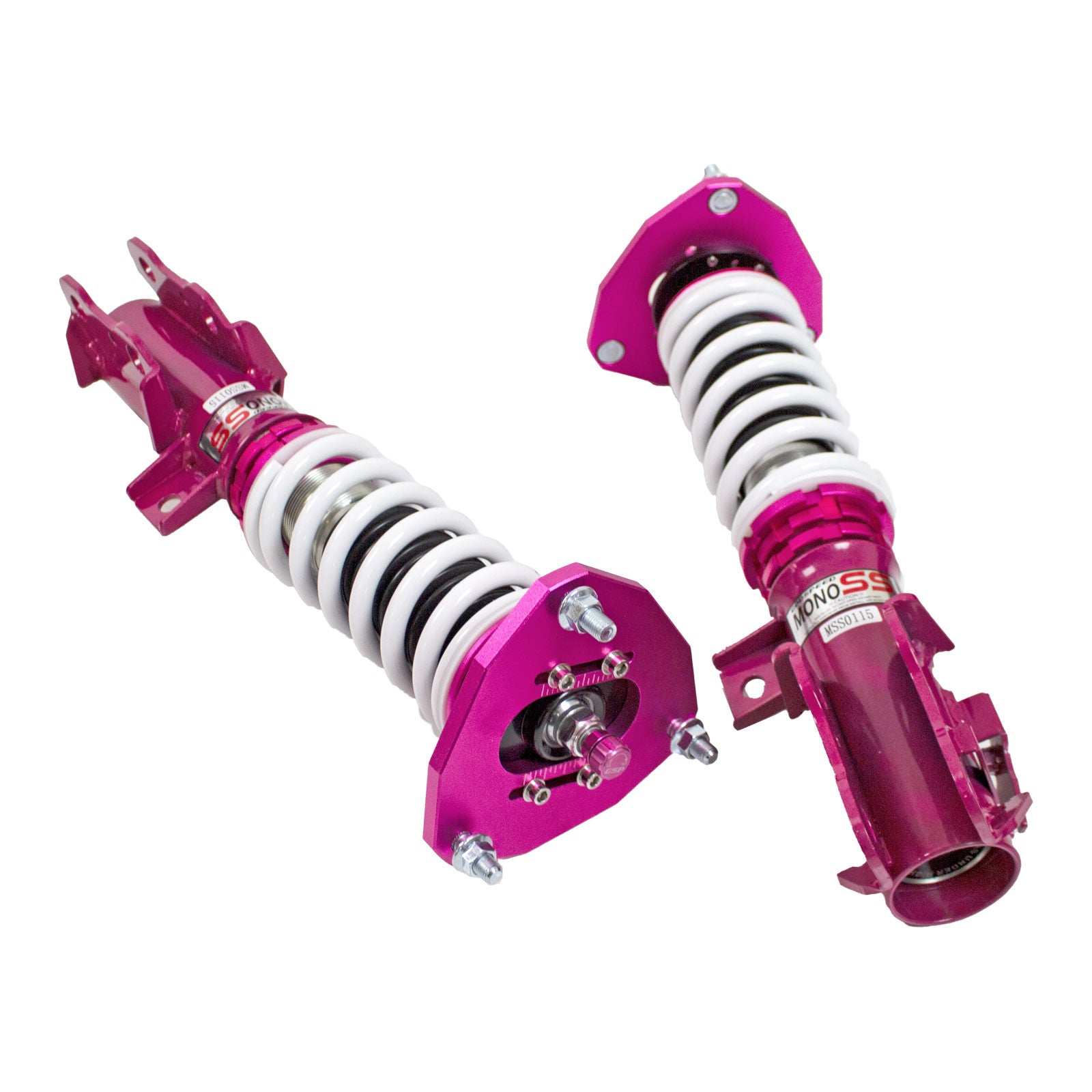

• Front Top Mount: Pillow ball with camber plate

• Rear Top Mount: Reuse factory

• Spring Inner Diameter: 62 mm (2.44 in) front/rear

Installation Notes

• Verify all hardware is properly tightened and set spring preload to 5–10mm (1/4–3/8 in) before use

• Vehicle realignment is strongly recommended after installation

• Technical support is available for installation or adjustment questions

Warranty

• 1-year coverage from the date of purchase

• Claims require proof of purchase and visual evidence of defect via photos or video
