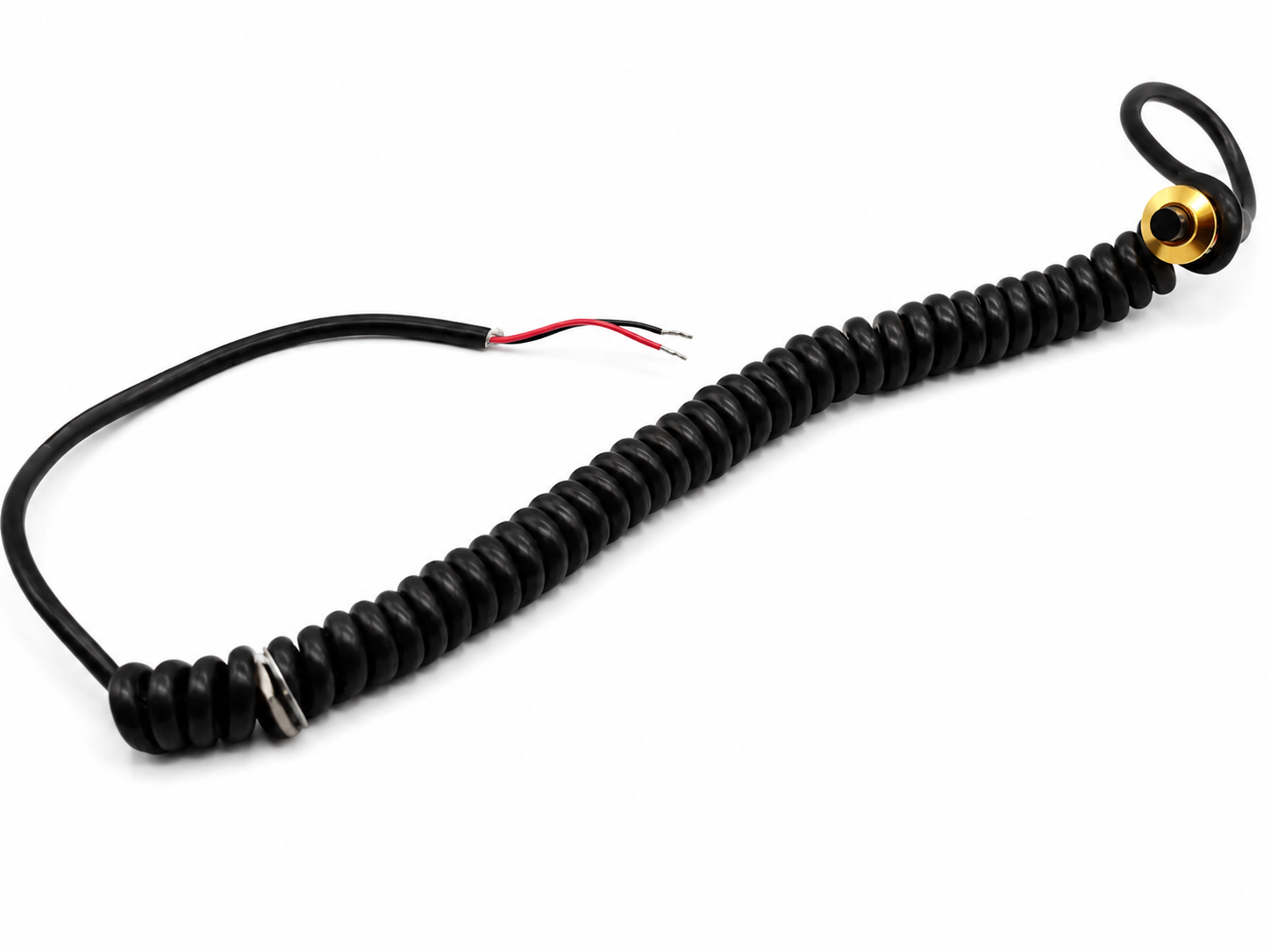

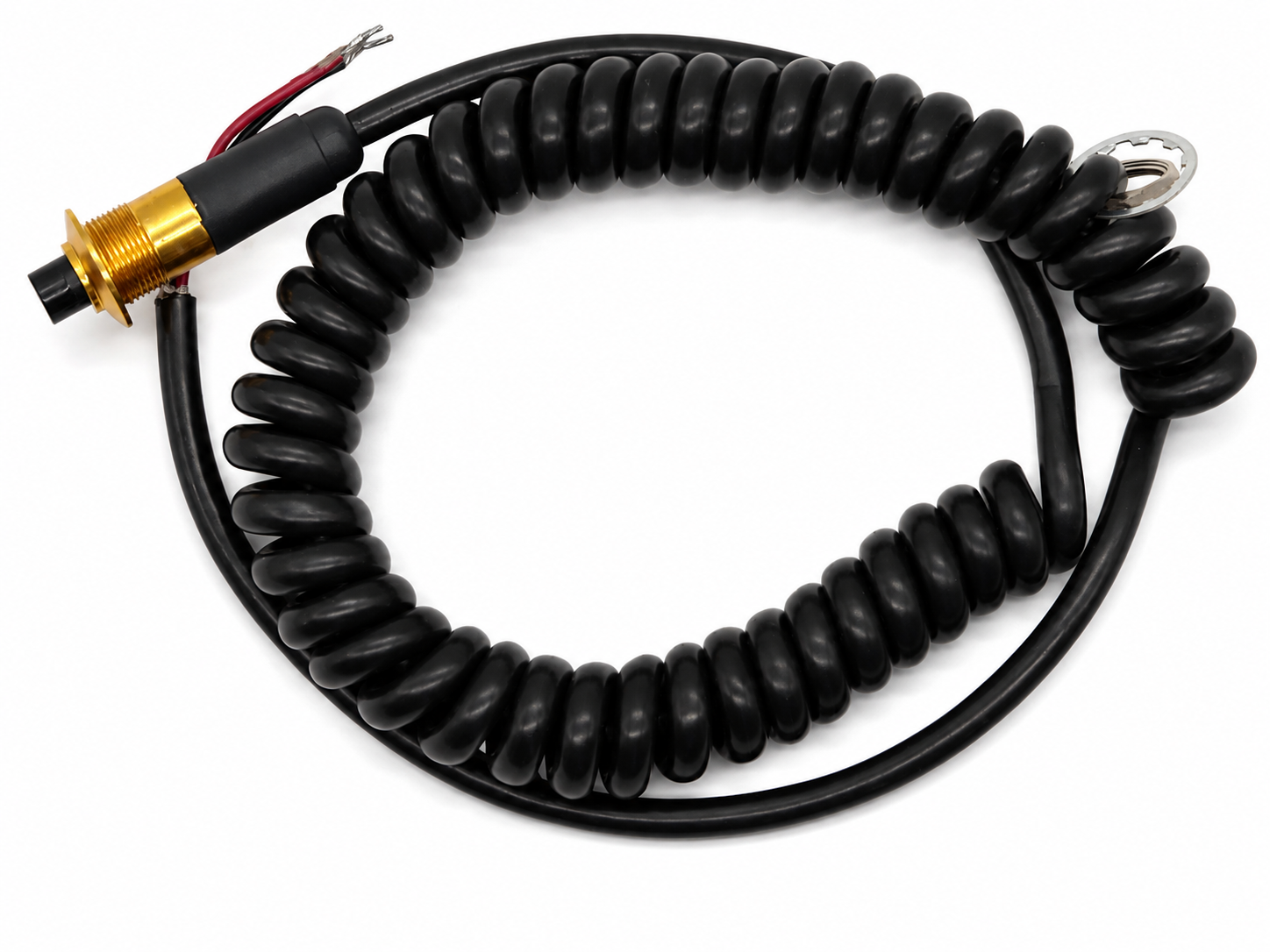

Granatelli Gold Pin Head Momentary Push Button Switch w/ 6' Retractable Cord – 810101GD

Granatelli Motor Sports Gold Pin Head Momentary Push Button Switch w/ 6' Retractable Cord

Put critical race functions directly within reach with the Granatelli Motor Sports Pin Head Momentary Push Button Switch. Built for serious racing and high-performance applications, this compact gold momentary switch combines precise activation, durable construction and a premium race-ready appearance.

Ideal for transbrake, line lock, boost scramble, bump box, nitrous purge, staging, delay and other custom race functions, the switch includes a 6-foot retractable coiled cord that allows steering-wheel-mounted controls to move freely while helping keep excess wiring organized inside the cockpit.

Key Features

• 10-amp momentary push button switch
• Compact pin-head design for quick, precise activation
• Gold finish for a premium custom appearance
• Aerospace-quality construction designed for demanding performance use
• Sealed construction for durability and long service life

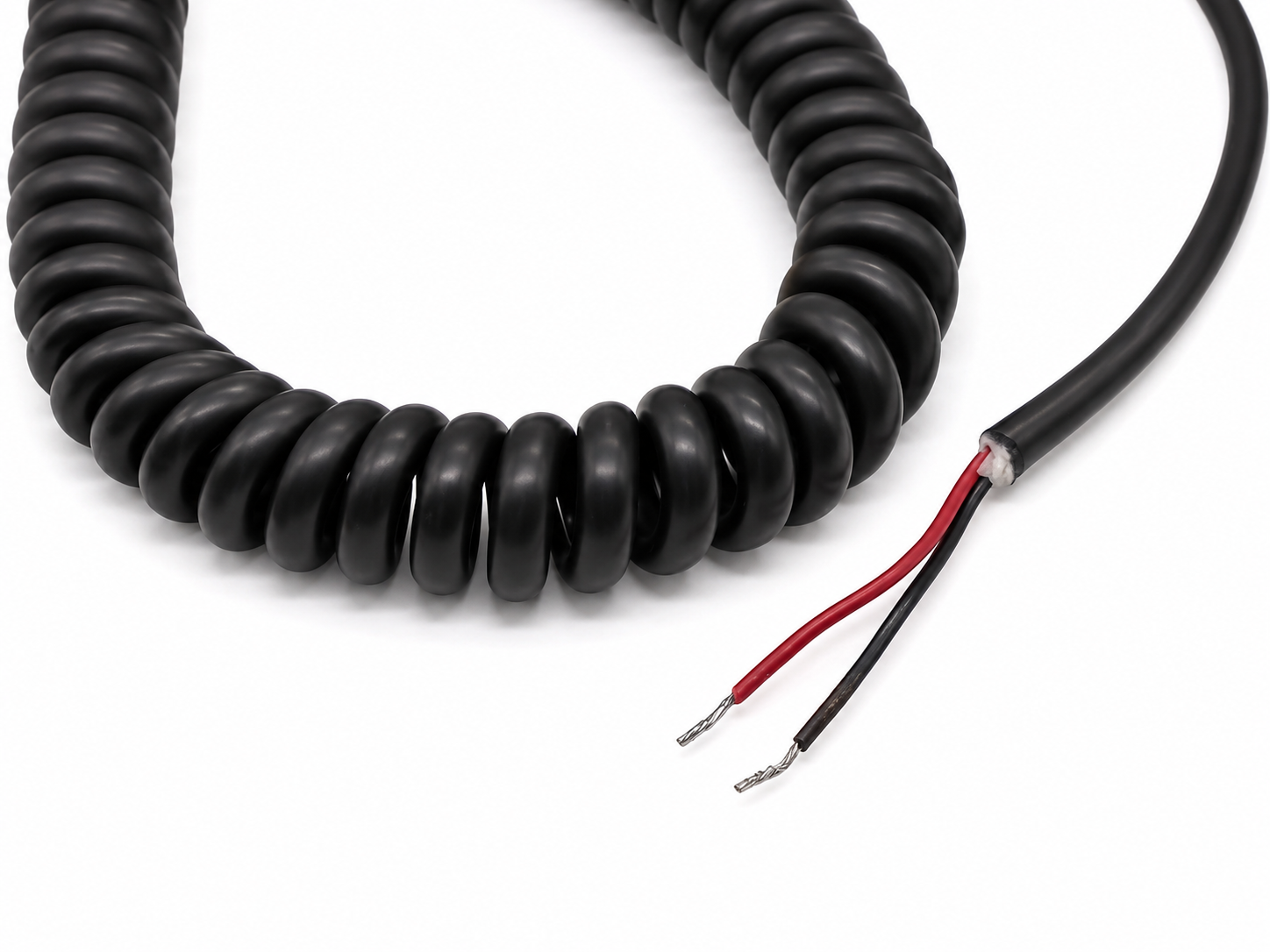

• 6-foot retractable coiled cord when fully extended
• Retractable design helps keep cockpit wiring neat and controlled
• Two 18-gauge internal wires protected by an outer sleeve
• .625" main body diameter
• 5/8-24 threaded mounting base
• Includes lock nut and washer for secure mounting
• Excellent for steering-wheel-mounted race controls
• Made in the USA

Common Racing Applications

Fast Access When Every Millisecond Matters

A steering-wheel-mounted momentary switch keeps important race controls directly under the driver's thumb. The compact pin-head design provides fast activation without unnecessary bulk, while the retractable coiled cord allows the steering wheel to rotate without leaving excessive loose wiring around the driver.

Perfect Steering Wheel Integration

Build a clean, professional steering-wheel control system by pairing this push button with the Granatelli steering wheel and switch plates below. Click any part number to view the matching product.

Product Details

Brand: Granatelli Motor Sports

Part Number: 810101GD

Product Type: Pin Head Momentary Push Button Switch

Switch Type: Momentary

Switch Rating: 10 Amp

Color: Gold

Cord Type: Retractable / Coiled

Cord Length: 6 Feet Fully Extended

Internal Wiring: Two 18-Gauge Wires

Main Body Diameter: .625"

Thread Size: 5/8-24

Lock Nut & Washer Included: Yes

Bracket Included: No

UPC: 802735047813

Country of Origin: Made in the USA

Important: Mounting bracket or steering wheel switch plate is not included with the push button. Compatible Granatelli steering wheel and switch plate options are available separately using the clickable links above. Always verify the electrical requirements of the device being controlled and use an appropriate relay when the application requires one.
