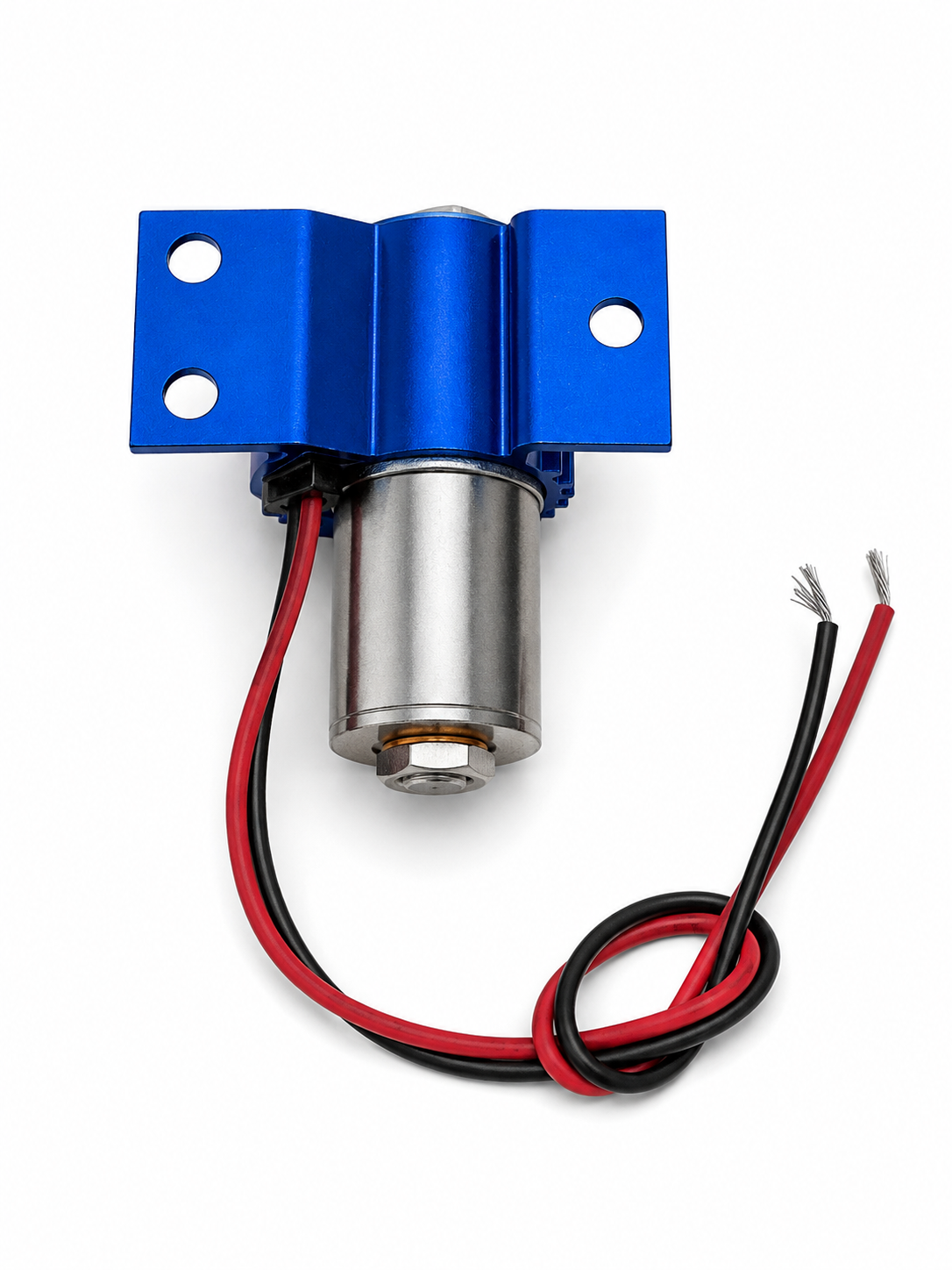

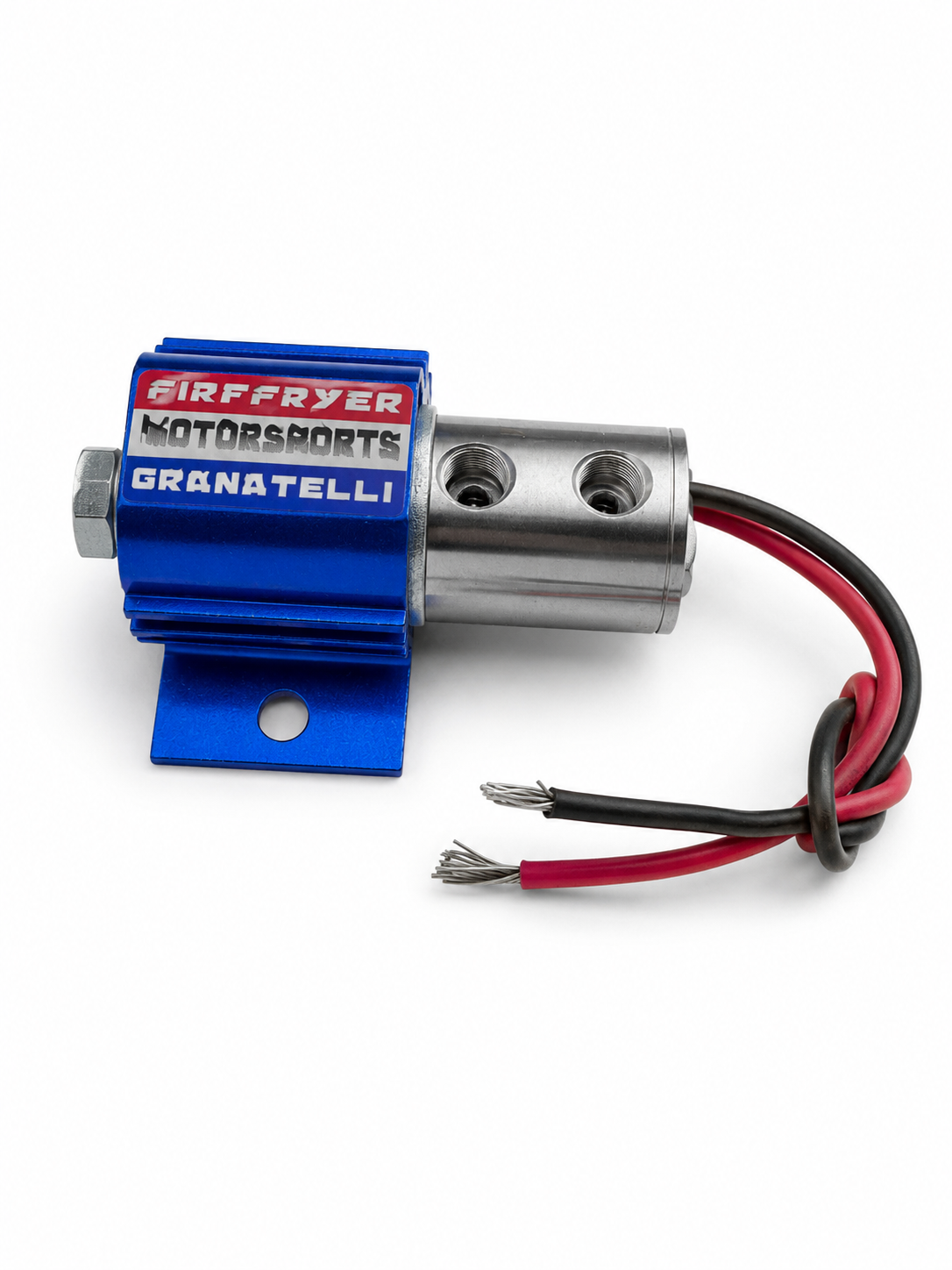

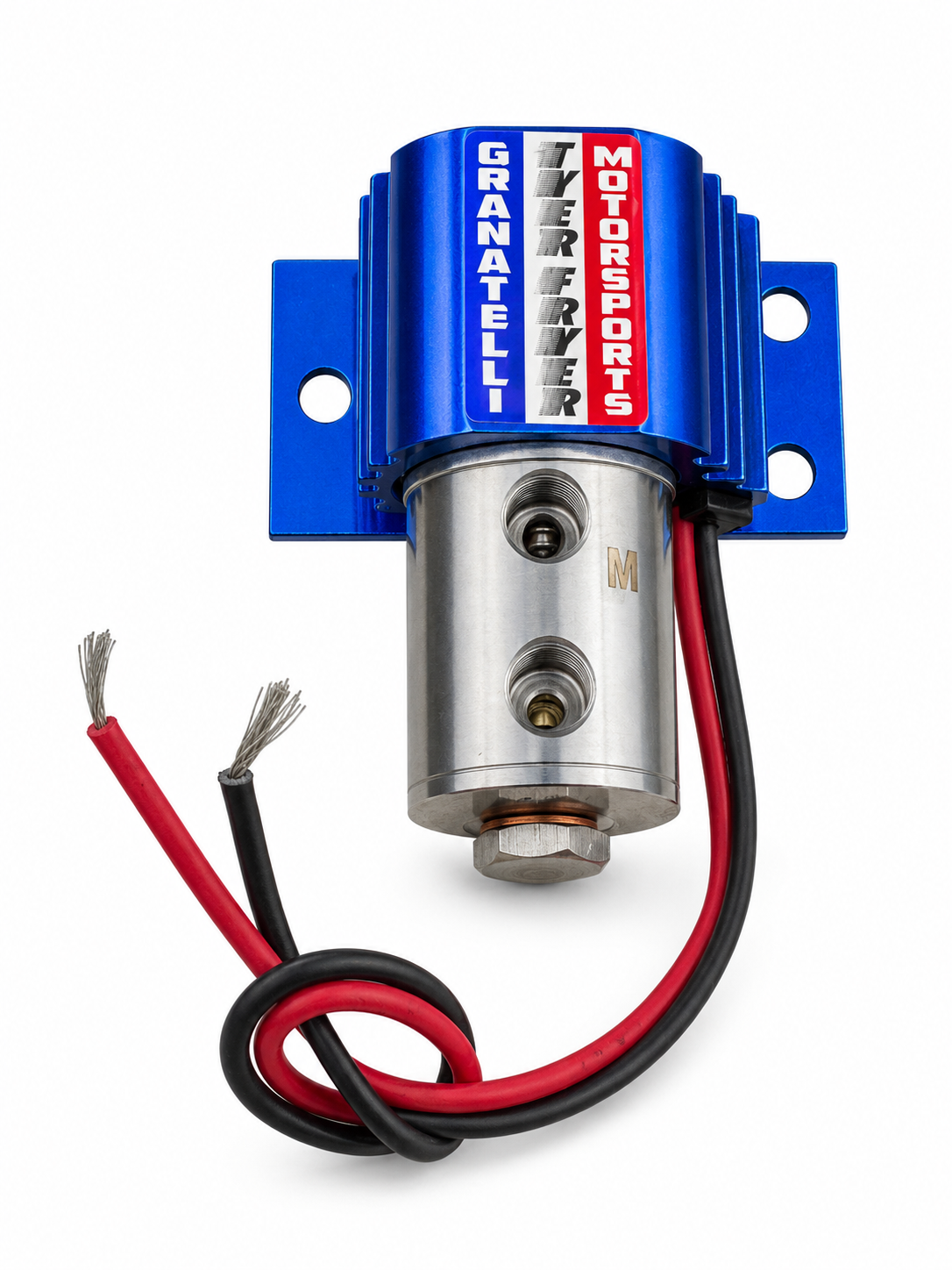

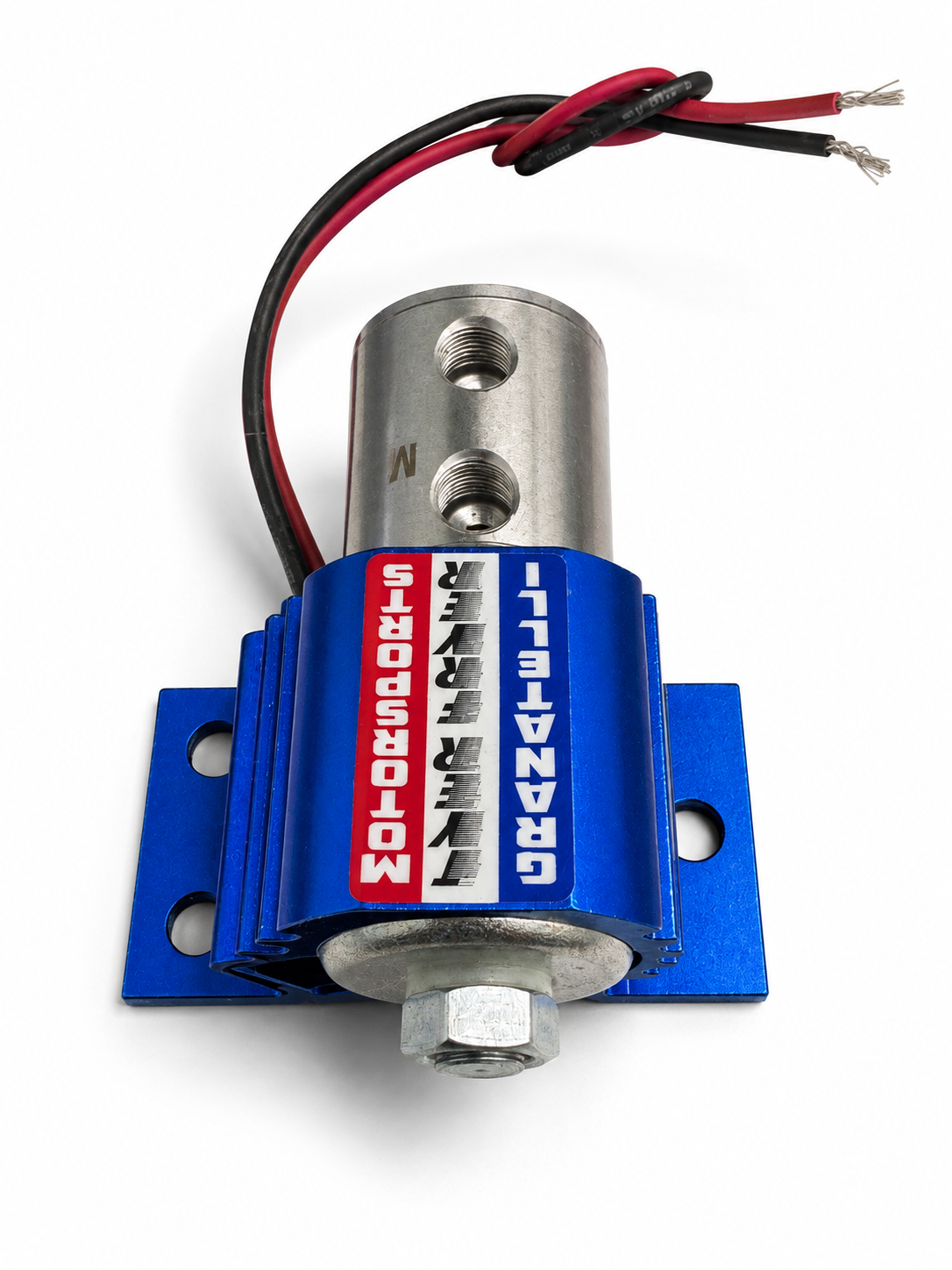

Granatelli Tire Fryer Universal 2-Port Electric Line Lock Solenoid Valve – 760300
Granatelli Tire Fryer Universal 2-Port Electric Line Lock Solenoid Valve – 760300
Couldn't load pickup availability
Precise brake control starts with a valve you can count on.
The Granatelli 760300 Tire Fryer Line Lock Valve is a universal 2-port electric brake line-lock solenoid designed to hydraulically hold the selected brakes when activated. It is ideal for drag-racing burnout preparation, staging and custom performance brake-control installations.
Built around a rebuildable nickel-plated solenoid valve, the 760300 delivers extremely fast release response, durable construction and flexible 12–24V electrical operation for a wide range of custom vehicle applications.
⚠ VALVE ONLY: Part #760300 includes the line-lock solenoid valve only. This is NOT a complete line-lock installation kit. Switches, wiring, brake lines, fittings and other installation components are not included unless specifically stated separately.
GRANATELLI TIRE FRYER
HOLD THE BRAKES. RELEASE IN AN INSTANT.
2-PORT • 12–24 VOLTS • 1/8" NPT
Fast electric actuation and a rebuildable valve design make the Granatelli 760300 a strong foundation for a custom performance line-lock system.
|
FAST RELEASE
Designed with an extremely quick 1/100,000-second release time.
|
REBUILDABLE
Serviceable solenoid-valve design supports long-term performance use.
|
UNIVERSAL
2-port configuration can be incorporated into many custom hydraulic brake systems.
|
What Does a Line Lock Valve Do?
A line lock is installed into the vehicle’s hydraulic brake system and uses an electrically controlled solenoid to temporarily hold hydraulic pressure in the selected brake circuit.
In a typical drag-racing installation, the driver applies the brakes, activates the line lock and then releases the brake pedal while the selected brakes remain engaged. This allows the driver to perform a controlled burnout and heat the drive tires before staging.
Performance Highlights
- Individual line-lock solenoid valve
- Valve only — not a complete installation kit
- Universal 2-port design
- Electric hydraulic brake-control solenoid
- Rebuildable solenoid-valve assembly
- Durable nickel-plated construction
- Corrosion-resistant design for long service life
- Designed for front- or rear-brake line-lock configurations when properly plumbed
- Approximately 1/100,000-second release time
- Tested to withstand up to 30 Gs
- Operating voltage range: 12–24 volts
- Brake-fluid port size: 1/8" NPT
- Excellent for drag racing and custom performance applications
- Granatelli Part Number: 760300
- UPC: 802735009934
- Made in the USA
Technical Specifications
| Part Number | 760300 |
| Product Type | Electric Brake Line Lock Solenoid Valve |
| Configuration | 2-Port |
| Port Size | 1/8" NPT |
| Operating Voltage | 12–24 Volts |
| Release Time | Approximately 1/100,000 Second |
| Test Rating | Tested Up to 30 Gs |
| Construction / Finish | Nickel-Plated Steel |
| Serviceable | Yes — Rebuildable Valve |
| Fitment | Universal / Custom Installation |
Built for Performance Applications
| Drag Racing | Hold the selected brakes while preparing the drive tires for a burnout before staging. |
| Burnout Control | Provides controlled hydraulic brake holding when incorporated into a properly designed system. |
| Custom Builds | Universal configuration makes the valve suitable for a variety of custom automotive brake systems. |
| Replacement / Service | Ideal when only the Granatelli line-lock solenoid valve is needed rather than an entire installation package. |
⚠ Valve Only: Part #760300 includes the line-lock valve only. Activation switch, wiring, brake lines, adapters, fittings and other installation components must be supplied separately as required for your application.
Universal Fitment: This is a universal component and is not vehicle-specific. Installation requirements vary depending on brake-system layout, line size, fitting type and desired front- or rear-brake configuration.
Installation Notice: Installation requires modification of the hydraulic brake system followed by proper bleeding and inspection for leaks. Because braking is a critical vehicle-safety system, professional installation is recommended if you are not experienced with automotive hydraulic brake systems.
