Granatelli Tire Fryer Universal 4-Port Electric Brake Line Lock Kit – 760500
Granatelli Tire Fryer Universal 4-Port Electric Brake Line Lock Kit – 760500
Couldn't load pickup availability
Get your tires hot, your burnout controlled, and your car ready for the starting line.
The Granatelli 760500 Tire Fryer Universal 4-Port Line Lock Kit gives performance and drag-racing vehicles precise control over hydraulic brake pressure for controlled burnouts and pre-race tire preparation.

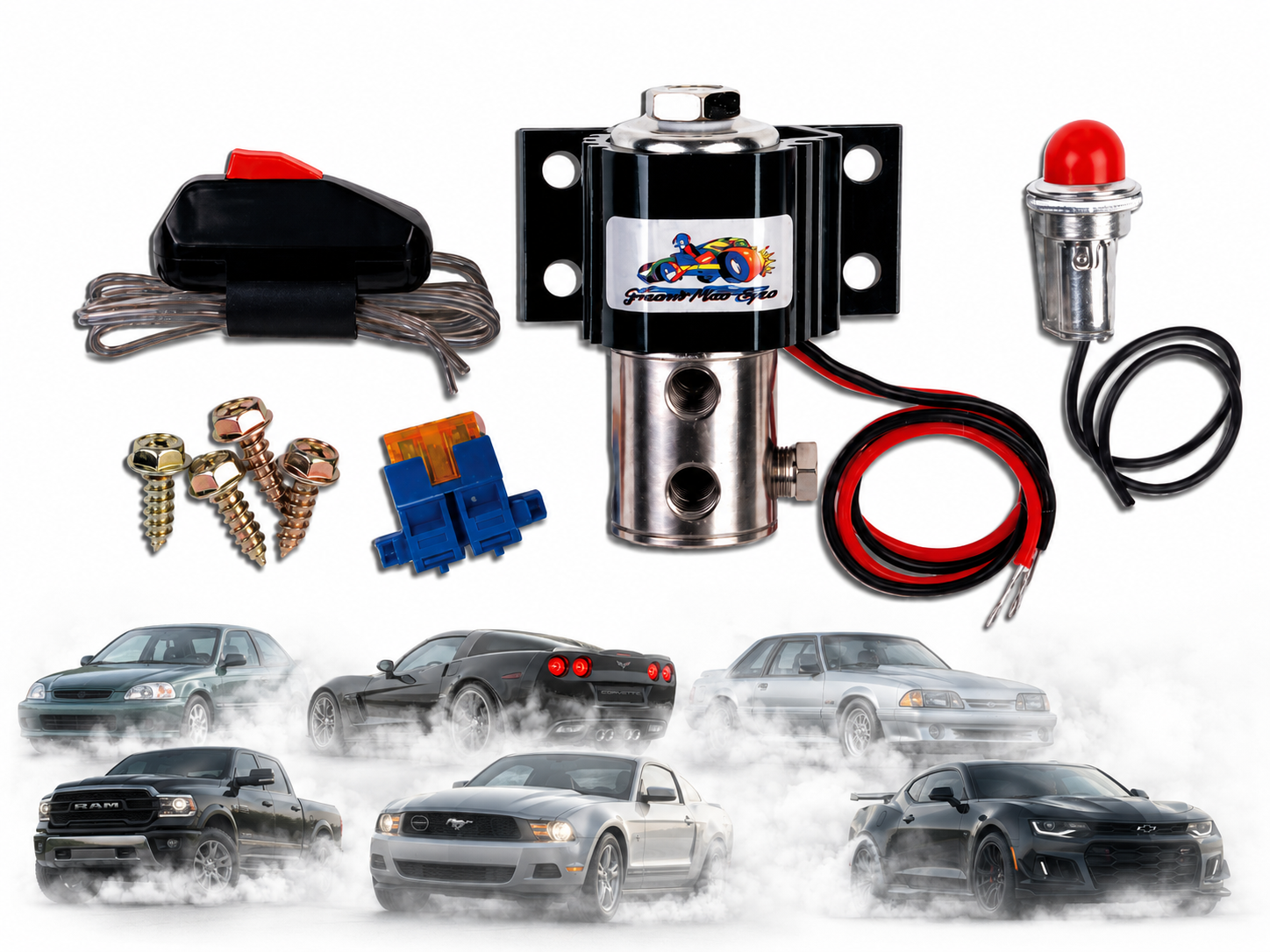

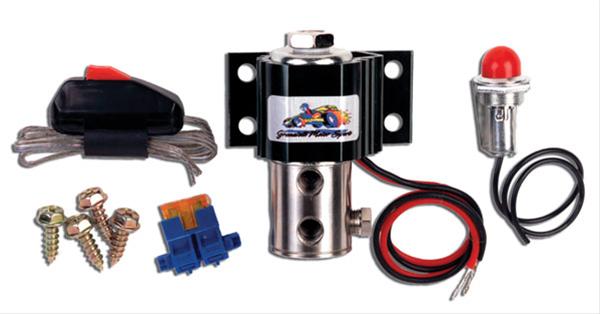

Unlike the 760300 valve-only version, 760500 is a complete line-lock kit featuring Granatelli’s rebuildable electric solenoid valve, activation switch and supporting installation components in a versatile 4-port configuration.
GRANATELLI TIRE FRYER
LOCK THE BRAKES. LIGHT THE TIRES.
4-PORT • 12–24 VOLTS • 1/8" NPT
Designed for fast activation and virtually instant release, the Granatelli Tire Fryer gives drivers controlled brake holding for serious street/strip and racing applications.
|
4-PORT DESIGN
Flexible hydraulic configuration for a wide range of custom brake-system installations.
|
FAST RELEASE
Approximately 1/100,000-second release time for rapid brake-pressure release.
|
COMPLETE KIT
Includes the solenoid valve, activation switch and supporting components.
|
Built for Controlled Burnouts
A line lock uses an electrically activated solenoid to temporarily maintain hydraulic pressure in a selected brake circuit. In a typical drag-racing installation, the driver applies the brakes, activates the line lock and releases the brake pedal while the selected brakes remain engaged.
This allows the drive tires to rotate while the selected brakes hold the vehicle, making it easier to perform a controlled burnout and properly heat the tires before staging.
Performance Highlights
- Complete universal 4-port line-lock kit
- Designed for controlled burnouts and drag-racing tire preparation
- Universal configuration for a wide range of vehicles
- 4-port hydraulic design
- Electric brake-pressure control
- Rebuildable nickel-plated solenoid valve
- Approximately 1/100,000-second release time
- Tested to withstand up to 30 Gs
- Operating voltage range: 12–24 volts
- Standard 1/8" NPT hydraulic connections
- Includes driver-operated activation switch
- Activation switch can be conveniently mounted near the shifter
- Includes stainless-steel inserts
- Includes black-chromate heat sinks
- Suitable for front- or rear-brake control depending on plumbing configuration
- Serviceable / rebuildable solenoid design
- Excellent for drag racing, street/strip and custom performance builds
- Granatelli Part Number: 760500
- UPC: 802735004977
- Made in the USA
What’s Included
The core components supplied with Granatelli 760500.
| 4-Port Line Lock Solenoid Valve | Rebuildable, nickel-plated electric solenoid |

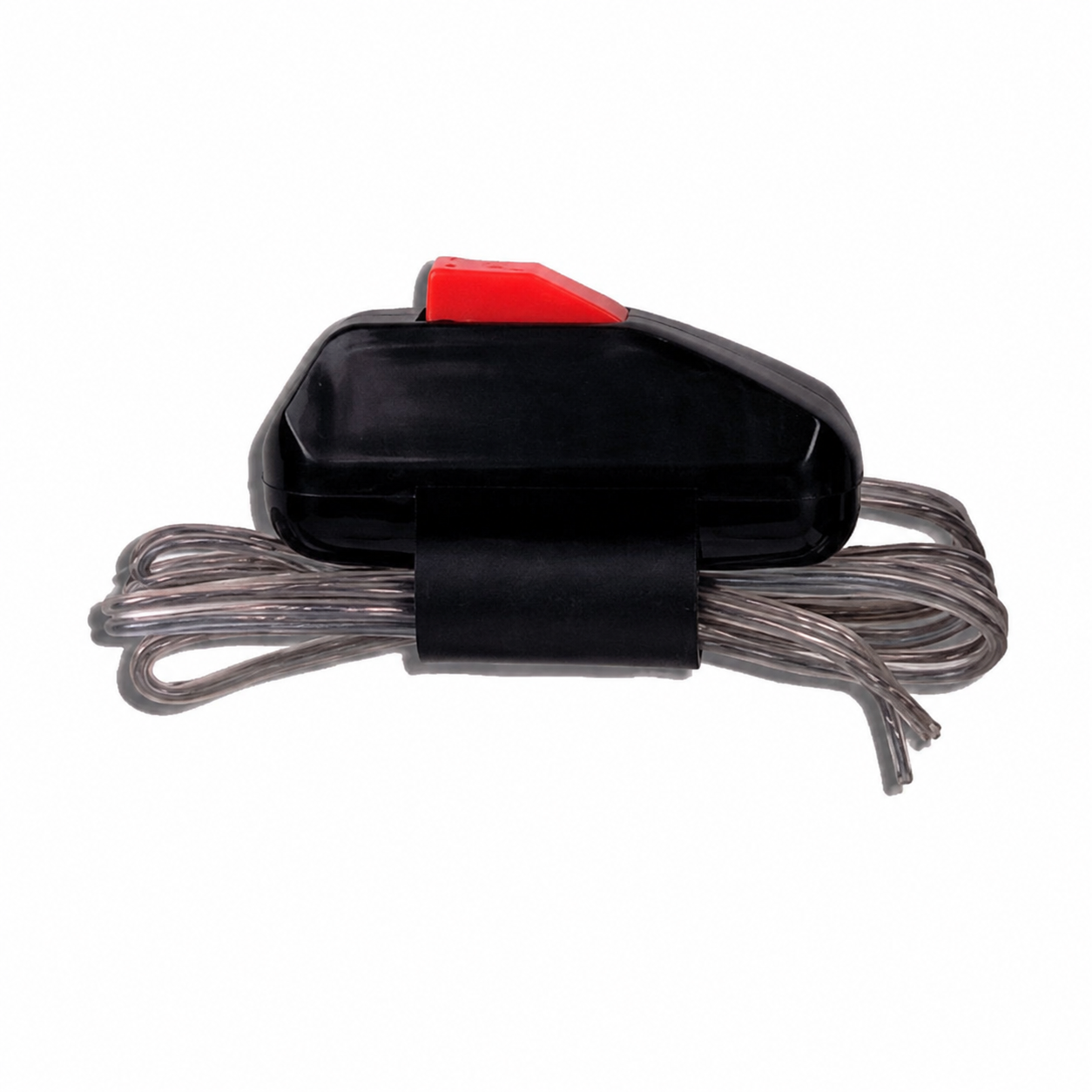

| Activation Switch | Driver-operated / shifter-mountable switch |
| Stainless-Steel Inserts | Included |
| Black-Chromate Heat Sinks | Included |
Technical Specifications
| Part Number | 760500 |
| Product Type | Electric Brake Line Lock Kit |
| Configuration | 4-Port |
| Hydraulic Port Size | 1/8" NPT |
| Operating Voltage | 12–24 Volts |
| Release Time | Approximately 1/100,000 Second |
| Impact Testing | Tested Up to 30 Gs |
| Solenoid Finish | Nickel Plated |
| Serviceable | Yes — Rebuildable Solenoid |
| Fitment | Universal / Custom Installation |
Universal Vehicle Fitment
Part #760500 is a universal line-lock system, so there is no single year/make/model fitment list. It can be incorporated into many automotive hydraulic brake systems when the plumbing, fittings, electrical supply and installation configuration are appropriate.
| Drag Cars | Ideal for controlled burnouts and pre-race tire preparation. |
| Street / Strip | Universal design works with many custom performance brake configurations. |
| Muscle Cars | Suitable for classic and modern performance vehicles with compatible hydraulic brake systems. |
| Custom Builds | 4-port configuration provides additional flexibility when designing a custom line-lock installation. |
760300 vs. 760500 — Which One Do You Need?
| Part Number | Configuration | Best For |
|---|---|---|
| 760300 | 2-Port Valve Only | Customers who only need the individual line-lock solenoid valve |
| 760500 | 4-Port Complete Kit | Customers building a complete universal line-lock system |
Universal Fitment Notice: Part #760500 is not vehicle-specific. Brake-line routing, fittings and installation requirements vary by vehicle. Confirm your brake-system configuration and required fittings before installation.
Installation Notice: Installation requires modification of the hydraulic brake system followed by proper bleeding and a complete inspection for leaks. Because the braking system is a critical vehicle-safety system, professional installation is recommended if you are not experienced with automotive hydraulic brakes.
Intended Use: Line-lock systems are commonly used for controlled burnouts, staging and closed-course performance applications. Always follow applicable motorsports rules and local regulations.
