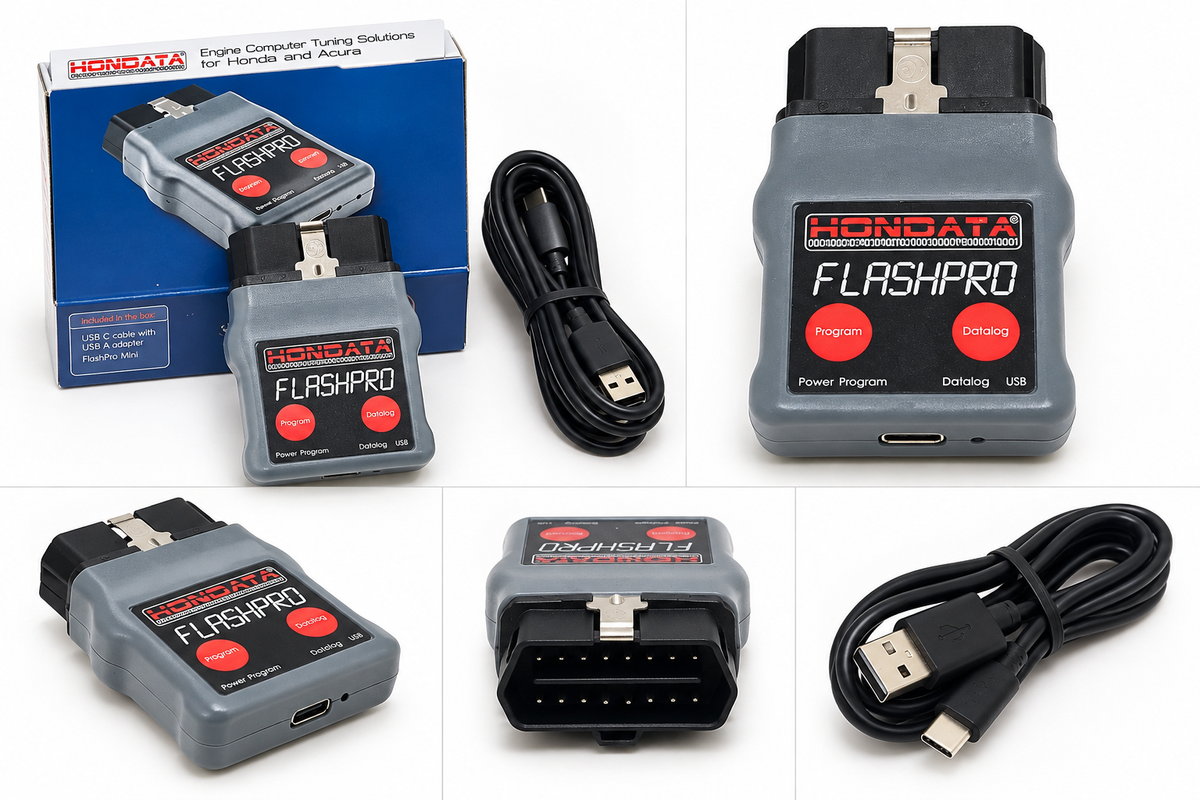

HONDATA FlashPro for 2004-2014 Acura TSX – ECU Tuning & Datalogging System

Brand: HONDATA

Unlock Full Tuning Control of Your TSX.

The HONDATA FlashPro provides advanced ECU tuning and datalogging capabilities for compatible 2004-2014 Acura TSX applications.

FlashPro connects through the factory OBDII diagnostic port and to your computer through USB, allowing ECU programming, live tuning, datalogging, diagnostics, and calibration adjustments using Hondata FlashPro Manager software.

Vehicle Fitment

• 2007-2014 Acura TSX – Direct OBDII connection with no ECU/PCM modification required
• 2004-2006 Acura TSX – Requires a compatible 2007-2008 TSX ECU and CAN adapter kit

FlashPro Features

• Programmable ECU interface
• OBDII diagnostic port connection
• USB connection
• No ECU modification required on compatible applications
• Live tuning
• Up to 20 hours onboard datalogging
• FlashPro Manager software
• Read and clear diagnostic trouble codes
• Customizable computer gauges
• Readiness codes and emissions-check status
• Dual calibration storage

Tuning Features

• Fuel, ignition, and idle-speed table editing
• Adjustable VTEC window
• Rev and launch limiters
• Map tracing and lambda overlay
• Expanded fuel, ignition, and cam-angle tables for forced induction
• 4-bar MAP sensor support up to 43 PSI
• Larger injector support
• Injector latency / dead-time adjustment
• Individual-cylinder fuel and ignition trim
• Individual-cylinder knock datalogging
• Starting calibrations for intake, headers, and larger injectors
• Boost control by RPM and gear on 2007-2008 TSX applications

Important Fitment Notice

2004-2006 TSX models are not direct plug-and-play applications. The factory ECU must be replaced with a compatible 2007-2008 TSX ECU, and a CAN adapter kit is required.

Please make sure this FlashPro will work with your specific year, ECU, engine, transmission, and vehicle configuration before purchasing.

Professional Installation & Tuning Available

RPM Racing offers professional ECU installation and tuning services.

Contact RPM Racing for installation, tuning availability, pricing, and scheduling.

WARNING! THIS PRODUCT IS FOR OFF-ROAD MOTORSPORT / COMPETITION RACING USE ONLY, NEVER TO BE USED ON ANY POLLUTION-CONTROLLED MOTOR VEHICLE.
