HONDATA S300 V3 OBD1 Honda / Acura ECU Tuning System – Bluetooth & USB

Part Number: HONDATAS300V3
Brand: HONDATA

Full OBD1 Tuning Control. Built for Serious Honda Performance.

The HONDATA S300 V3 is an advanced tuning system for compatible USDM OBD1 Honda and Acura ECUs. The latest V3 white-board version adds built-in Bluetooth, ethanol sensor support, CAN support, faster datalogging, and wireless mobile connectivity.

From naturally aspirated street builds to high-boost race setups, the S300 V3 provides extensive control over fuel, ignition, boost, launch functions, datalogging, and other critical engine-management parameters.

Why Upgrade to the HONDATA S300 V3?

• Built-in Bluetooth
• HONDATA Mobile support for iOS and Android
• High-speed USB connectivity
• 2-4x faster datalogging than V1/V2 systems
• Direct ethanol-content sensor support
• CAN support
• Real-time ECU tuning
• Forced-induction tuning support
• Boost control capability
• Launch control with anti-lag
• Full-throttle shifting
• Onboard datalogging
• Advanced fuel and ignition control
• Serial output for compatible AiM and Racepak dashboards
• Made in the USA

Compatible USDM OBD1 ECUs

• P05
• P06
• PR4
• P28
• P30
• P61
• P72
• P75

S300 V3 Tuning Features

• SManager Windows-based tuning software
• Real-time calibration updates with the engine running
• Built-in calibrations for common engine combinations
• Injector-size adjustment with overall fuel trim
• Configurable MAP sensor support, including 5-bar and higher
• TPS-based table lookup for individual throttle bodies
• Overboost engine protection
• Expanded fuel and ignition tables
• Support for high-boost and high-RPM applications
• Launch control with anti-lag
• Full-throttle shift
• PWM output for boost control
• Three multipurpose outputs for nitrous control or similar functions
• Two analog inputs for wideband, EGT, and other sensors
• Wideband O2 lambda tracing support
• Dual tables for high/low-octane calibrations

Datalogging & Connectivity

The S300 V3 uses a high-speed USB connection for programming and datalogging and also features Bluetooth connectivity for compatible laptops and mobile devices.

HONDATA SManager allows ECU sensor data to be monitored, graphed, recorded, and saved for later analysis.

The S300 V3 also features 2 MB of onboard memory, providing approximately 20-60 minutes of onboard datalogging, depending on configuration.

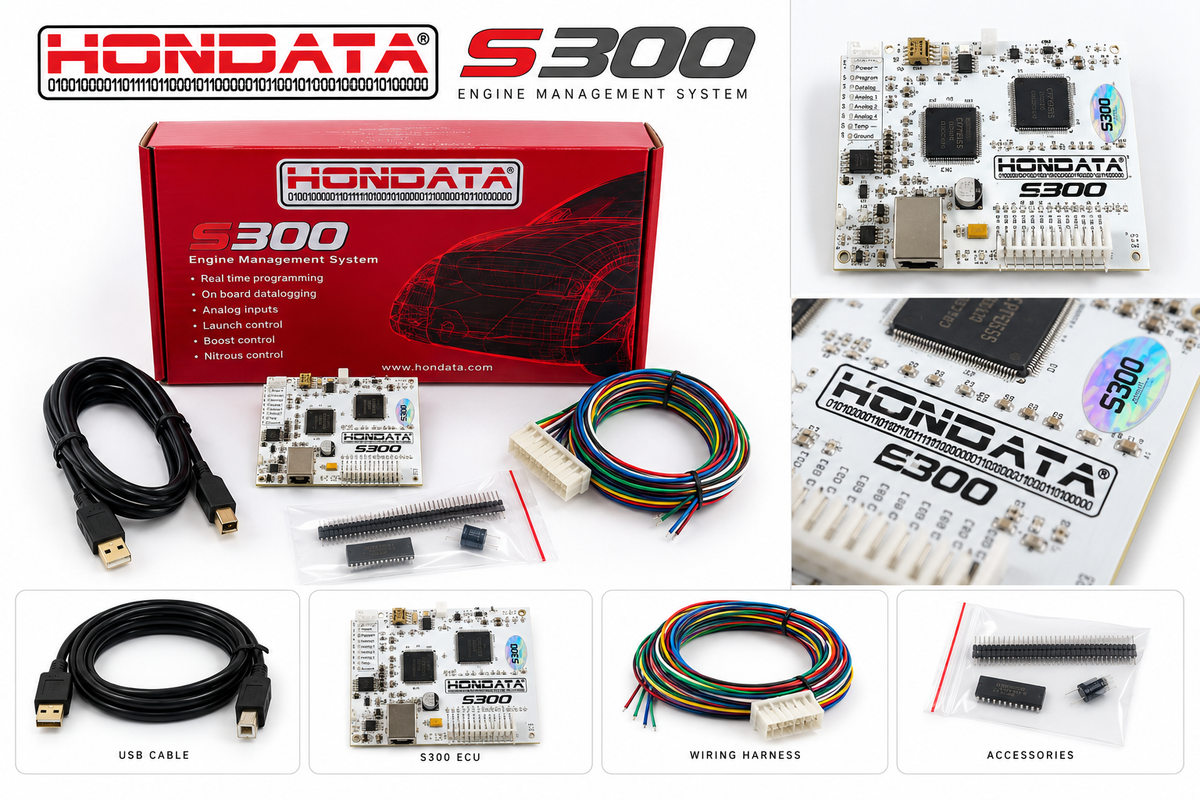

Kit Includes

• HONDATA S300 V3 board
• ECU installation kit
• USB cable
• HONDATA decals
• HONDATA SManager software available as a free download

Important ECU Compatibility Notice

The standard S300 V3 is designed for a full-frame OBD1 ECU case used in USDM and many other applications.

The standard S300 V3 does NOT fit square-case JDM ECUs.

If you have a compatible JDM square-case OBD1 ECU, you will need the HONDATA S300J instead.

Please verify your exact ECU part number and ECU case style before purchasing.

ECU Modification Required

The S300 uses different connecting pins than a standard chipped ECU. The ECU must be properly prepared for installation, including a slot in the ECU case for USB access.

Professional installation is strongly recommended, especially if the ECU has previously been socketed or modified, as improper installation can damage the ECU circuit board.

Professional Installation & Tuning Available

RPM Racing offers professional HONDATA installation and tuning services.

Contact RPM Racing for installation, tuning availability, pricing, and scheduling.

OFF-ROAD / COMPETITION RACING USE ONLY

WARNING! THIS PRODUCT IS FOR OFF-ROAD MOTORSPORT / COMPETITION RACING USE ONLY, NEVER TO BE USED ON ANY POLLUTION-CONTROLLED MOTOR VEHICLE.

Bluetooth. Boost control. Datalogging. Full S300 V3 tuning control for your OBD1 Honda or Acura build.
