LINK ECU - E-Throttle Accelerator Pedal Module (PED)

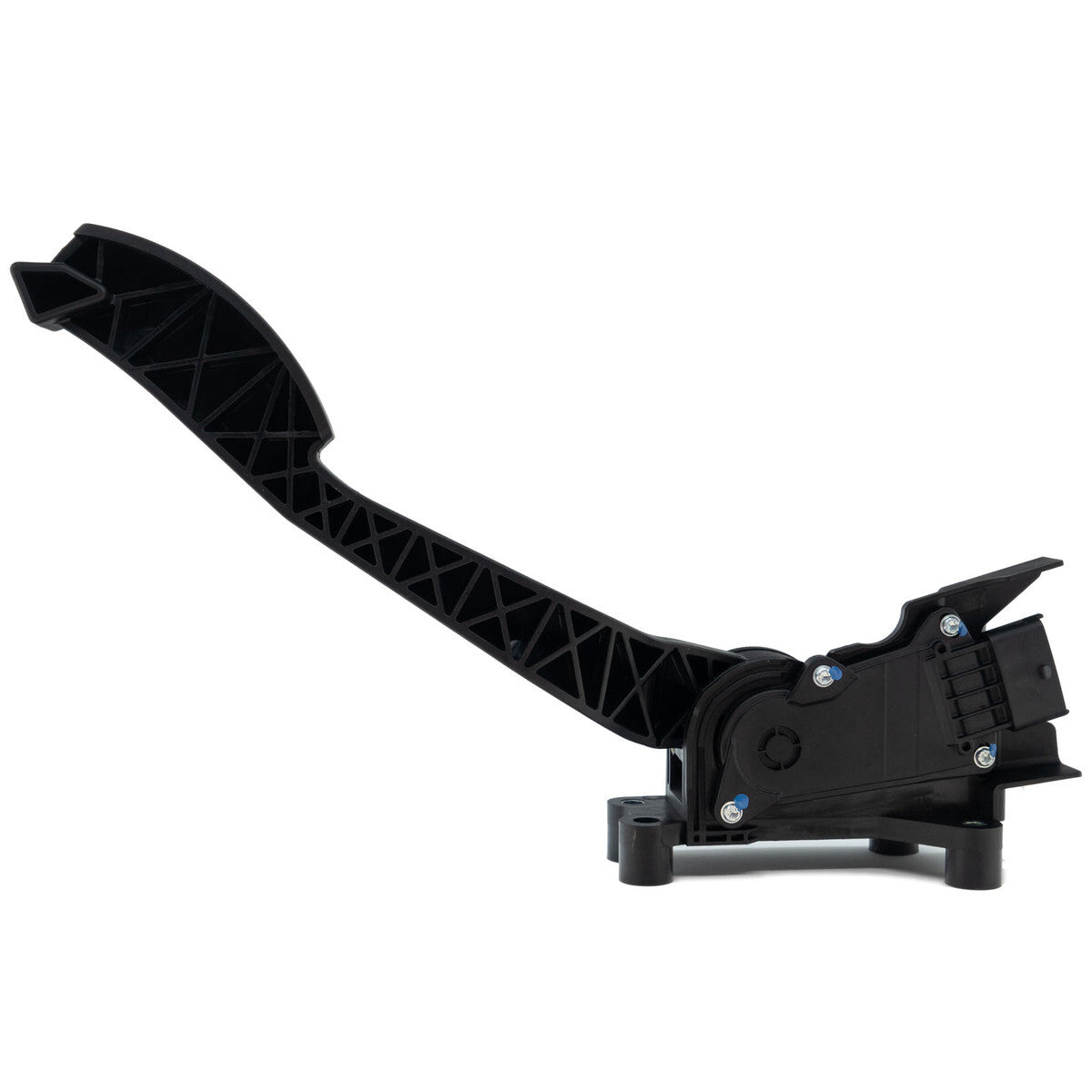

E-Throttle Accelerator Pedal Module

• Firewall mounted hanging design
• 16degree (~70mm) travel
• Redundant dual output potentiometers suitable for use with Electronic throttle bodies

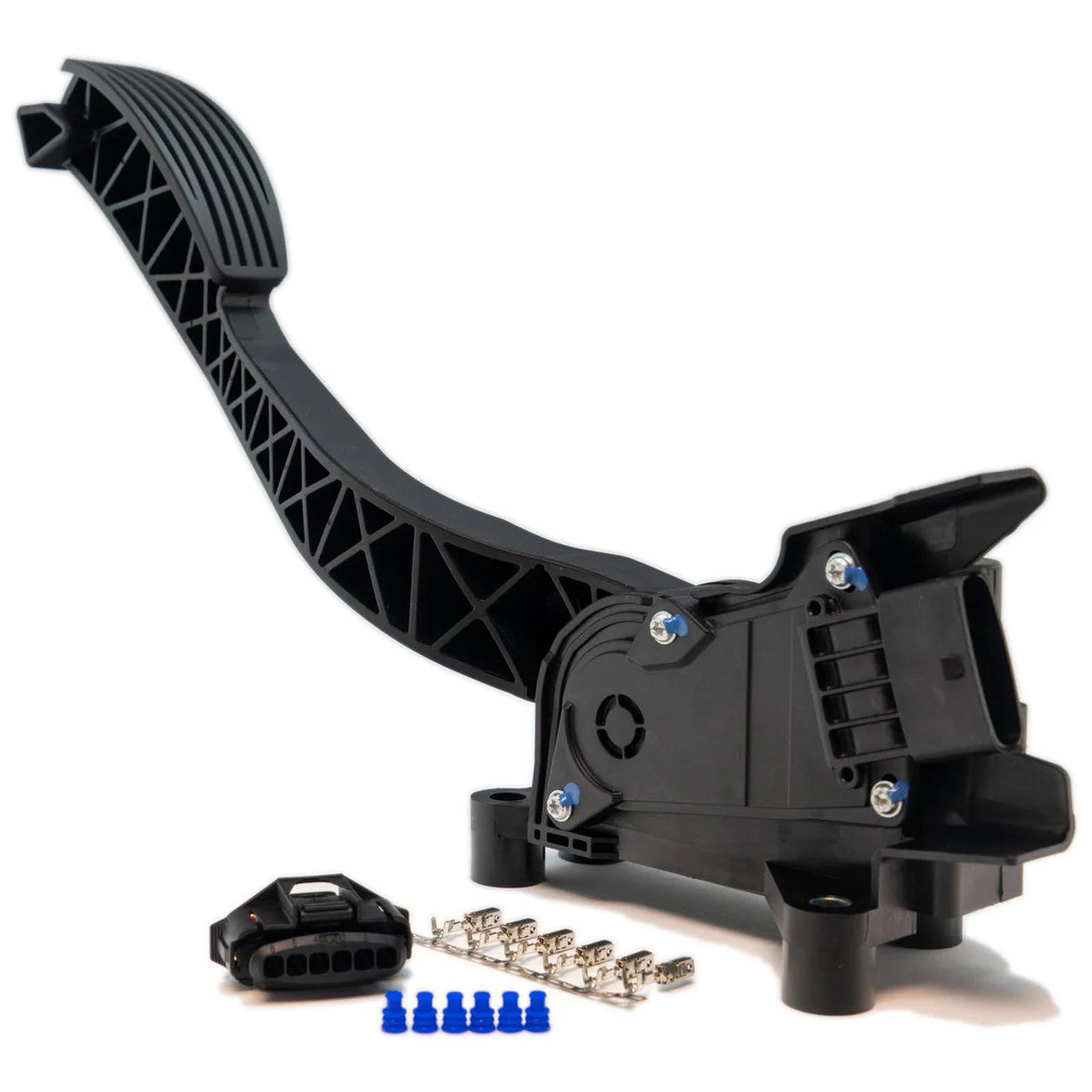

• Includes 6 pin mating connector kit

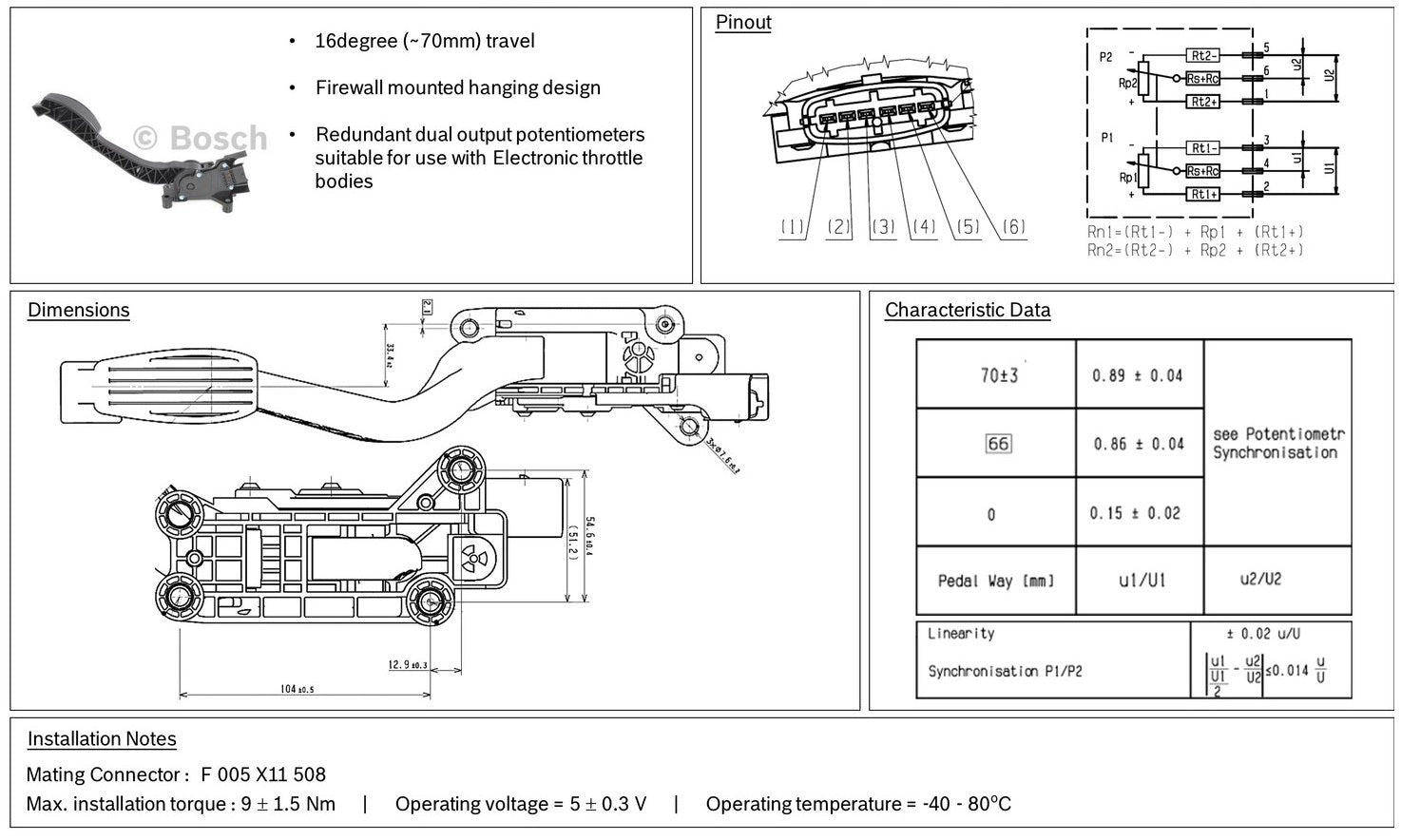

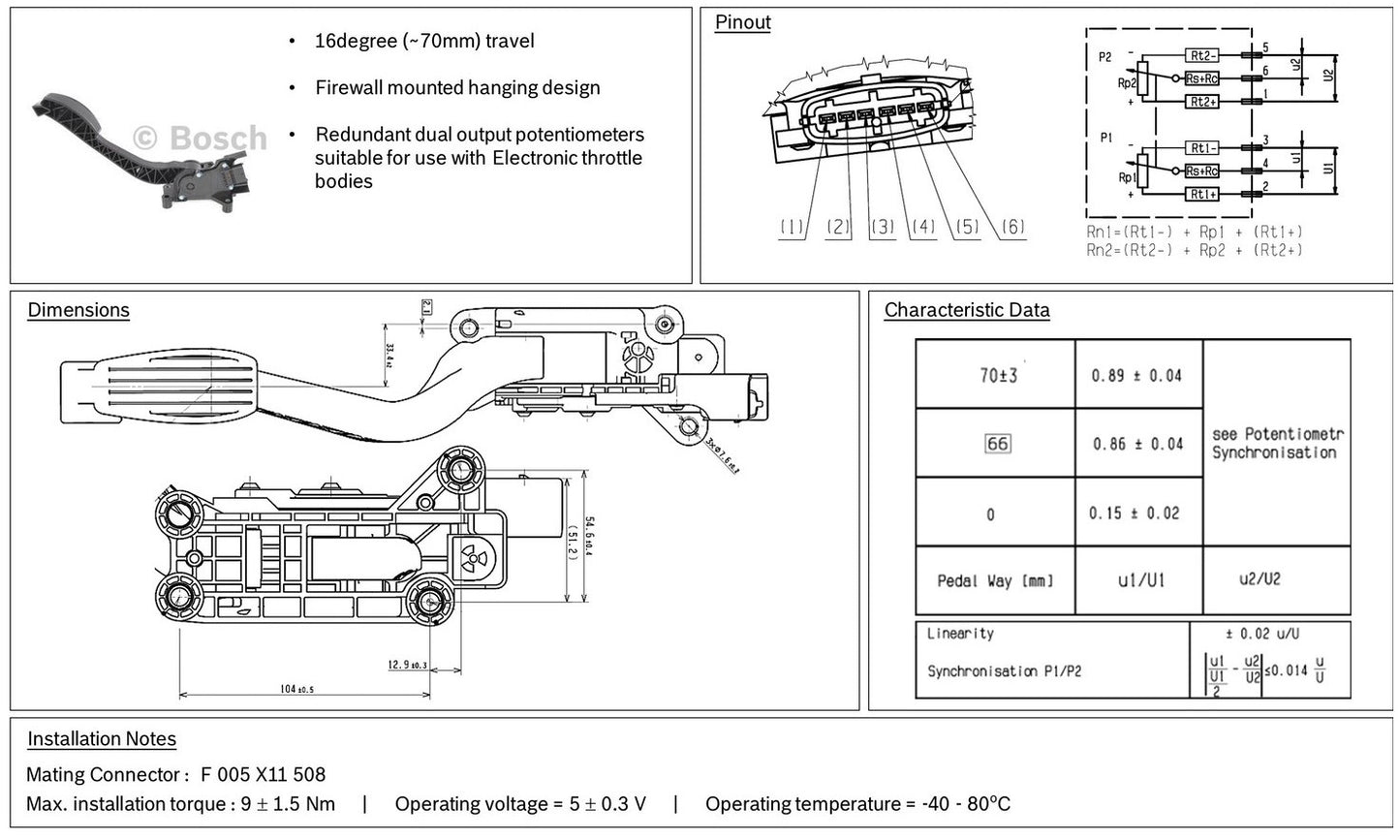

Pin 1 = 5V Pin 2 = 5V Pin 3 = Sensor Ground Pin 4 = AP Main Output Pin 5 = Sensor Ground Pin 6 = AP Sec Output
