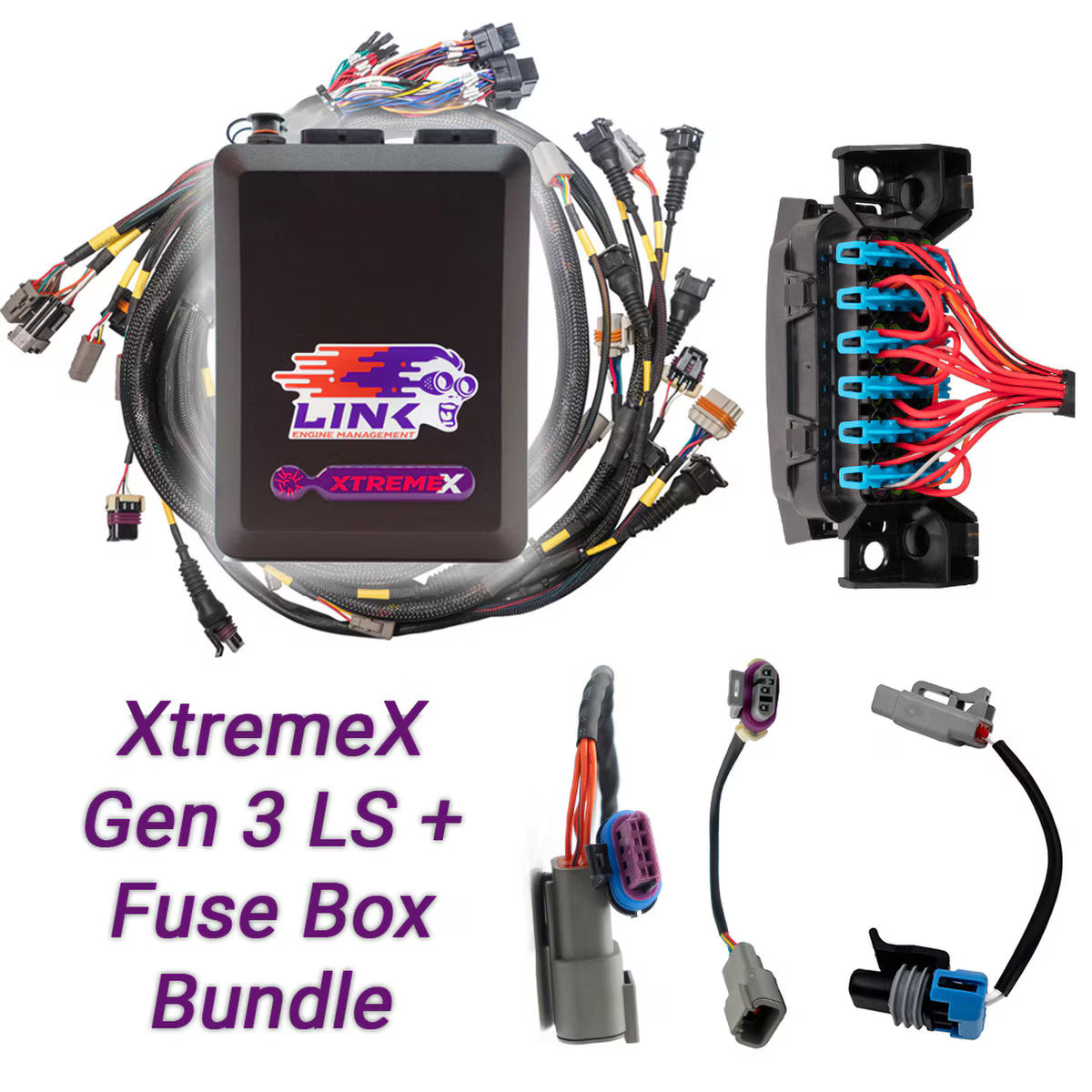

LINK ECU Gen3 LS Drive-By-Wire Bundle: G4X XtremeX ECU + LS Engine Harness + Fuse Box

LINK ECU Gen3 LS Drive-By-Wire Bundle: G4X XtremeX ECU + LS Engine Harness + Fuse Box
SKU: 109-9010B

Complete Drive-By-Wire Solution for LS V8 Engines with Fuse & Relay Included

The LINK ECU Gen3 LS Drive-By-Wire Bundle with Fuse Box is a fully integrated, plug-and-play package for Gen 3 LS1 and LS6 V8 engines equipped with electronic throttle (DBW). This bundle combines the powerful G4X XtremeX ECU, a terminated LS GEN3/4 harness, DBW adapters, and a fuse box with relay—delivering everything you need for a clean, professional, and race-ready installation.

Why Choose This Bundle:

• Full DBW Integration: Programmable electronic throttle with gear-shift throttle blip, antilag, and cruise control support.
• Advanced Motorsport Features: Full gear shift control, launch control, traction control, anti-lag, and cruise control.
• Expanded Tuning Capability: Two independent CAN modules, 30 general-purpose tables, and dual-bank lambda control for precise fuel management.
• Plug & Play Installation: OEM-style harness and sealed connectors retain factory locations and wiring integrity for a clean installation.
• Fuse & Relay Included: Simplifies wiring and protects critical circuits for ECU, cooling fan, and fuel pump.

Harness & Fuse Box Highlights:

• Matches LINK PC Base Maps IO setup for minimal tuning adjustments.
• Spare I/O connector for sensors, switches, or custom modules.
• Main chassis “flying leads” for essential power and control:
  • Large red “Batt+” for ECU main power
  • Red-Green “Fan” wire (ECU-controlled +12V, 20A)
  • Red-Blue “Fuel Pump” wire (ECU-controlled +12V, 20A)
  • Grey-Black “Ign Sw” wire (to ignition switch)
• Dedicated connectors for DBW pedal, CAN devices, MAP sensors, knock sensors, alternator, transmission signals, stepper IAC, TPS, and DBW throttle bodies.

What’s Included:

• G4X XtremeX ECU (8 Injector + 8 Ignition Drives)
• Terminated Engine Harness GM LS GEN3/4
• LS DBW Adapter Loom
• LS MAP Adapter Harness
• LS Gen3 Knock Adapter Loom
• Fuse Box & Relay

The LINK ECU Gen3 LS Drive-By-Wire Bundle with Fuse Box combines full OEM integration, motorsport-level features, and a plug-and-play setup—providing unmatched reliability, tuning flexibility, and performance for your LS V8.
