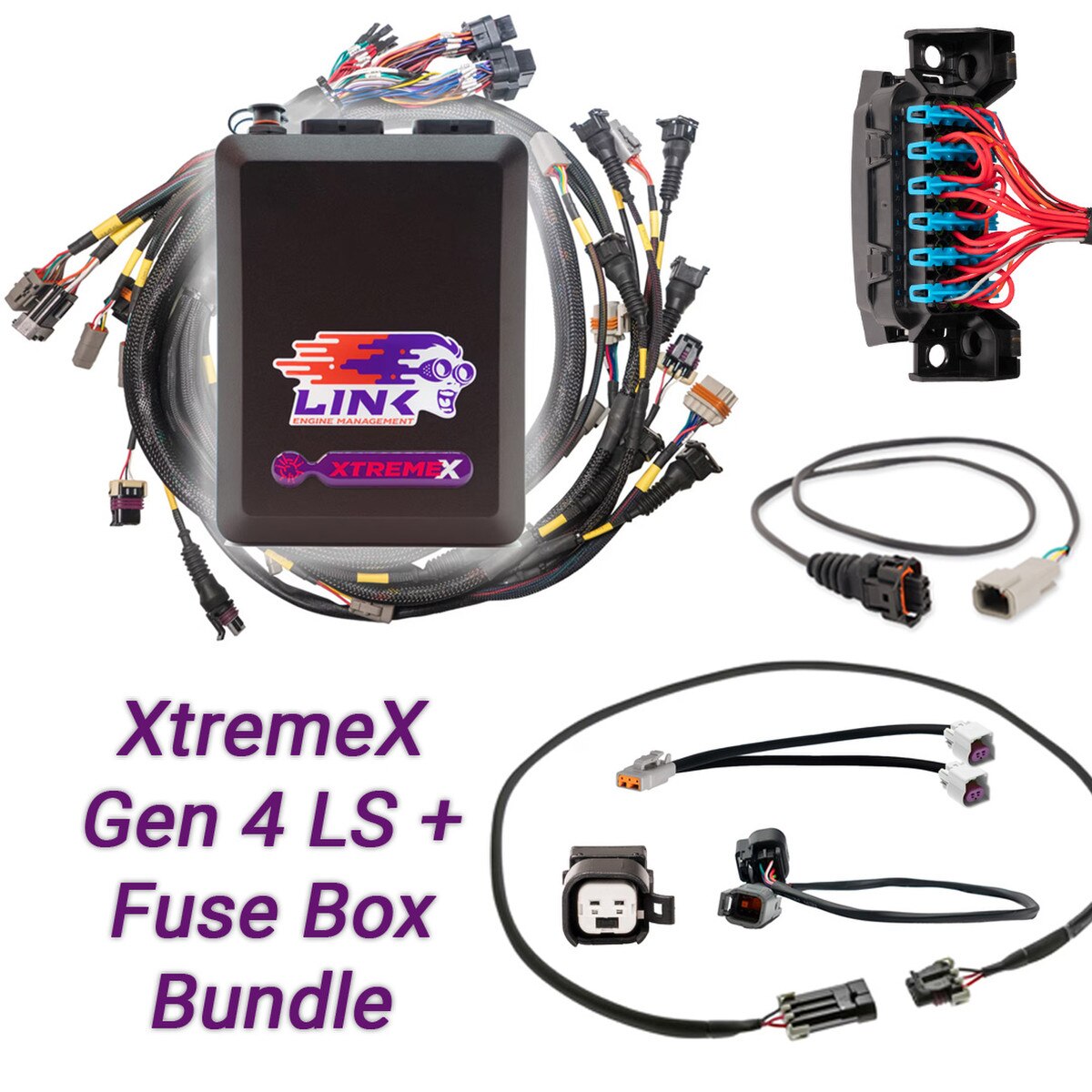

LINK ECU Gen4 LS Drive-By-Wire & Fuse Box Bundle: G4X XtremeX ECU + LS Engine Harness

LINK ECU Gen4 LS Drive-By-Wire & Fuse Box Bundle: G4X XtremeX ECU + LS Engine Harness
SKU: 109-9025B

Complete Drive-By-Wire Solution for Gen4 LS Engines (LS2, LS3, LS7, LSA) with Fuse & Relay Included

The LINK ECU Gen4 LS Drive-By-Wire Bundle is a fully integrated, plug-and-play package for Gen4 LS V8 engines. Designed for LS2, LS3, LS7, and LSA engines, this bundle pairs the G4X XtremeX ECU with a terminated LS GEN3/4 harness, drive-by-wire adapters, knock and cam sensor adapters, MAP adapters, Bosch sensor adapters, and a fuse box with relay for a complete OEM-style installation.

Why Choose This Bundle:

• Advanced DBW Integration: Fully programmable electronic throttle with gear-shift throttle blip, antilag, and cruise control.
• Motorsport-Ready Features: Full gear shift control, traction control, launch control, anti-lag, and cruise control.
• Expanded Tuning Capability: Two independent CAN modules, 30 general-purpose tables, and dual-bank lambda strategy for precise fuel management.
• Plug & Play Installation: Retains factory wiring integrity and ECU location with sealed OEM-style connectors.
• Fuse & Relay Included: Simplifies wiring and protects critical circuits including ECU power, cooling fan, and fuel pump.

Harness & Fuse Box Highlights:

• Spare I/O connector for sensors, switches, or custom additions.
• Main chassis “flying leads” for essential power and control:
  • Large red “Batt+” wire for ECU main power
  • Red-Green “Fan” wire (ECU-controlled +12V, 20A)
  • Red-Blue “Fuel Pump” wire (ECU-controlled +12V, 20A)
  • Grey-Black “Ign Sw” wire (to ignition switch)
• Dedicated connectors for DBW pedal, CAN devices, MAP sensors, knock sensors, cam sensors, Bosch sensors, alternator, transmission signals, stepper IAC, TPS, and DBW throttle bodies.

What’s Included:

• G4X XtremeX ECU (8 Injector + 8 Ignition Drives)
• Terminated Engine Harness GM LS GEN3/4
• LS Drive-By-Wire Adapter Loom
• LS Gen4 Knock Adapter Loom
• LS Gen4 MAP Adapter Harness
• LS Cam Sensor Adapter Harness
• 8 x Bosch Male-to-Female Adapters
• LS Fuse Box & Relay

The LINK ECU Gen4 LS Drive-By-Wire Bundle delivers a professional, OEM-style install with full motorsport capabilities and unmatched tuning flexibility for your Gen4 LS V8 engine.
