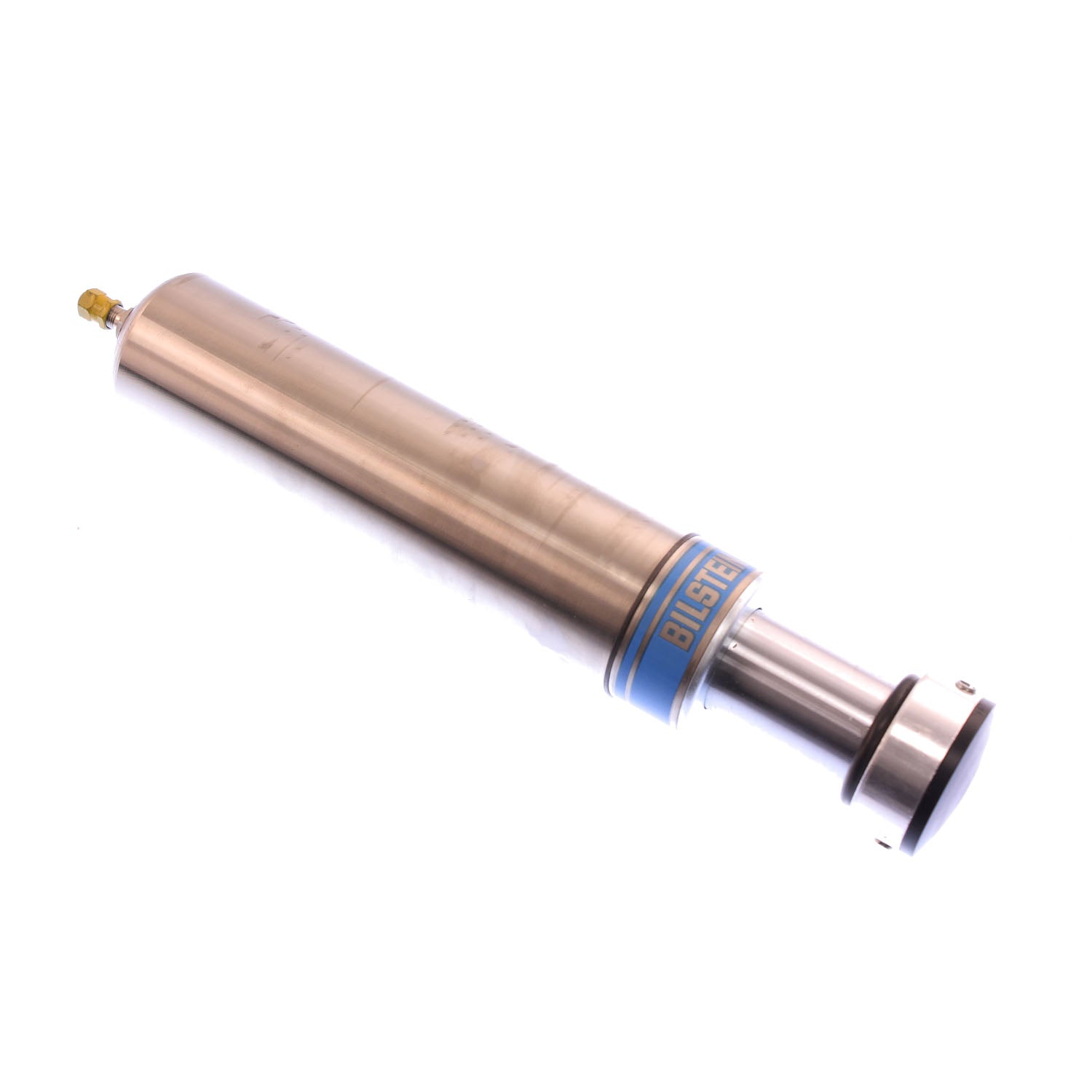

M 9100 (Bump Stop) - Suspension Bump Stop 2.0 inch short stroke

Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.

Collapsed Length (in): 9.61

Extended Length (in): 11.47

Collapsed Length (mm): 244.1

Extended Length (mm): 291.3

Stroke/travel Length (in): 1.86

Compression @0.52m/s: Custom

Rebound @0.52m/s: Custom

Lower Mount Type: Special

Upper Mount Type: Special

Mount Type: Special

Internal Design: Monotube

Finish: Nickel Plated

Reservoir: No

Body Design: Smooth Body (Non-Coilover)

Piston Diameter: 46mm

Spring Seat Included: No

Optional Reservoir Clamp: N/A

Shaft Diameter: 1-1/4 in.

Shaft Diameter (mm): 31.8

Valving Type: Firm
