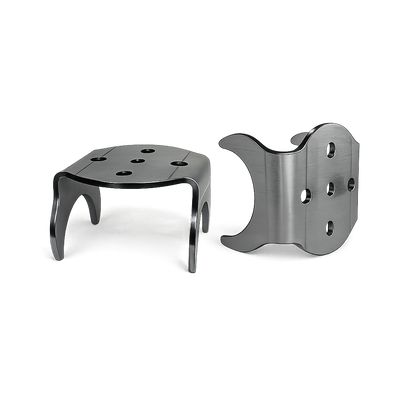

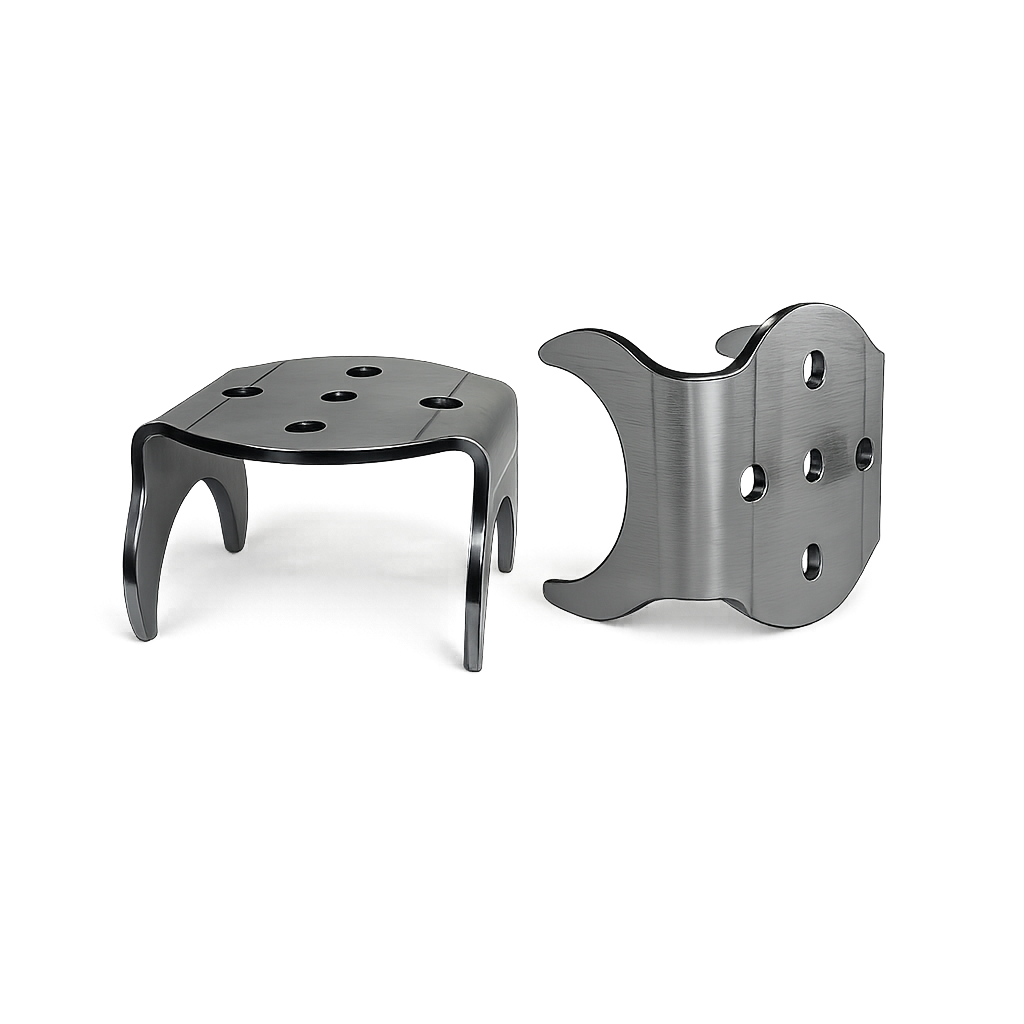

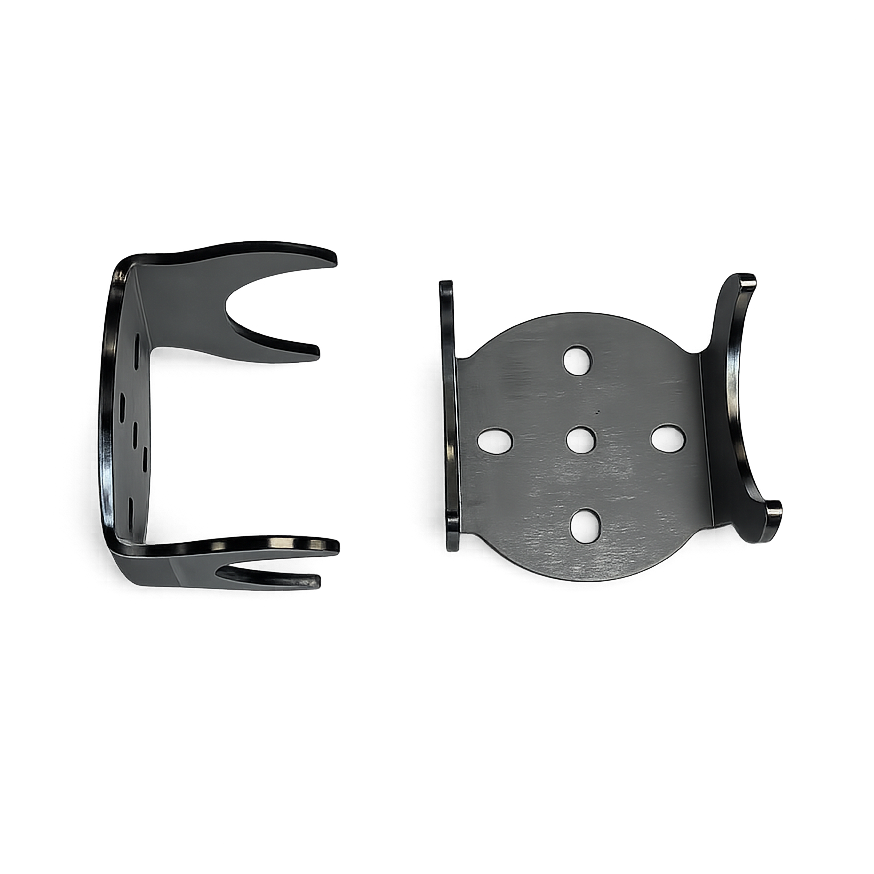

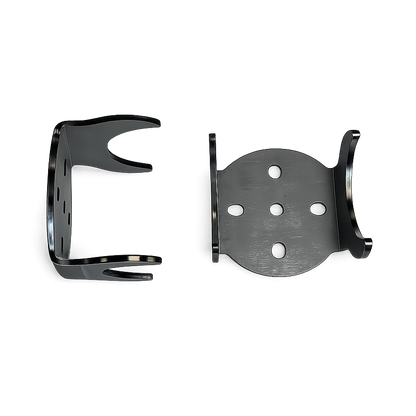

Over Axle Air Bag Mounts for 3" Axles - Multi-Pattern (Weld-On)

Over-Axle Air Bag Mounts for 3" Axles - Multi-Pattern (Weld-On)  #182-1003

Simplify your rear suspension with the Over-Axle Air Bag Mounts. Engineered for builders who need a compact, heavy-duty solution, these brackets allow you to mount your air bags directly to the axle tube. This "zero-offset" design ensures that the load from your air springs is transferred directly to the axle, providing maximum stability and a clean, tucked-through-the-frame look.

The GSI Advantage

• Direct-Load Design: By mounting the bag directly over the 3" axle tube, you eliminate leverage stress on the bracket, making this one of the strongest mounting solutions available for high-pressure or heavy-payload setups.

• Heavy-Duty 3/16" Steel: Just like our offset mounts, these are laser-cut from 3/16" A36 high-strength steel. They are built to handle the constant cycling of air suspension without warping or fatigue.

• Compact Footprint: With a 3" height profile, these mounts are ideal for "bagged" trucks where vertical space between the axle and the frame is at a premium.

• Optimal Bag Foundation: The 4.5" x 4.5" top plate provides a stable, square foundation for your air springs. The multi-hole pattern is pre-drilled to accept the most popular air bag brands on the market.

• 360° Clocking: The precision 3" diameter saddle allows you to rotate the mount around the axle tube before welding, ensuring your air bag is perfectly vertical and aligned with your upper frame brackets.

Design & Construction

• Material: 3/16" A36 High-Strength Steel

• Axle Fitment: Engineered for 3" Diameter Axle Tubes (Standard C10, Ford 8.8/9", GM 10/12 Bolt)

• Mounting Height: 1.5" (From top of axle tube to top of bag plate)

• Top Plate Dimensions: 4.5" x 4.5"

• Bag Compatibility: Optimized for D2500 & D2600 series and similar double-convoluted air bags.

• Installation: Weld-on only (Requires professional welding for safety)

What's Included

• (2) Over-Axle Mulit Pattern Air Bag Mounts (3/16" Steel)

Note: Sold as a pair. Raw steel finish; requires prep and paint/powder coat after welding. Raw steel will rust.
