PLM Honda Civic 1.5T Turbo & Si FC 2016–2021 Intercooler Kit & Charge Pipes V2

PLM Honda Civic 1.5T Turbo & Si FC 2016–2021 Intercooler Kit & Charge Pipes V2

The PLM Intercooler & Charge Pipe Kit V2 for the 2016–2021 Honda Civic 1.5T Turbo and Si (FC chassis) is engineered to deliver significantly improved cooling efficiency, consistent power delivery, and long-term reliability—all at an exceptional value. Designed as a direct bolt-on upgrade, this kit installs in the factory location without the need to cut or modify any OEM plastic components.

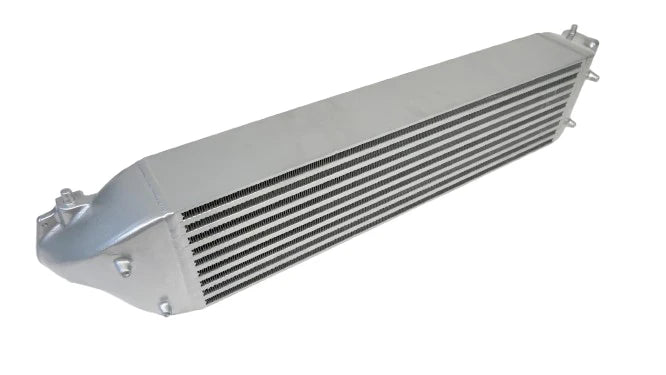

At the heart of this system is an enlarged, high-flow bar-and-plate intercooler designed to dramatically reduce heat soak, lower intake air temperatures, and protect your turbocharged engine under aggressive driving conditions. Cooler air means denser air, more consistent power, and reduced risk of knock or detonation—especially during spirited street driving or track use.

Independent testing has shown that PLM intercoolers perform on par with, or better than, competing kits that cost significantly more. With performance comparable to systems priced well over $800, this complete V2 kit stands out as one of the best performance-per-dollar upgrades available for the 10th-generation Civic platform.

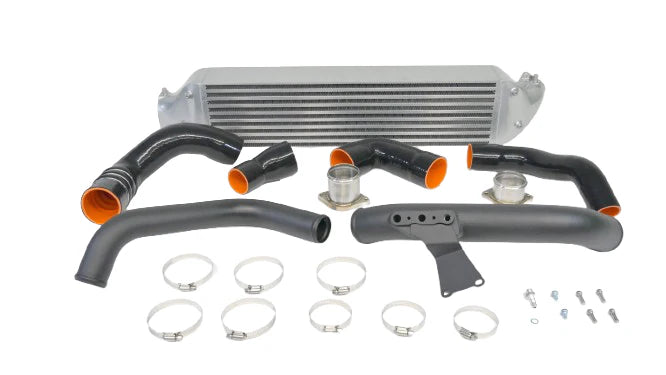

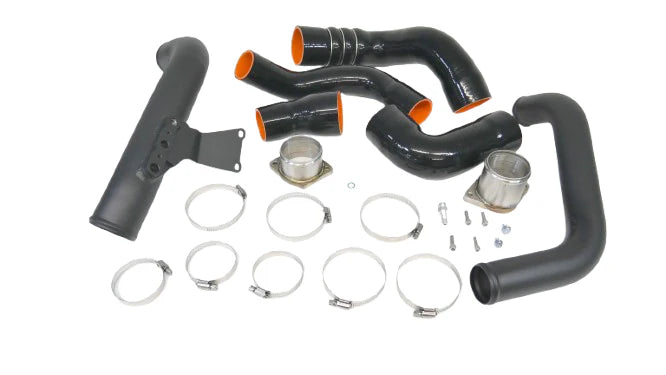

This complete kit includes both the upgraded intercooler and full charge pipe system, ensuring optimal airflow from the turbocharger to the throttle body. Precision-designed aluminum piping with bead-rolled ends, high-quality silicone couplers, and stainless steel hardware provide a secure, leak-free installation that is built to last.

Key Features

• Complete intercooler and charge pipe kit

• Designed for stock-location installation (no cutting required)

• High-quality bar-and-plate intercooler construction

• Intercooler rated for 600+ horsepower

• Core size: 24" x 6.3" x 3.5"

• Hot-side charge pipe diameter: 2.0"

• Cold-side charge pipe diameter: 2.5"

• Aluminum end tanks for improved durability and airflow

• Bead-rolled piping ends for secure hose retention

• 3-ply silicone couplers with heavy-duty clamps

• Stainless steel mounting hardware included

• Reduces intake air temperatures

• Helps prevent engine knock and power loss

• 100% bolt-on installation

Vehicle Compatibility

• 2016–2021 Honda Civic 1.5T Turbo

• 2016–2021 Honda Civic Si

• Fits 10th-generation FC chassis

• Does NOT fit 2022+ 11th-generation Civic

This PLM V2 Intercooler & Charge Pipe Kit is the ideal upgrade for Civic owners looking to support higher boost levels, improve throttle response, and maintain consistent performance—whether on the street or at the track—without breaking the bank.
