PLM Power Driven Audi Heat Exchanger & Reservoir Kit – Audi S4 / Audi S4 / Audi A4 / Audi A4

PLM Power Driven Audi Heat Exchanger & Reservoir Kit – Audi S4 / Audi S4 / Audi A4 / Audi A4

SKU: PLM-Audi-B8-COMBO

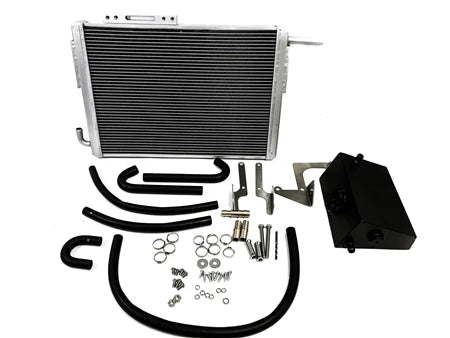

The PLM Power Driven Heat Exchanger & Reservoir Combo is a complete cooling solution designed for supercharged Audi platforms that demand consistent performance under heat and load. Whether you are daily driving in hot weather, running aggressive pulls, or operating with increased boost, elevated intake air temperatures can quickly rob power. This kit is engineered to control those temps so your car can perform at its full potential.

PLM’s upgraded heat exchanger features a furnace-brazed core for maximum durability and thermal efficiency, paired with CNC-machined billet aluminum necks and precision TIG welding. Compared to the factory unit, frontal surface area is increased dramatically, allowing more airflow and faster heat rejection.

To further stabilize temperatures, the included aluminum reservoir adds 4 additional liters of coolant capacity. More fluid volume means slower heat saturation, improved recovery between pulls, and greater resistance to heat soak during spirited driving or track use.

Despite the major improvement in cooling capability, the system is designed to mount in or near the factory location and can be installed using basic hand tools, with no cutting or major vehicle modification required.

Why Upgrade?

Supercharged Audi engines generate substantial heat. Once intake air temps climb, the ECU begins pulling timing, reducing horsepower and throttle response. By improving cooling efficiency and expanding system capacity, the PLM kit helps maintain consistent, repeatable performance.

Performance Benefits

• Lower and more stable intake air temperatures

• Better resistance to heat soak

• More consistent horsepower during repeated pulls

• Ideal for tuned or higher boost applications

• Faster temperature recovery

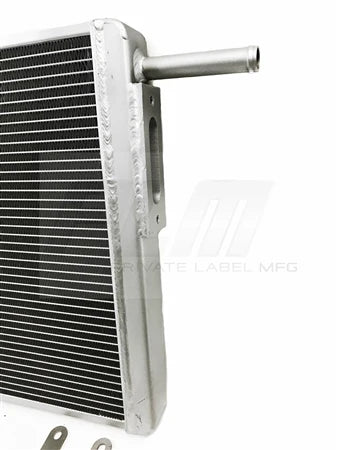

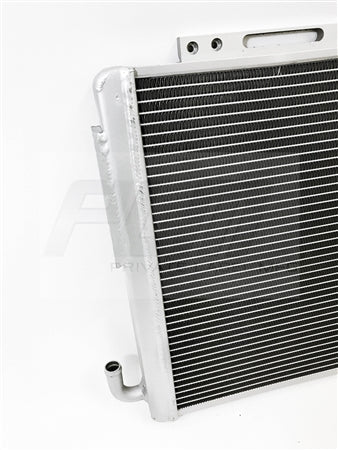

Heat Exchanger Features

• Furnace-brazed core for superior heat transfer

• CNC-machined billet aluminum necks

• Professionally TIG welded

• Large fin surface area (approx. 417 sq in)

• Increased frontal area vs OEM

• Mounts in / near factory position

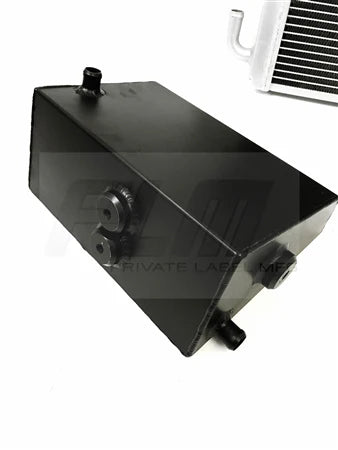

Reservoir Tank Features

• Lightweight aluminum construction

• Adds 4 liters of additional coolant capacity

• Helps stabilize temps under heavy load

• Mounts behind the factory bumper

Installation

• Bolt-on design

• Basic hand tools required

• No cutting or major modifications necessary

Vehicle Compatibility

• Audi S4

• Audi S4

• Audi A4

• Audi A4
