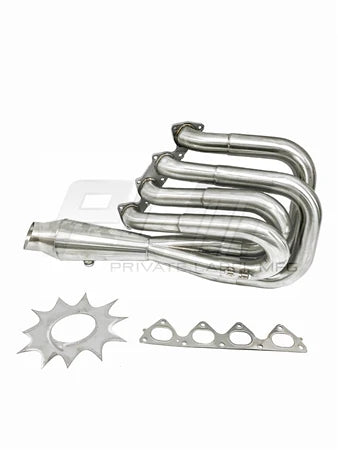

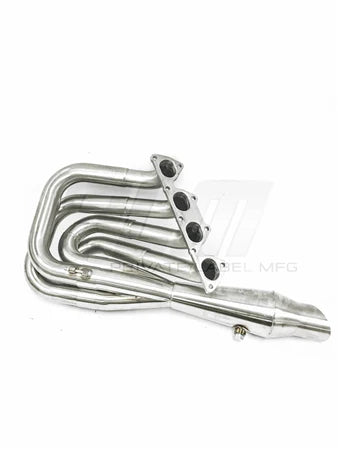

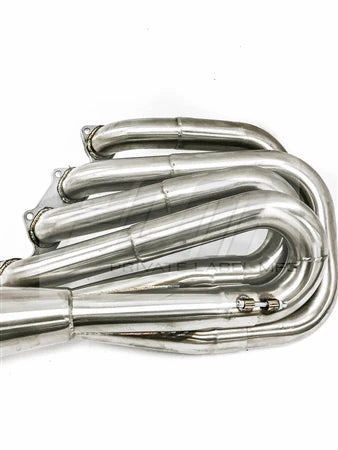

PLM Power Driven B-Series Hood Exit Race Header w/ 4-1 Megaphone

PLM Power Driven B-Series Hood Exit Race Header w/ 4-1 Megaphone

SKU: PLM-HB-HOOD-HEADER-SHIELD

Product Description

The PLM Power Driven B-Series Hood Exit Race Header is built for serious racers looking for maximum peak horsepower and uncompromised exhaust flow. Featuring a true 4-1 merge collector that transitions into a megaphone outlet, this design promotes equal scavenging and strong top-end performance.

Constructed from 304 stainless steel and hand TIG welded, the header is engineered to handle the demands of competition while keeping weight down. The two-piece configuration allows easier installation and serviceability.

This setup is ideal for autocross, drag racing, and road racing, and is recommended for 1.8L–2.2L engine combinations where high-RPM power is the priority.

Key Features

• 4-1 merge collector with megaphone for maximum peak horsepower

• Off-road / race use only

• Not CARB legal in California

• 304 brushed stainless steel construction

• Hand TIG welded

• CNC-machined manifold flange

• 18-gauge stainless tubing

• Two-piece pre-assembled design

• Includes OEM-spec header gasket

• Includes exhaust heat shield trim

• One year warranty

Vehicle Fitment

• 1992–2000 Honda Civic EG / EK

• 1993–1997 Honda Del Sol

• 1994–2001 Acura Integra DC / DC2

• 1988–1991 Honda CRX with B-Series swap & aftermarket traction bar

• 1990–1993 Acura Integra with aftermarket traction bar

• Honda B-Series engines: B16, B18, B20

Installation Notes

• Modification required for A/C and power steering.

• O2 sensor extension required.

• Must run a half-core radiator with slim fan.
