PLM Power Driven D-Series TA Header for SOHC D16 & D15 (1988–2000)

PLM Power Driven D-Series TA Header for SOHC D16 & D15 (1988–2000)

SKU: PLM-HD16-TA-HEADER

Product Description

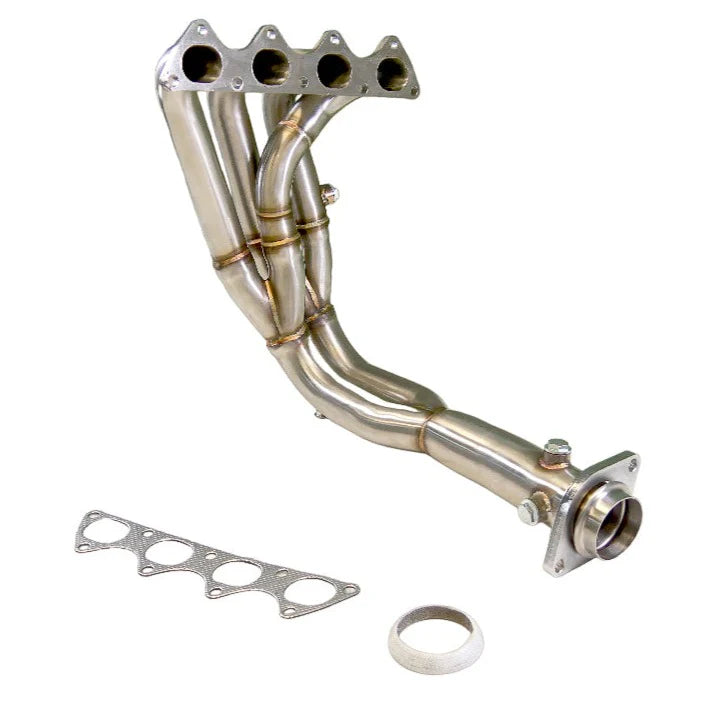

The PLM Private Label Mfg. Power Driven D-Series TA Header is engineered to extract maximum performance from Honda SOHC D-Series engines. Designed with a true 4-2-1 Tri-Y merge collector, this header significantly improves exhaust scavenging, resulting in stronger low- to mid-range torque while maintaining impressive top-end power gains.

Inspired by PLM’s best-selling B-Series header design, the D-Series TA Header features a one-piece construction with a true 2.5-inch collector, allowing for increased exhaust flow and improved throttle response. Built entirely from 304 stainless steel, this header offers excellent durability, corrosion resistance, and long-term reliability for both street and performance-driven builds.

With CNC-machined flanges, precision TIG welding, and an iconic JDM-inspired layout, this header is an ideal upgrade for enthusiasts seeking proven performance, aggressive sound characteristics, and high-quality craftsmanship.

Key Features

• Designed for Honda SOHC D-Series engines (D16 & D15)

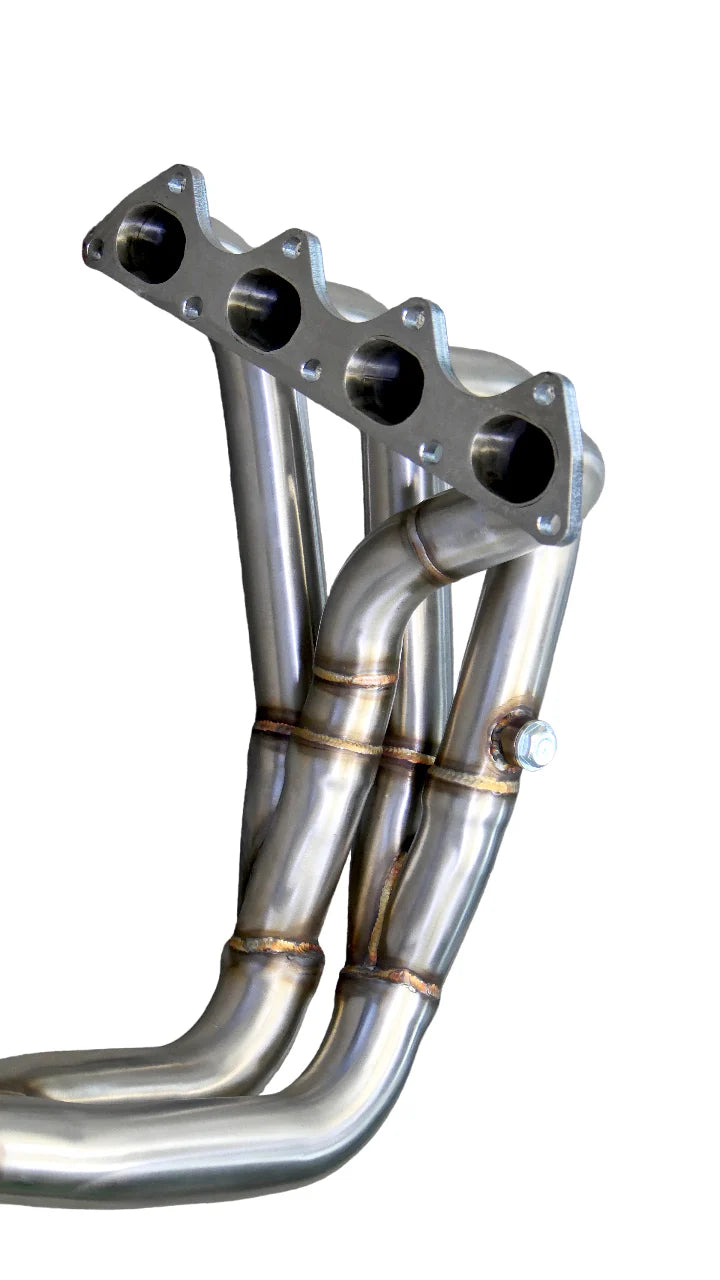

• True 4-2-1 Tri-Y merge collector for improved torque and power

• Short-tube header design optimized for street and performance use

• One-piece construction for strength and leak-free operation

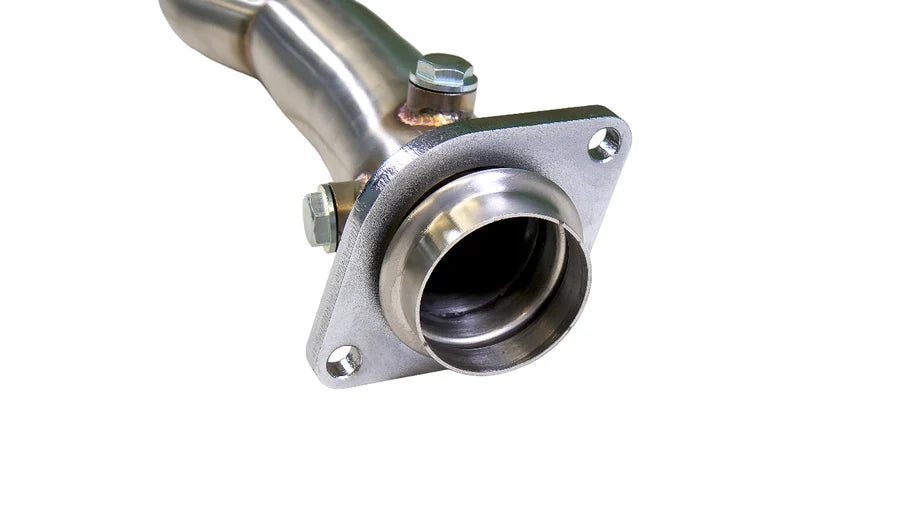

• True 2.5-inch (OD) collector for increased exhaust flow

• Constructed from 18-gauge 304 stainless steel

• CNC-machined manifold flanges

• Flange thickness: 0.38 inches

• High-quality hand TIG welded construction

• Recommended for 1.6L – 1.8L engine displacement

• Inspired by classic JDM performance design

• One-year limited warranty

Vehicle Fitment

• 1988–2000 Honda Civic – 1.6L SOHC D-Series (EF / EG / EK)

• 1992–1997 Honda Del Sol – 1.6L SOHC D-Series

• 1988–1991 Honda CR-X – 1.6L SOHC D-Series (EF)

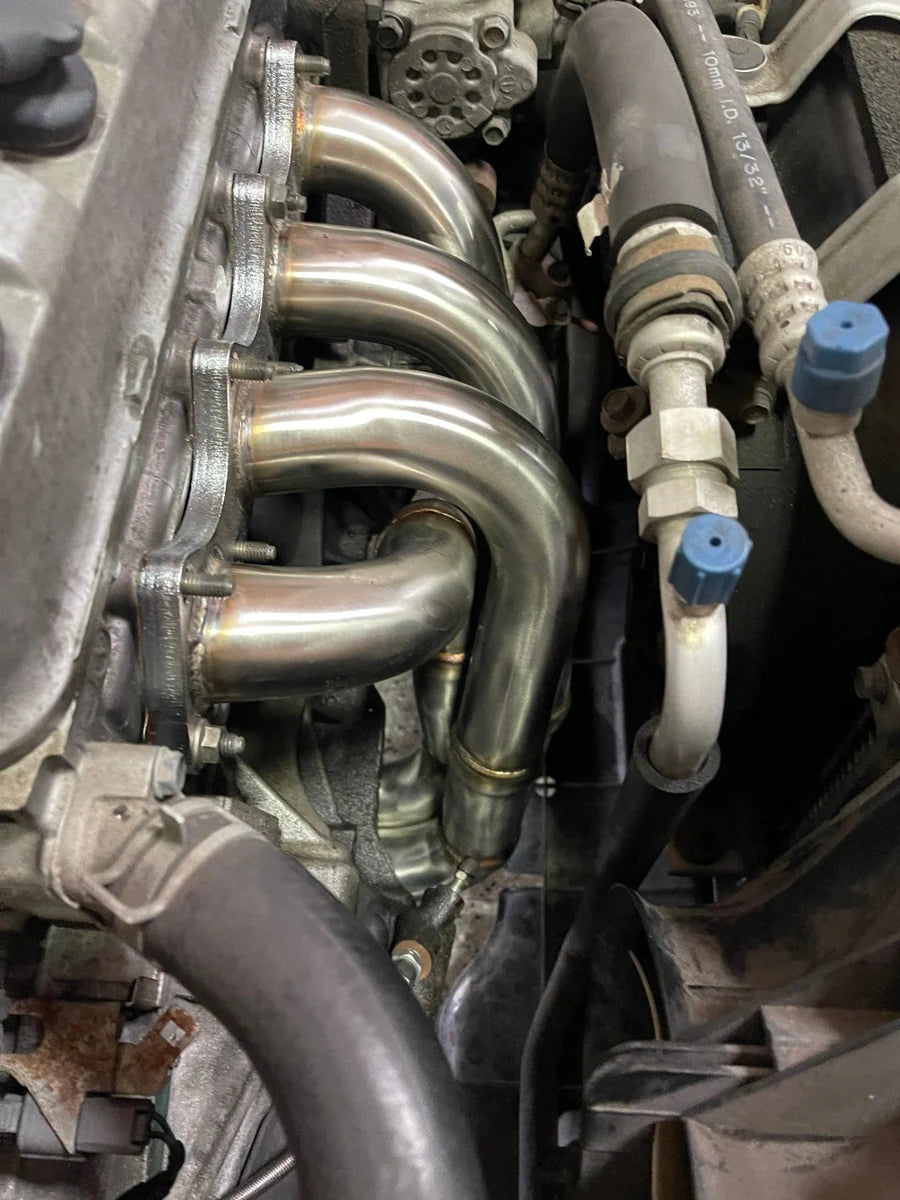

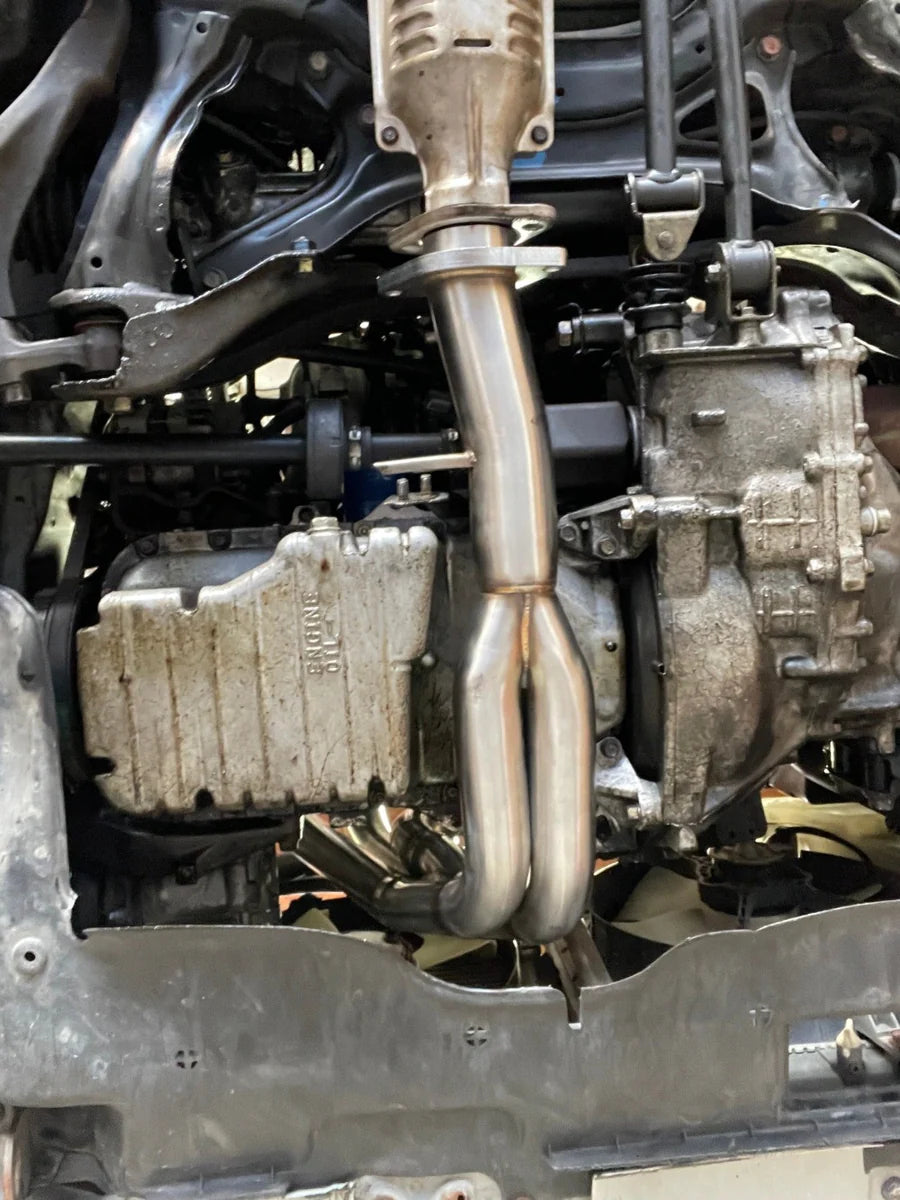

Installation Notes

• The connection from the header outlet to the factory catalytic converter is not a direct bolt-on

• An extension pipe or additional flange is required for proper installation
