PLM Power Driven K-Series Hood Exit Race Header (4-1 Megaphone) – Non-Lean Mount

PLM Power Driven K-Series Hood Exit Race Header (4-1 Megaphone) – Non-Lean Mount

SKU: PLM-HK-HOOD-HEADER-SHIELD

Product Description

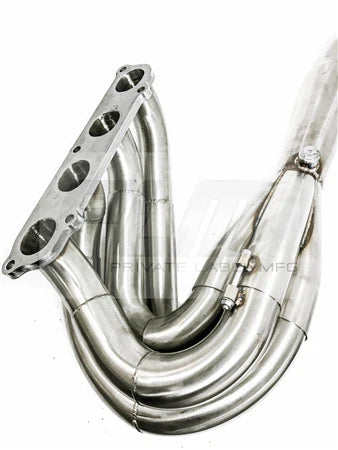

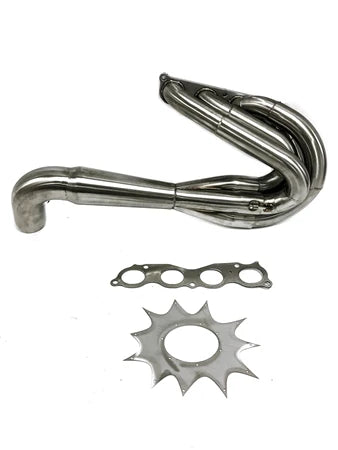

Built for serious race applications, the PLM Power Driven K-Series Hood Exit Header is engineered to deliver maximum peak horsepower and uncompromised exhaust flow. This system utilizes a true 4-1 merge collector followed by a properly designed megaphone section to accelerate exhaust gas velocity. A small reverse cone at the outlet helps maintain the ideal amount of back pressure for optimized performance at high RPM.

Constructed from brushed 304 stainless steel and hand TIG welded, this header is designed to withstand extreme heat and competition abuse. The two-piece configuration arrives pre-assembled for easier installation while still allowing serviceability.

This version is built specifically for standard (non-lean) engine mount setups and is a popular solution for K-swap builds looking for aggressive hood-exit routing and maximum top-end power.

Key Features

• True 4-1 merge collector design

• Integrated megaphone with reverse cone

• Designed for maximum peak horsepower

• For standard non-lean mount configurations

• Brushed 304 stainless steel construction

• Hand TIG welded

• CNC machined manifold flange

• 18-gauge 304 stainless tubing

• Two-piece design, pre-assembled

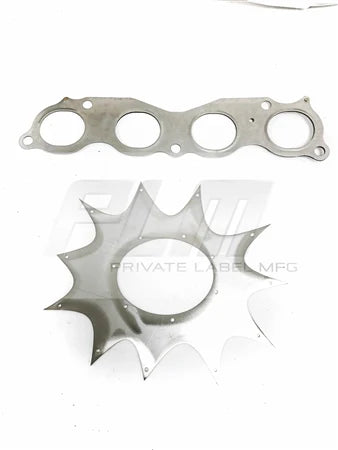

• Includes OEM-spec header gasket

• Includes exhaust heat shield trim

• PLM one year warranty

Vehicle Applications

• 1992–2000 Honda Civic EG / EK

• 1993–1997 Honda Del Sol

• 1994–2001 Acura Integra DC2

Installation Notes

• O2 sensor wire extension is required.

• Intended for off-road use only.

• Not CARB legal for sale or use in California.

• Designed for standard mounts – will not fit lean mount configurations.
