PLM Power Driven Subaru EWG 3-Bolt Up Pipe & Dump Tube – 38mm / 40mm

PLM Power Driven Subaru EWG 3-Bolt Up Pipe & Dump Tube – 38mm / 40mm

SKU: PLM-SUB-UP-PIPE-EWG-38MM-3B

Product Description

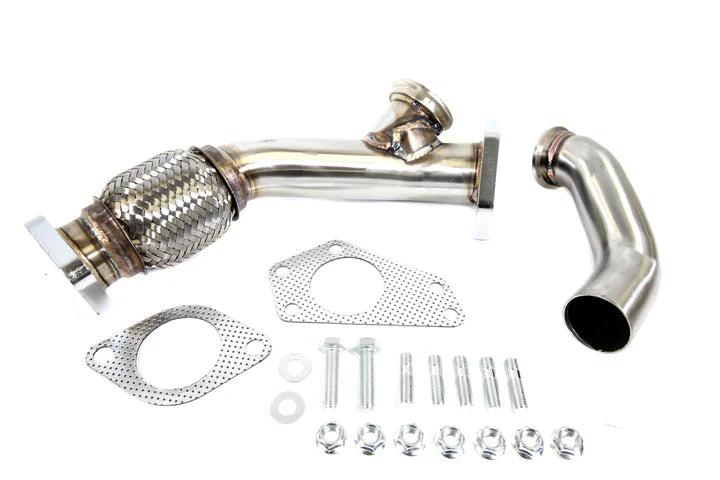

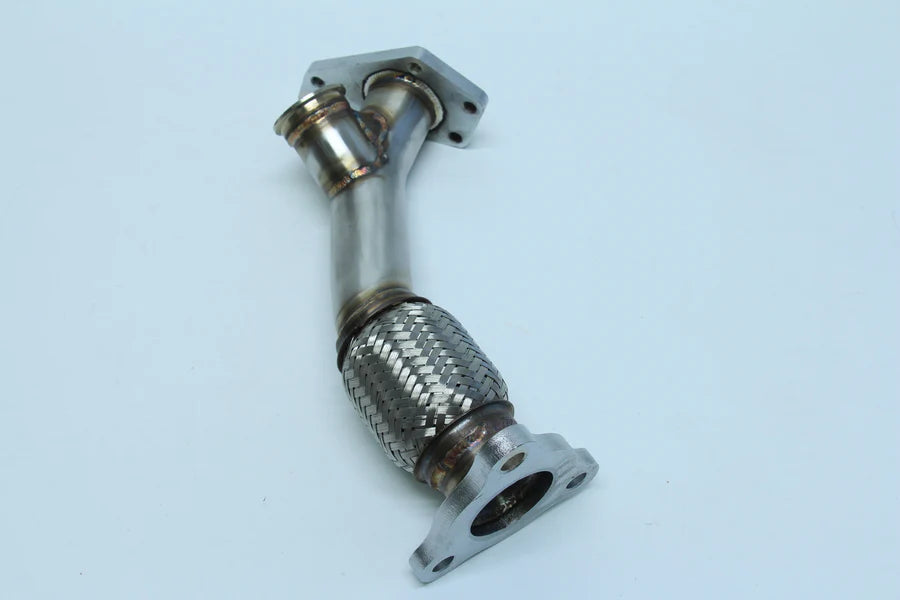

The PLM Power Driven Subaru External Wastegate Up Pipe with Dump Tube is designed for serious turbo Subaru builds running aftermarket 3-bolt headers. Engineered for maximum exhaust flow and boost control, this up-pipe supports both 38mm and 40mm external wastegates, giving you flexibility as your setup evolves.

Constructed from high-grade 304 stainless steel with thick-wall piping and a reinforced flex joint, this up-pipe is built to handle high heat and extreme boost conditions. Precision CNC mandrel bends and minimal internal steps help improve exhaust gas velocity, reduce turbo lag, and unlock noticeable horsepower gains.

The integrated dump tube allows excess exhaust gases to exit efficiently, ensuring stable boost control and consistent performance. This system is a direct bolt-on solution for Subaru EJ-series engines equipped with compatible 3-bolt aftermarket headers.

Key Features

• Designed for Subaru EJ-series turbo engines

• Compatible with 38mm or 40mm external wastegates

• 3-bolt flange for direct fitment to aftermarket headers

• Includes dump tube for efficient wastegate exhaust flow

• Constructed from 304 stainless steel

• Thick 2.0mm piping (stronger than typical 1.5mm designs)

• 14-gauge stainless steel construction

• 0.5" thick flange for a secure, leak-free seal

• High-quality flex joint positioned for increased longevity

• Precision CNC mandrel-bent tubing

• Minimal internal steps for maximum exhaust flow

• Hand TIG welded for strength and durability

• Approximate gains of 10–40+ WHP depending on setup

• Helps reduce turbo lag and improve boost response

• Includes gaskets and all necessary installation hardware

• One-year limited warranty

Vehicle Fitment

• 2002–2014 Subaru WRX

• 2004–2020 Subaru STI

• 2004–2006 Subaru Baja Turbo

• 2004–2013 Subaru Forester XT

• 2005–2009 Subaru Legacy GT

• 1991–1994 Subaru Legacy Turbo

• 2005–2009 Subaru Outback XT

Fitment Notes

• Only compatible with aftermarket headers featuring a 3-bolt inlet flange (such as Tomei and similar)

• Not compatible with RHD (Right Hand Drive) vehicles

• Block-off plate is not required when running an external wastegate
