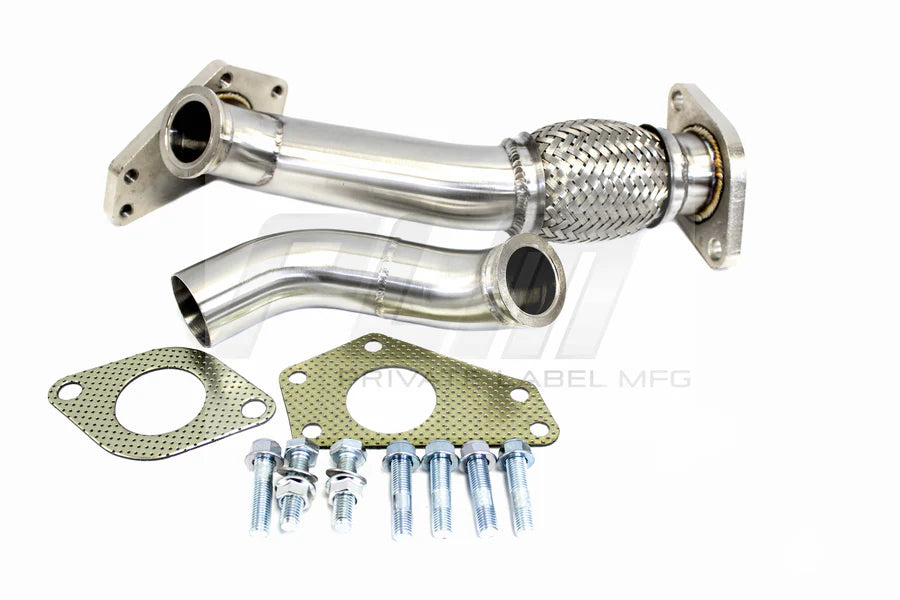

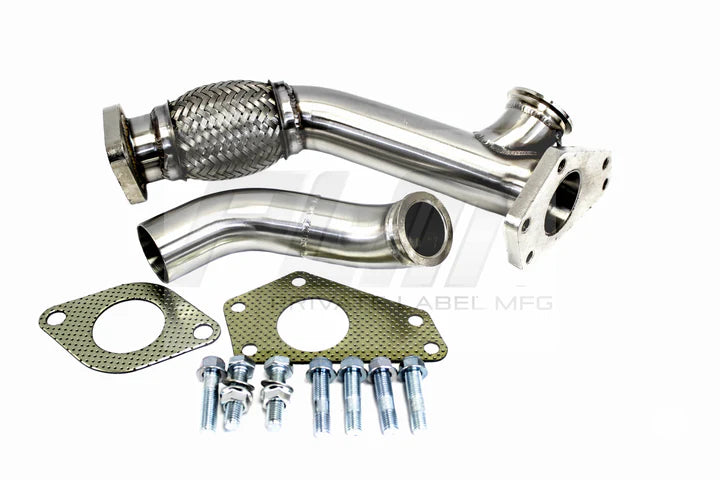

PLM Power Driven Subaru EWG Up-Pipe with Dump Tube – Supports 38mm or 40mm External Wastegate

PLM Power Driven Subaru EWG Up-Pipe with Dump Tube – 38mm

Supports 38mm or 40mm External Wastegate

SKU: PLM-SUB-UP-PIPE-EWG-38MM

Product Description

The PLM Power Driven Subaru External Wastegate (EWG) Up-Pipe with Dump Tube is engineered to maximize turbo efficiency, improve boost control, and unlock serious performance gains for turbocharged Subaru platforms. Designed as a direct bolt-on upgrade, this high-flow up-pipe allows the use of a 38mm or 40mm external wastegate, reducing exhaust turbulence and significantly improving turbo spool characteristics.

Unlike internal wastegate setups, an external wastegate provides cleaner exhaust flow, more stable boost pressure, and improved throttle response. PLM’s optimized design delivers 10–40+ wheel horsepower gains, depending on vehicle setup, while maintaining excellent reliability for both street and track applications.

Constructed from 14-gauge, 304 stainless steel with 2.0mm wall thickness, this up-pipe exceeds the durability of many competing designs. A high-quality flex joint is strategically placed away from bends to increase longevity and prevent premature cracking. Precision TIG welding and CNC mandrel bends ensure smooth internal transitions for maximum exhaust flow.

Key Benefits

• Faster turbo spool and reduced turbo lag

• Improved boost control with external wastegate setup

• Increased horsepower and torque potential

• Durable construction for high-heat turbo environments

• True bolt-on installation with no modifications required

Features & Specifications

• Supports 38mm or 40mm external wastegates

• V-band wastegate flange with dump tube

• Hand TIG-welded 304 stainless steel construction

• 14-gauge stainless steel with 2.0mm piping thickness

• Flange thickness: 0.5”

• High-quality flex joint for increased durability

• Flex joint positioned away from bends for extended service life

• Precision CNC mandrel bends

• Minimal internal steps for maximum exhaust flow

• Inlet diameter: 1.95”

• Outlet diameter: 1.95”

• Includes all required gaskets and hardware

• One-year manufacturer warranty

Vehicle Compatibility

• 2002–2014 Subaru WRX

• 2004–2021 Subaru STI

• 2004–2006 Subaru Baja Turbo

• 2004–2013 Subaru Forester XT

• 2005–2009 Subaru Legacy GT

• 1991–1994 Subaru Legacy Turbo

• 2005–2009 Subaru Outback XT

Note:
• Not compatible with right-hand drive (RHD) vehicles
• Block-off plate is not required and no longer included

Installation Notes

• Direct bolt-on to OEM header and turbo

• Professional installation recommended

• External wastegate sold separately
