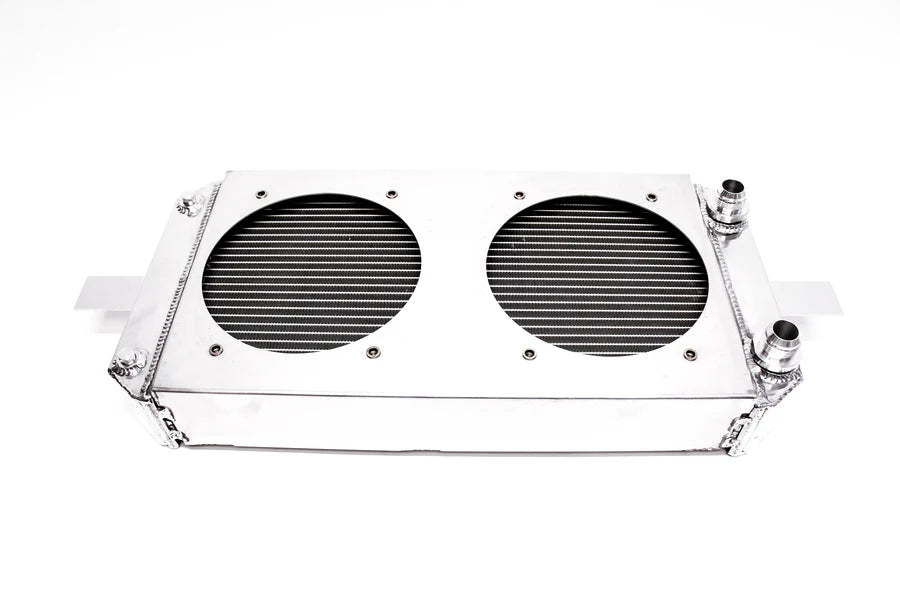

PLM Power Driven Tucked Radiator XL – Honda / Acura

PLM Power Driven Tucked Radiator XL – Honda / Acura

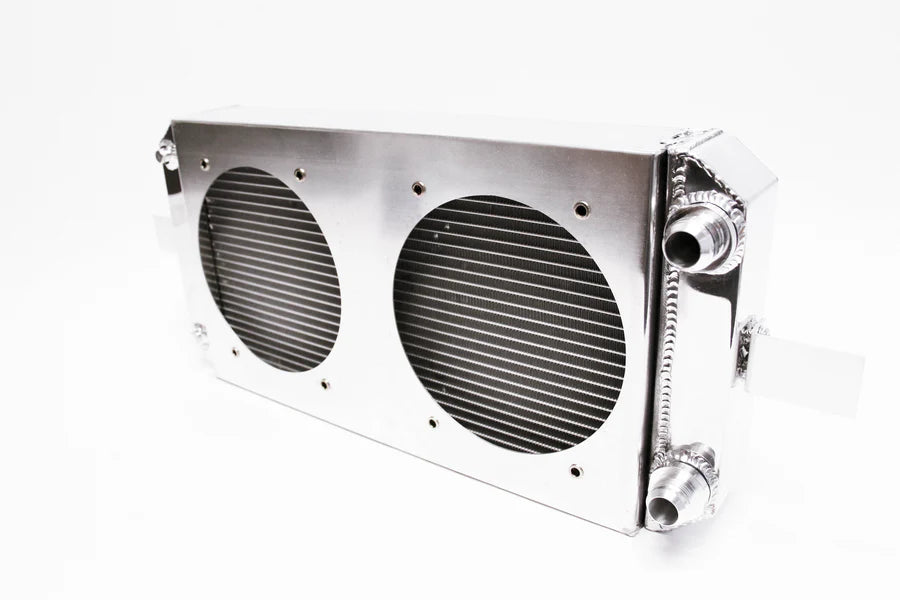

The PLM Power Driven Tucked Radiator XL is an upgraded high-capacity cooling solution designed for Honda and Acura performance builds that require additional cooling and maximum engine bay space. This XL version expands on the popular tucked radiator design by increasing overall cooling capacity while maintaining a compact, low-profile layout that mounts beneath the radiator support.

Built from high-quality aluminum, this radiator is engineered for durability and consistent cooling under demanding street and race conditions. The tucked configuration helps free up valuable engine bay room, making it ideal for turbocharged setups, swap builds, and tight-clearance applications.

Unlike conventional designs, this radiator uses threaded inlet and outlet ports, allowing you to run AN fittings, slip-on hoses, or adapter fittings for flexible plumbing options. The mounting brackets are removable and bolted on — not welded — so they can be repositioned or flipped for more universal fitment across different chassis setups.

This radiator is compatible with both manual and automatic transmission applications.

Features

• XL version for increased cooling capacity

• Tucked design maximizes usable engine bay space

• High-quality aluminum construction

• Threaded inlet and outlet ports for AN or slip-on hose fittings

• Supports multiple adapter fitting sizes

• Removable, bolted mounting brackets for flexible fitment

• Designed for high-performance and swap applications

• Compatible with manual and automatic transmissions

Included

• Two 16AN fittings

• Two slip-on fittings

• Mounting brackets

• Bracket hardware

Specifications

• Size (without fans): 24" x 11.5" x 4.0"

• Size (with fans): 24" x 11.5" x 5.5"

• Overall length with brackets: 30.5"

• Core thickness: 2.25"

• End tank thickness: 3"

• Drain plug: 1/4 NPT

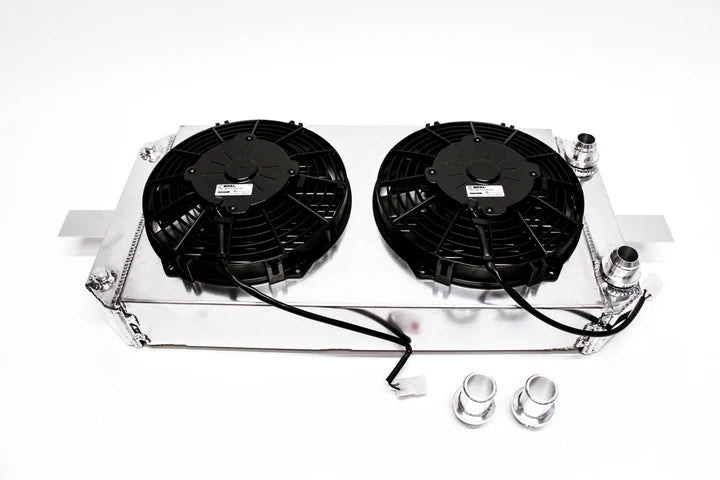

• Optional dual SPAL 9" fans available for increased airflow

Compatible Engines / Applications

• Honda / Acura B-Series (B20B, B20Z, B16A, B18C1, B18A, B18B, B18C5)

• Honda / Acura K-Series (K20, K24, K20A, K20Z)

• May also be used for other custom applications — verify dimensions before purchase

Installation Notes

• For universal or custom installations, use rubber grommets for vibration isolation

• Excessive vibration at brackets or mounting points can cause damage

• Professional installation recommended for custom-fit applications
