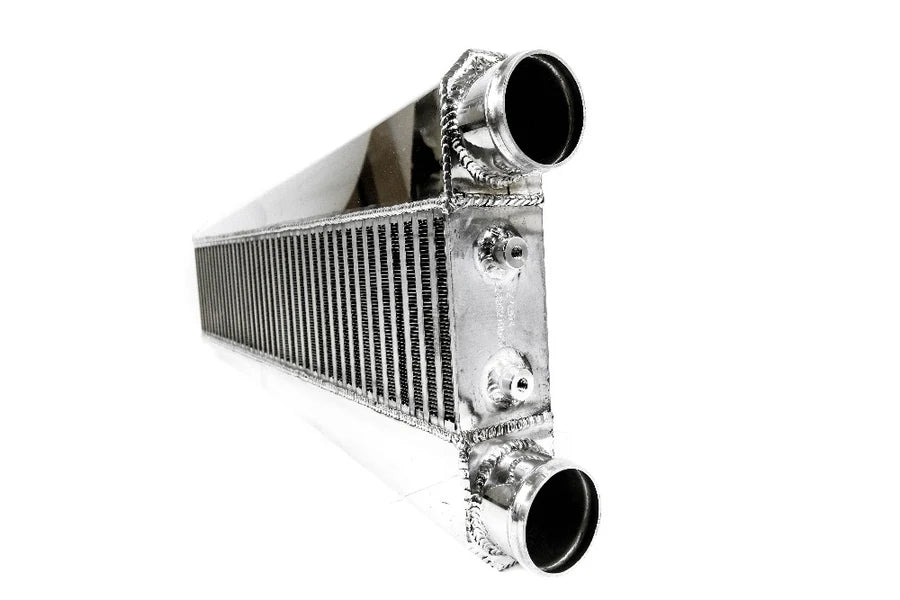

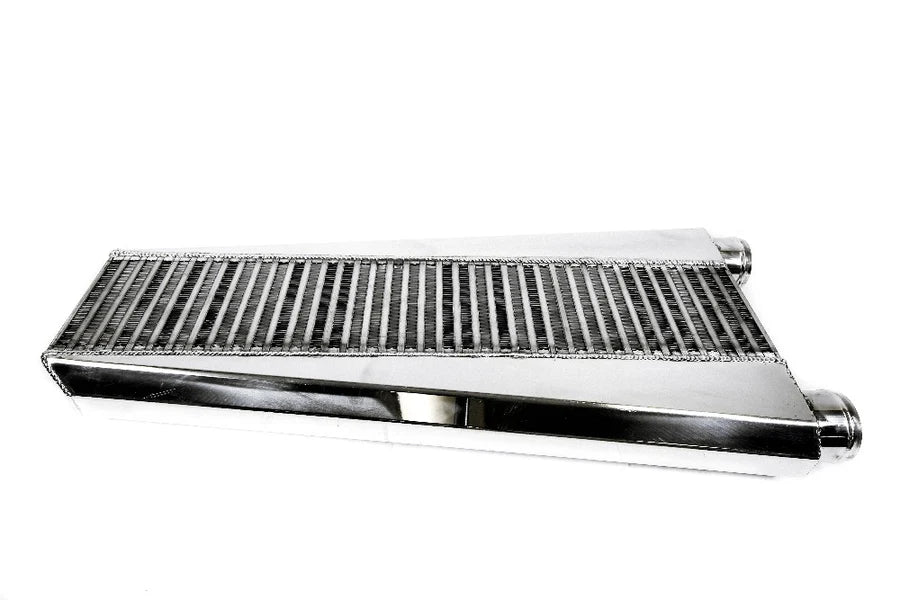

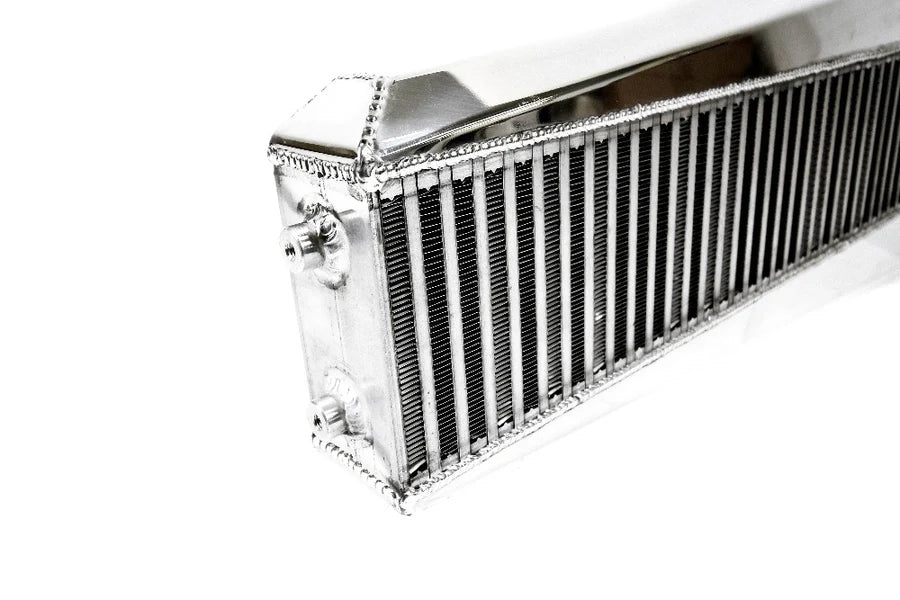

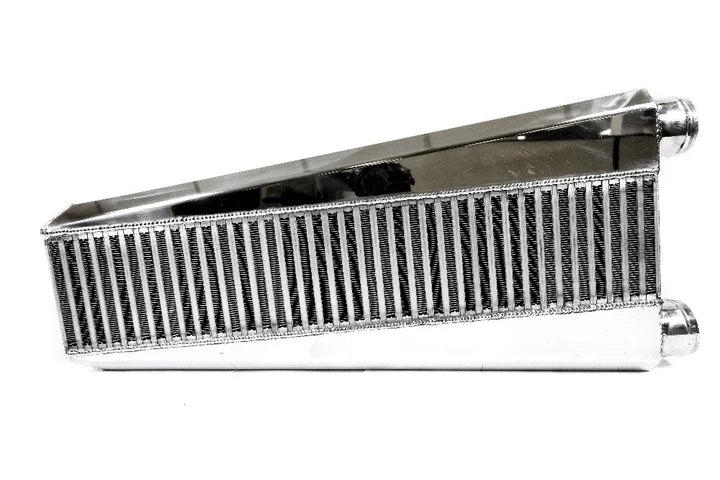

PLM Vertical Flow Intercooler – K-Series K20/K24

PLM Vertical Flow Intercooler – K-Series K20/K24

The PLM Vertical Flow Intercooler is engineered for high-performance K-Series builds, delivering exceptional cooling efficiency for turbocharged engines. With a robust bar-and-plate core design, this intercooler maximizes airflow, reduces intake charge temperatures, and supports 700+ horsepower, making it perfect for both track and street applications.

Built with the same precision and quality PLM is known for, this intercooler is the best value on the market for K-Series enthusiasts seeking reliable, consistent performance.

Key Features

• Core dimensions: 27" x 6" x 3"

• Air-to-air bar-and-plate construction for maximum efficiency

• Fully TIG welded, high-density core

• 2.5" inlet and 2.5" outlet

• Four mounting bungs for flexible installation

• Rated for up to 800HP

• Supports turbo applications where inlet/outlet are on the same side

Compatibility

• Honda/Acura K-Series K20 & K24 engines

• Acura RSX DC5 with K-Series turbo

• Honda Civic with K-Series turbo

• Acura Integra with K-Series turbo

Installation Notes

• Hardware, pipes, and hoses are not included

• Universal fitment for turbo setups with same-side inlet/outlet
