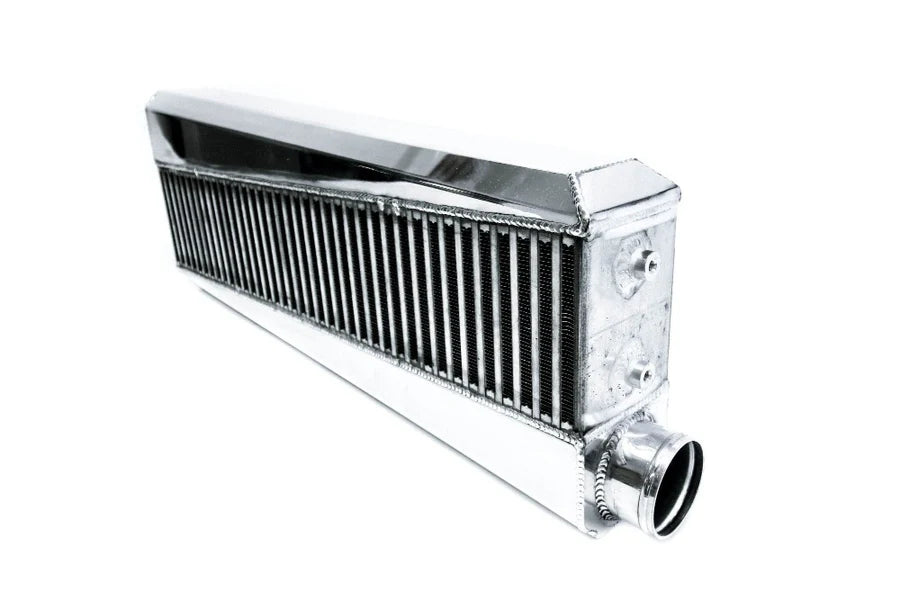

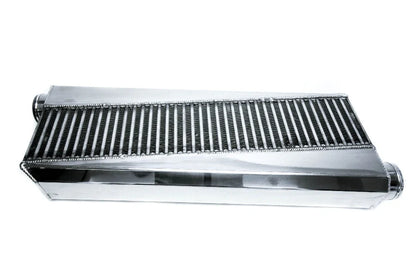

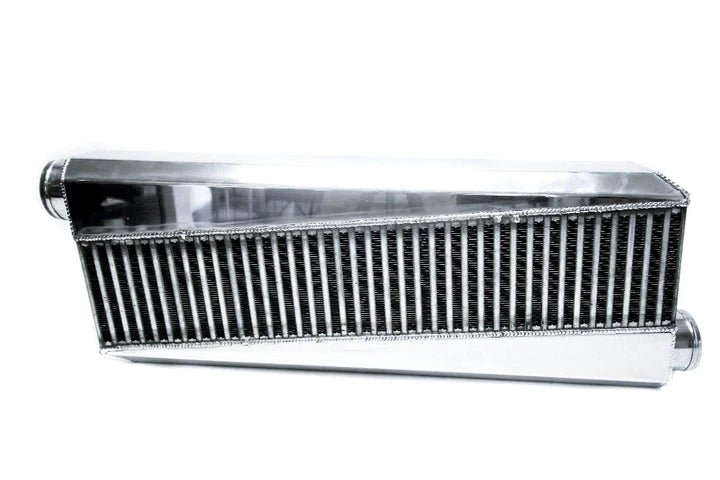

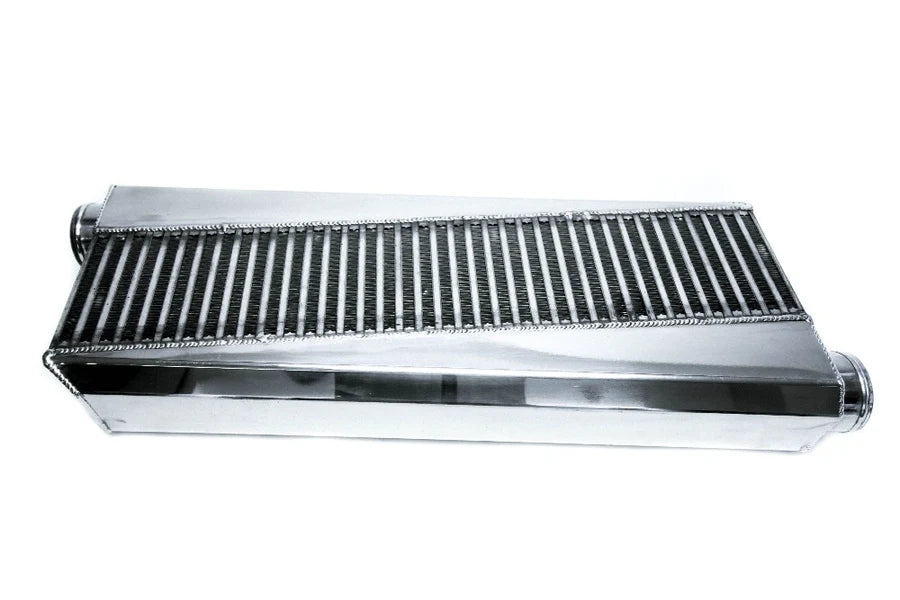

PLM Vertical Flow Intercooler XL For K-Series (Opposite Inlet / Outlet) UNIVERSAL

PLM Vertical Flow Intercooler XL For K-Series (Opposite Inlet / Outlet)

The PLM Vertical Flow Intercooler XL for K-Series engines with opposite-side inlet and outlet is engineered for high-horsepower turbo builds that demand maximum cooling efficiency and flexible piping layout. This extra-large vertical flow design places the inlet and outlet on opposite sides, making it ideal for custom turbo systems where routing requires a cross-flow configuration.

Built with a massive 4.5-inch thick bar-and-plate core, this intercooler delivers excellent heat dissipation and consistent charge air cooling under high boost. The increased core volume helps reduce intake air temperatures, supporting stronger and more reliable power output in demanding performance applications.

Constructed from high-quality aluminum and fully TIG welded, this unit is designed to handle extreme conditions while maintaining durability and structural integrity.

Key Features

• Extra large vertical flow intercooler design

• Opposite-side inlet and outlet configuration

• Large bar-and-plate core for superior cooling efficiency

• High-density intercooler core construction

• Fully TIG welded for strength and durability

• Dual 3.0-inch inlet and outlet ports

• Four integrated mounting bungs

• Rated for high-horsepower turbo applications

• Designed for consistent performance under high boost

Core Size

• 27" x 6" x 4.5"

Applications

• Honda K-Series K20 / K24 turbo setups

• Acura RSX DC5 turbo builds

• Honda Civic K-Series turbo builds

• Acura Integra K-Series turbo builds

• Turbo systems requiring opposite-side inlet and outlet routing

Universal Use

This intercooler can also be used in custom universal turbo applications where space, piping direction, and mounting allow.

Notes

• Hardware is not included

• Intercooler piping and hoses are not included

• Professional fabrication or custom piping may be required for some setups
