REV9 Hyper-Street II Coilover Kit Subaru Forester (SH) 2009–2013

REV9 Hyper-Street II Coilover Kit

Subaru Forester (SH) 2009–2013

32-Way Damping Force Adjustment

Overview:
The REV9 Hyper-Street II Coilover Suspension Kit for the Subaru Forester (SH) is engineered for drivers seeking improved handling, reduced body roll, and a refined lowered stance without sacrificing daily comfort. Built around a mono-tube shock design with 32-way rebound adjustment, this system allows precise suspension tuning for both street-driven vehicles and spirited performance use.

Featuring full-length height adjustment and independent spring preload, the Hyper-Street II kit enables proper lowering while maintaining spring tension and ride quality—making it an excellent balance between performance and practicality.

Key Features & Benefits

32-Way Rebound Damping Adjustment
Allows fine tuning of suspension response to match comfort-focused street driving or firmer performance-oriented setups.

Mono-Tube Shock Design
Provides increased oil and gas capacity for improved heat dissipation, damping consistency, and long-term reliability.

Full-Length Height Adjustment
Lowers the vehicle correctly without compromising spring preload or suspension geometry.

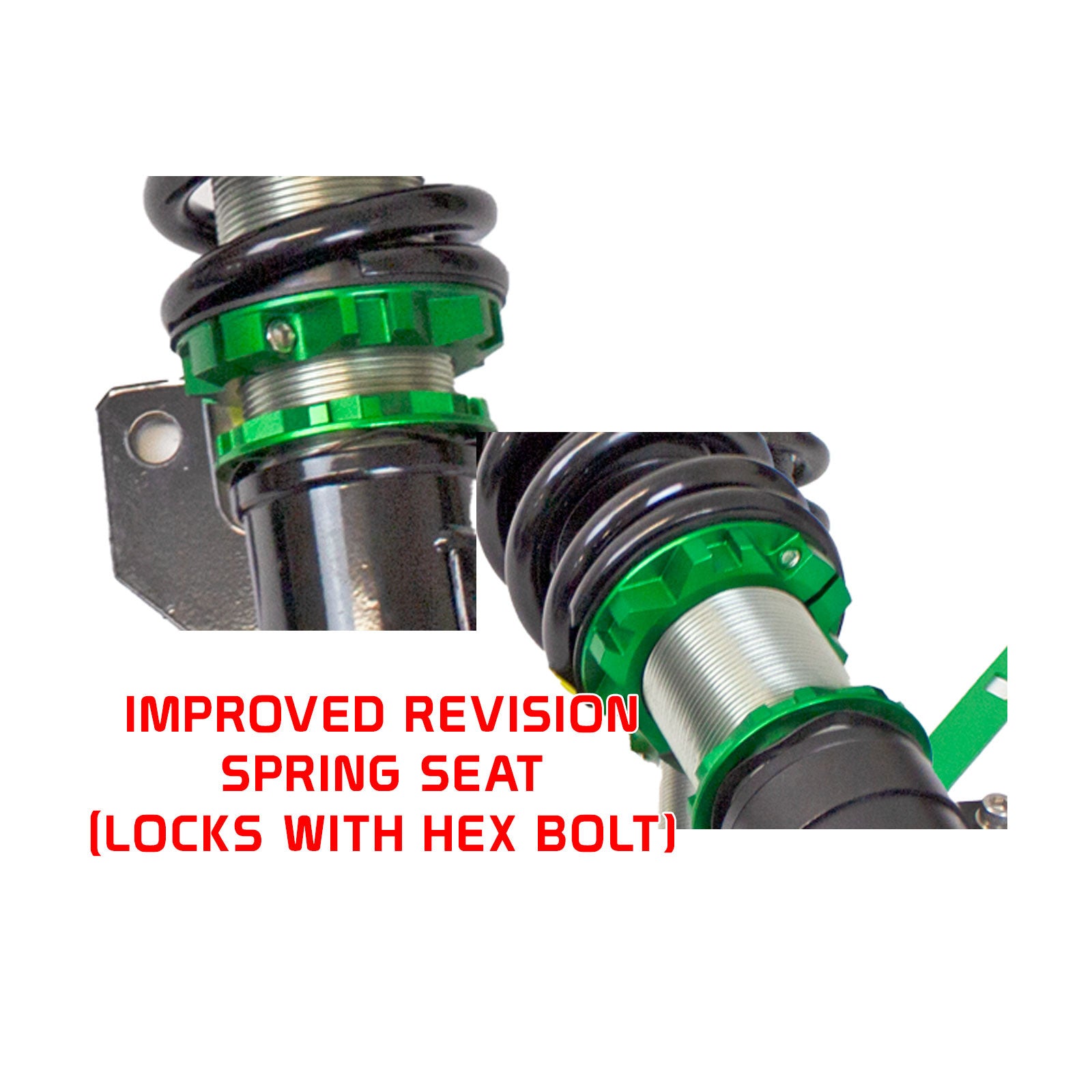

Independent Spring Preload Adjustment
Enables stiffness adjustments without altering ride height.

Durable Steel & Aluminum Construction
Manufactured with full steel alloy shock bodies and aluminum hardware for strength, corrosion resistance, and longevity.

Vehicle Compatibility

• Subaru Forester (SH)
  2009–2013

Technical Specifications

• Damping Adjustment: 32-Level Rebound Adjustable

• Ride Height Adjustment: Yes

• Front Spring Rate: 8 kg/mm (448 lbs/in)

• Rear Spring Rate: 6 kg/mm (336 lbs/in)

• Front Spring Length: 200 mm

• Rear Spring Length: 200 mm

• Front Top Mount: Pillow Ball with Camber Plate

• Rear Top Mount: Standard Type

• Spring Inner Diameter (Front): 62 mm (2.44 in)

• Spring Inner Diameter (Rear): 62 mm (2.44 in)

Installation Notes

• Professional installation and alignment are recommended

• Verify all hardware prior to installation

• Designed for performance-oriented lowered setups

Warranty

• 365-Day Limited Manufacturer Warranty

• Proof of purchase required

• Warranty is non-transferable
