REV9 Hyper-Street II Coilover Kit – Toyota Prius V (ZVW41) 2012–2018

REV9 Hyper-Street II Coilover Kit – Toyota Prius V (ZVW41) 2012–2018

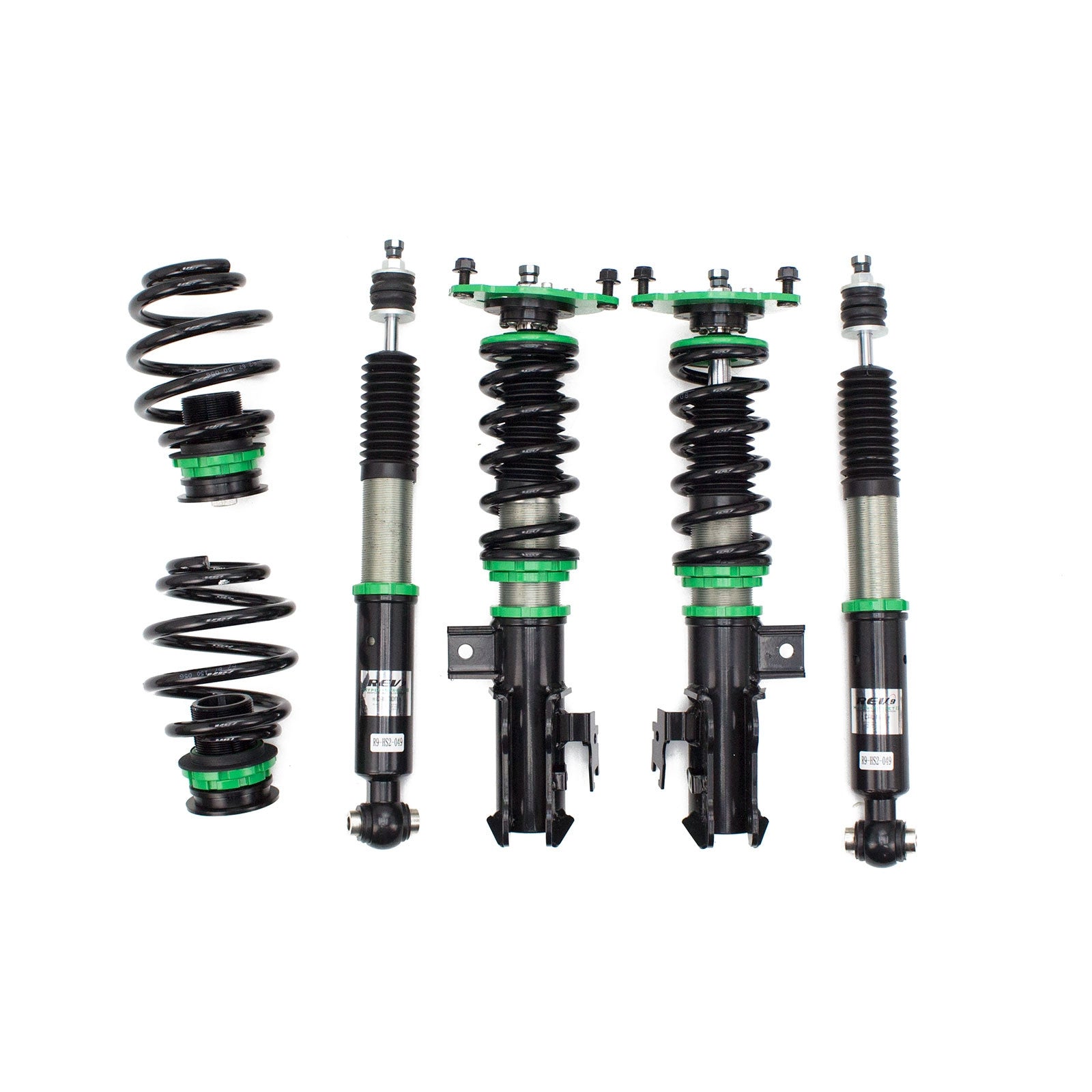

The REV9 Hyper-Street II Coilover Kit is a performance suspension solution designed specifically for the Toyota Prius V (ZVW41) 2012–2018, offering improved handling, ride quality, and adjustability while preserving daily driving comfort. Developed using mono-tube shock technology, this coilover set delivers superior damping consistency thanks to its larger internal volume for oil and gas compared to conventional twin-tube designs.

One of the standout features is its 32-click rebound adjustment, which allows you to fine-tune the shock’s rebound force to match your driving style, road conditions, or wheel setup. The system also offers full-length height adjustability, allowing for a lower ride height without sacrificing spring tension or ride comfort. This is achieved by independent spring tension adjustment—giving you the freedom to dial in stiffness without altering the car’s stance.

Built from durable steel alloy components with anodized aluminum hardware, the REV9 Hyper-Street II coilovers are designed to stand up to the rigors of everyday driving. For precise handling, the front struts include pillow-ball top mounts with built-in camber plates, while the rear units reuse the factory mounts for ease of installation and compatibility.

Specifications & Features

• Mono-tube shock design for better damping performance

• 32-level rebound force adjustment

• Full-length height adjustment without changing spring preload

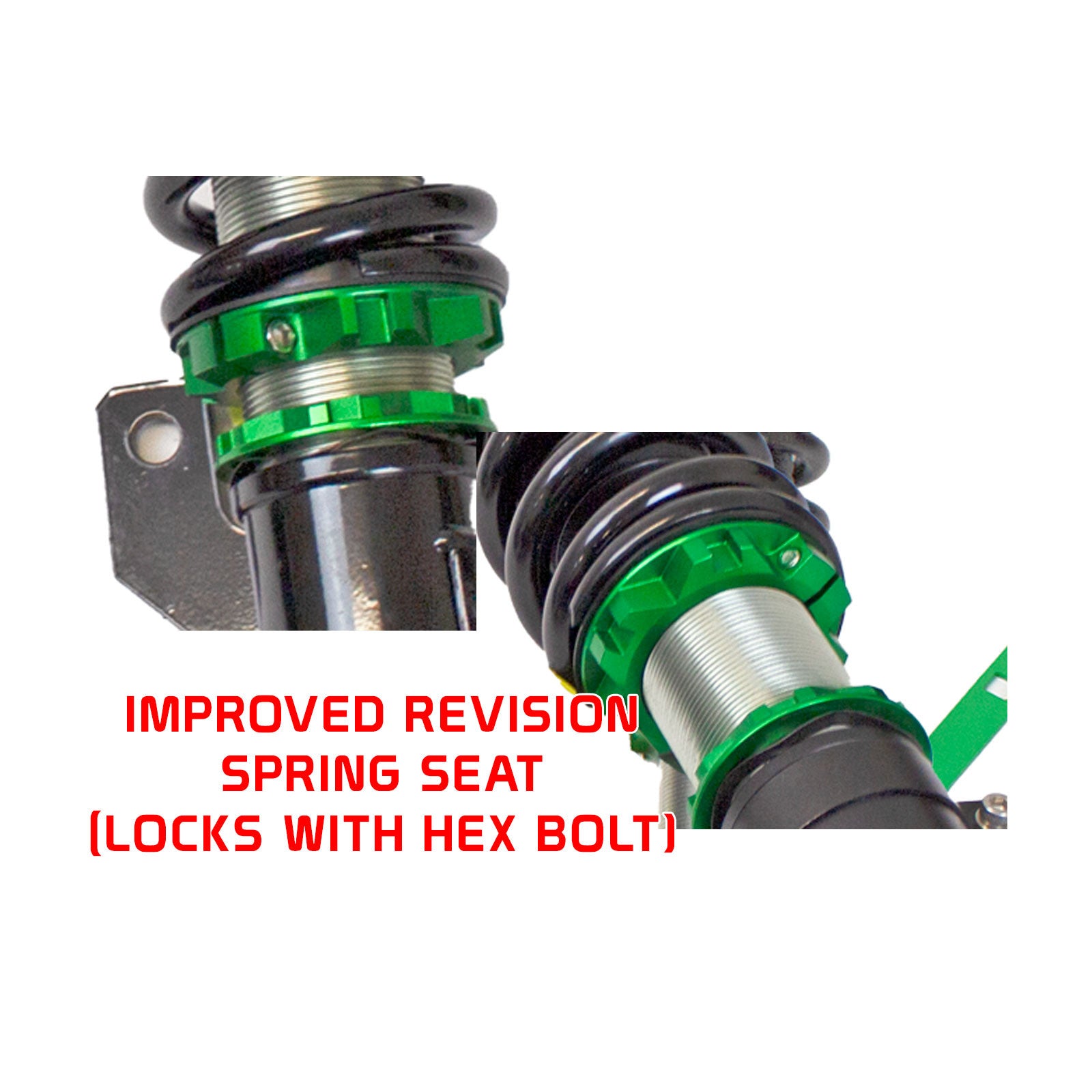

• Independent spring tension for custom ride feel

• Steel alloy body construction, durable and lightweight

• Anodized aluminum top hardware and mounts

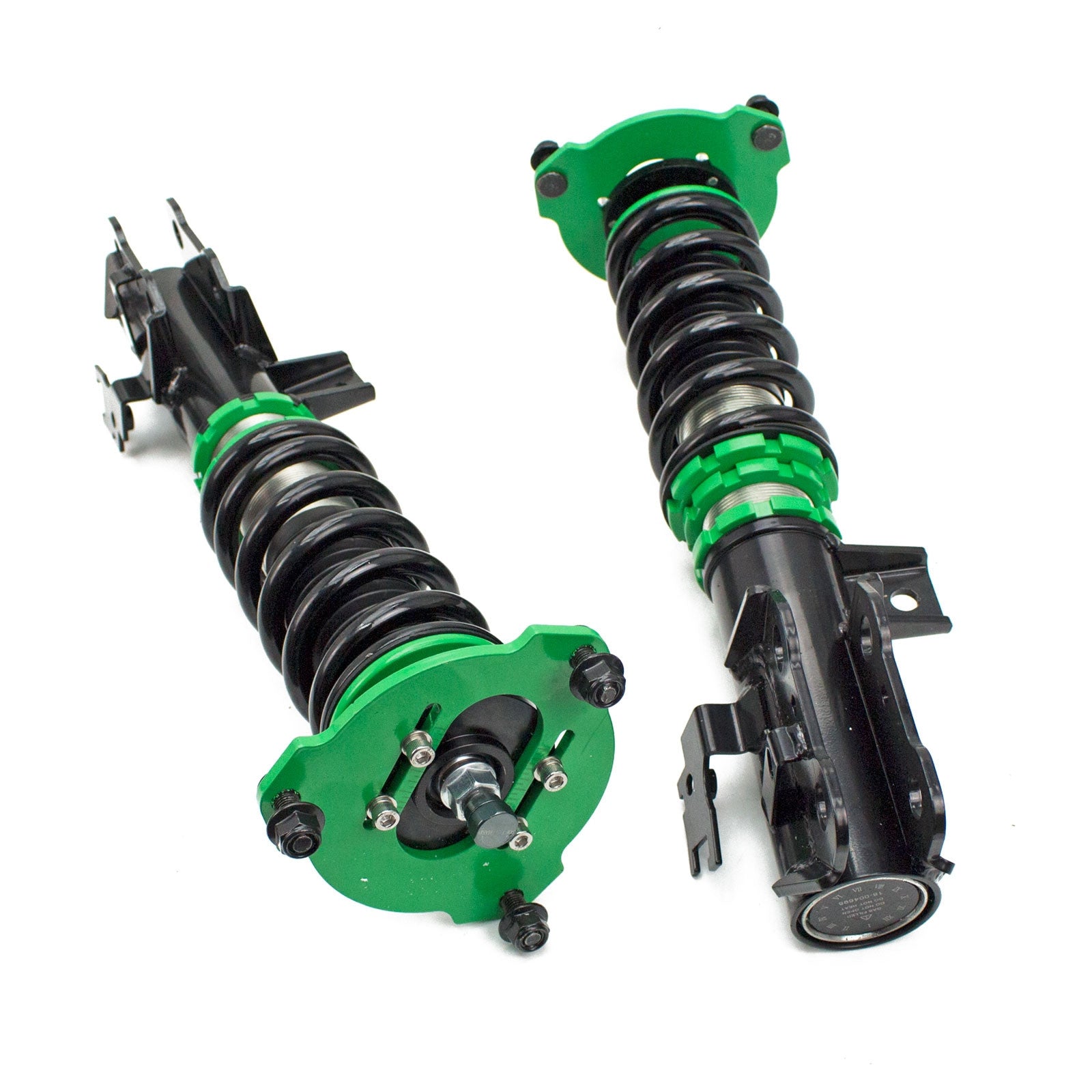

• Front pillow-ball top mounts with camber correction capability

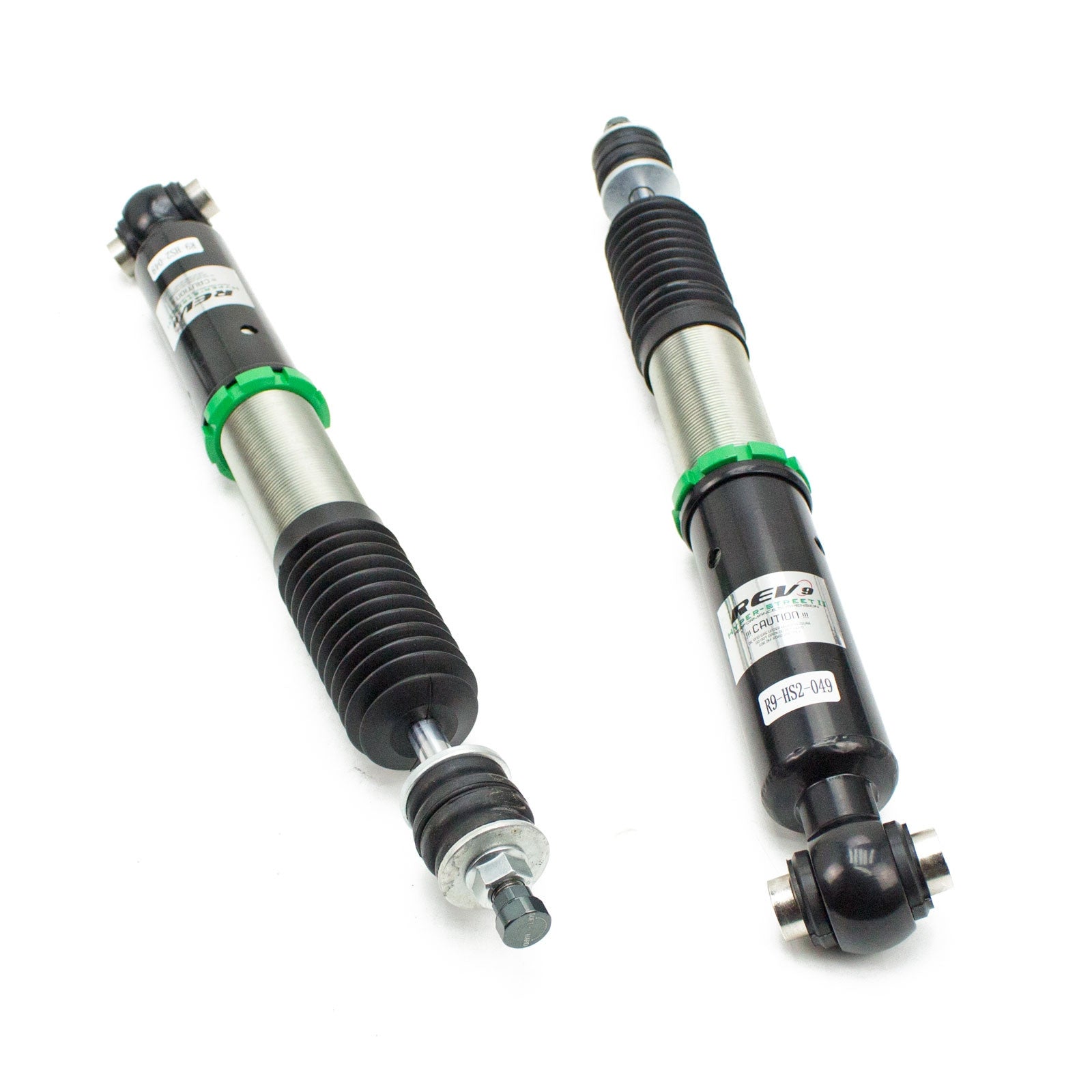

• Factory-compatible rear mounts

Spring Details

• Front spring rate: 6 kg/mm (336 lb/in)

• Rear spring rate: 4 kg/mm (224 lb/in)

• Front spring length: 180 mm

• Rear spring length: 150 mm

• Spring inner diameter (front): 62 mm

• Spring inner diameter (rear): 62–67 mm

Vehicle Fitment

• 2012–2018 Toyota Prius V (ZVW41)

Important Notes

• Damping levels: 32 clicks

• Fully adjustable height: Yes

• Warning (California): This product contains nickel, which is known to cause cancer and reproductive harm. Visit www.P65Warnings.ca.gov for details.

• REV9 suspension products are designed for closed-course and off-highway use only. Please verify local laws before modifying your vehicle.
