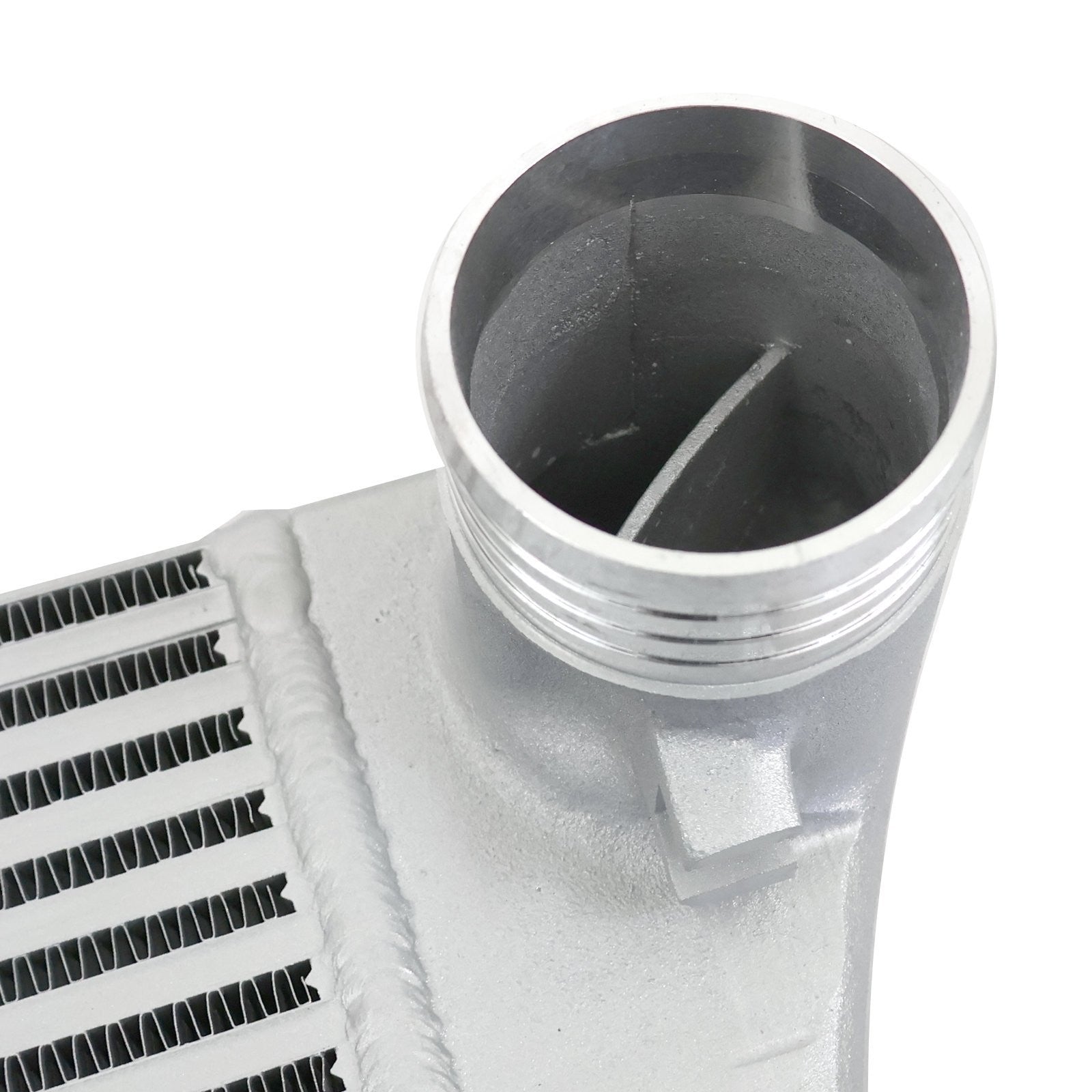

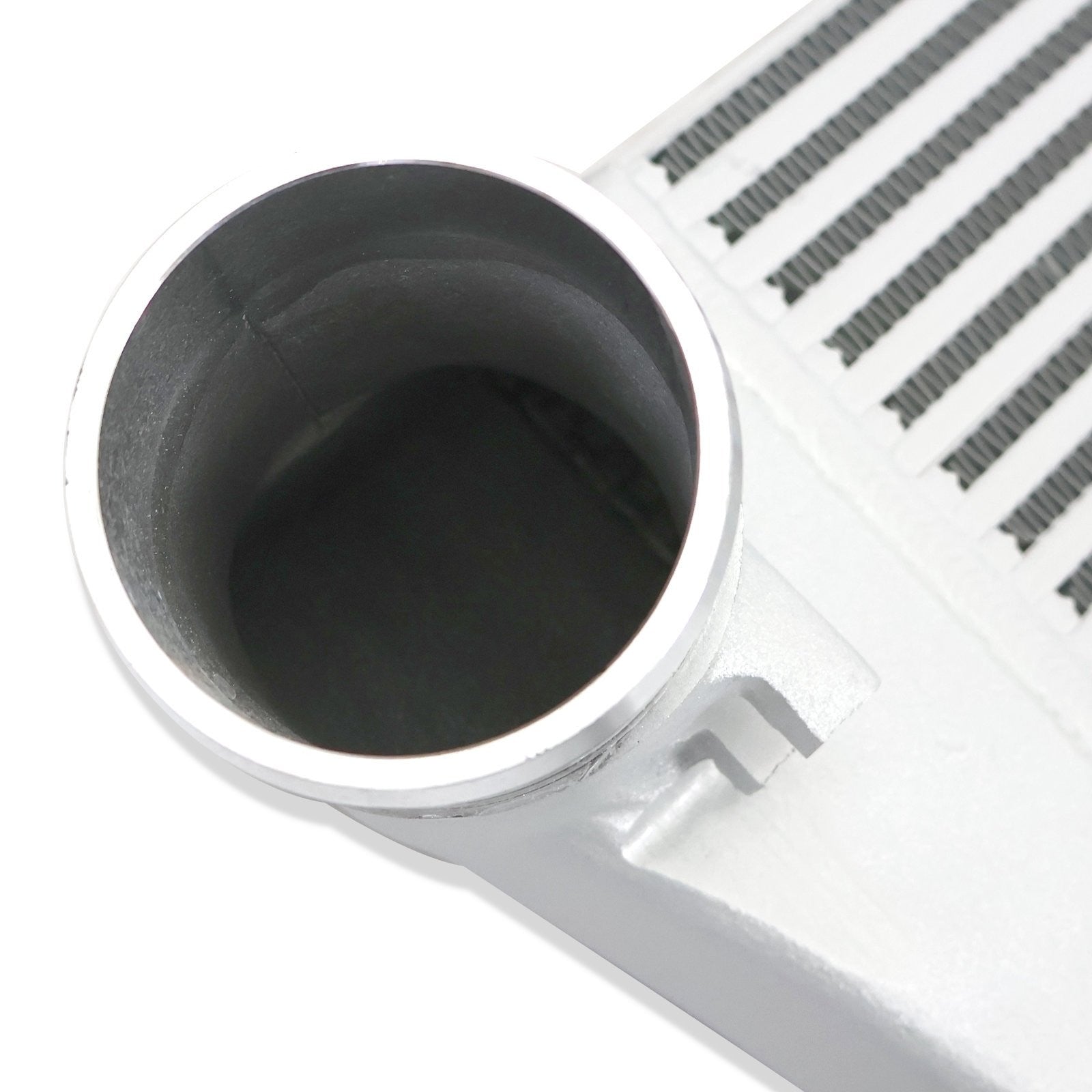

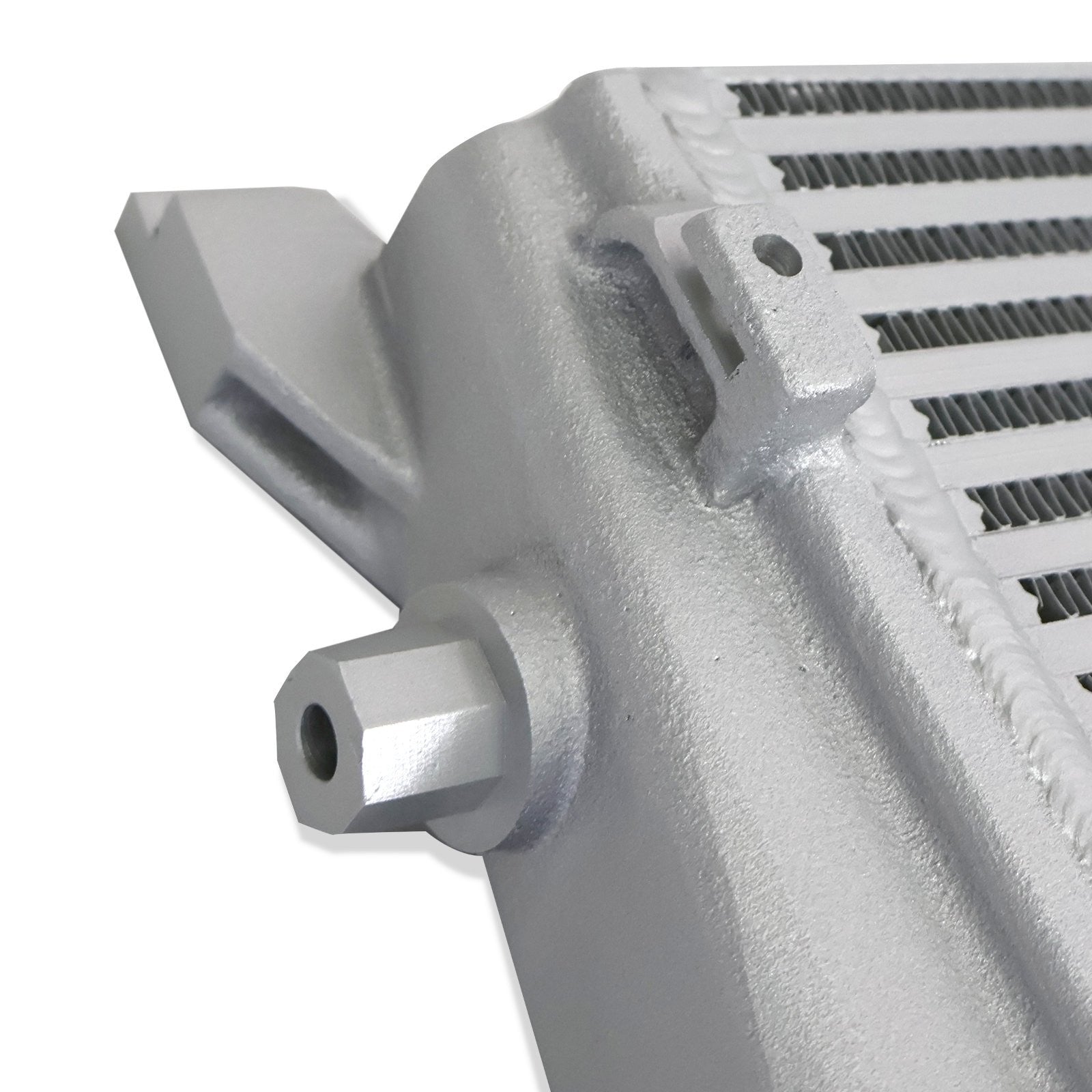

Rev9 Race-Spec Front Mount Intercooler Upgrade Kit – Audi A3 / A3 Quattro / S3 (8Y) 2.0 TSI 2022–2025

Rev9 Race-Spec Front Mount Intercooler Upgrade Kit – Audi A3 / A3 Quattro / S3 (8Y) 2.0 TSI 2022–2025

SKU: ICK-161_4

Unlock the full performance potential of your Audi A3, A3 Quattro, or S3 (8Y) 2.0 TSI with the Rev9 Race-Spec Front Mount Intercooler Kit. Designed for enthusiasts pushing beyond factory limits, this upgrade significantly reduces intake air temperatures and eliminates power loss caused by heat soak—delivering consistent performance whether on the street or track.

With a massive 88% increase in core volume, this intercooler allows your engine to breathe cooler, denser air—resulting in noticeable gains in horsepower, torque, and throttle response. Built to support up to 700HP, it’s engineered to grow with your setup, from basic bolt-ons to full big turbo builds.

Key Features

• 88% larger core volume vs. factory intercooler
• Supports builds up to 700HP
• High-efficiency bar-and-plate core design
• Full aluminum construction with precision TIG welds
• Anti-corrosion coating for long-term durability
• Includes 4-ply silicone hoses and heavy-duty clamps
• Reduces heat soak and improves overall engine efficiency

Vehicle Fitment

• Audi A3 (8Y) 2.0 TSI: 2022–2025
• Audi A3 Quattro (8Y) 2.0 TSI: 2022–2025
• Audi S3 (8Y) 2.0 TSI: 2022–2025
• Fits all trims

Technical Specifications

• Core Type: Bar & Plate High-Efficiency
• Core Dimensions: 25" x 17.25" x 2.5"
• Inlet / Outlet Size: 2.5"
• Total Span: Approx. 34.5" end-to-end

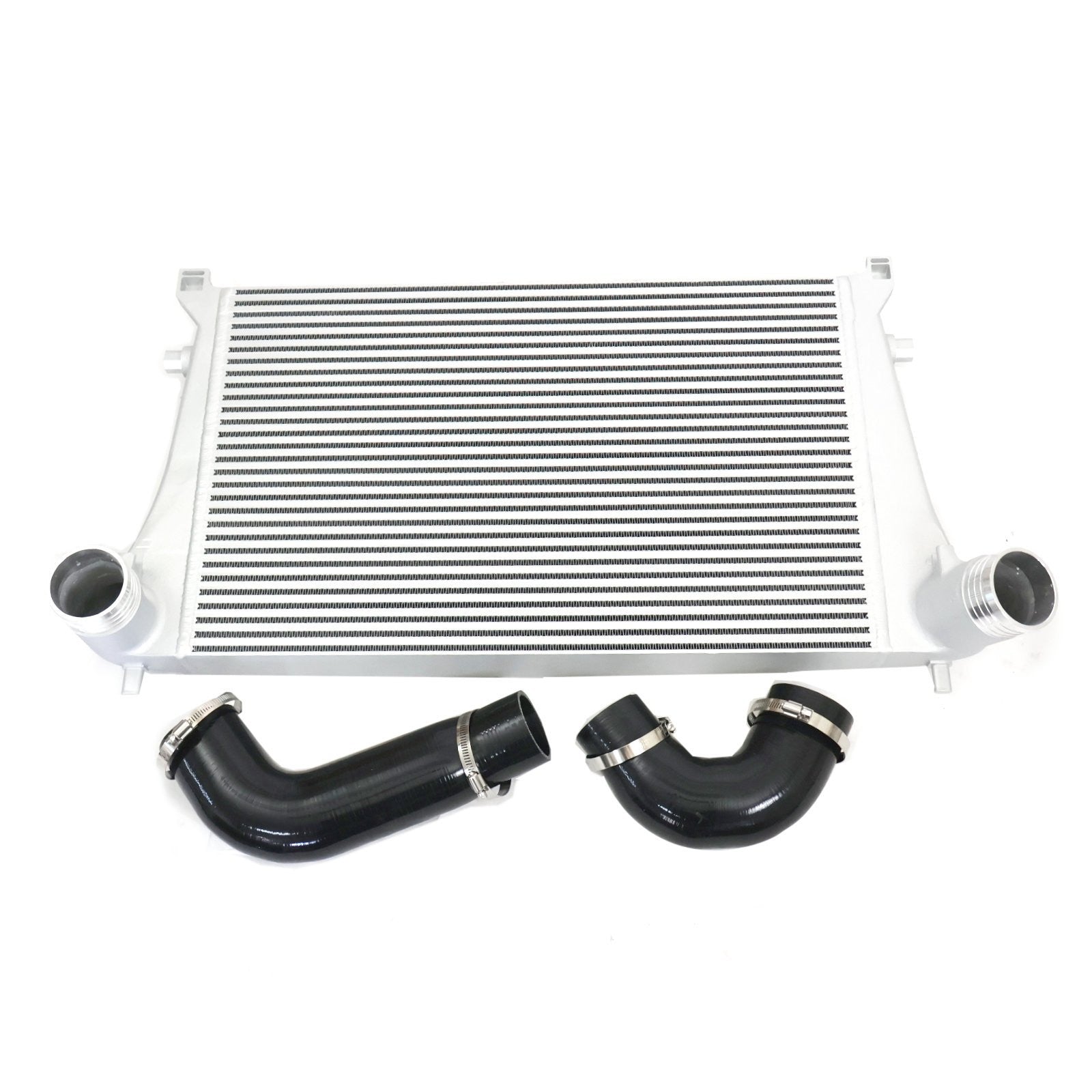

What’s Included

• (1) Rev9 Race-Spec Aluminum Intercooler
• (2) High-performance 4-ply silicone hoses
• (2) Stainless steel clamps (50–70mm)
• (2) Stainless steel clamps (60–80mm)

Installation Notes

Due to the significantly larger core size, minor trimming or modification of factory plastic brackets may be required to ensure a proper and secure fit.
