Rev9 Race-Spec Front Mount Intercooler Upgrade Kit – Volkswagen Arteon 2.0 TSI (3H8) 2022–2023

Rev9 Race-Spec Front Mount Intercooler Upgrade Kit – Volkswagen Arteon 2.0 TSI (3H8) 2022–2023

SKU: ICK-161_3

Maximize the performance of your Volkswagen Arteon R-Line 2.0 TSI (3H8) with the Rev9 Race-Spec Front Mount Intercooler Kit. Designed to combat heat soak and deliver consistent power, this upgrade is essential for drivers pushing their vehicle beyond factory limitations.

The factory intercooler is built for comfort and efficiency—not performance. Under hard driving or high temperatures, it quickly becomes heat-soaked, reducing power output. The Rev9 Race-Spec system solves this by increasing core volume by an impressive 88%, allowing significantly cooler intake air temperatures and delivering noticeable gains in horsepower, torque, and throttle response.

Built to support up to 700HP, this intercooler is ready for anything from daily driving with bolt-ons to aggressive turbo upgrades.

Key Features

• 88% larger core volume compared to OEM intercooler
• Rated to support up to 700HP builds
• High-efficiency bar-and-plate core design
• Durable full aluminum construction with TIG welds
• Anti-corrosion coating for long-term reliability
• Includes 4-ply silicone hoses and heavy-duty clamps
• Reduces intake air temperatures and eliminates heat soak

Vehicle Fitment

• Volkswagen Arteon R-Line 2.0 TSI (3H8): 2022–2023
• Designed specifically for R-Line models

Technical Specifications

• Core Type: Bar & Plate High-Efficiency
• Core Dimensions: 25" x 17.25" x 2.5"
• Inlet / Outlet Size: 2.5"
• Total Span: Approx. 34.5" end-to-end

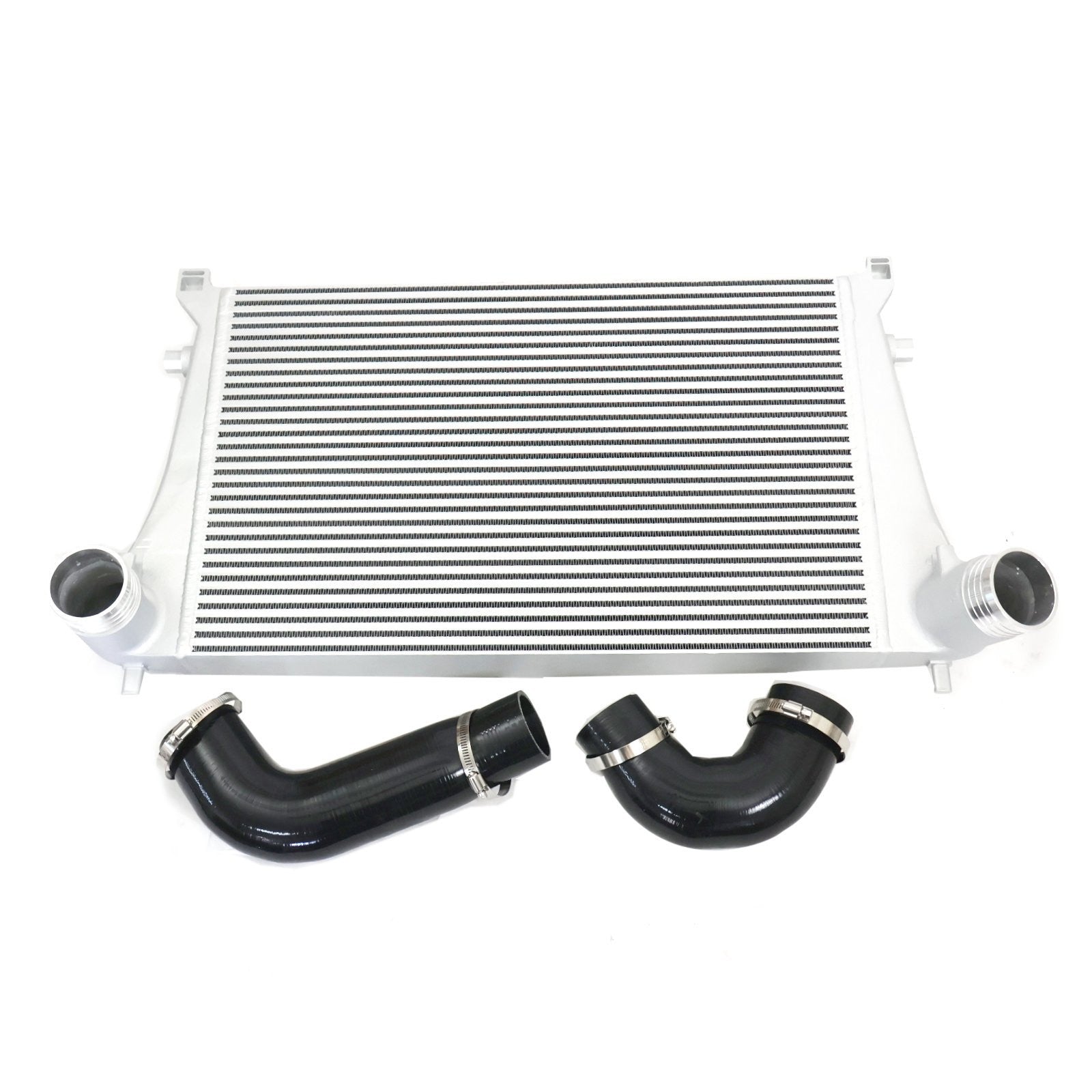

What’s Included

• (1) Rev9 Race-Spec Aluminum Intercooler
• (2) High-performance 4-ply silicone hoses
• (2) Stainless steel clamps (50–70mm)
• (2) Stainless steel clamps (60–80mm)

Installation Notes

Due to the significantly larger core design, minor trimming or modification of factory plastic brackets may be required for proper installation and fitment.
